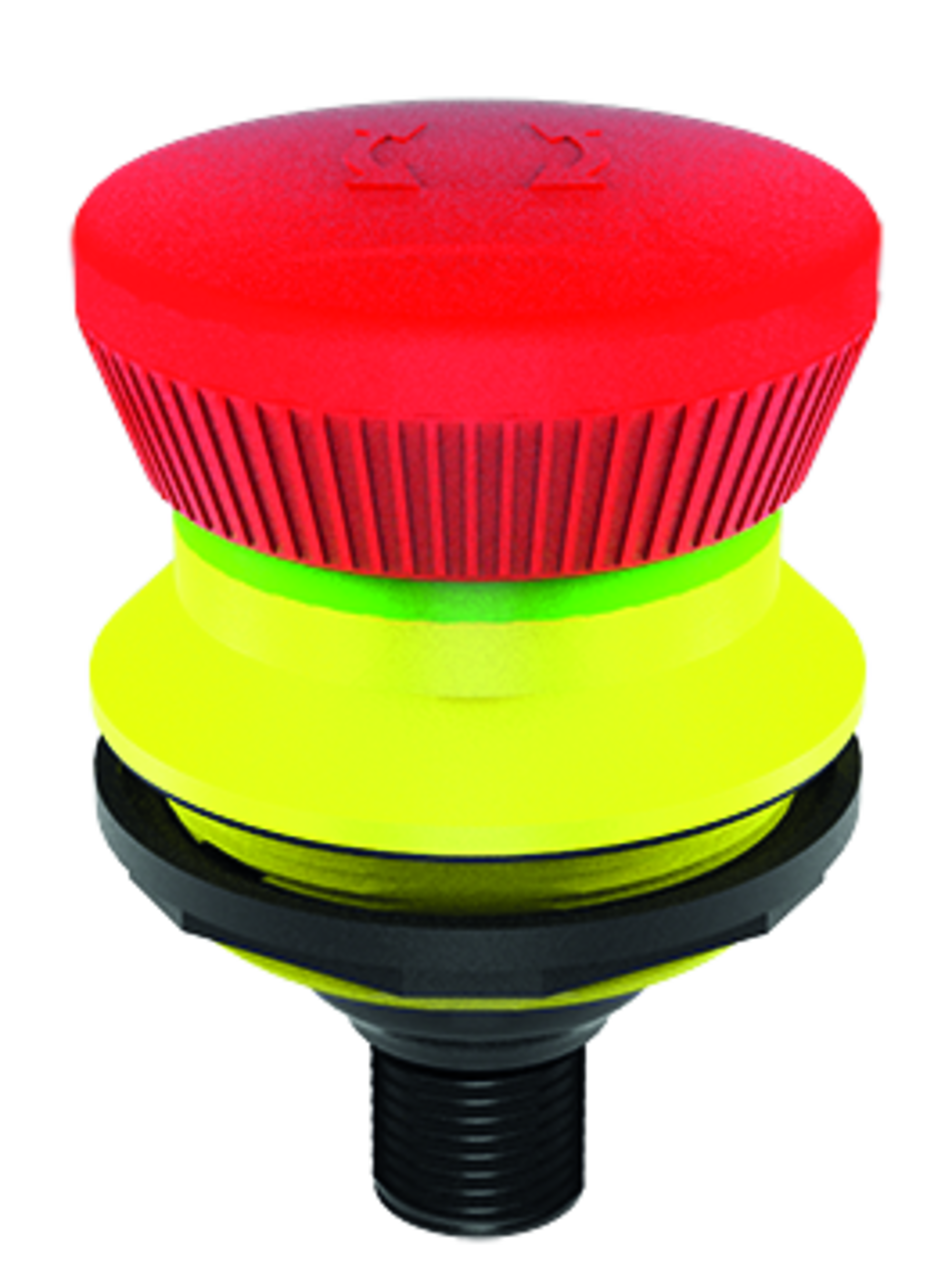

KRVKOO_C001 - Emergency stop with M12 connection 4-pin - installation opening Ø30.5mm

Series

KOMBITAST® connect

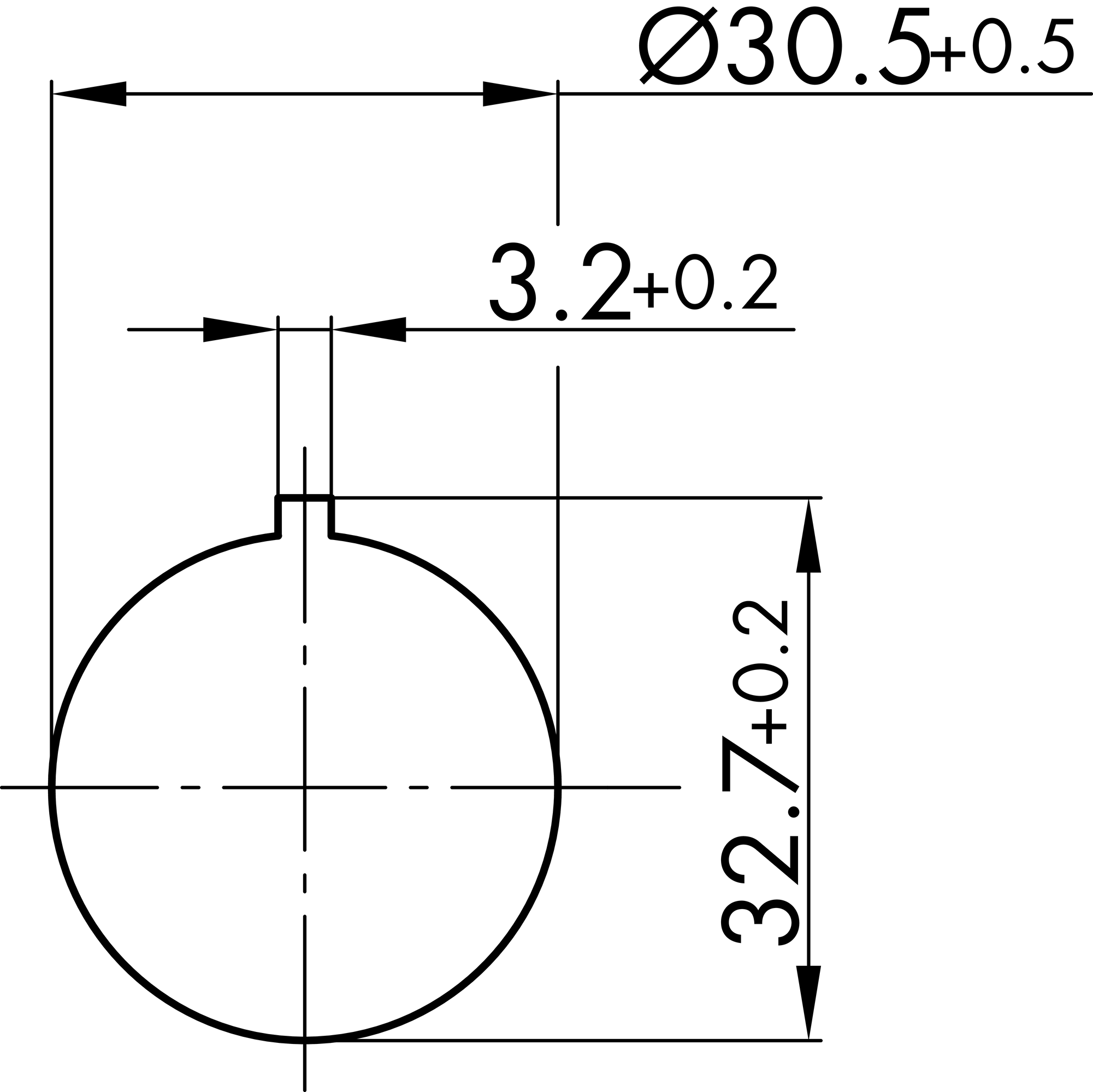

Mounting aperture

Ø 30.5 mm

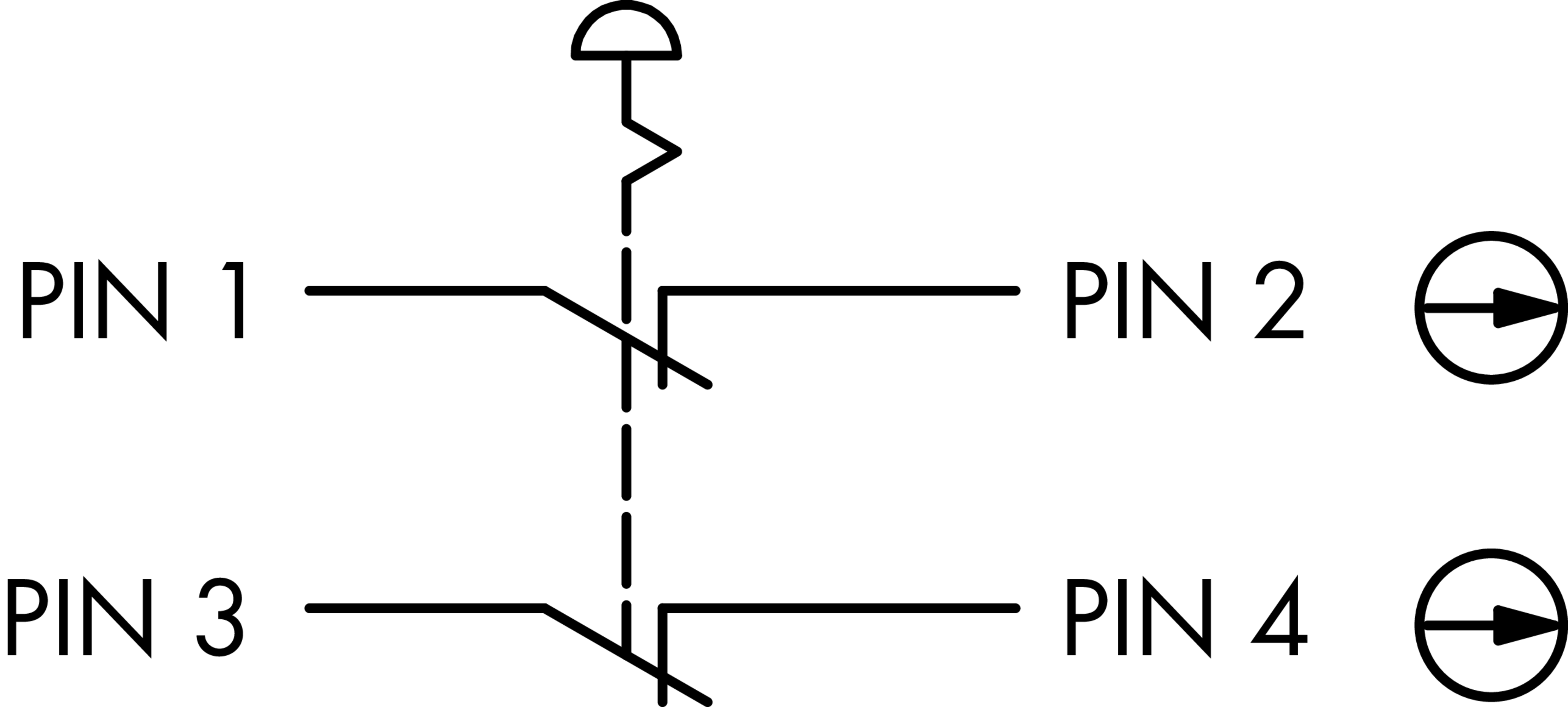

Contact type

2NC

Connection

M12

Illumination

Front bezel colour

Yellow

Colour actuator

red

Shape

round

Degree of protection front

IP65

Operating temperature

-25°C ... 70°C

Storage temperature

-40°C ... 80°C

Rated operating voltage

35 V AC
35 V DC

Rated operating current

4 A AC
2 A DC

Rated insulation voltage IEC/EN 60947-5-1

250 V AC
250 V DC

Rated impulse voltage

2,5 kV

Mechanical life

50,000 switching cycles

Electrical life

50,000 switching cycles at rated voltage

Approvals

TÜV_Süd , cURus , CE, UKCA

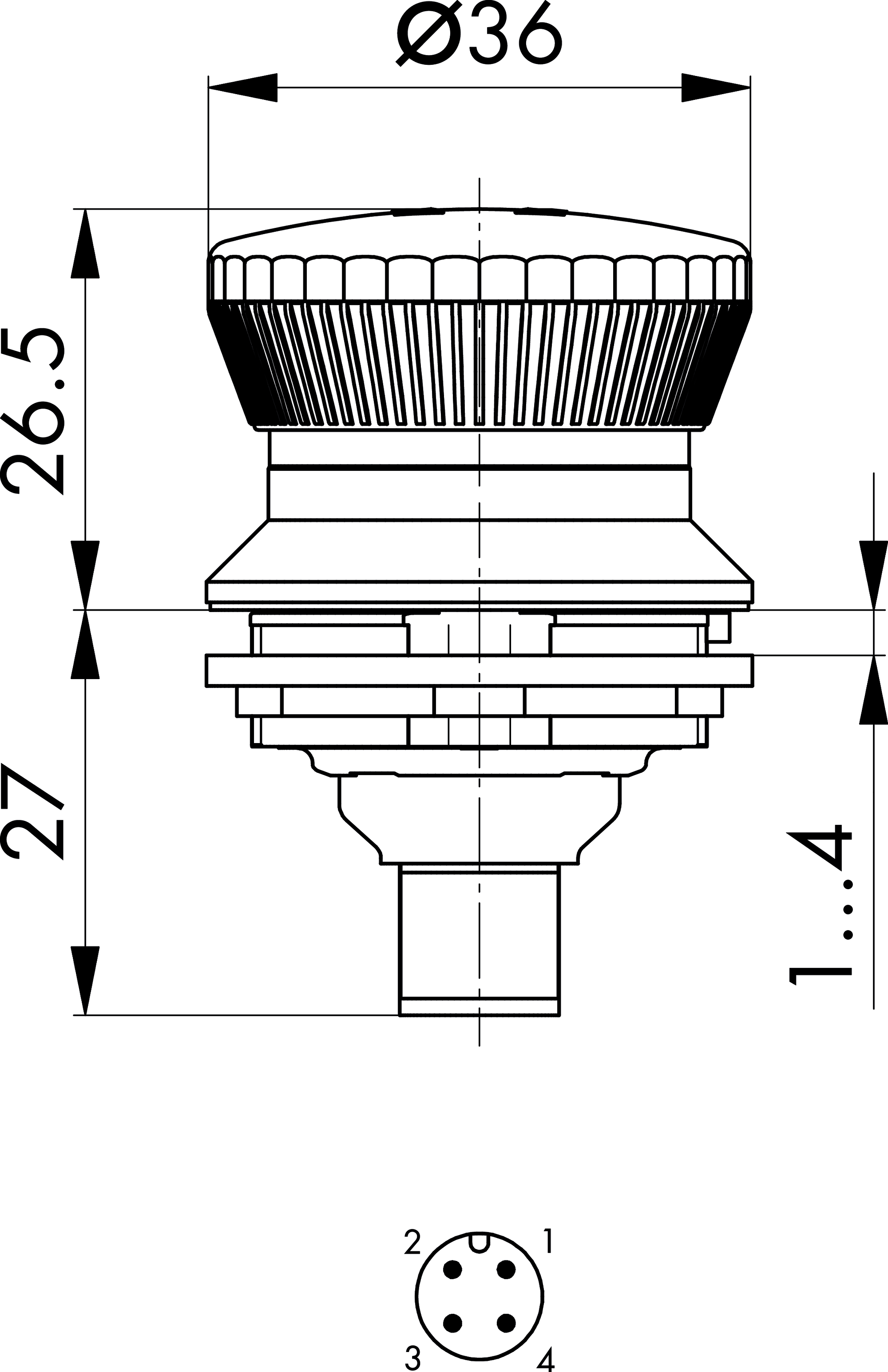

Technical sketches
