MKTO - Modular contact block, momentary

Series

Kontaktgeber MK...

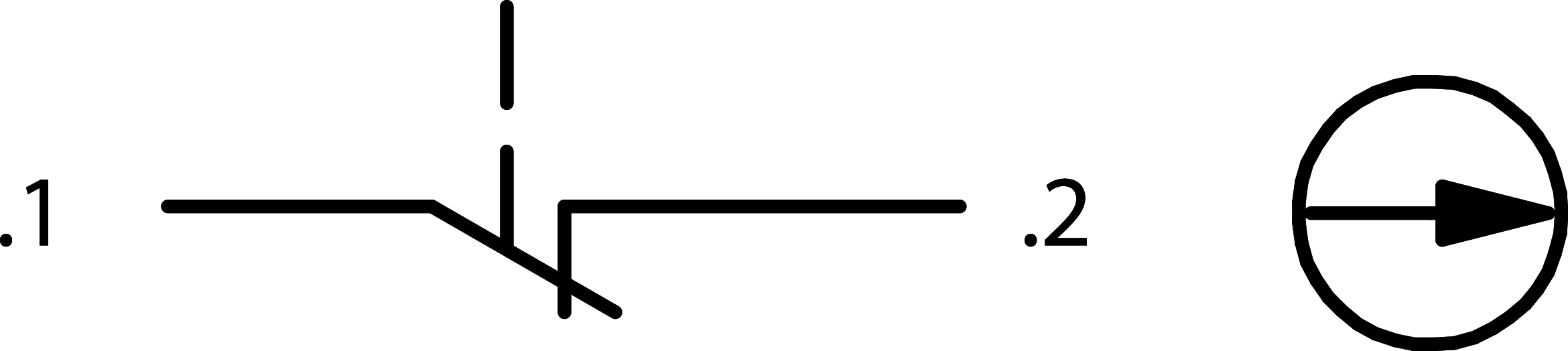

Contact type

1NC

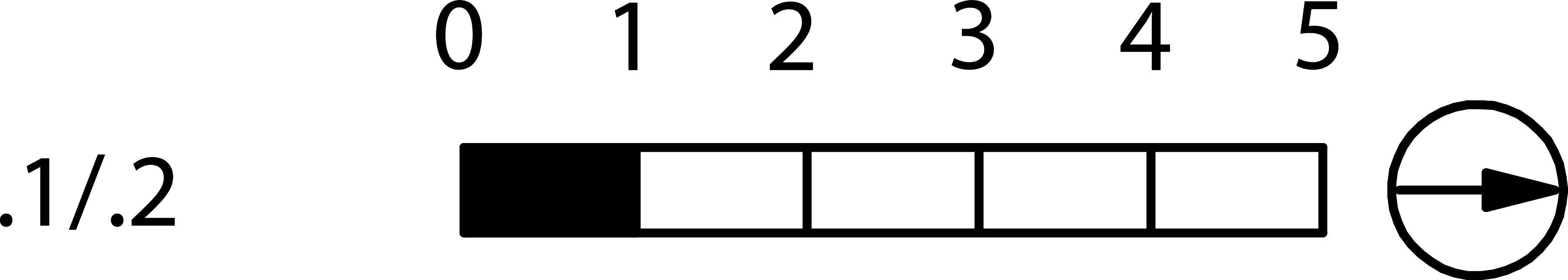

Switching function

Momentary function

Connection

Screw connection

Illumination

Degree of protection front

IP20

Operating temperature

-40°C ... 70°C ohne Beleuchtung
-40°C ... 70°C bei LED-Beleuchtung

Rated operating voltage

240 V AC
480 V AC
24 V DC
60 V DC
125 V DC
250 V DC

Rated operating current

3 A DC
2 A DC
1.5 A DC
1 A DC
0.4 A DC
0.2 A DC

Mechanical life

> 1,000,000 switching cycles
max. 50.000 Schaltspiele Not-Halt

Approvals

CE, UKCA

Material

PA66

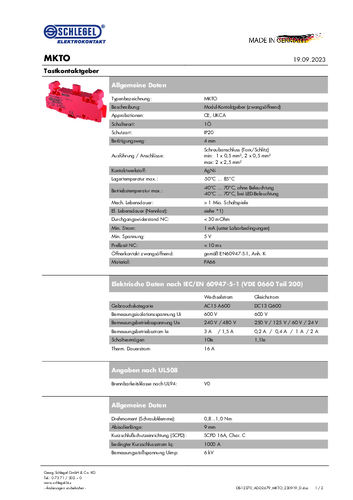

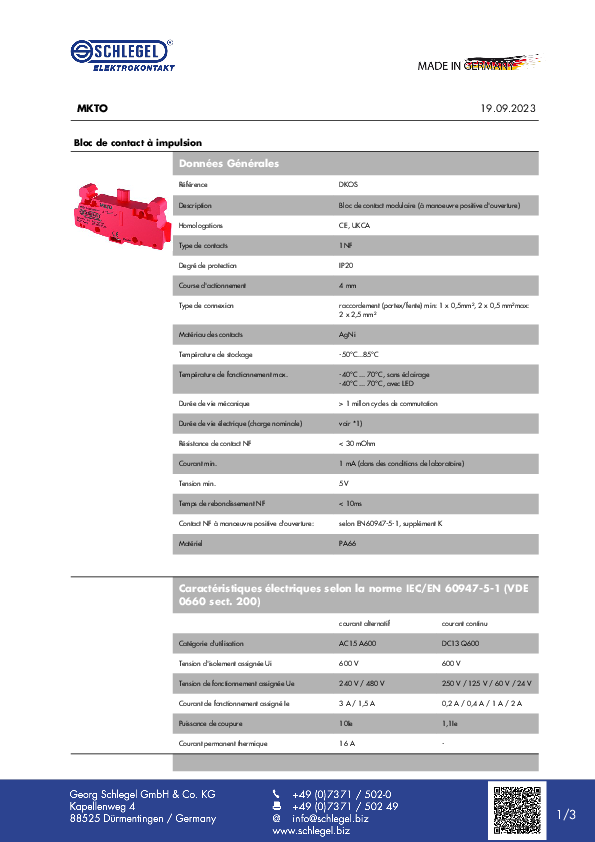

Downloads
