MTIV - Modular contact block, momentary

Series
Contact blocks M...
Approvals
DNVGL , cULus , CCC , CSA , ENEC05 , CE , KEMA , UKCA
Mechanical life
1,000,000 switching cycles
Switching function
Momentary function
Rated insulation voltage IEC/EN 60947-5-1
600 V AC
600 V DC
Protection class
II (protective insulation)
Connection
Schraubanschluss
Electrical life
1,000,000 switching cycles at rated load
Operating temperature
-30°C ... 55°C bei Glühlampenbeleuchtung
-30°C ... 65°C bei LED-Beleuchtung
Degree of protection front
IP20
Storage temperature
-50°C ... 85°C
Illumination
no
Rated operating voltage
440 V AC
250 V DC
24 V DC
125 V DC
240 V AC
60 V DC
400 V DC
Rated operating current
3 A AC
1.6 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
0.12 A DC
Technical sketches

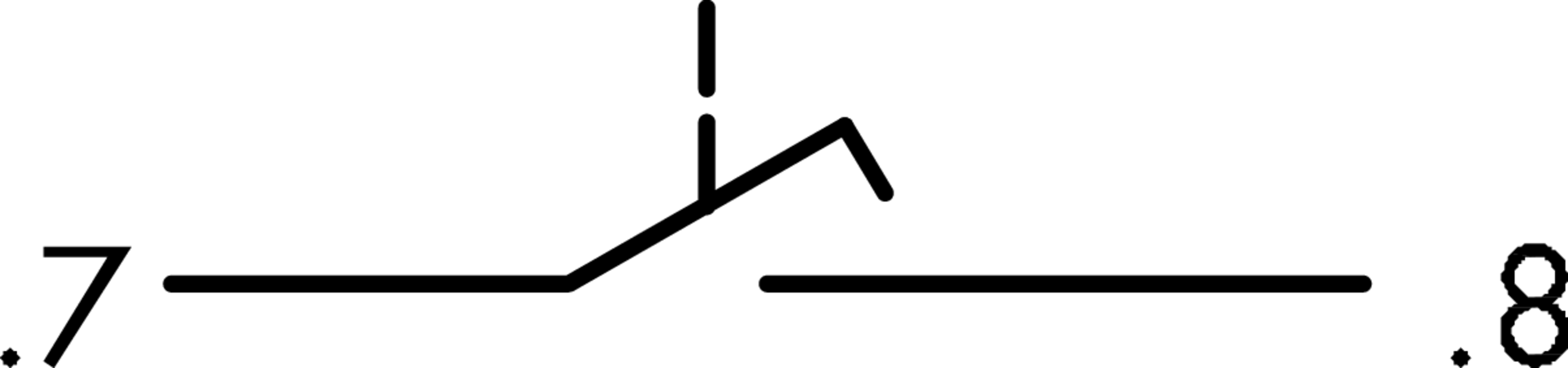

Schaltbild MTIV
Schaltwegediagramm MTIV

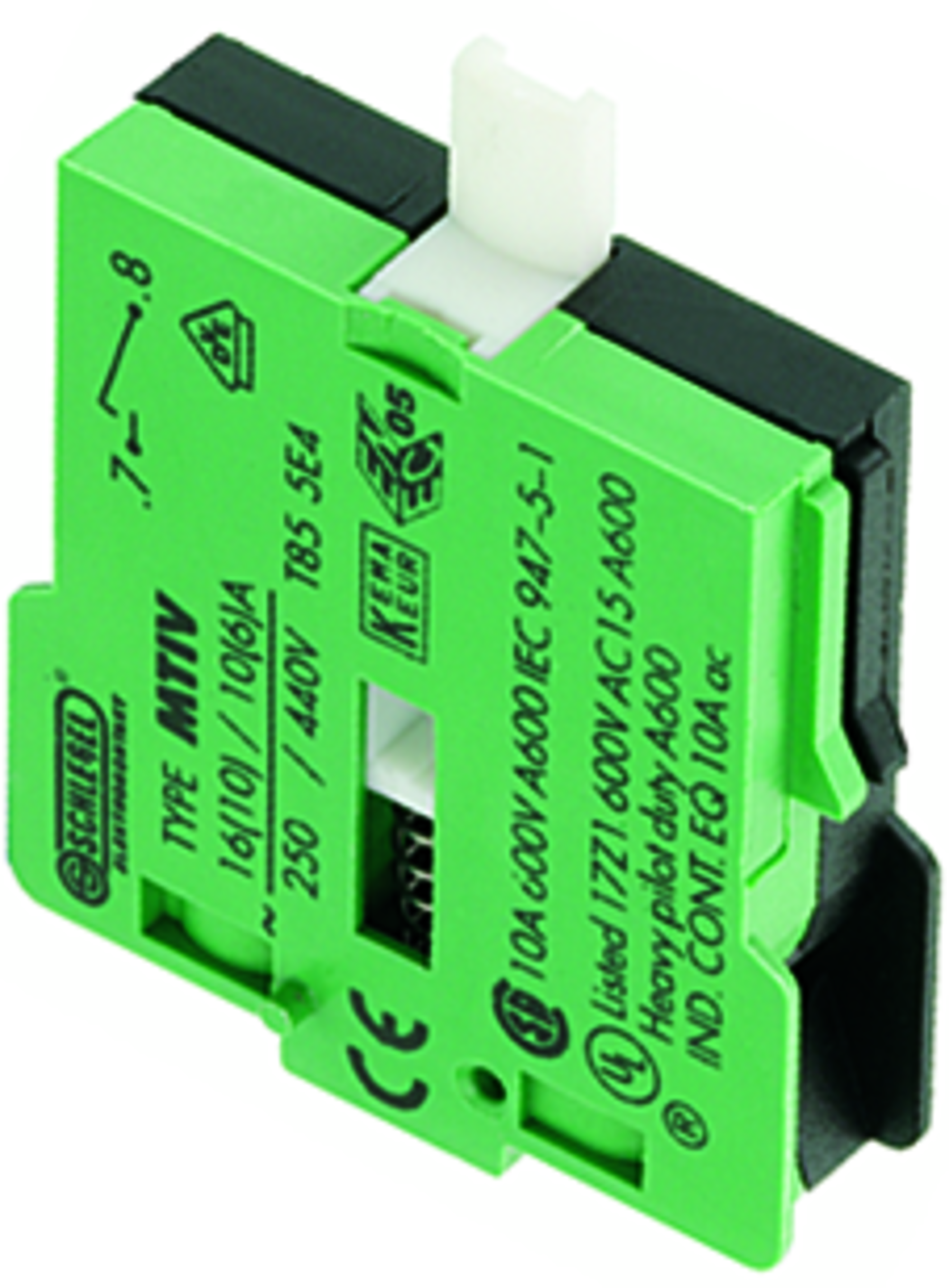

Produktbild MTIV
