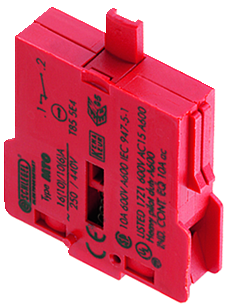

MTO - Modular contact block, momentary
Approvals
DNVGL , TÜV_Süd , cULus , CCC , CSA , ENEC05 , CE , KEMA , UKCA
Mechanical life
1,000,000 switching cycles
Colour housing/enclosure
red
Switching function
Momentary function
Rated insulation voltage IEC/EN 60947-5-1
600 V AC
600 V DC
600 V DC
Protection class
II (protective insulation)
Storage temperature
-50 ... 85°C
Degree of protection front
IP20
Contact type
1NC
Series
Contact blocks M...
Operating temperature
-30 ... 85°C without illumination
-30 ... 65°C with LED illumination
-30 ... 55°C with incandescent lamp illumination
-30 ... 65°C with LED illumination
-30 ... 55°C with incandescent lamp illumination
Operating travel
6 mm
Electrical life
1,000,000 switching cycles
Illumination
no
Rated operating voltage
440 V AC
250 V DC
440 V DC
24 V DC
125 V DC
240 V AC
60 V DC
250 V DC
440 V DC
24 V DC
125 V DC
240 V AC
60 V DC
Rated operating current
3 A AC
1.6 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
0.12 A DC
1.6 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
0.12 A DC

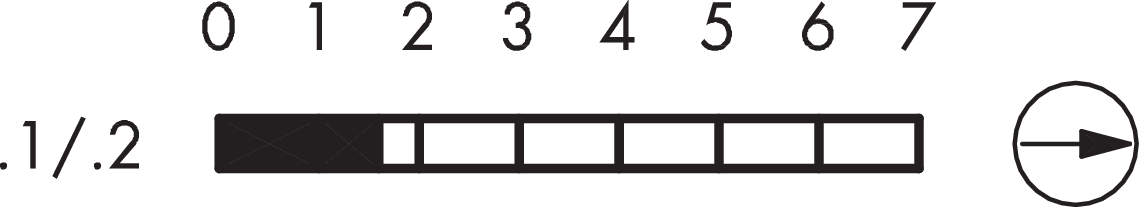

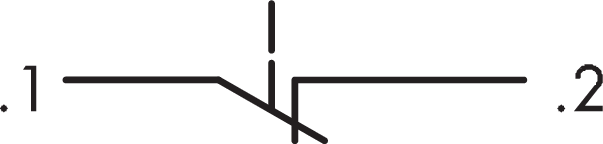

Technical sketches
Downloads

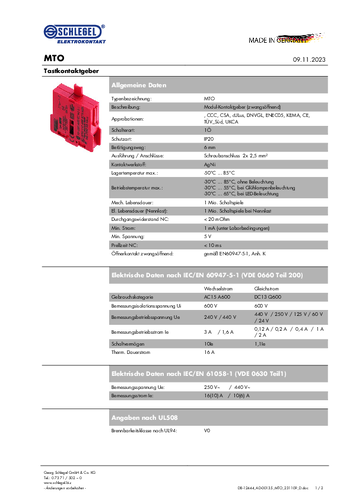

Datasheet_MTO
