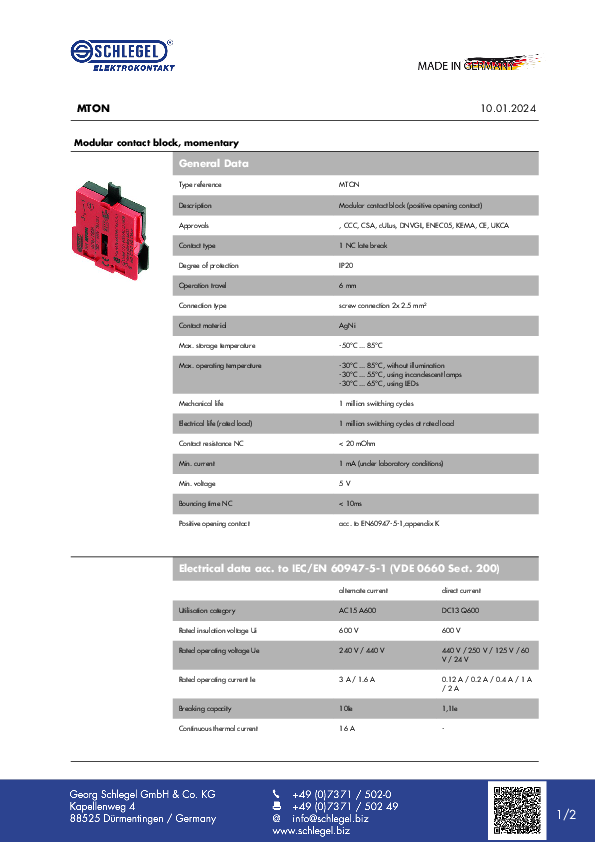

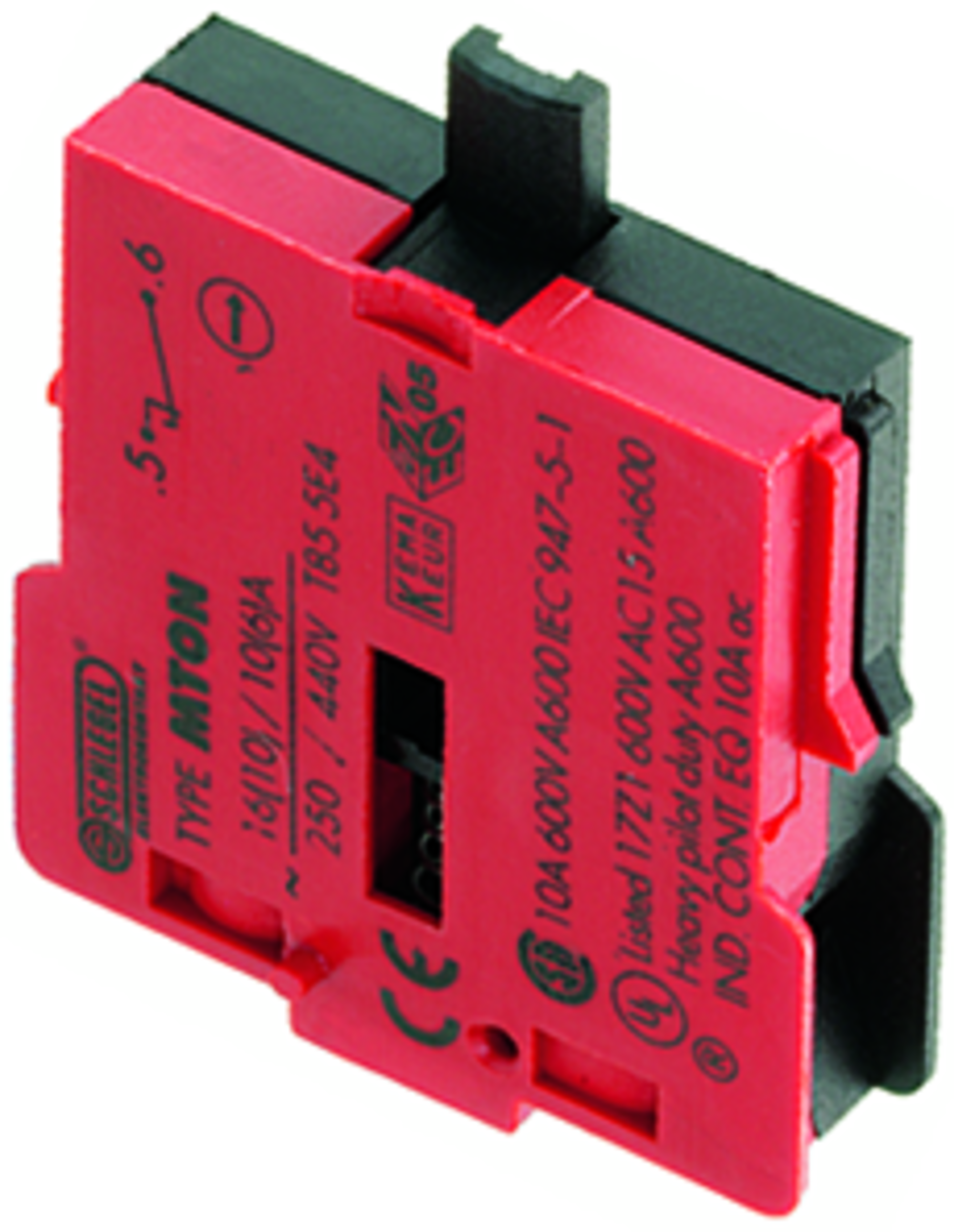

MTON - Modular contact block, momentary

Series

Contact blocks M...

Switching function

Momentary function

Connection

Screw connection

Illumination

Degree of protection front

IP20

Operating temperature

-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung

Storage temperature

-50°C ... 85°C

Rated operating voltage

240 V AC
440 V AC
24 V DC
60 V DC
125 V DC
250 V DC
440 V DC

Rated operating current

3 A AC
1.6 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
0.12 A DC

Rated insulation voltage IEC/EN 60947-5-1

600 V AC
600 V DC

Mechanical life

1,000,000 switching cycles

Electrical life

1,000,000 switching cycles at rated voltage

Approvals

DNVGL , cULus , CCC, CSA , ENEC05 , CE, KEMA , UKCA

Protection class

II (protective insulation)

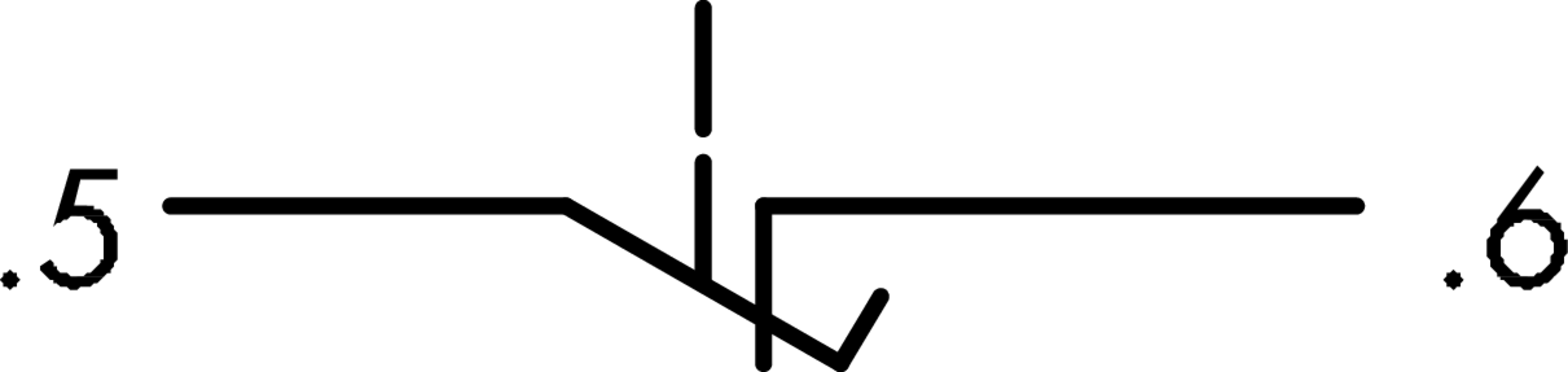

Technical sketches

Downloads
