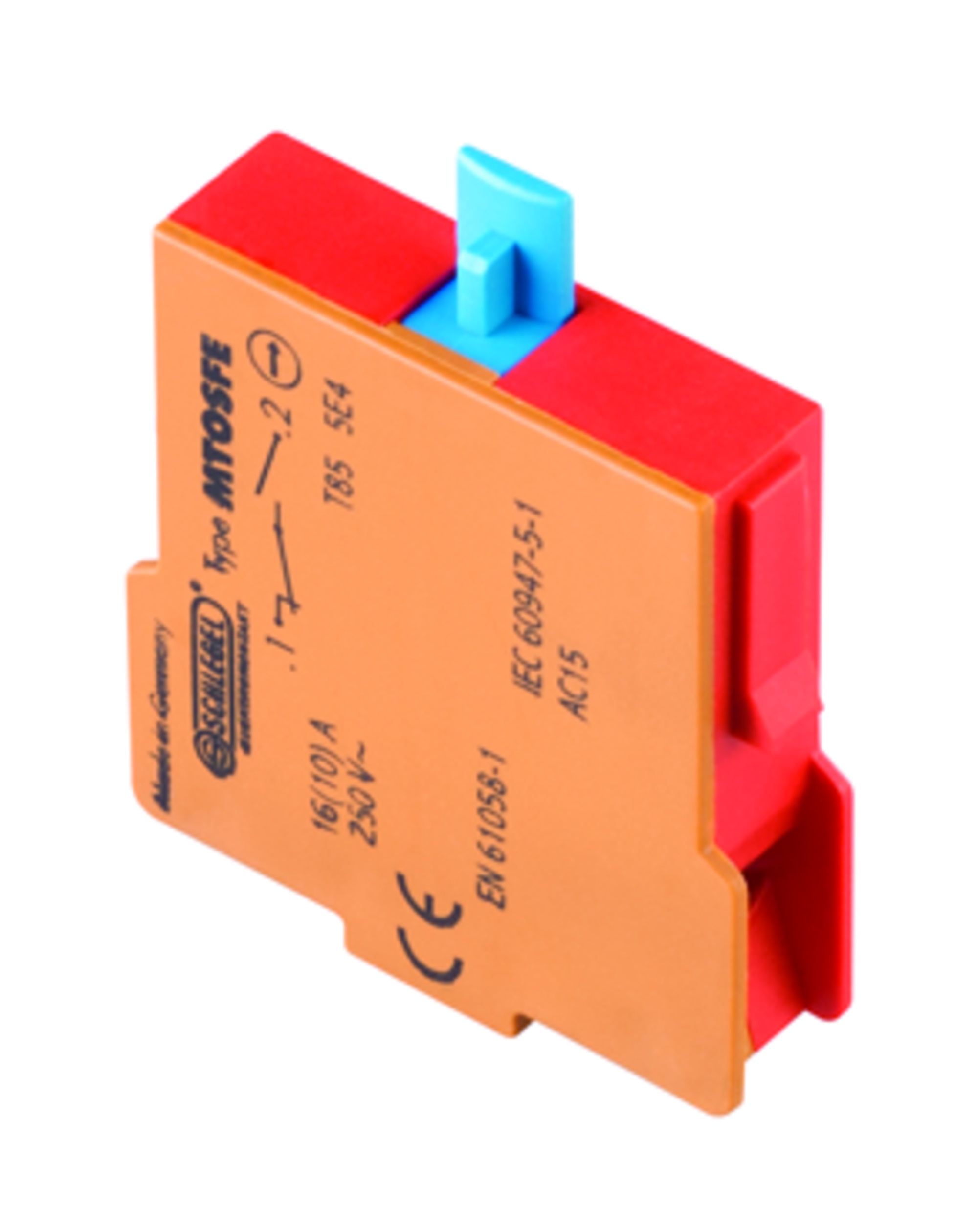

MTOSFE - Self-monitoring emergency contact block, requires only one place in the module holder
Approvals
DNVGL , TÜV_Süd , cULus , CCC , CE , UKCA
Switching function
Momentary function
Rated insulation voltage IEC/EN 60947-5-1
250 V DC
250 V AC
250 V AC
Colour housing/enclosure
red/brown
Mechanical life
100,000 switching cycles
Protection class
II (protective insulation)
Storage temperature
-50 ... 85°C
Electrical life
100,000 switching cycles
Degree of protection front
IP20
Contact type
1NC
Series
Contact blocks M...
Operating temperature
-30 ... 85°C without illumination
-30 ... 65°C with LED illumination
-30 ... 55°C with incandescent lamp illumination
-30 ... 65°C with LED illumination
-30 ... 55°C with incandescent lamp illumination
Operating travel
6 mm
Illumination
no
Rated operating current
3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
Rated operating voltage
250 V DC
24 V DC
125 V DC
240 V AC
60 V DC
24 V DC
125 V DC
240 V AC
60 V DC

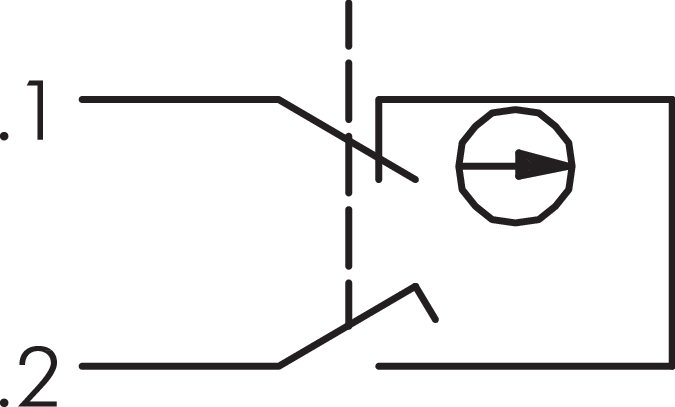

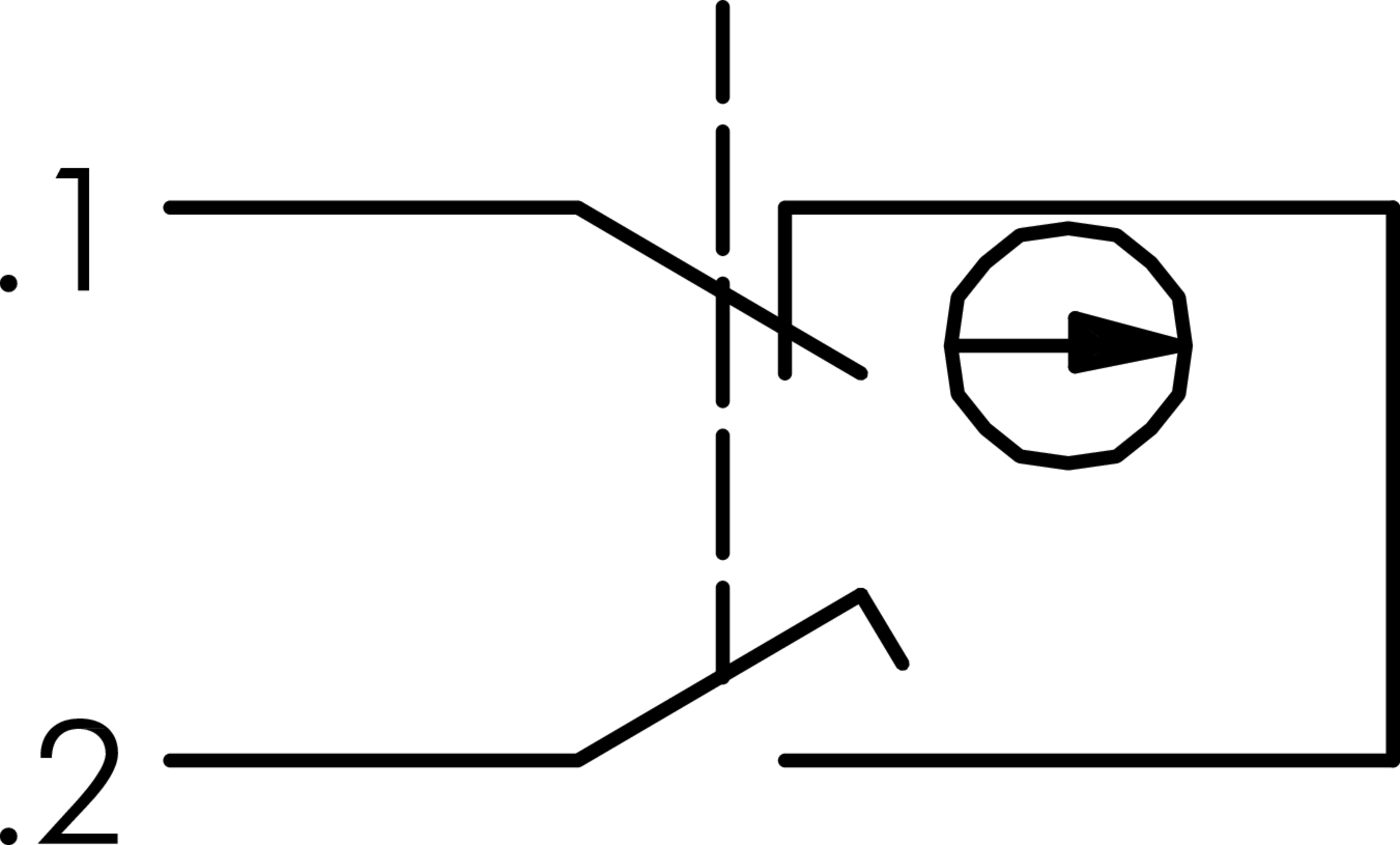

Technical sketches
Downloads

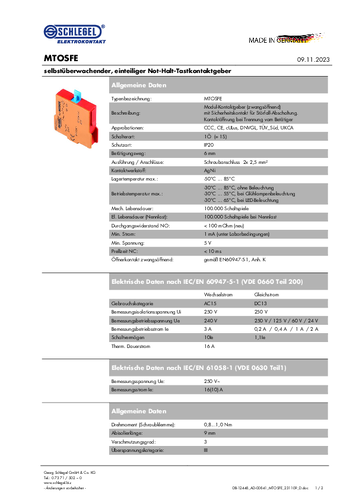

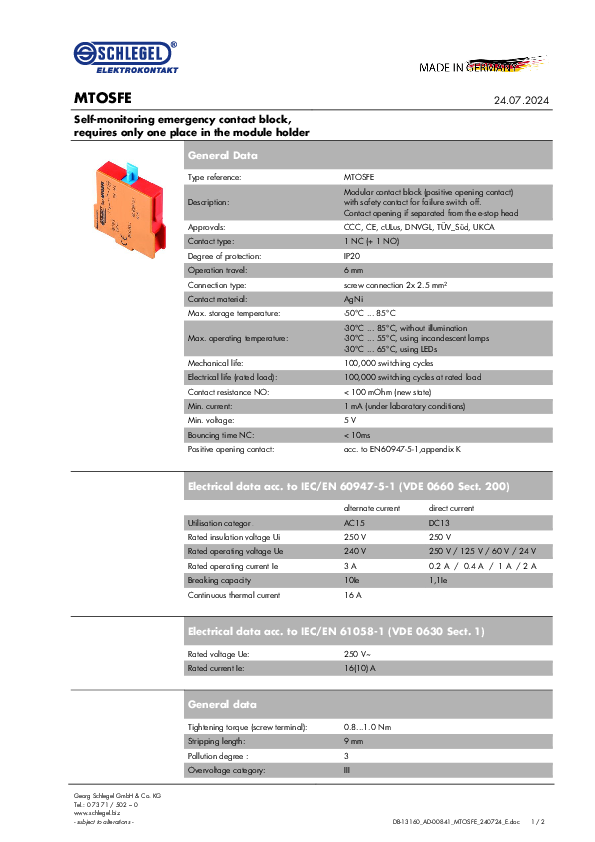

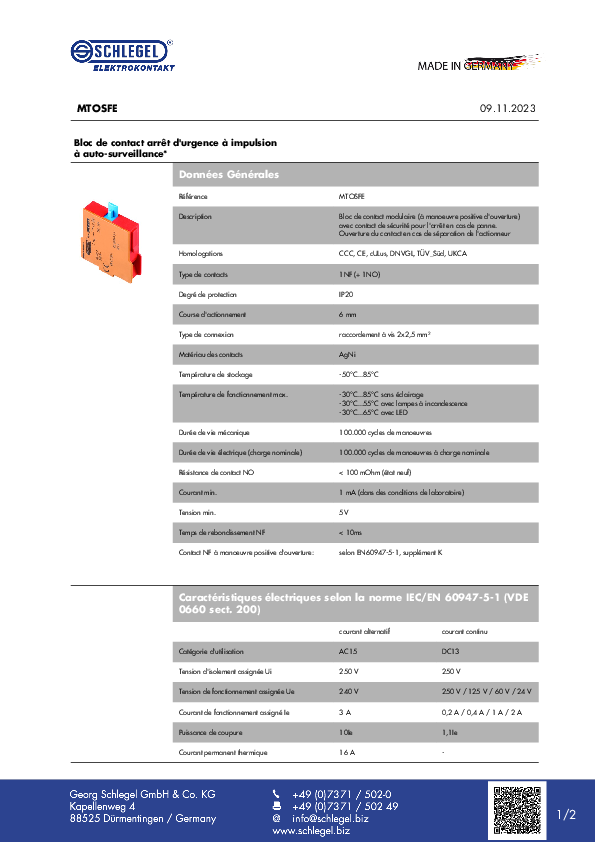

Datasheet_MTOSFE
