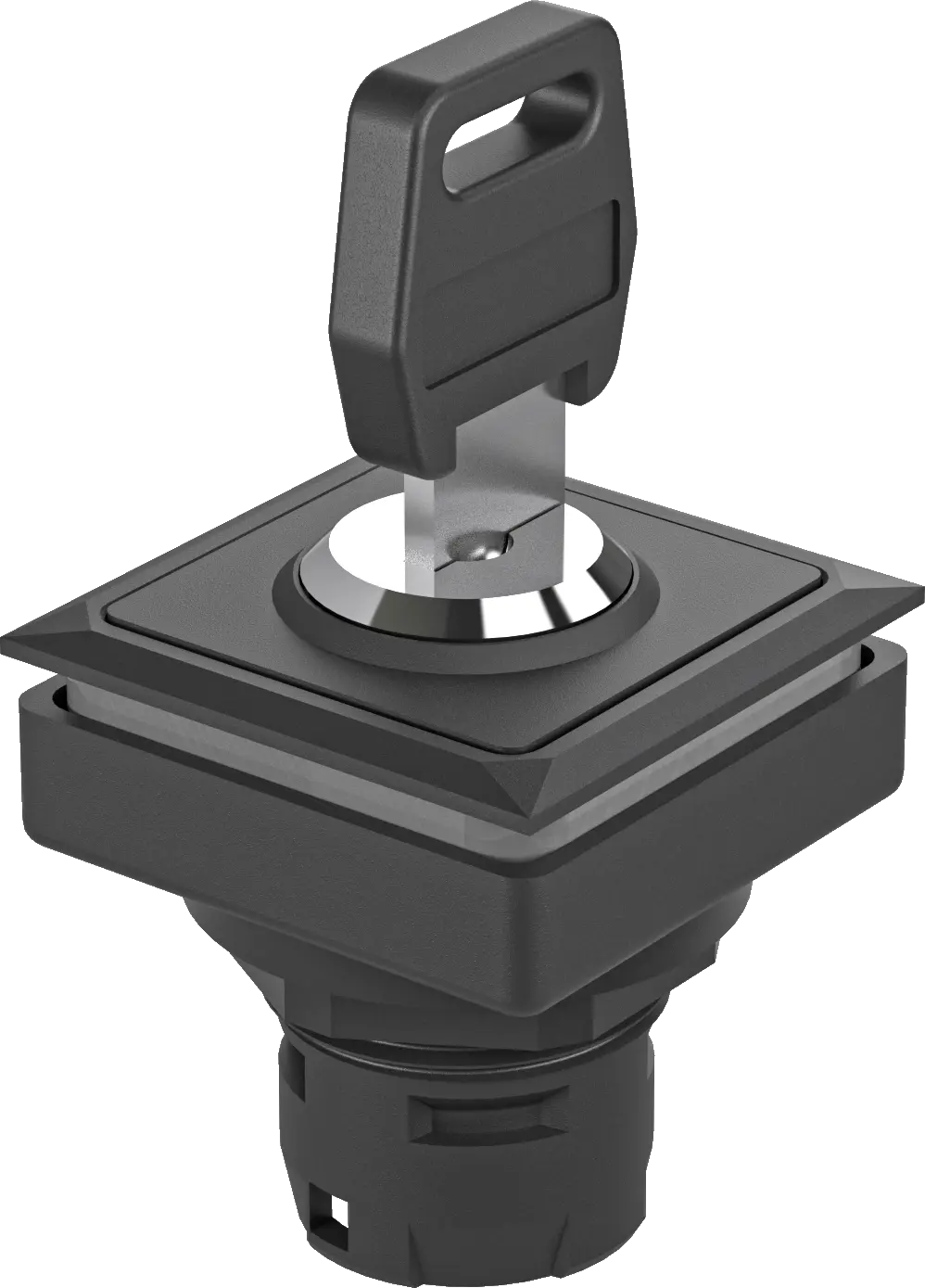

OKJSSA13 - Key switch, maintained
Key switch with three switching positions and latching switching function. Switch position 1 is at 0°, switch position 2 at -90° and switch position 3 at 90°. The key can only be removed to switch position 1.
Includes 2 keys. Different keying possible on request.
Series
OKTRON®-JUWEL
Mounting aperture
23 x 23 mm
Switching function
Latching function
Switching position
-90° maintained
0° key removable
90° maintained
0° key removable
90° maintained
Illumination
No
Front bezel colour
black
Shape
Square
Degree of protection front
IP65
Protection class
II (protective insulation)

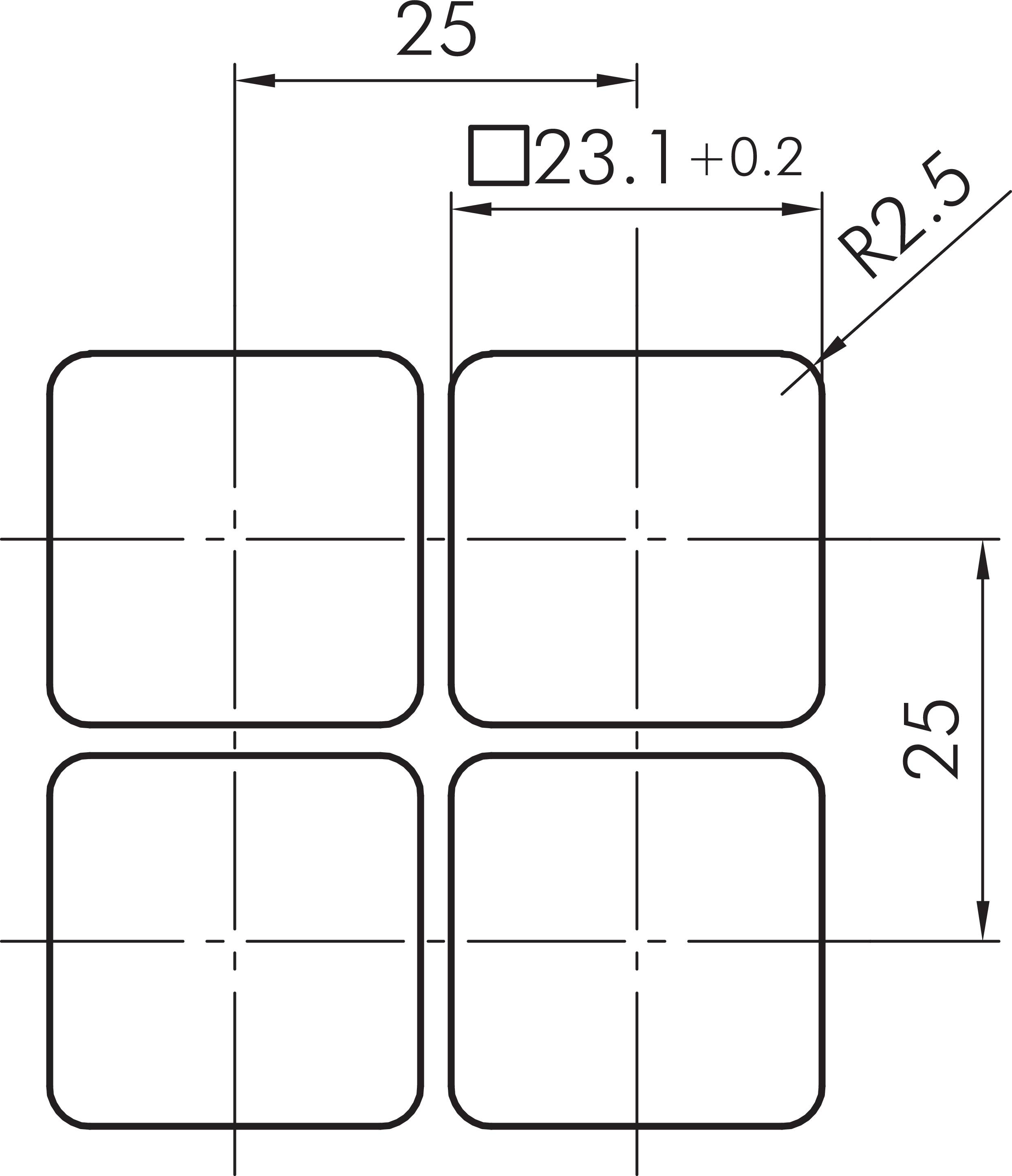

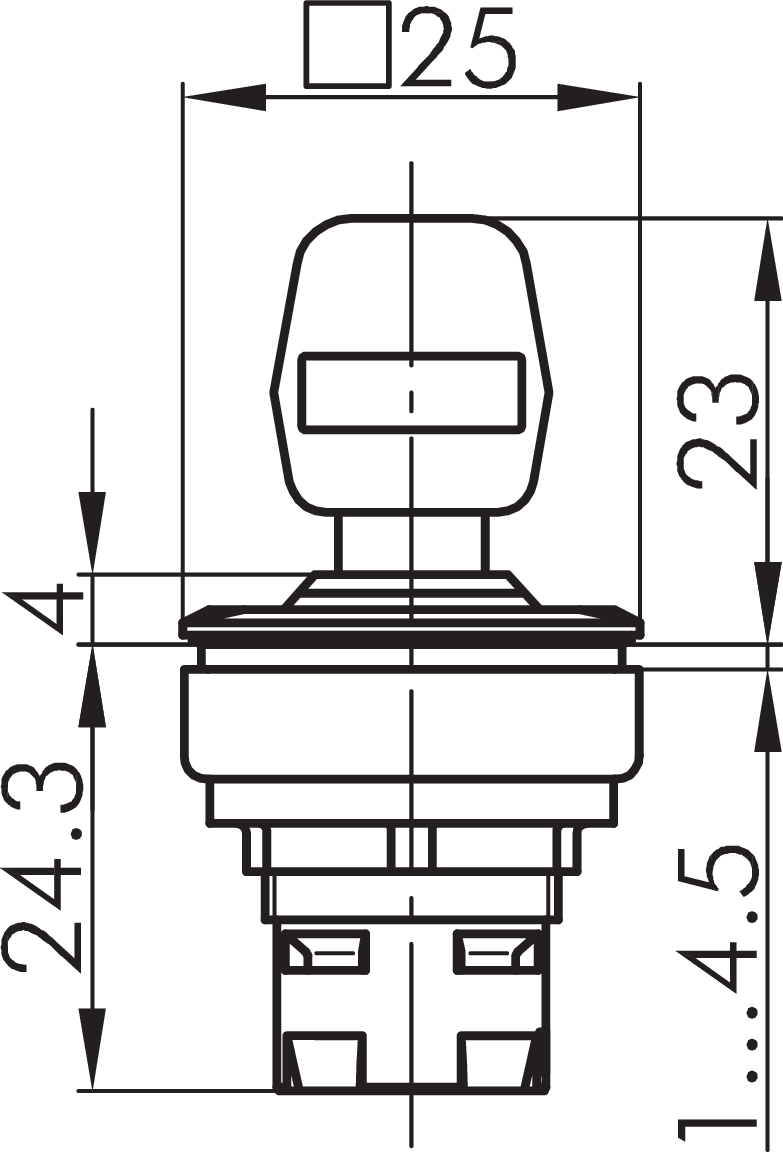

Technical sketches
