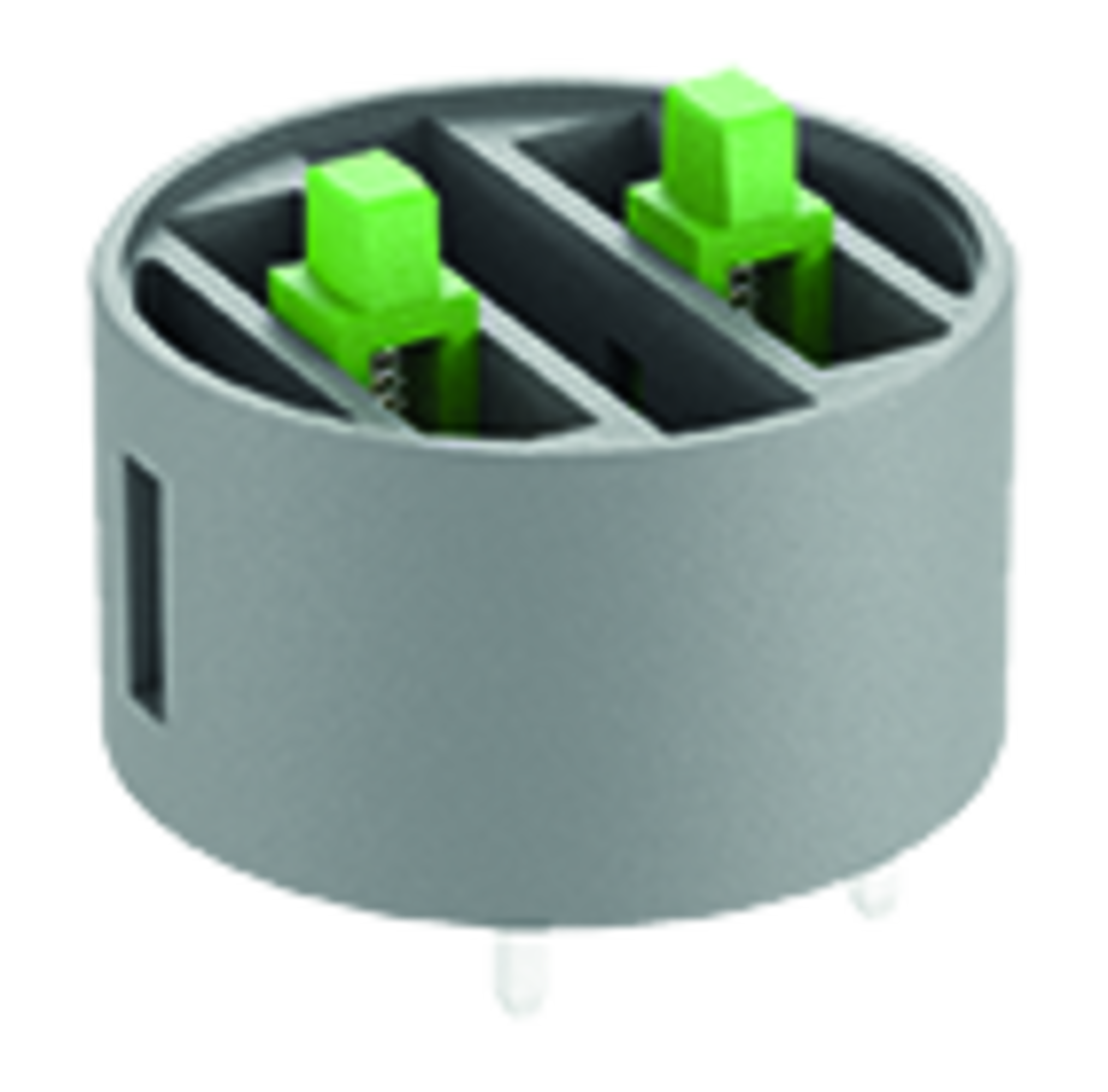

PTSI - Contact block, momentary

Series

Contact blocks P...

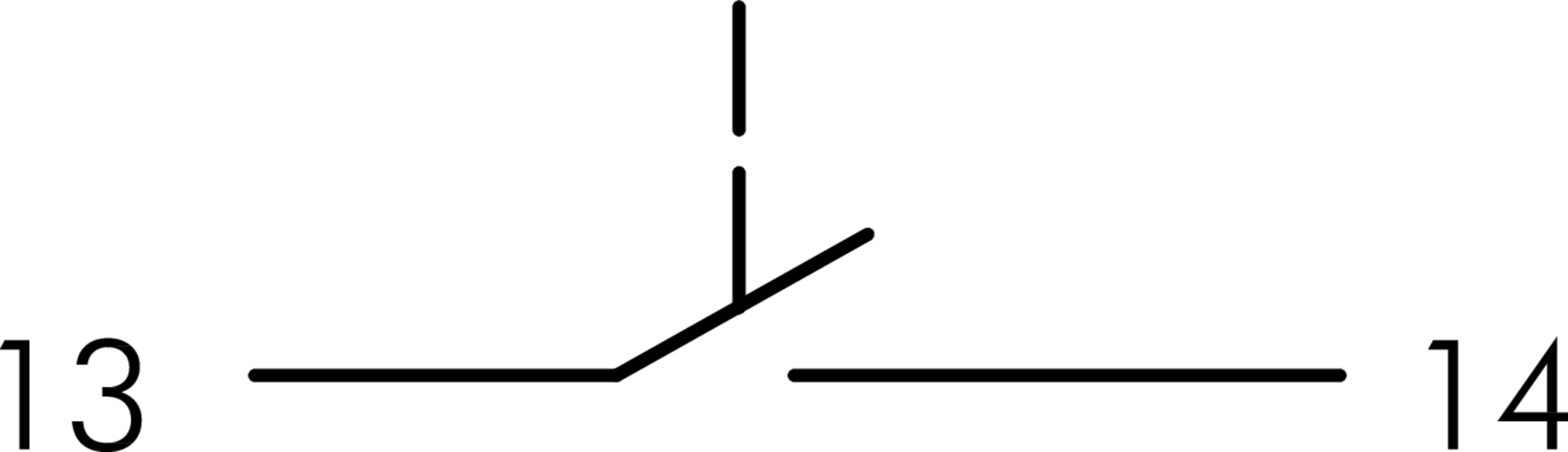

Contact type

1NO

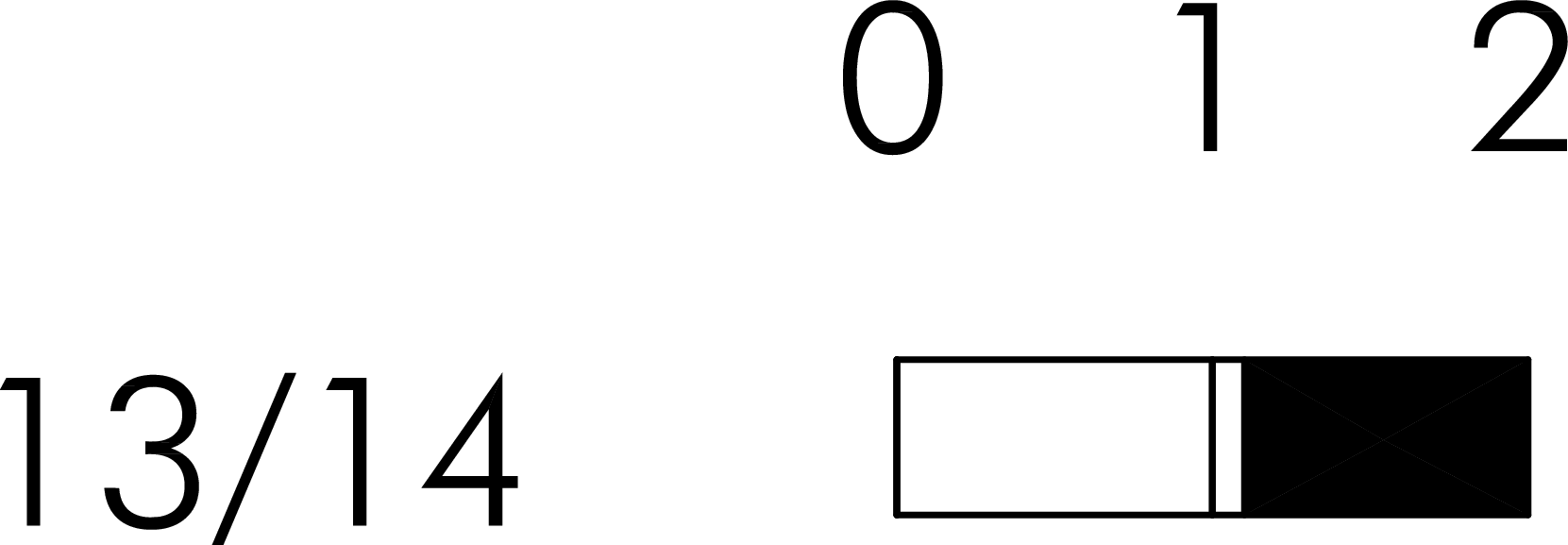

Switching function

Momentary function

Connection

Printanschluss

Illumination

Degree of protection front

IP00

Operating temperature

-25°C ... 70°C

Rated operating voltage

120 V AC
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC

Rated operating current

3 A AC
1.5 A AC
2 A DC
1 A DC
0.55 A DC
0.27 A DC

Mechanical life

1,000,000 switching cycles

Electrical life

1,000,000 switching cycles at rated load AC

Approvals

VDE , CCC, cURus , ENEC10 , CE, UKCA

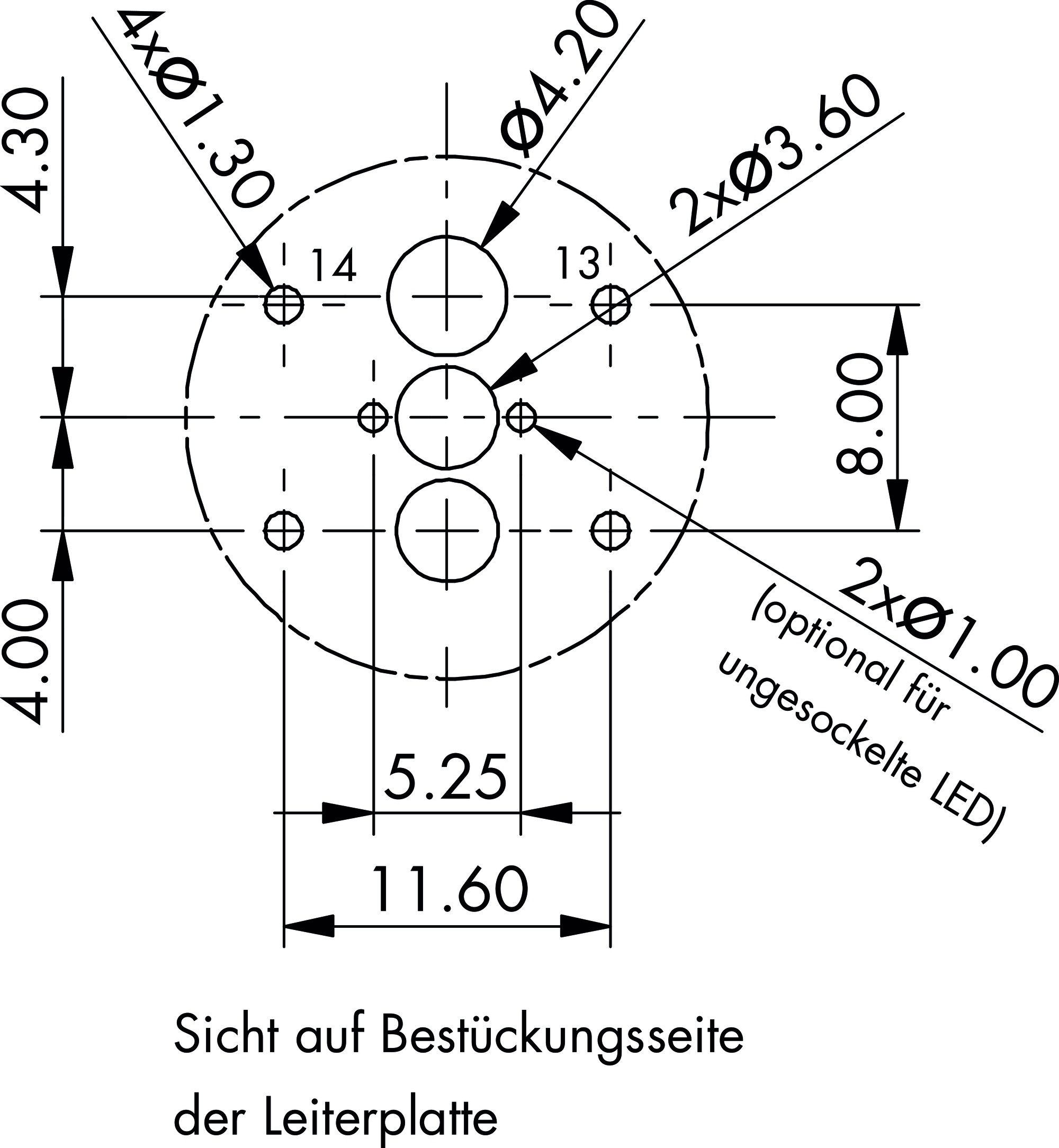

Technical sketches

Downloads
