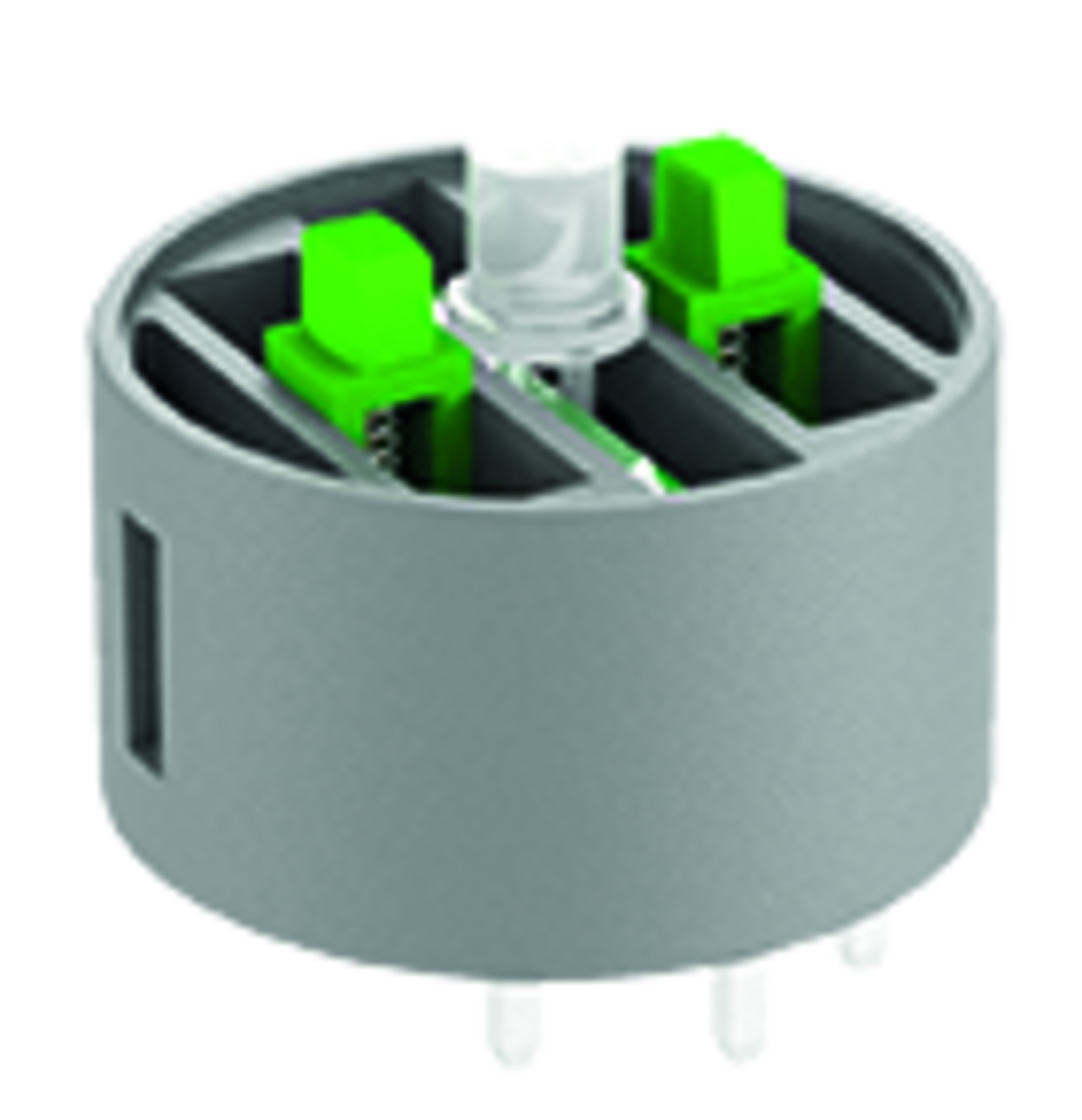

PTSLI_AU - Illuminated contact block, momentary
Series
Contact blocks P...
Contact type
1NO
Switching function
Momentary function
Connection
PCB-mount terminals
Illumination
Yes
Illuminant
LED integrated
Degree of protection front
IP00
Operating temperature
-25°C ... 70°C
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles
Approvals
VDE , CCC, cURus , ENEC10 , CE, UKCA

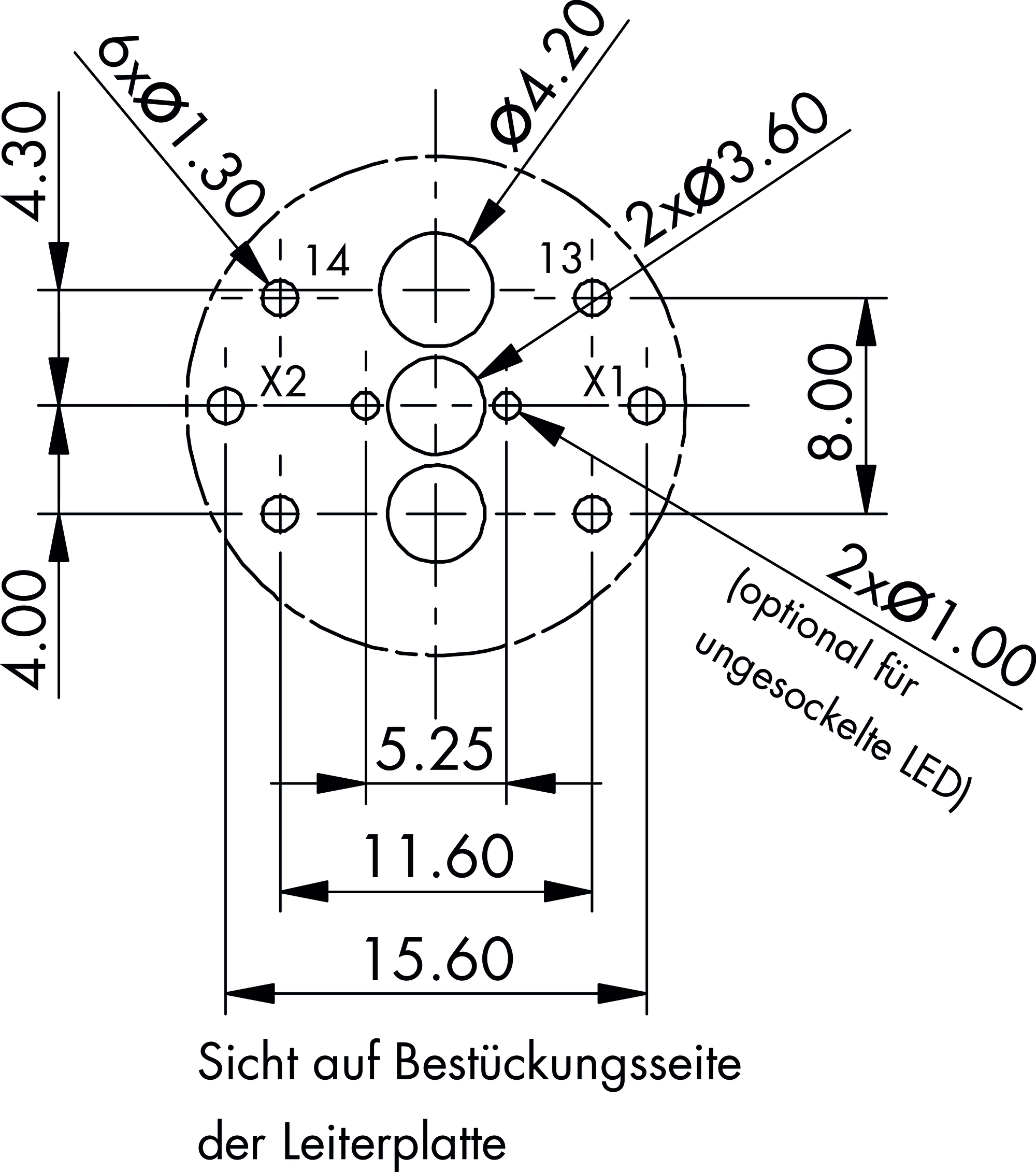

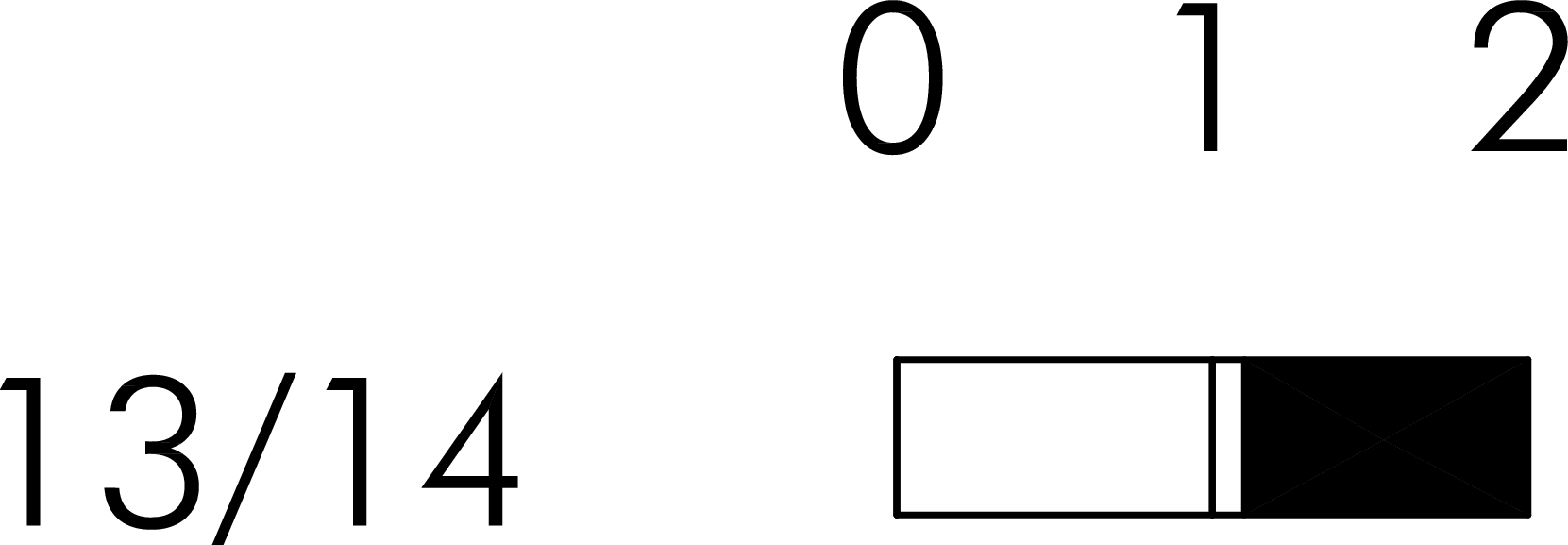

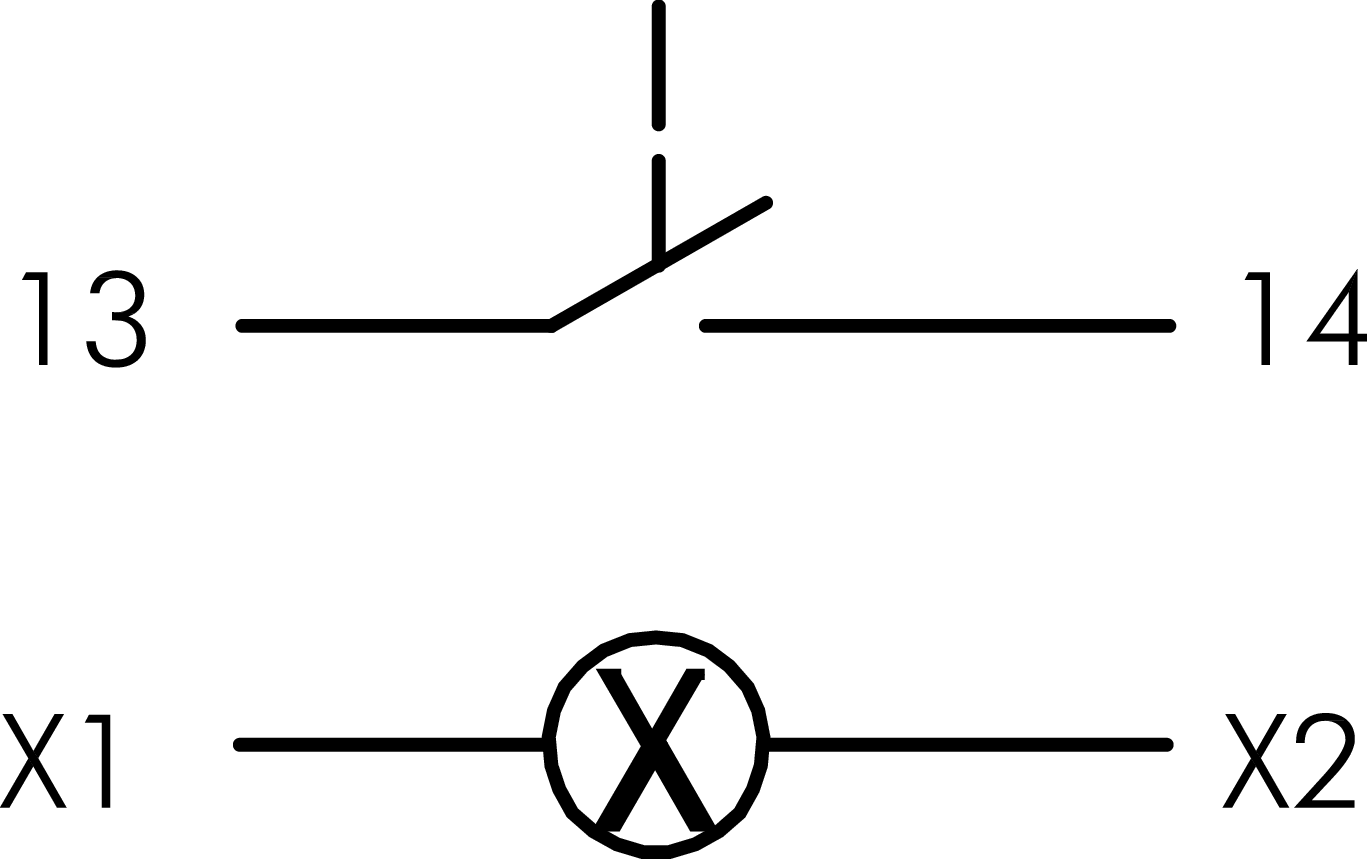

Technical sketches
