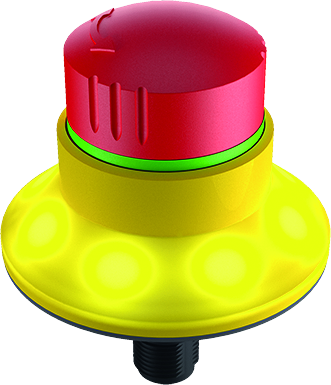

QRBLUVOOI_C1190 - Emergency stop with illuminated anti-lock collar and M12 connection 5-pin, A-coded
QUARTEX® connect emergency stop switch with illuminated anti-lock collar, protection class IP65, 2NC contacts, integrated 5-pin M12 plug, A-coded. The anti-lock collar lights up when the emergency stop has been activated. This allows the activated emergency stop to be quickly identified. The lighting is deactivated again when the emergency stop is unlocked.
Series
QUARTEX® connect
Colour actuator
red
Approvals
TÜV_Süd , cURus , CE
Protection class
II (protective insulation)
Switching function
Maintained function
Illuminant
LED
Degree of protection front
IP65

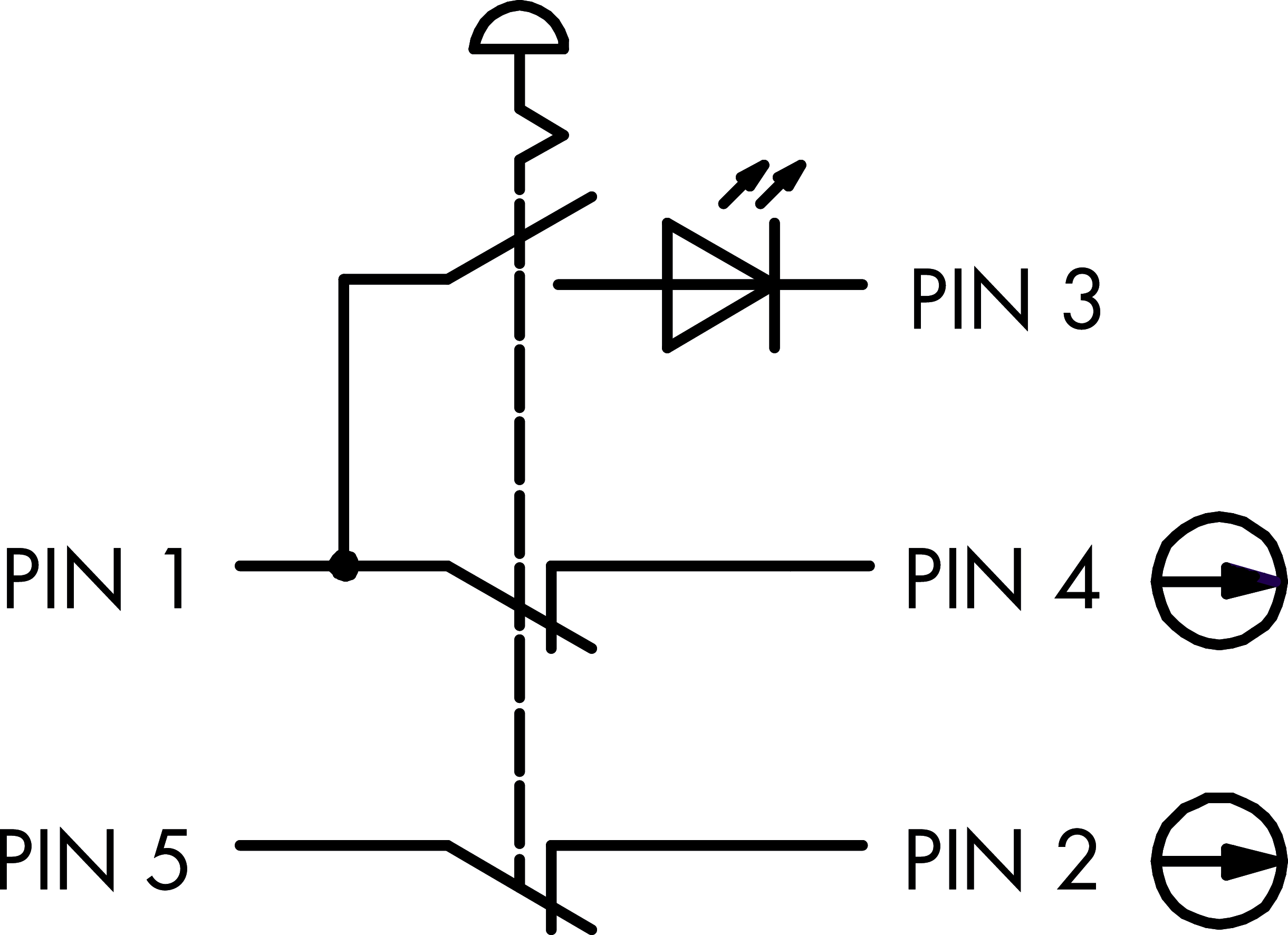

Contact type
2NC
Illumination
yes
Operating temperature
-30°C ... 70°C

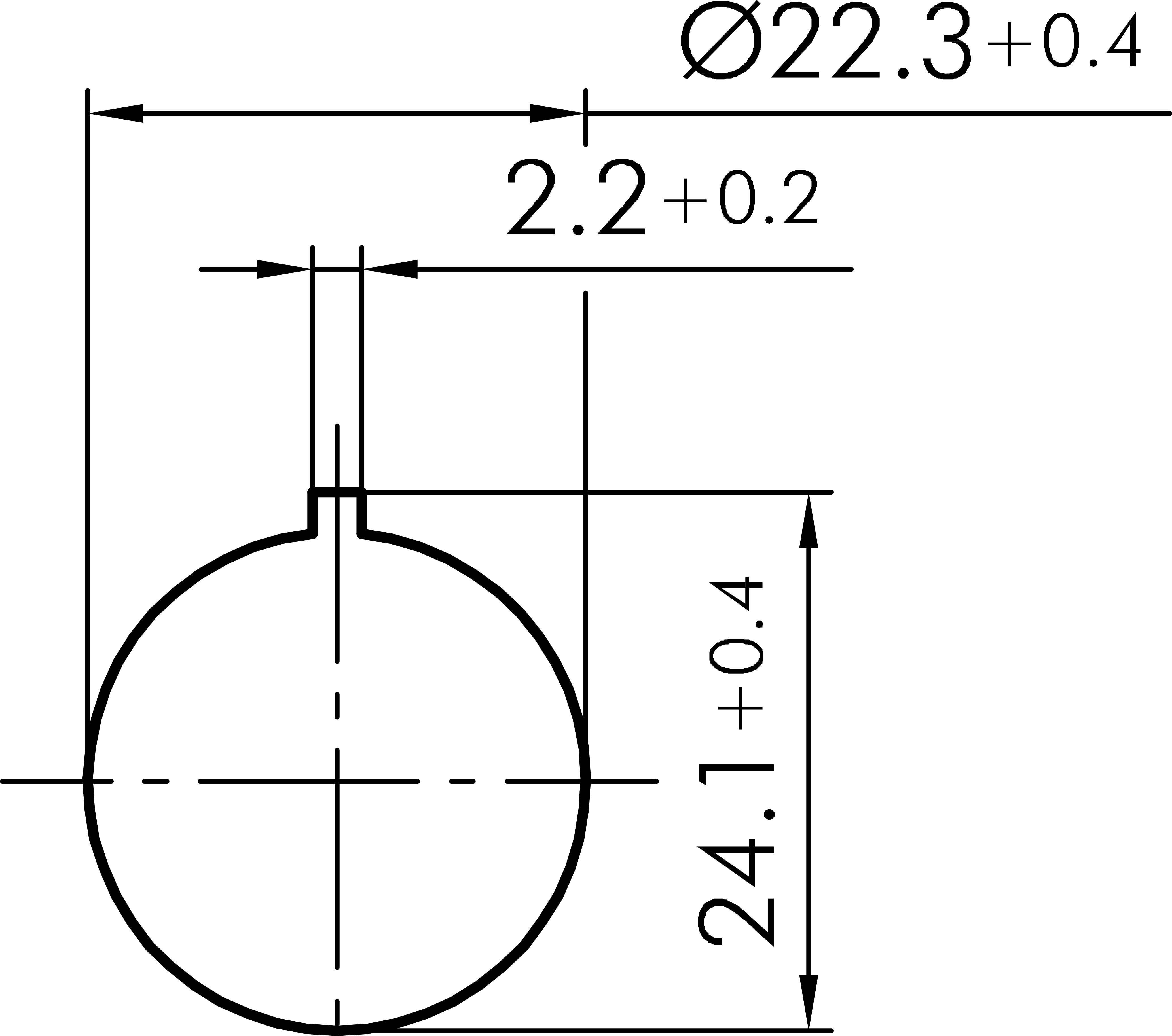

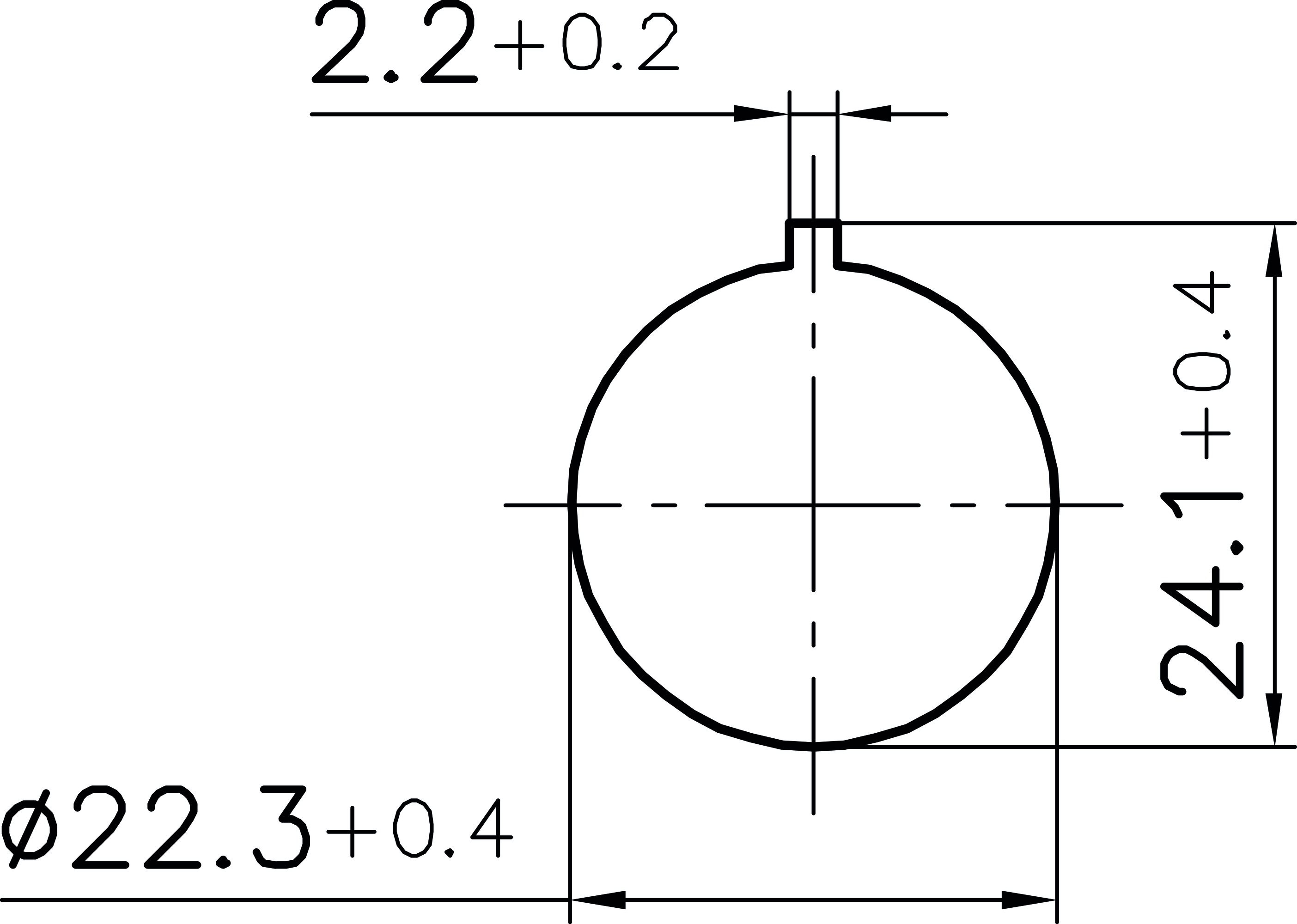

Mounting aperture
Ø 22.3 mm
Storage temperature
-40°C ... 80°C
Shape
round
Electrical life
50,000 switching cycles
Rated insulation voltage IEC/EN 60947-5-1
50 V DC
50 V AC
50 V AC
Mechanical life
50,000 switching cycles
Connection
M12
Rated operating voltage
35 V DC
35 V AC
35 V AC
Rated operating current
2 A AC
2 A DC
2 A DC

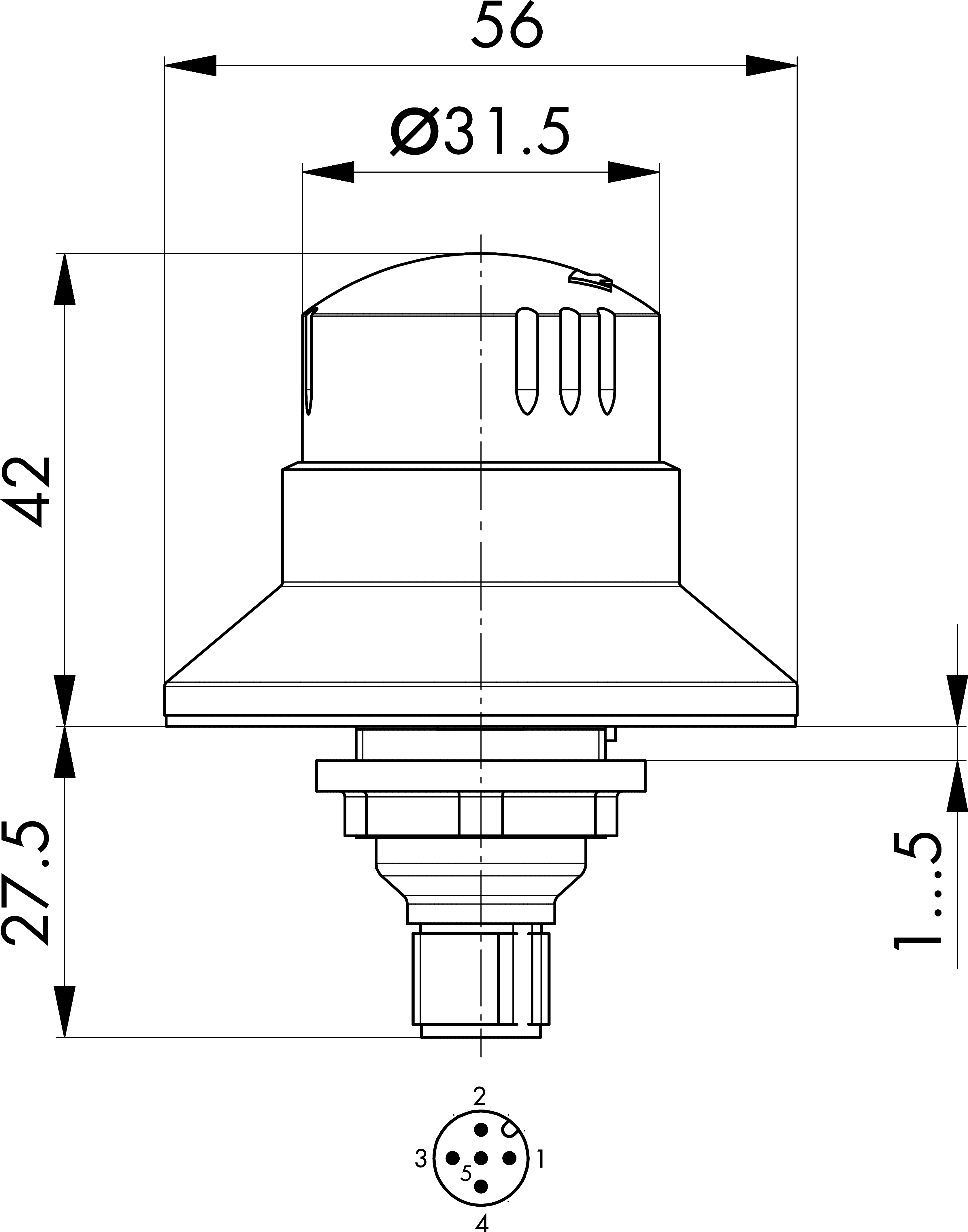

Technical sketches
Awards
Downloads

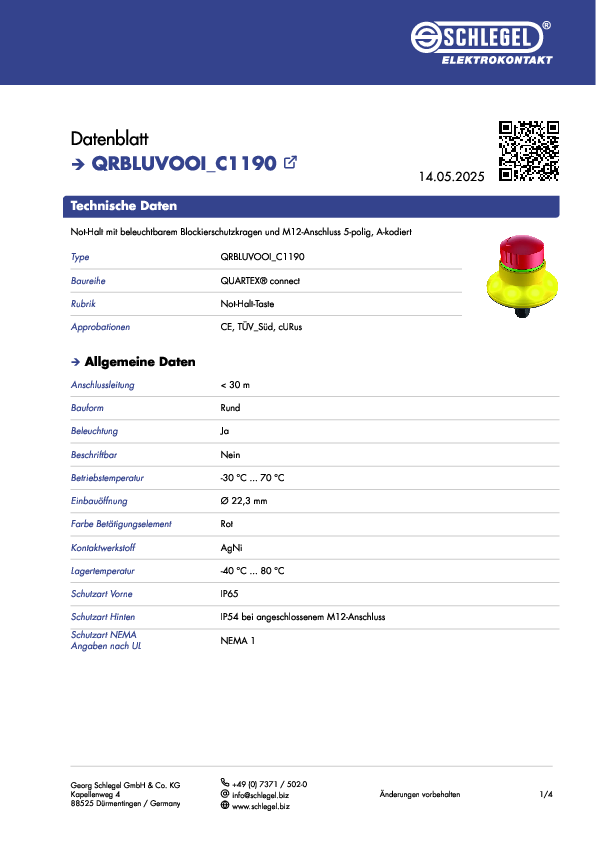

Datasheet_QRBLUVOOI_C1190
