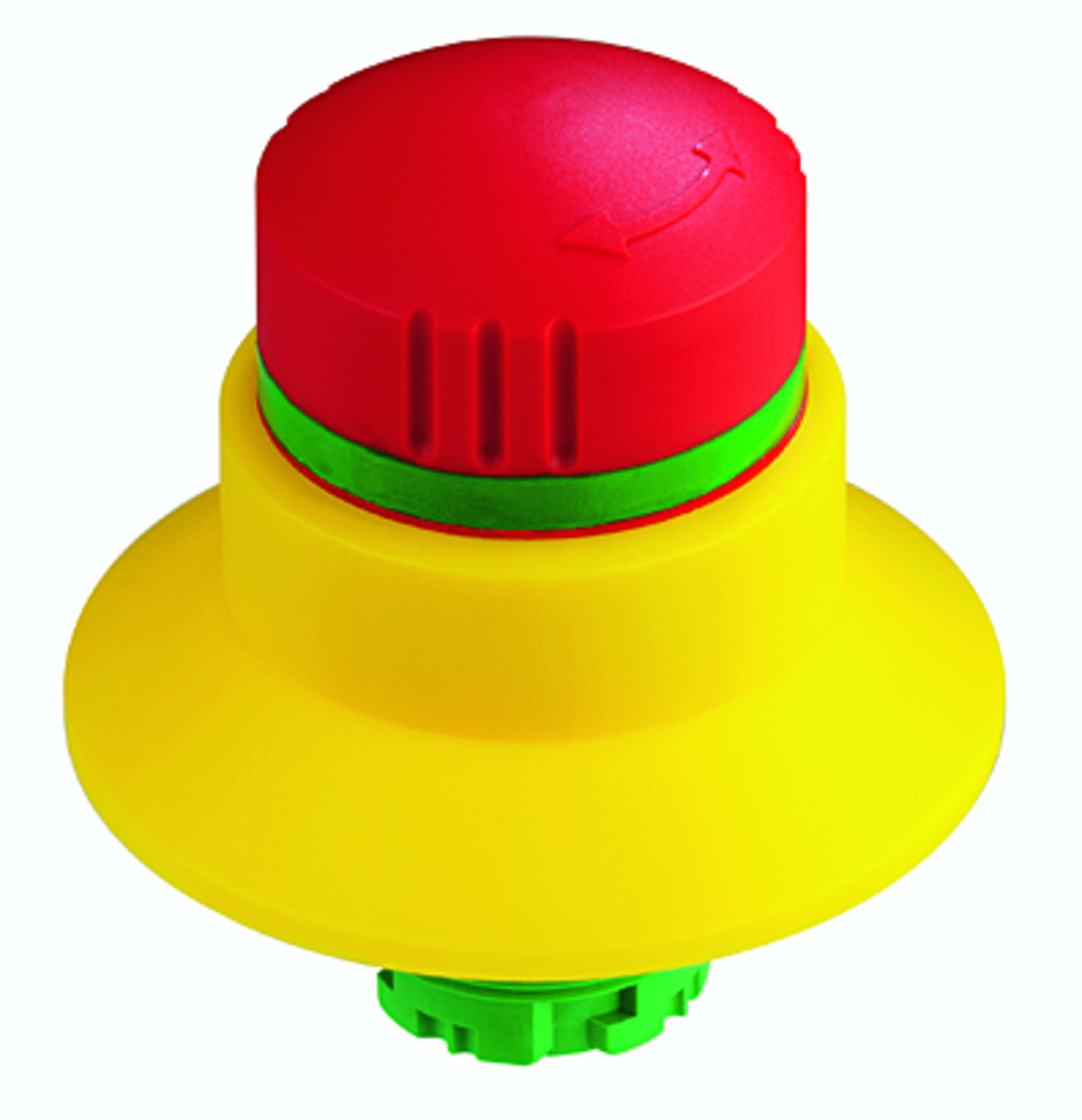

QRBUV - Emergency-stop head
The QRBUV emergency stop switch from the QUARTEX®-R series offers reliable safety with its left/right rotary release. The emergency stop can be fitted with modular contact elements so that a wide range of switching functions can be implemented.
Approvals
TÜV_Süd , UR , cULus , CCC , CE , UKCA
Degree of protection front
IP69K , IP67 , IP65
Release
Twist to release left/right
Anti-lock collar
yes
Storage temperature
-50 ... 85°C
Switching function
Maintained function
Shape
round
Series
QUARTEX®-R
Mechanical life
50,000 switching cycles

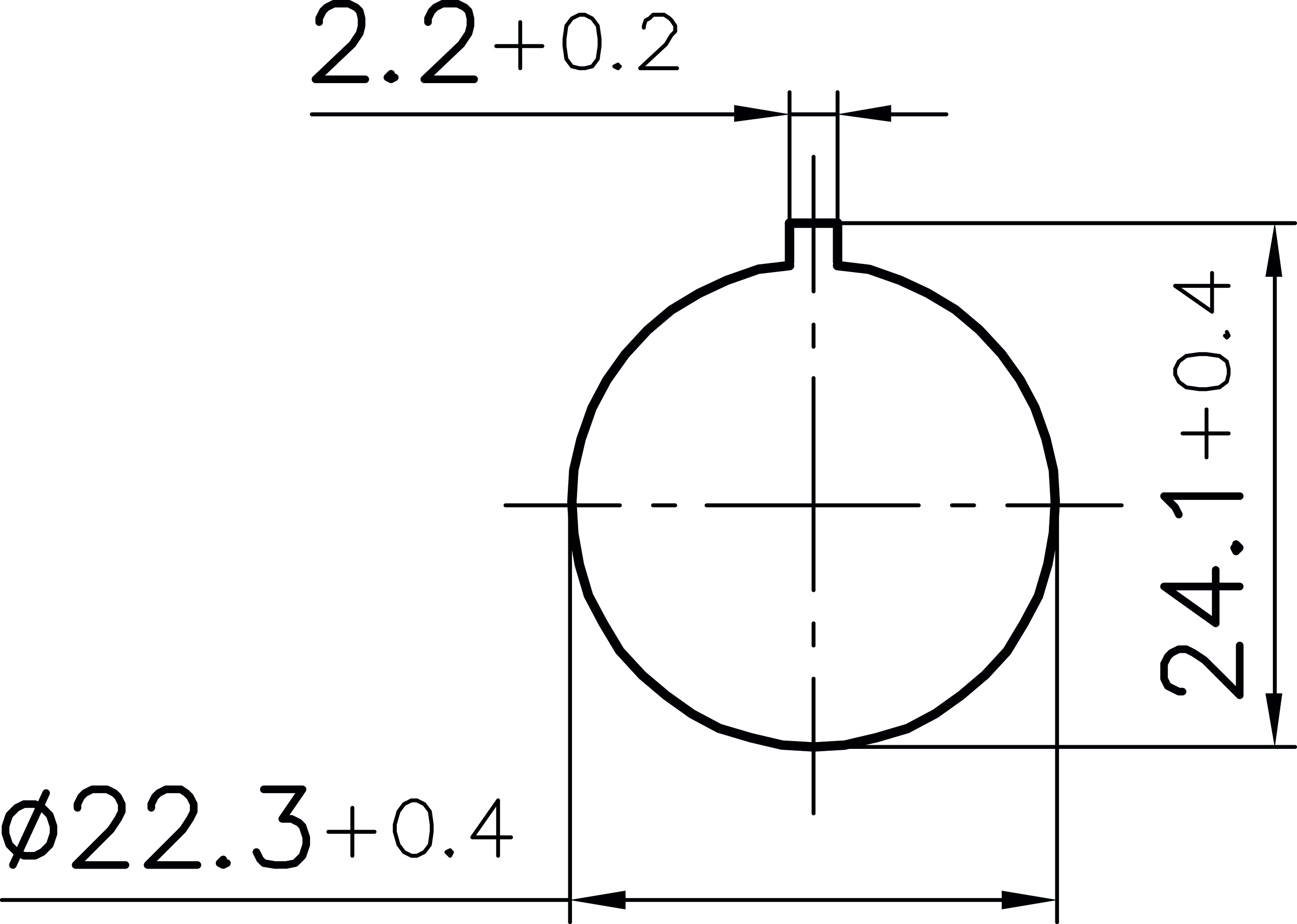

Mounting aperture
Ø 22.3 mm
Operating temperature
-30 ... 70°C
Front bezel colour
yellow
Illumination
no

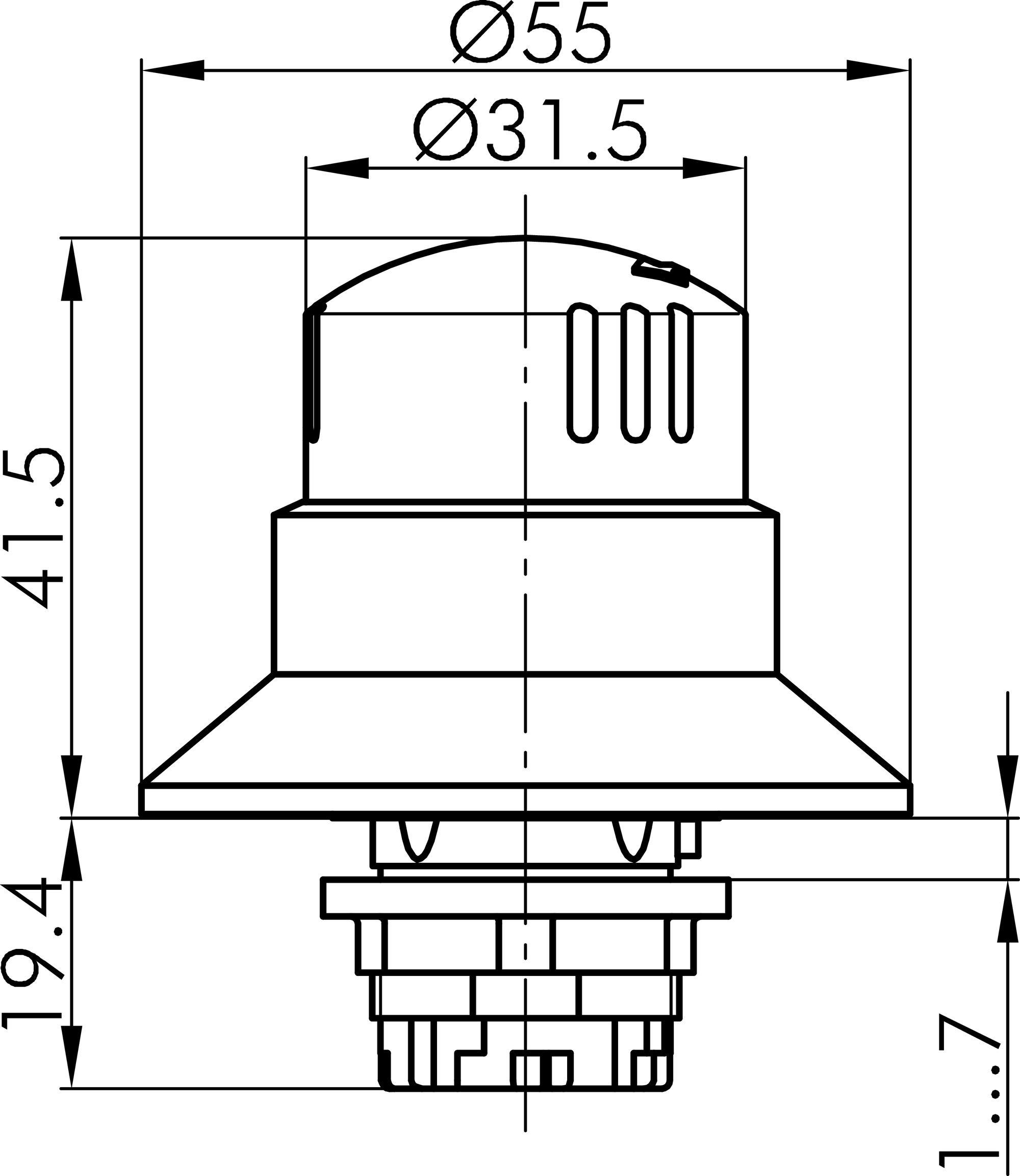

Technical sketches
Operating_Manual_Estop_General_EN.pdf
