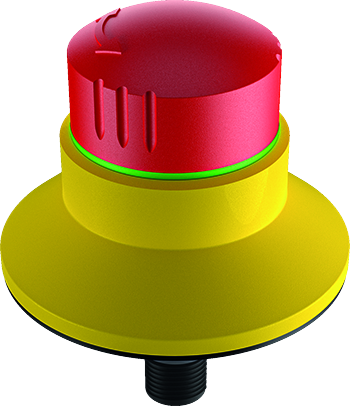

QRBUVOO_C0111 - Emergency-stop
Emergency stop with anti-lock collar, 2 NC and 4-pin M12 connection, A-coded
Series
QUARTEX® connect
Mounting aperture
Ø 22.3 mm
Contact type
2NC
Switching function
Maintained
Illumination
No
Front bezel colour
Yellow
Colour actuator
red
Shape
round
Degree of protection front
IP65
Operating temperature
-30 ... 70°C
Rated operating voltage
35 V AC
35 V DC
35 V DC
Rated operating current
2 A AC
2 A DC
2 A DC
Mechanical life
50,000 switching cycles
Electrical life
50,000 switching cycles
Anti-lock collar
ja
Release
Twist to release left/right
Approvals
TÜV_Süd , cURus , CE, UKCA
Protection class
II (protective insulation)
