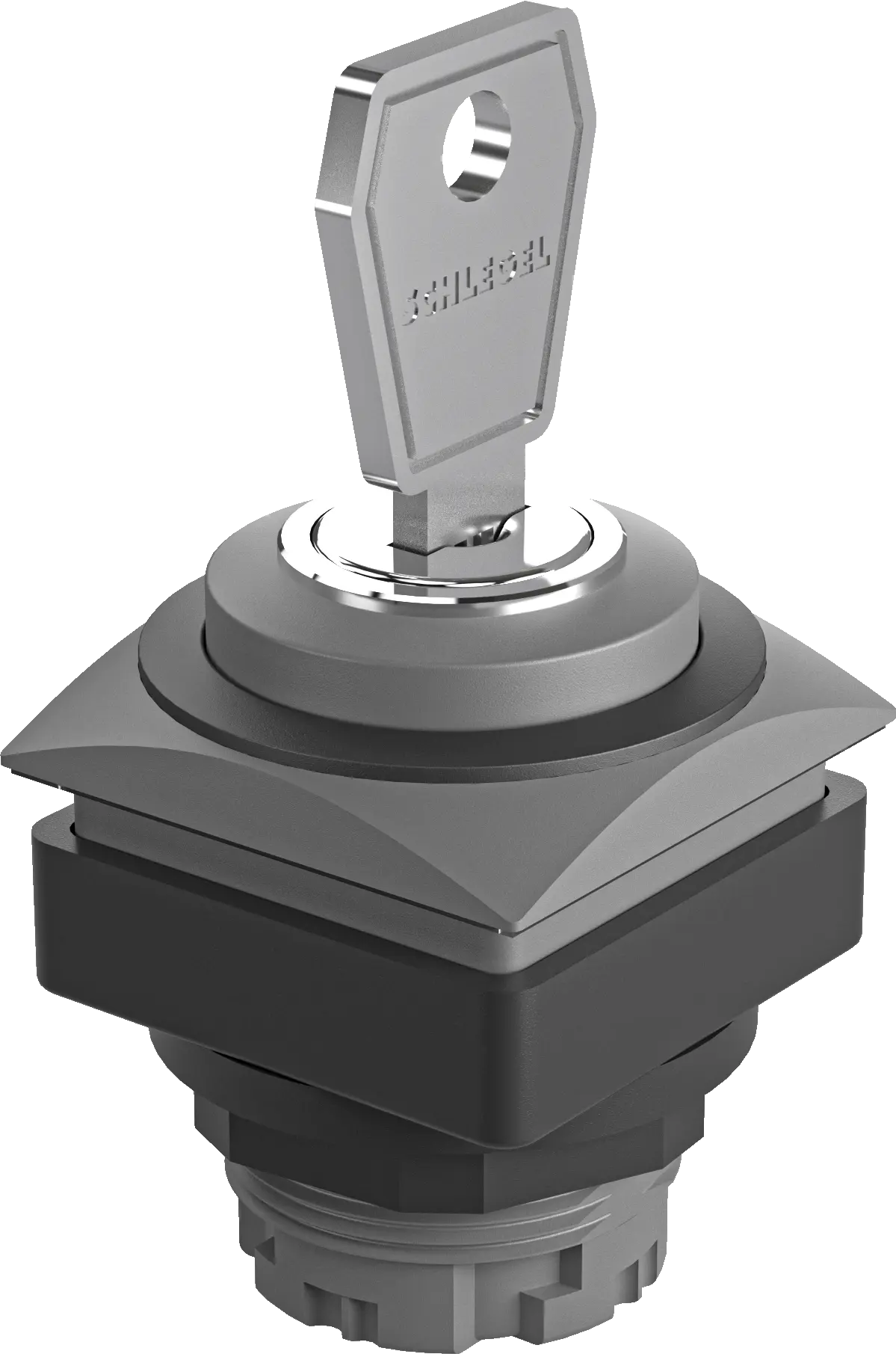

QRJSSA14ESW - Key switch, maintained
Key switch with two switching positions and latching switching function. Switch position 1 is at 0° and switch position 2 at 90°. The key can only be removed to switch position 1.
Includes 2 keys. Different keying possible on request.
Series
QUARTEX®-R-JUWEL
Mounting aperture
26 x 26 mm
Switching function
Latching function
Switching position
0° key removable
90° maintained
90° maintained
Front bezel colour
Charcoal
Shape
Square
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Approvals
CCC, CE, UKCA
Technical sketches
