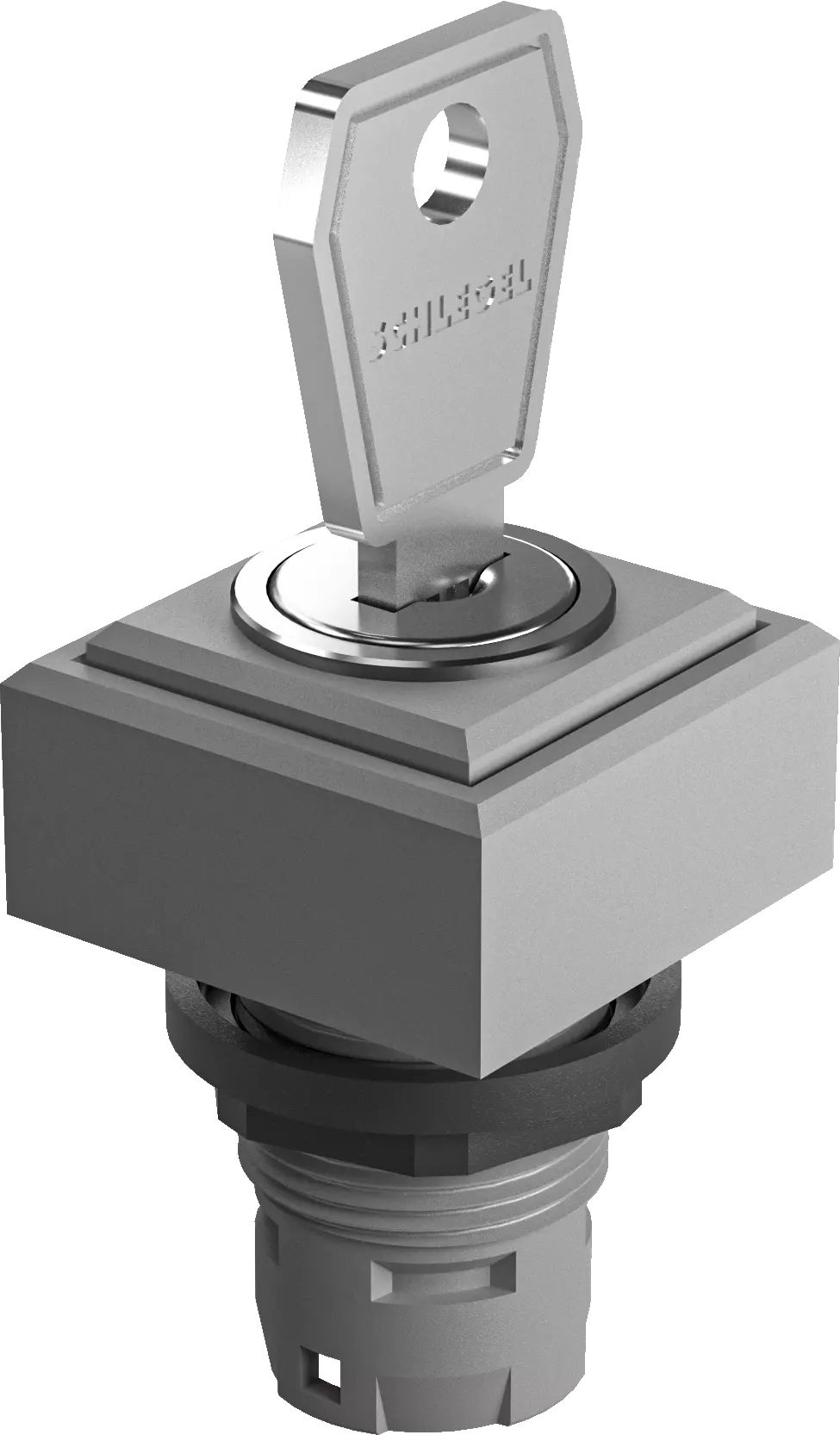

QXSSDGA12E - Key switch, maintained
Key switch with three switching positions and latching switching function. Switch position 1 is at 0°, switch position 2 at -90° and switch position 3 at 90°. The key can be removed at all switch positions.
Includes 2 keys. Different keying possible on request.
Series
QUARTRON®
Mounting aperture
Ø 16.2 mm
Switching function
Latching function
Switching position
0° key removable
-90° maintained, key removable
90° maintained, key removable
-90° maintained, key removable
90° maintained, key removable
Illumination
No
Front bezel colour
Charcoal
Shape
Square
Degree of protection front
IP65
Protection class
II (protective insulation)

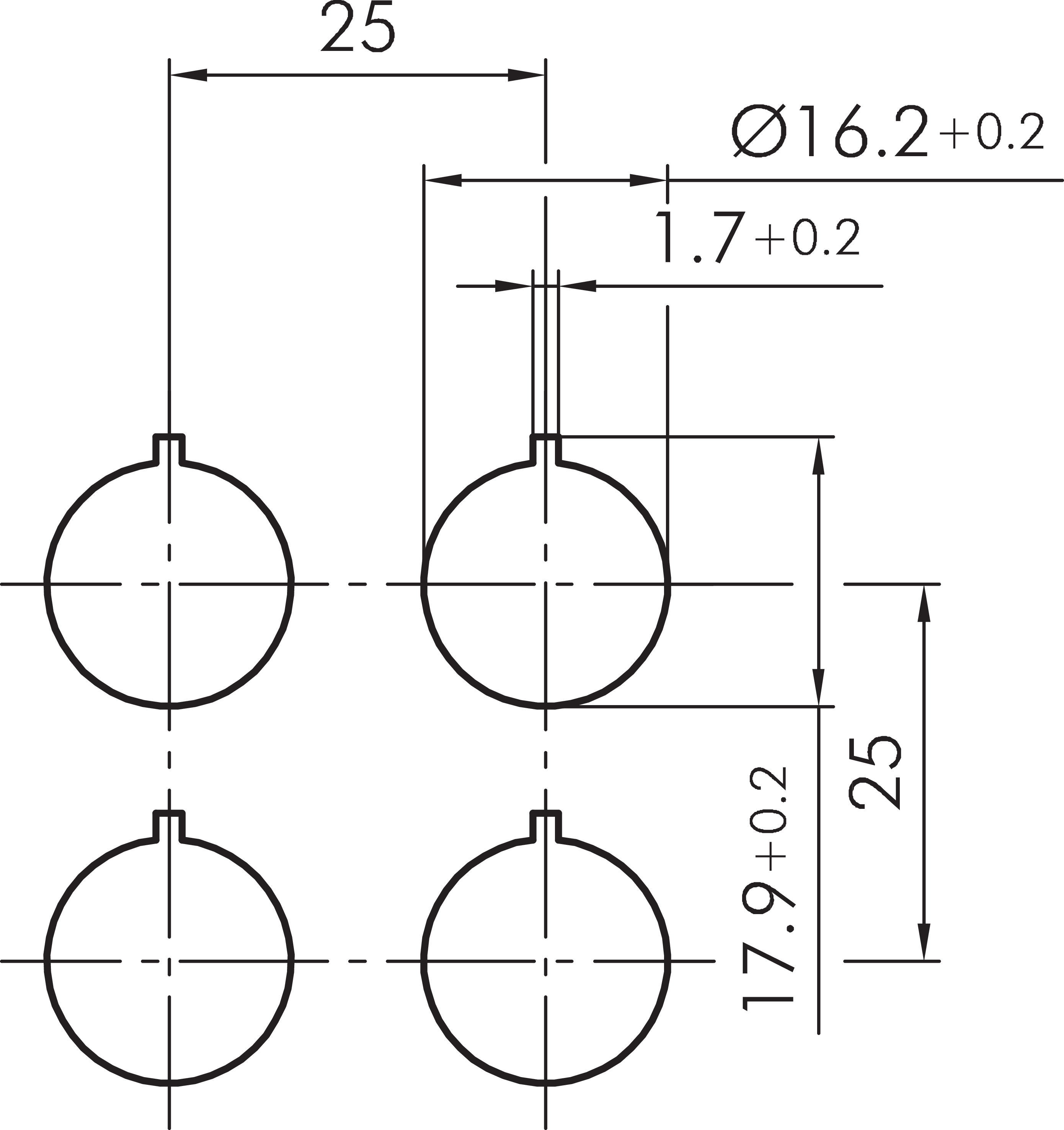

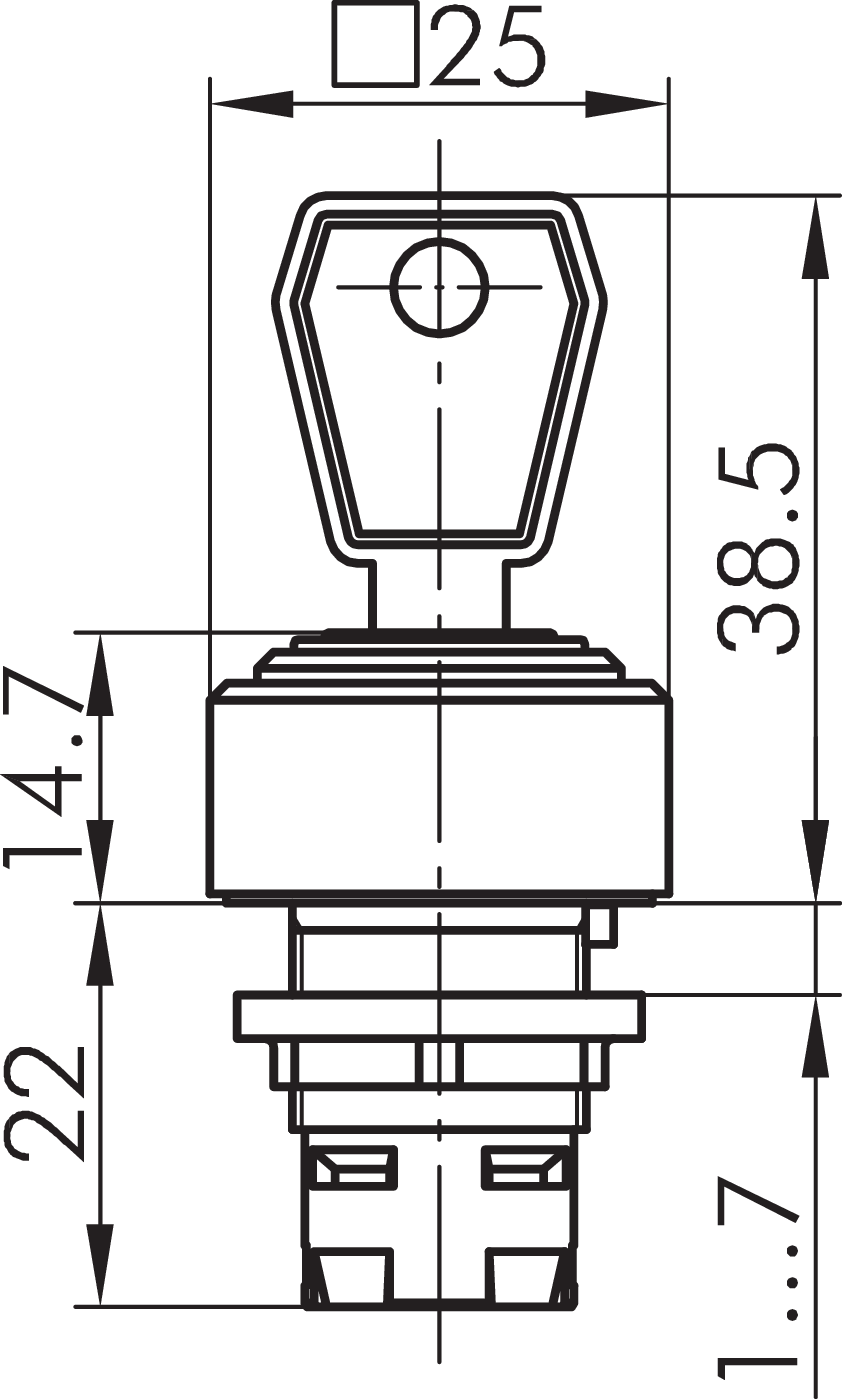

Technical sketches
