RKSSMA25 - Key actuator, left maintained, right momentary
Key switch with three switching positions and momentary and latching switching function, as well as spring return. Switch position 1 is at 0°, switch position 2 at 45° with spring return and switch position 3 at -90°. The key can be removed to switching position 3.
Includes 2 keys. Different keying possible on request.
Series
OKTRON®-R
Mounting aperture
Ø 16.2 mm
Switching function
Momentary and latching function
Switching position
-90° maintained, key removable
0° zero position
45° momentary
0° zero position
45° momentary
Front bezel colour
Silver-coloured
Shape
round
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Approvals
UR , CCC, CE, UKCA

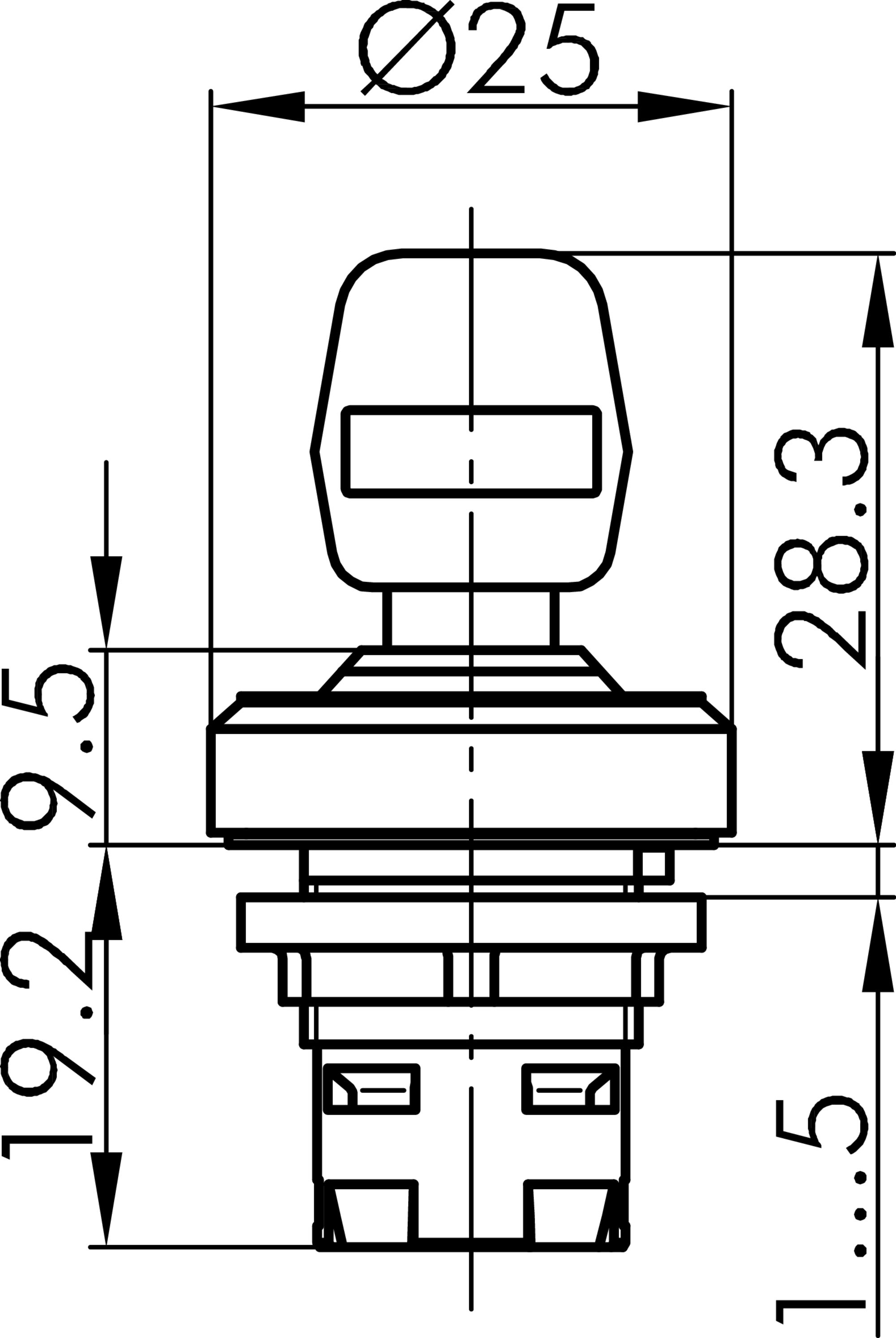

Technical sketches
