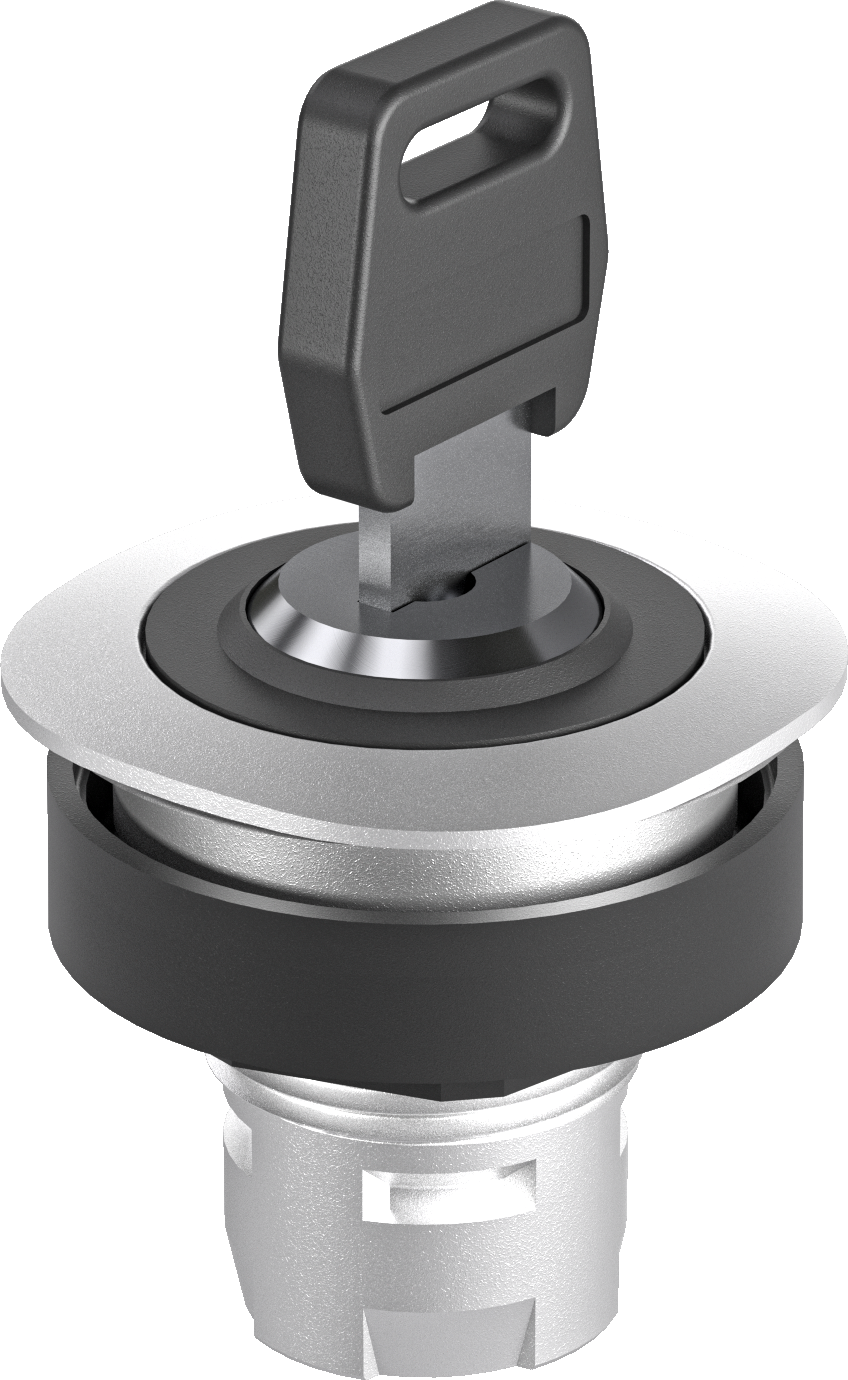

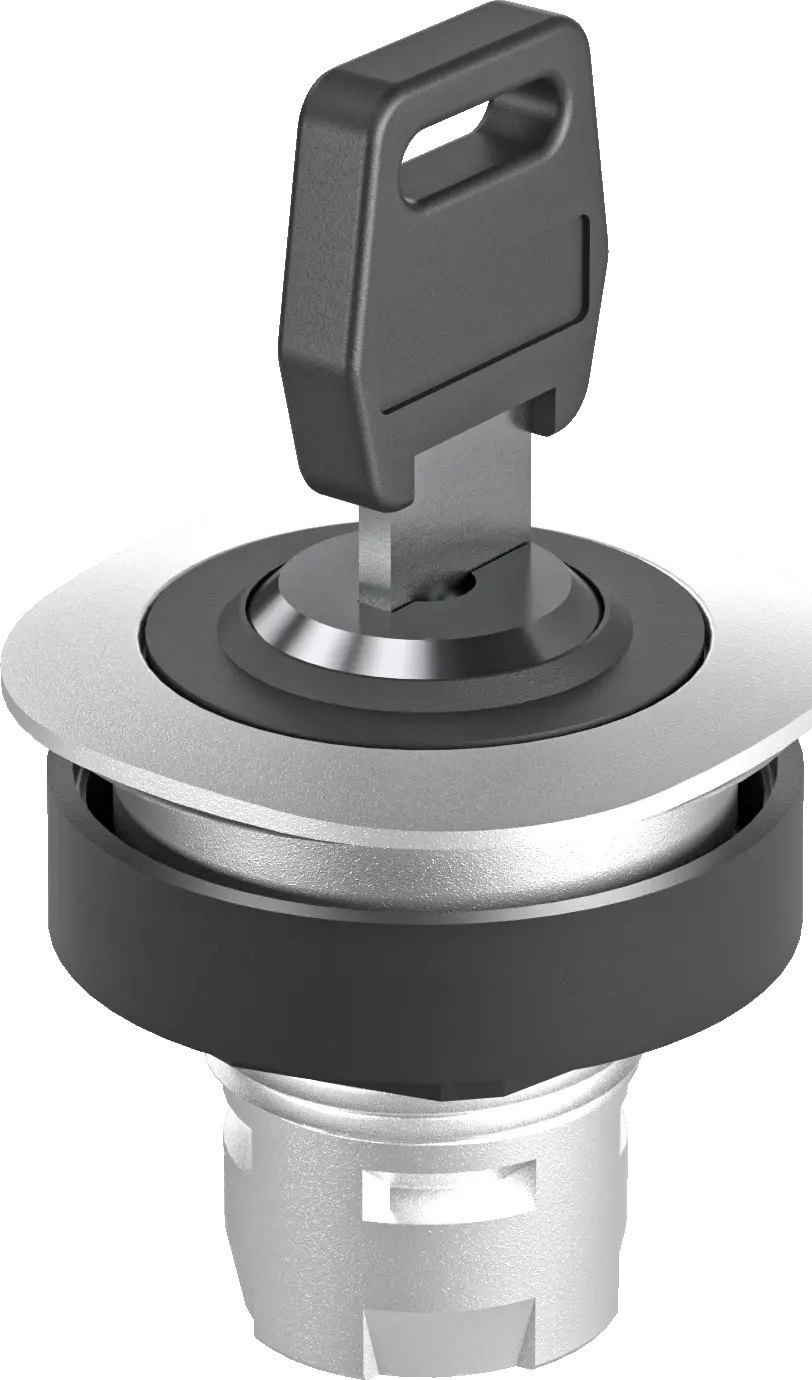

RQJSSA13 - Key switch, maintained

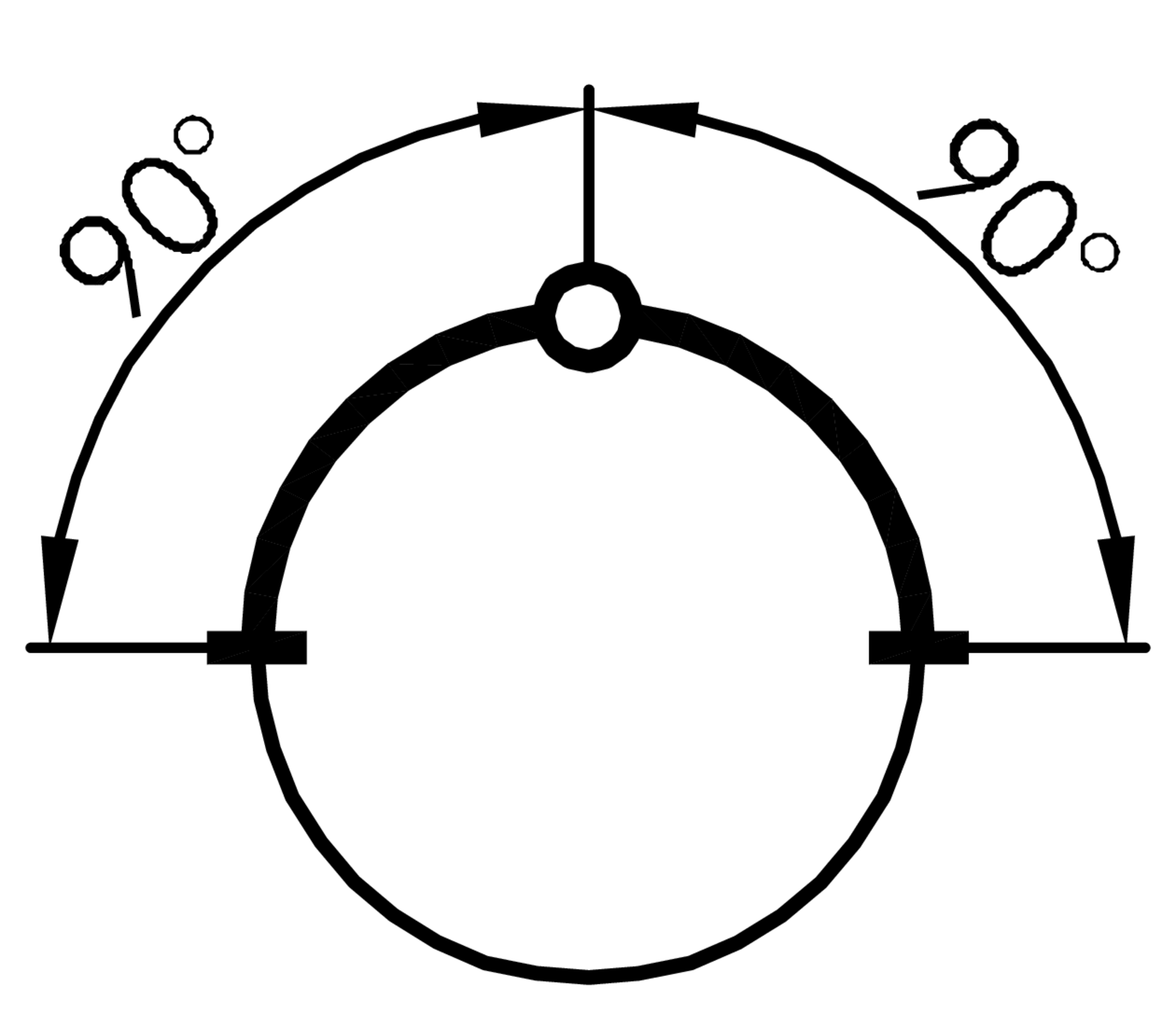

Key switch with three switching positions and latching switching function. Switch position 1 is at 0°, switch position 2 at -90° and switch position 3 at 90°. The key can only be removed to switch position 1.
Includes 2 keys. Different keying possible on request.
Series
RONTRON-Q-JUWEL

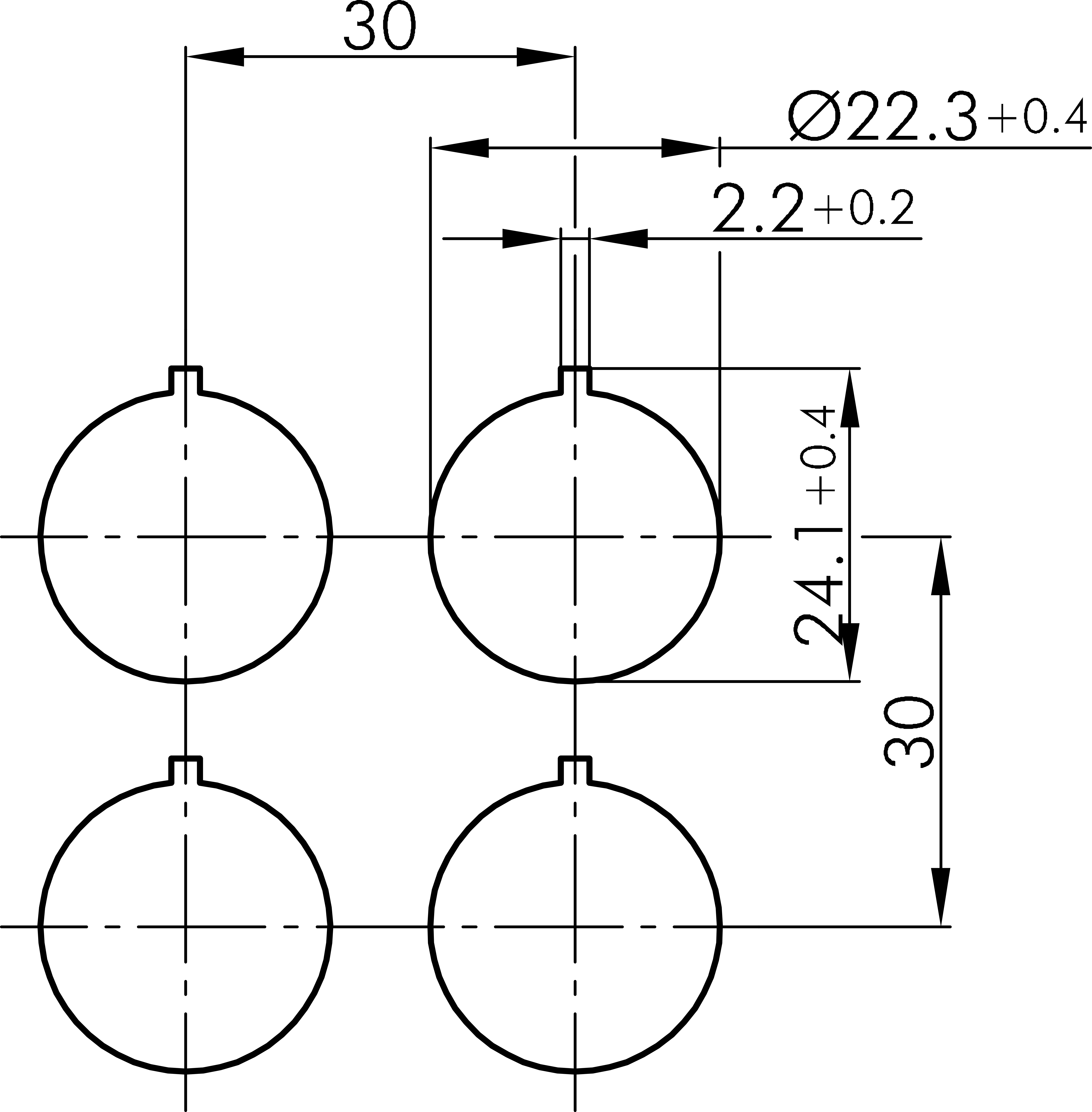

Mounting aperture
Ø 22.3 mm
Switching function
Latching function
Switching position
-90° maintained
0° key removable
90° maintained
0° key removable
90° maintained
Front bezel colour
Silver-coloured
Shape
Rounded square
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Approvals
cULus , cCSAus , CCC, CE, UKCA

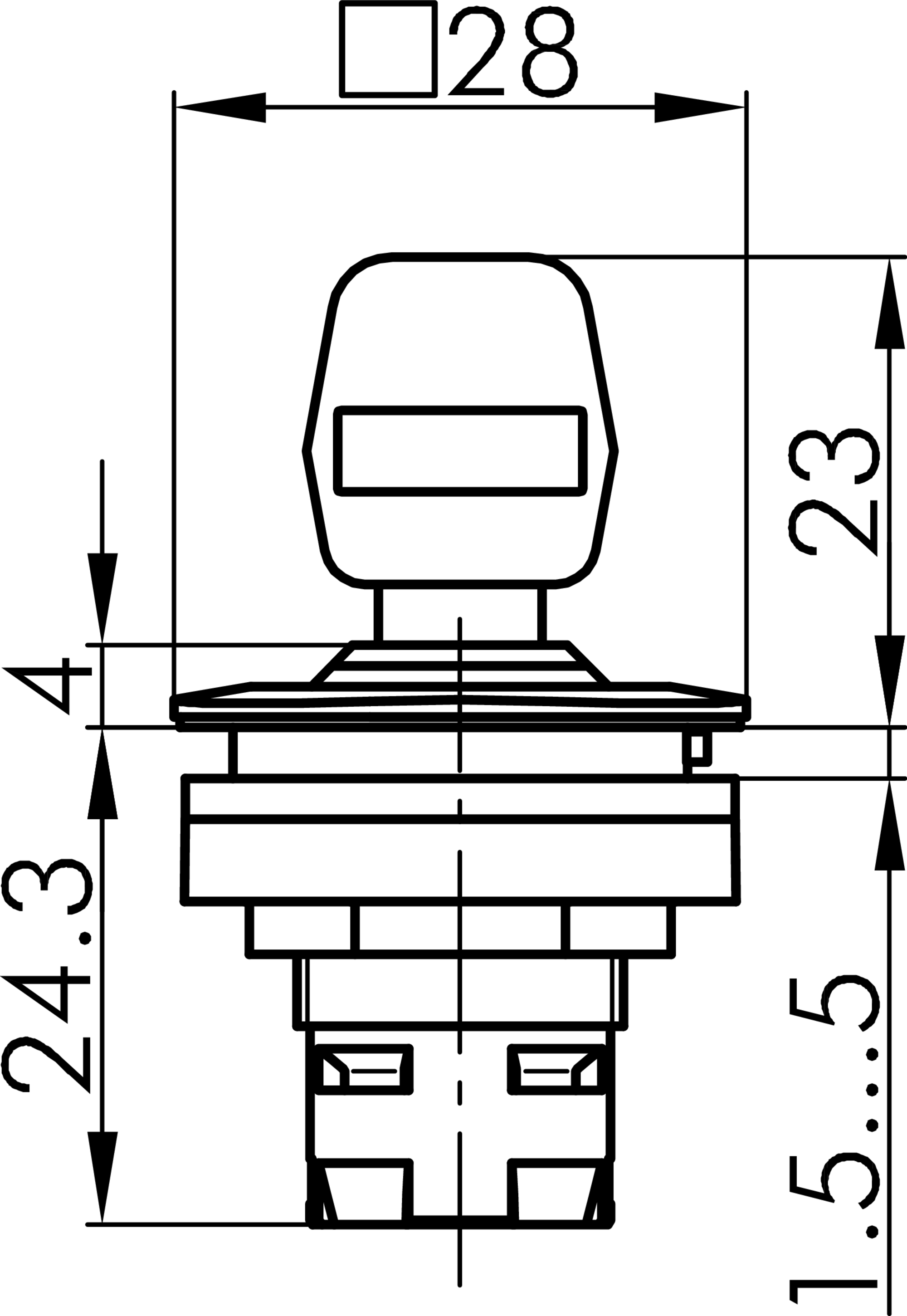

Technical sketches
