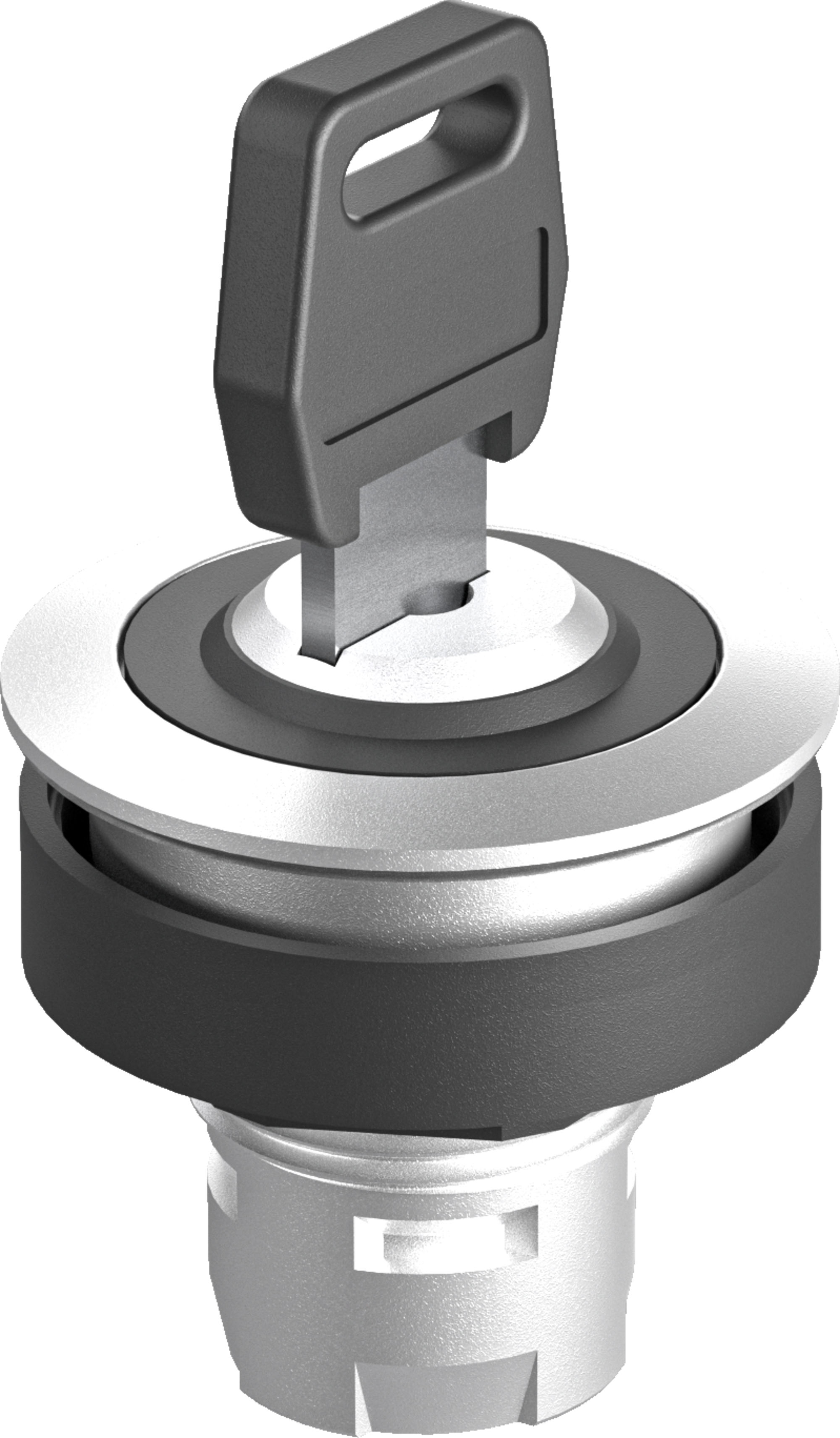

RRJSSA23 - Key actuator, momentary
Key switch with three switching positions and momentary switching function with spring return on both sides. Switch position 1 is at 0°, switch position 2 at -45° and switch position 3 at 45°. The key can be removed to switch position 1.
Includes 2 keys. Different keying possible on request.
Series
Rontron-R-Juwel

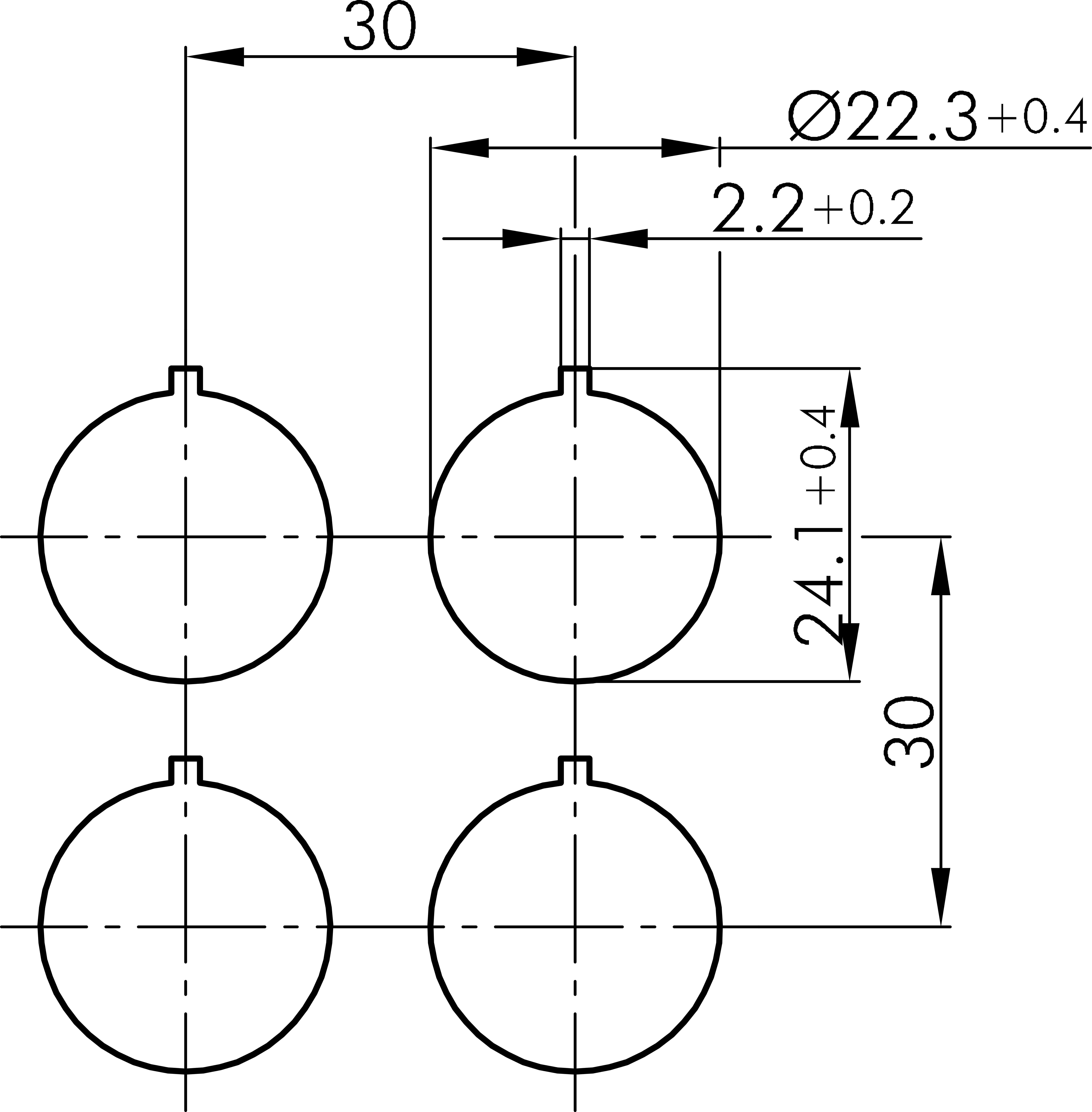

Mounting aperture
Ø 22.3 mm
Switching function
momentary function
Switching position
-45° momentary
0° key removable
45° momentary
0° key removable
45° momentary
Front bezel colour
Silver-coloured
Shape
round
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Approvals
CCC, cURus , CE, UKCA

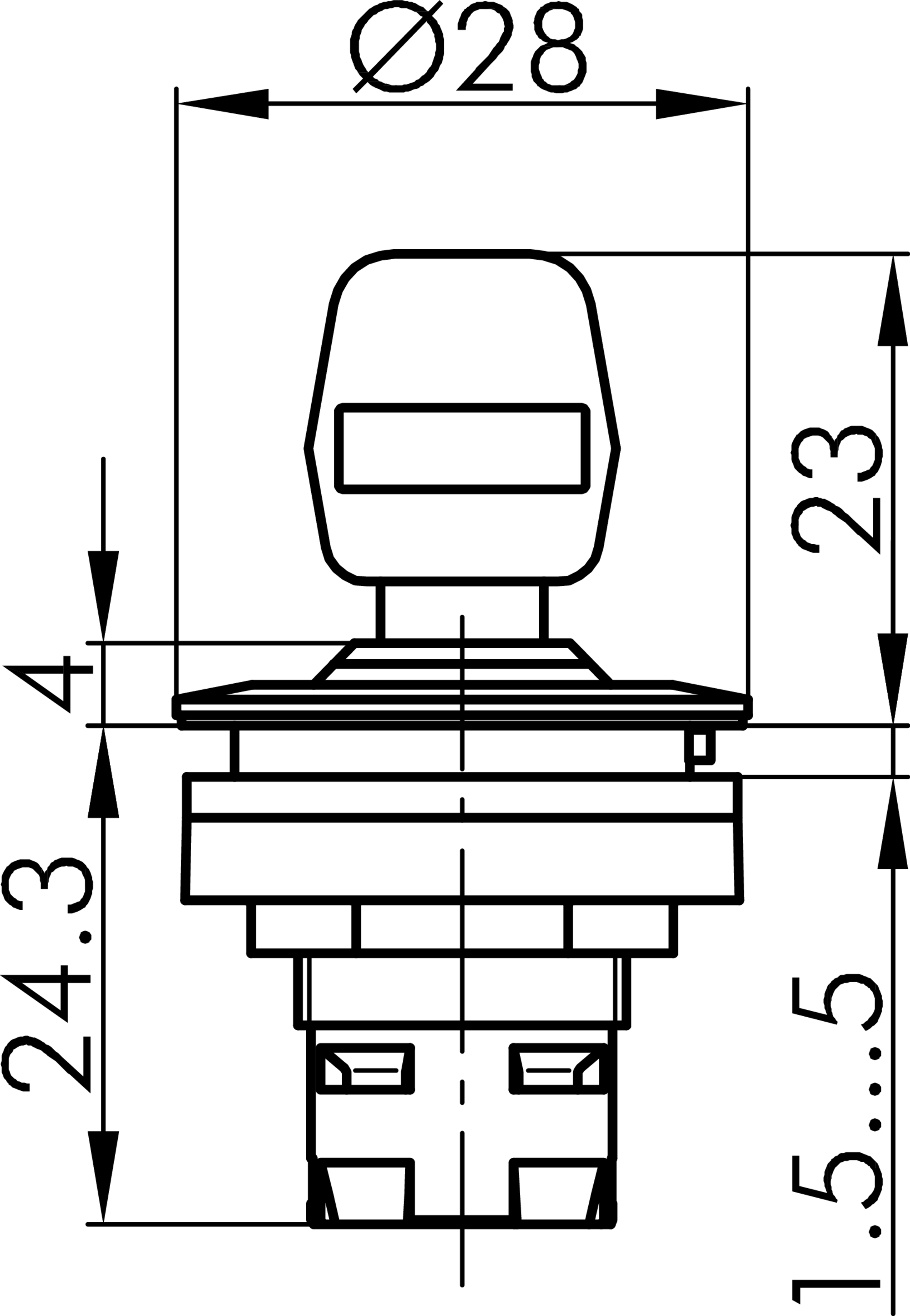

Technical sketches
