RRJSW_RFID_HID - RFID reader with HID keypad interface

RFID reader that reads the unique ID of a transponder and uses it for automatic password entry in applications. The transponder UID is converted into an ASCII code according to the HID interface and output with a final "Return" confirmation at the current position of the input cursor of the corresponding application. The associated action of the application, e.g. a password request, is thus executed automatically. This prevents the memorization or security-critical writing down of passwords

Series
RFID Standard
Mounting aperture
Ø 22.3 mm
Front bezel colour
black
Shape
round
Degree of protection front
IP69K
IP65
Operating temperature
-20°C ... 70°C
Cable length
80 cm
Protection class
III (Schutzkleinspannung)
Technical sketches

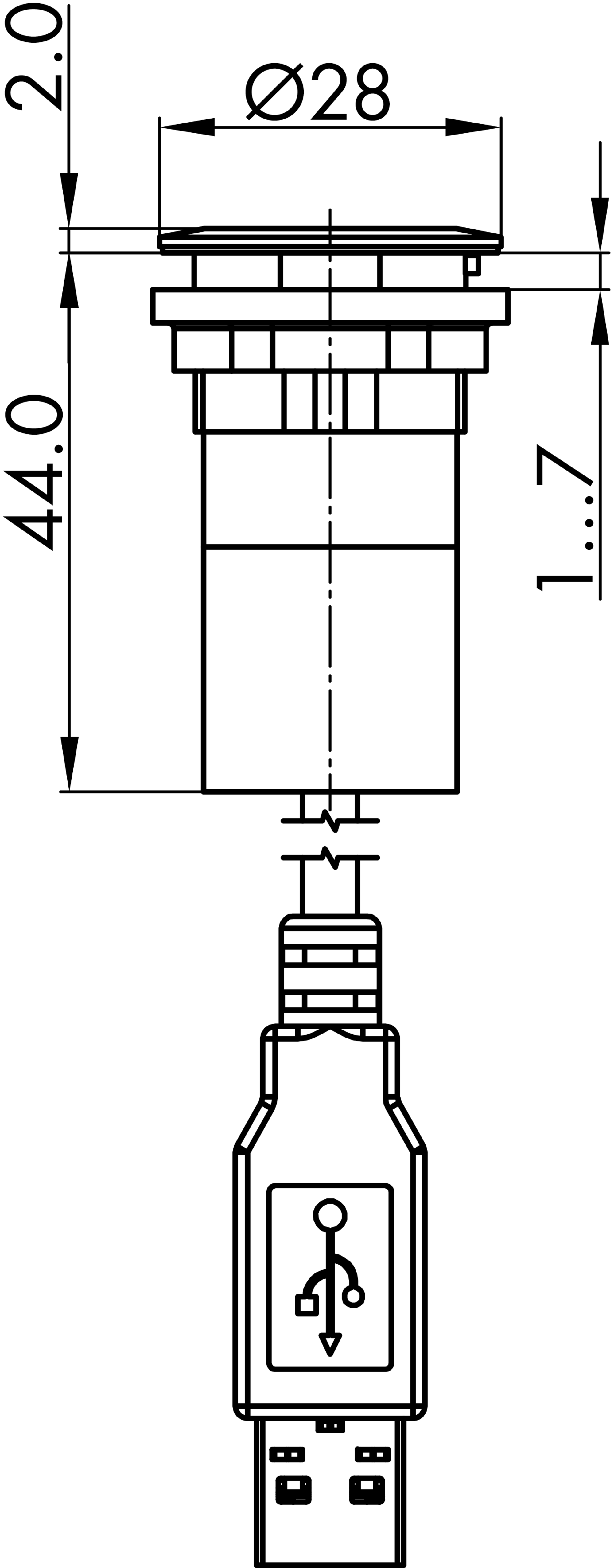

Maßskizze RRJSW_RFID_HID

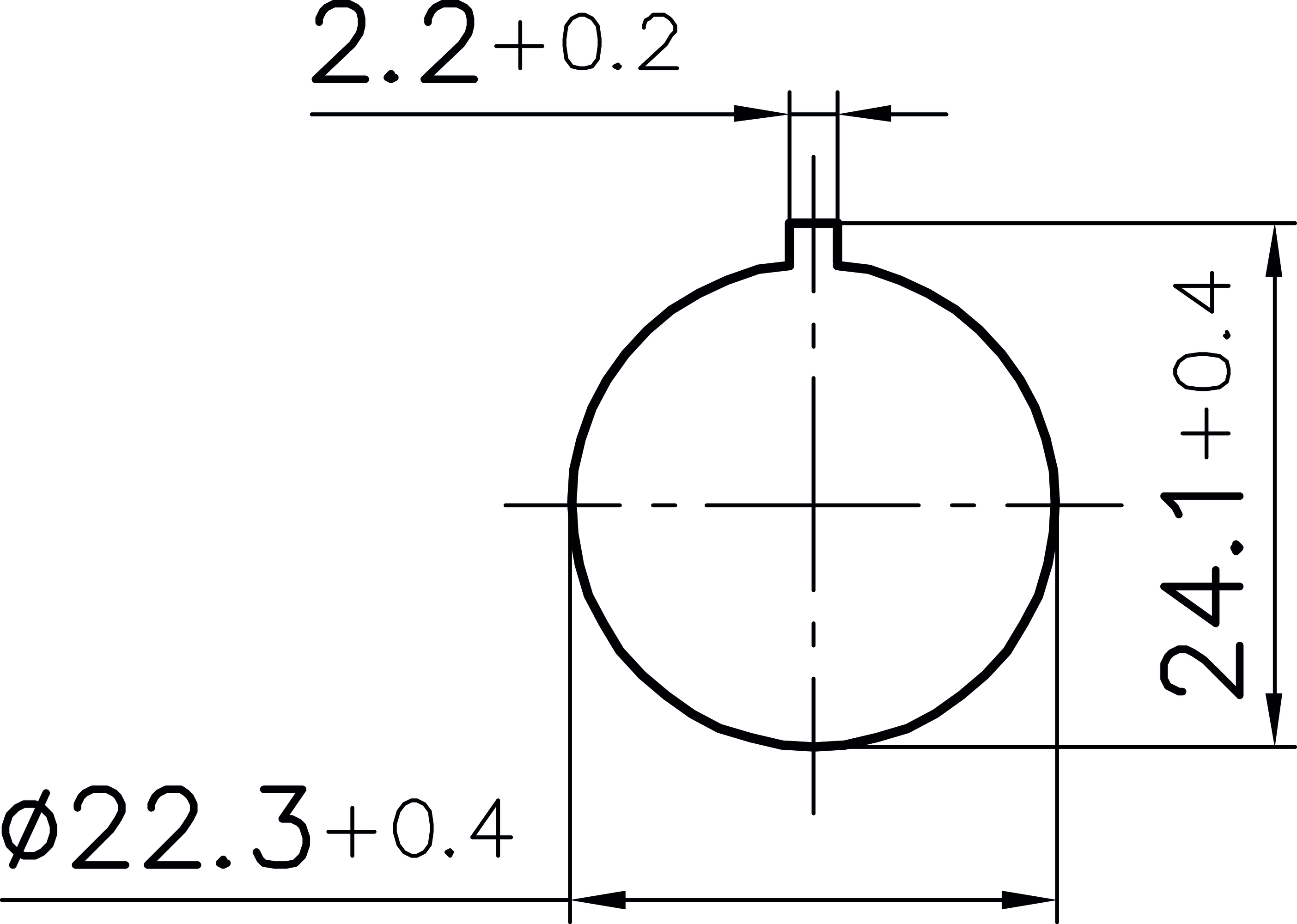

Bohrbild RRJSW_RFID_HID

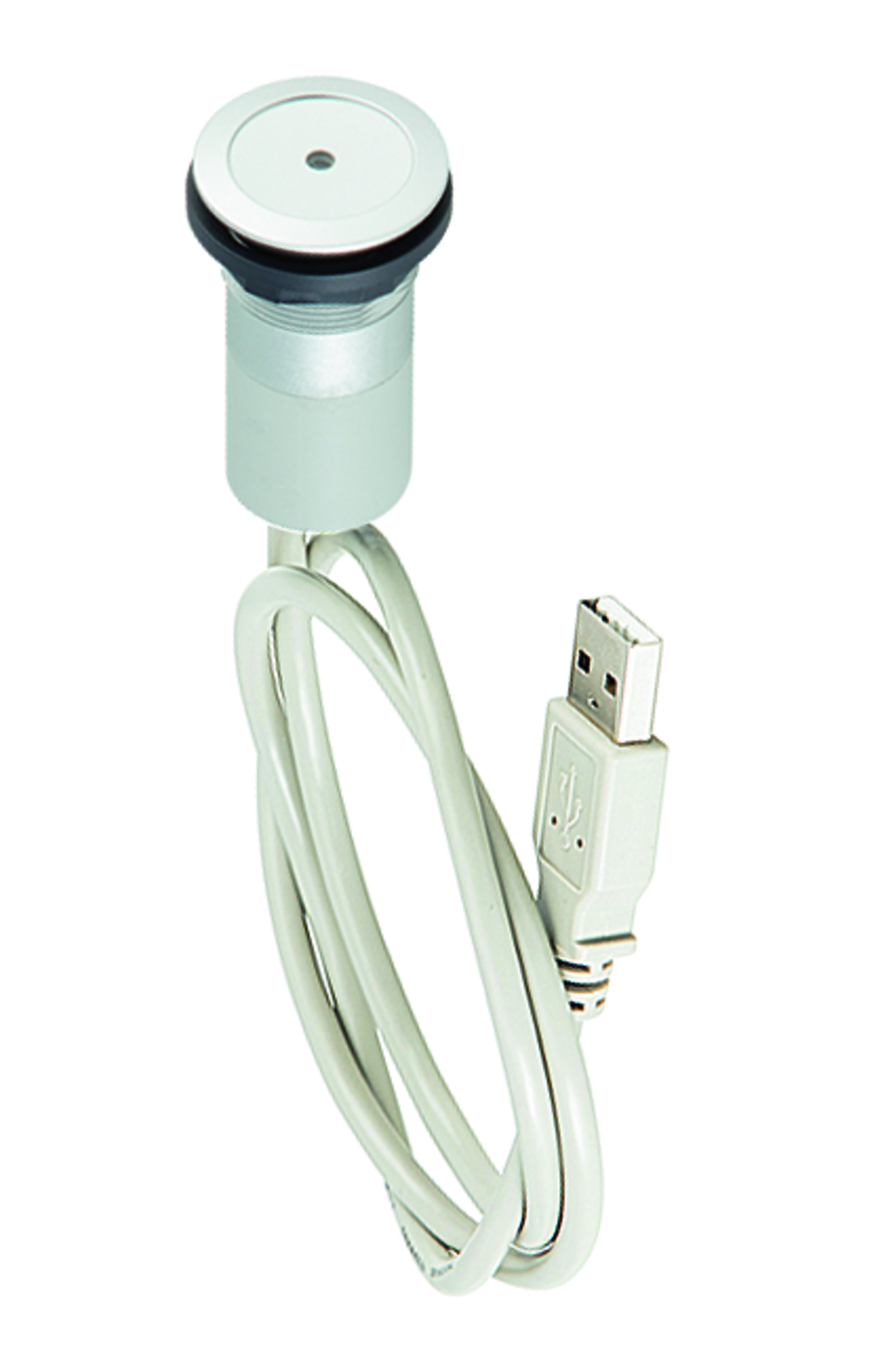

Produktbild RRJSW_RFID_HID
