RRJTLR

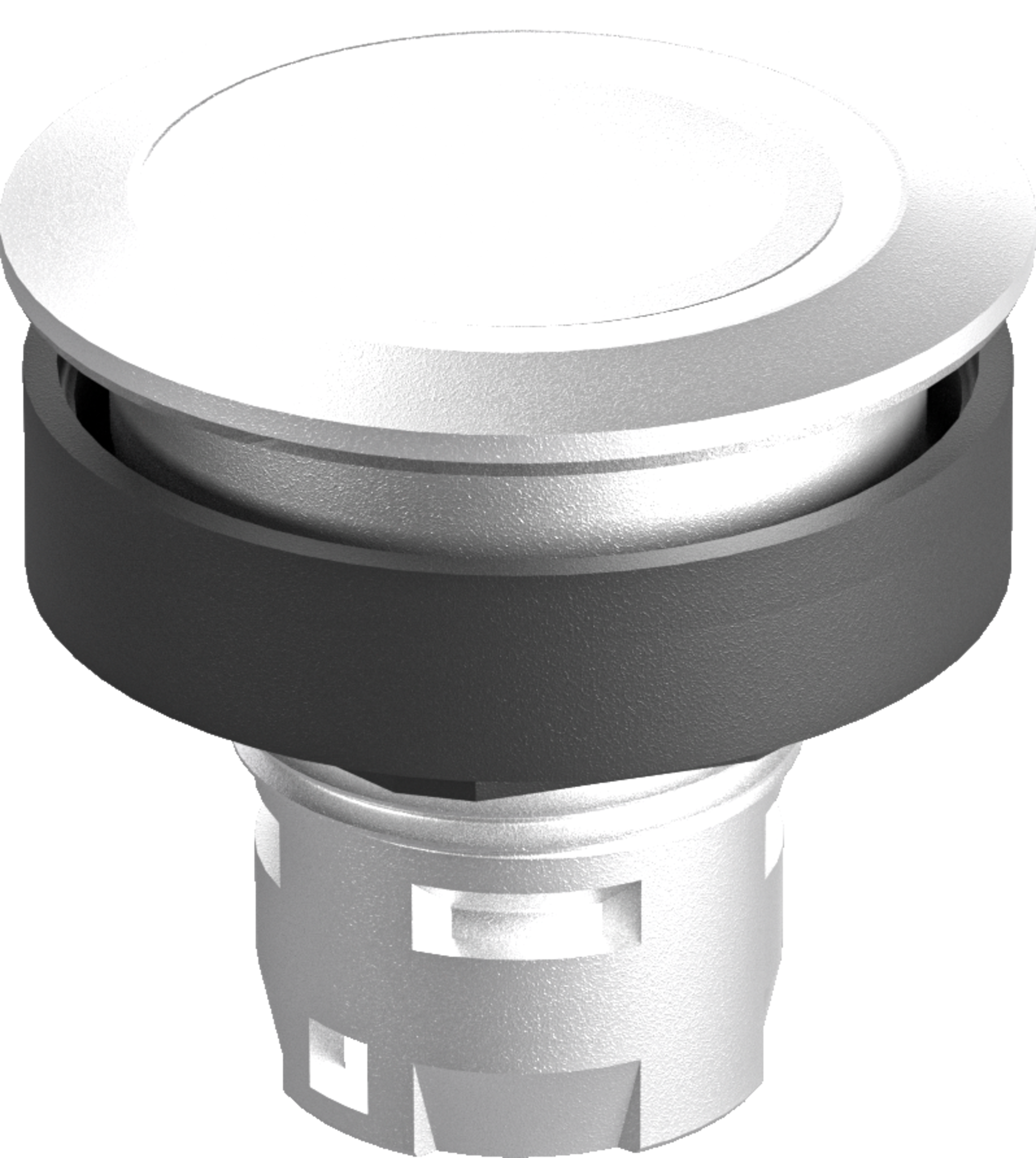

Pushbutton head with ring illumination
Series
RONTRON-R-JUWEL
Degree of protection front
IP69K , IP65 , IP66
Mechanical life
1,000,000 switching cycles
Switching function
Momentary function
Protection class
II (protective insulation)
Storage temperature
-50 ... 85°C
Operating temperature
-30 ... 70°C without illumination
-30 ... 65°C with LED illumination
-30 ... 55°C with incandescent lamp illumination
-30 ... 65°C with LED illumination
-30 ... 55°C with incandescent lamp illumination
Approvals
cCSAus , CCC , cURus , CE , UKCA
Operating travel
3 mm
Shape
round

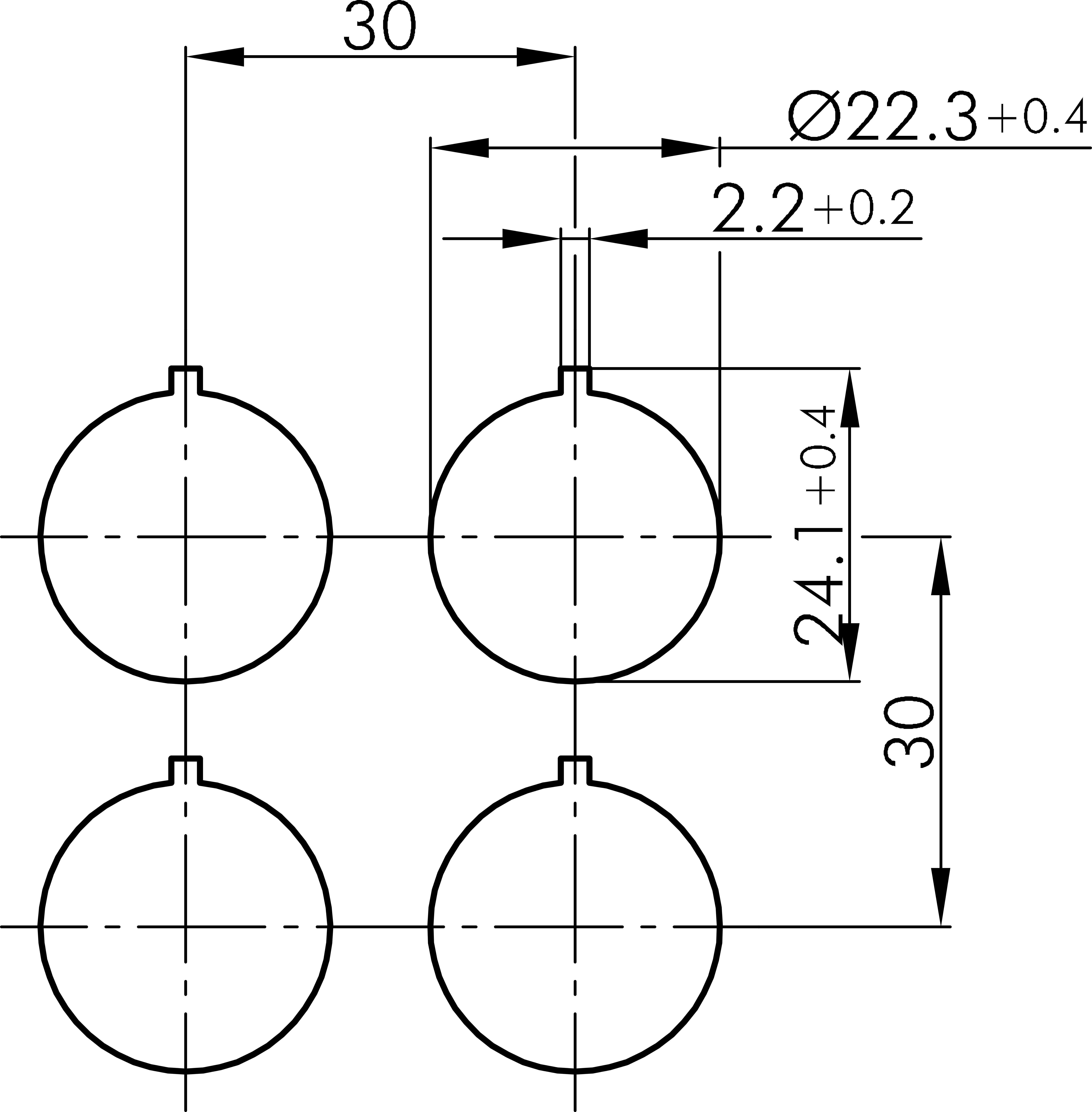

Mounting aperture
Ø 22.3 mm
Front bezel colour
silver

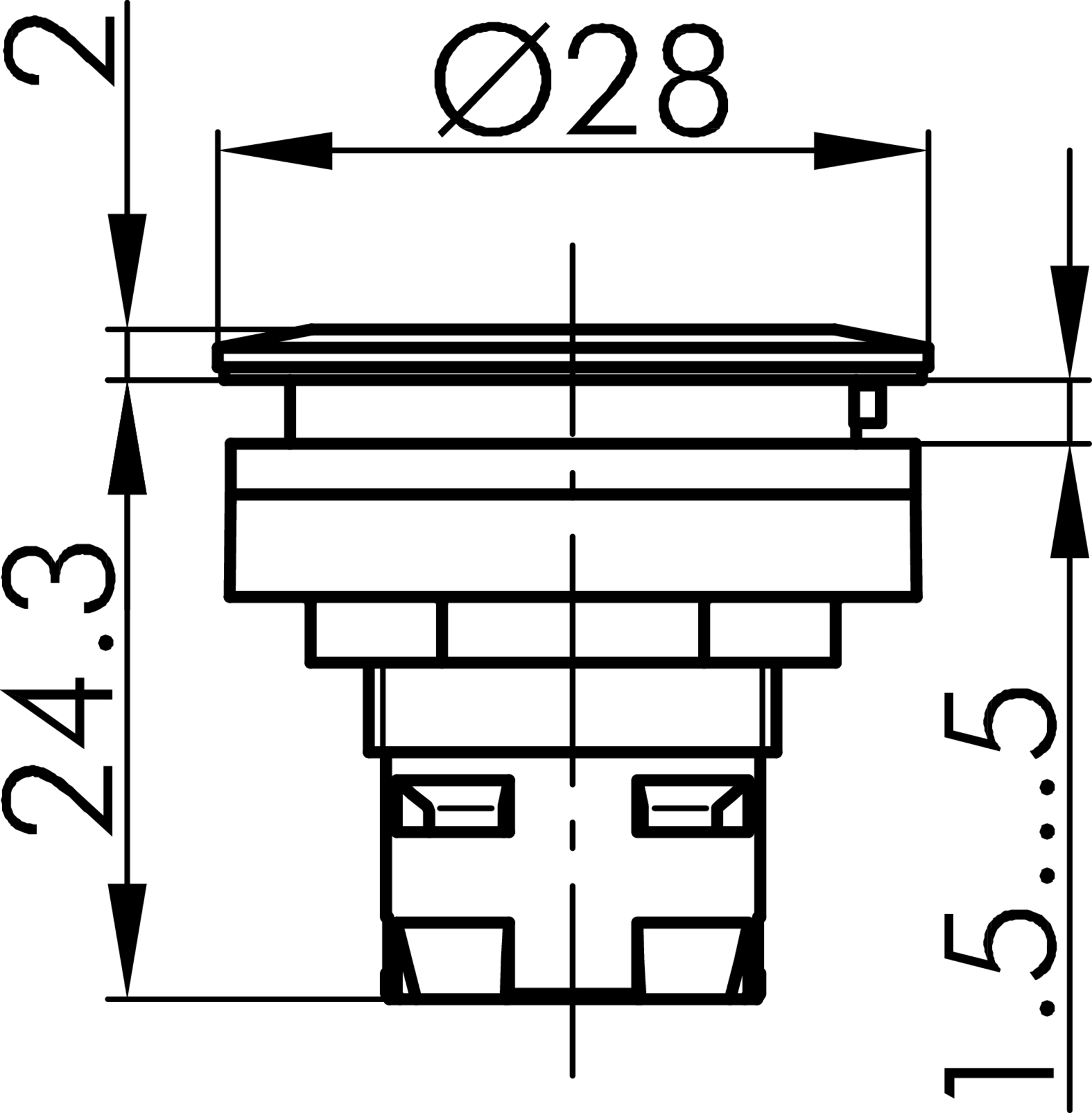

Technical sketches
