RRJVAFT - Membrane pushbutton head

The membrane switch impresses with its hygienic design and is ideal for areas where cleanliness and easy cleaning are of the utmost importance.

With its closed and robust surface, the button offers optimum protection against dirt, dust and moisture. It is therefore particularly suitable for use in sensitive areas such as medical and laboratory technology, the food industry and other hygiene-relevant environments.

The smooth surface enables easy disinfection, making it a safe choice for hygienic requirements.

Series
Rontron-R-Juwel
Mounting aperture
Ø 22.3 mm
Switching function
momentary function
Illumination
Yes
Front bezel colour
stainless steel, polished
Colour actuator
black
Shape
round
Degree of protection front
IP69K
IP66
Operating temperature
-25°C ... 70°C
Mechanical life
1,000,000 switching cycles 20°C
Approvals
cCSAus , CCC, cURus , CE, DGUV_Test , UKCA
Technical sketches

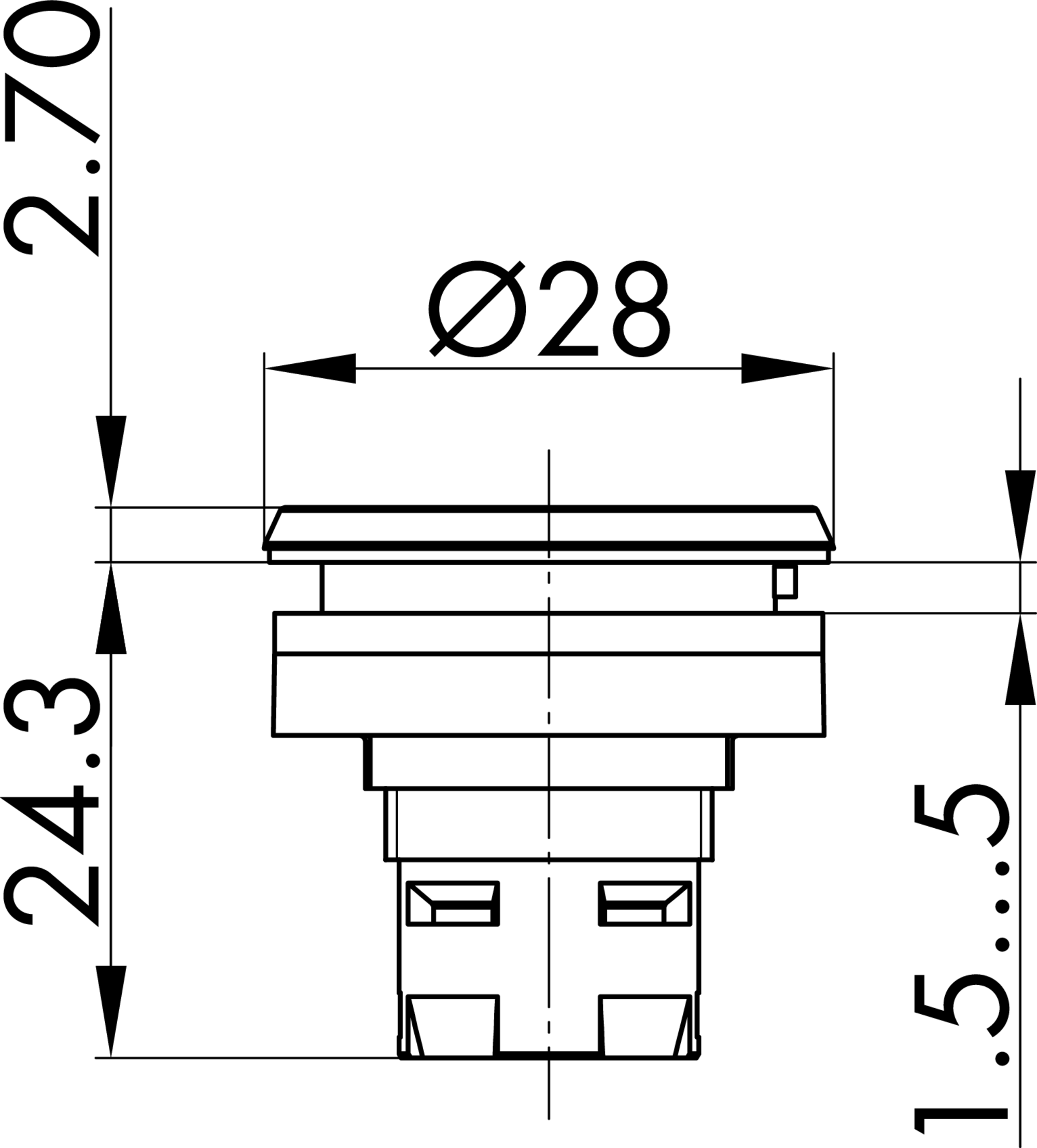

Maßskizze RRJVAFT

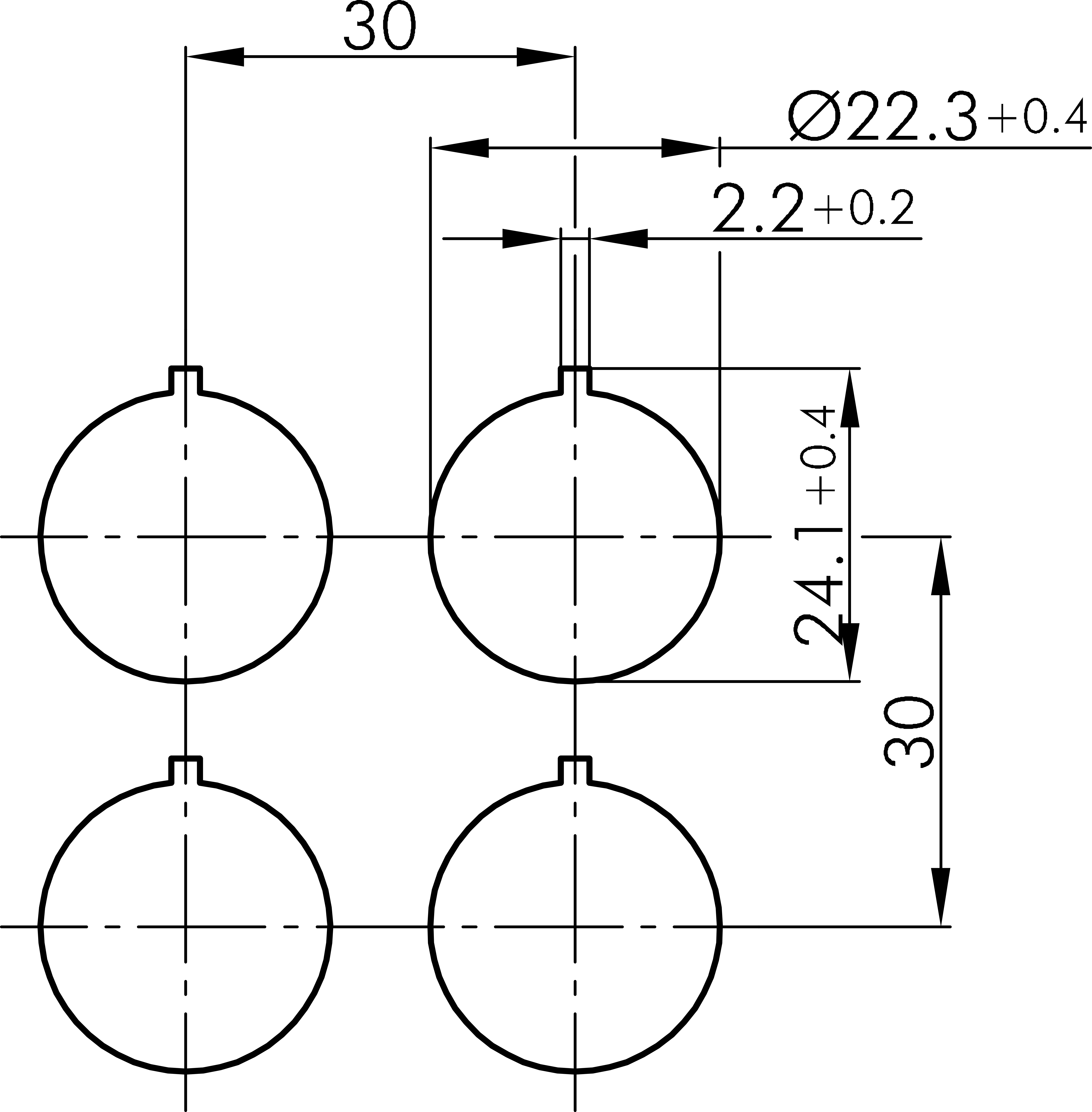

Bohrbild RRJVAFT
Awards
Auszeichnung RRJVAN
Auszeichnung RRJVAN
Auszeichnung RRJVAN

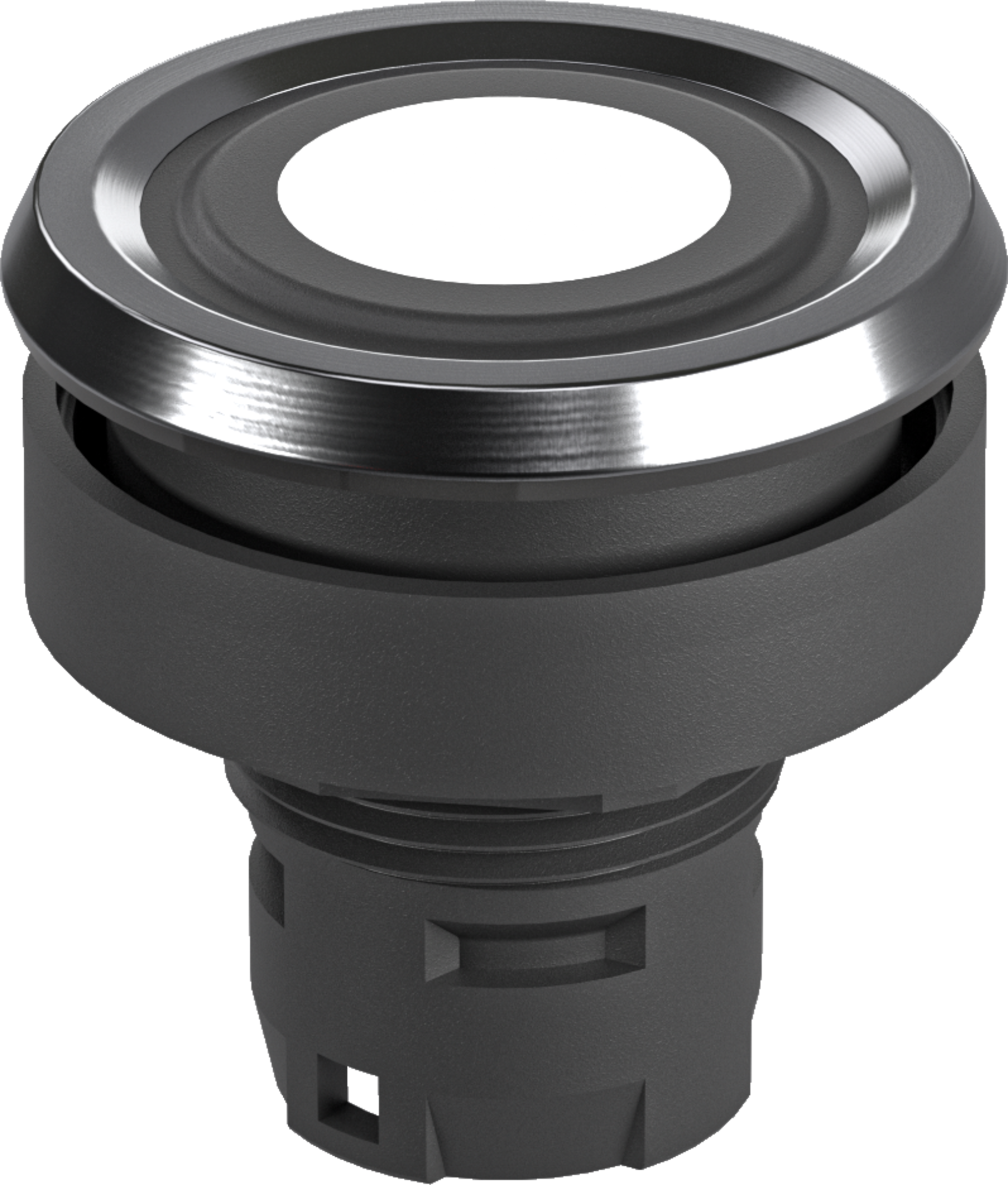

Produktbild RRJVAFT
