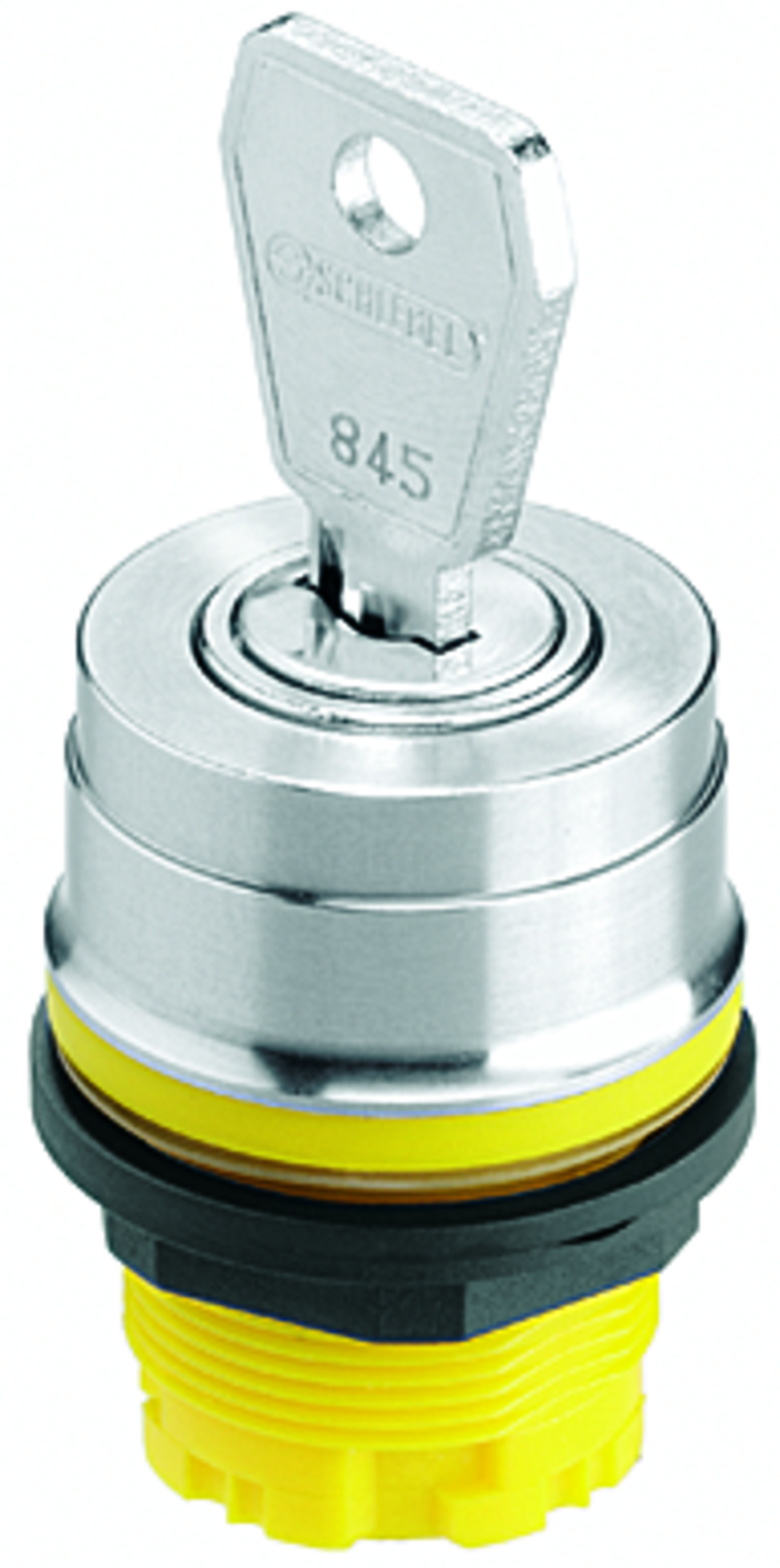

RVASSA12E_BL - Key actuator, maintained
Key switch with three switching positions and latching switching function. Switch position 1 is at 0°, switch position 2 at -90° and switch position 3 at 90°. The key can be removed at all switch positions.
Includes 2 keys. Different keying possible on request.
Series
RVA

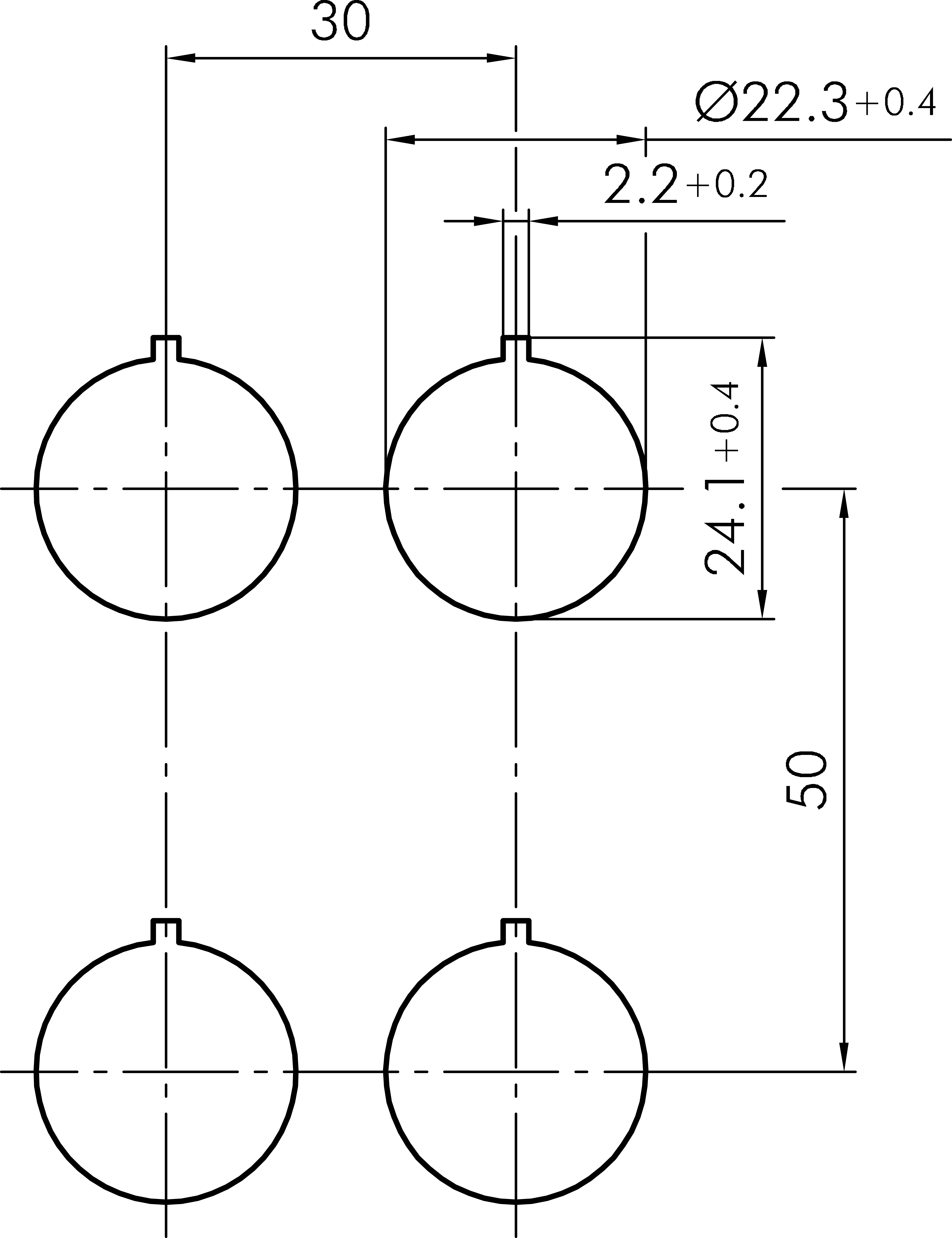

Mounting aperture
Ø 22.3 mm
Switching function
Latching function

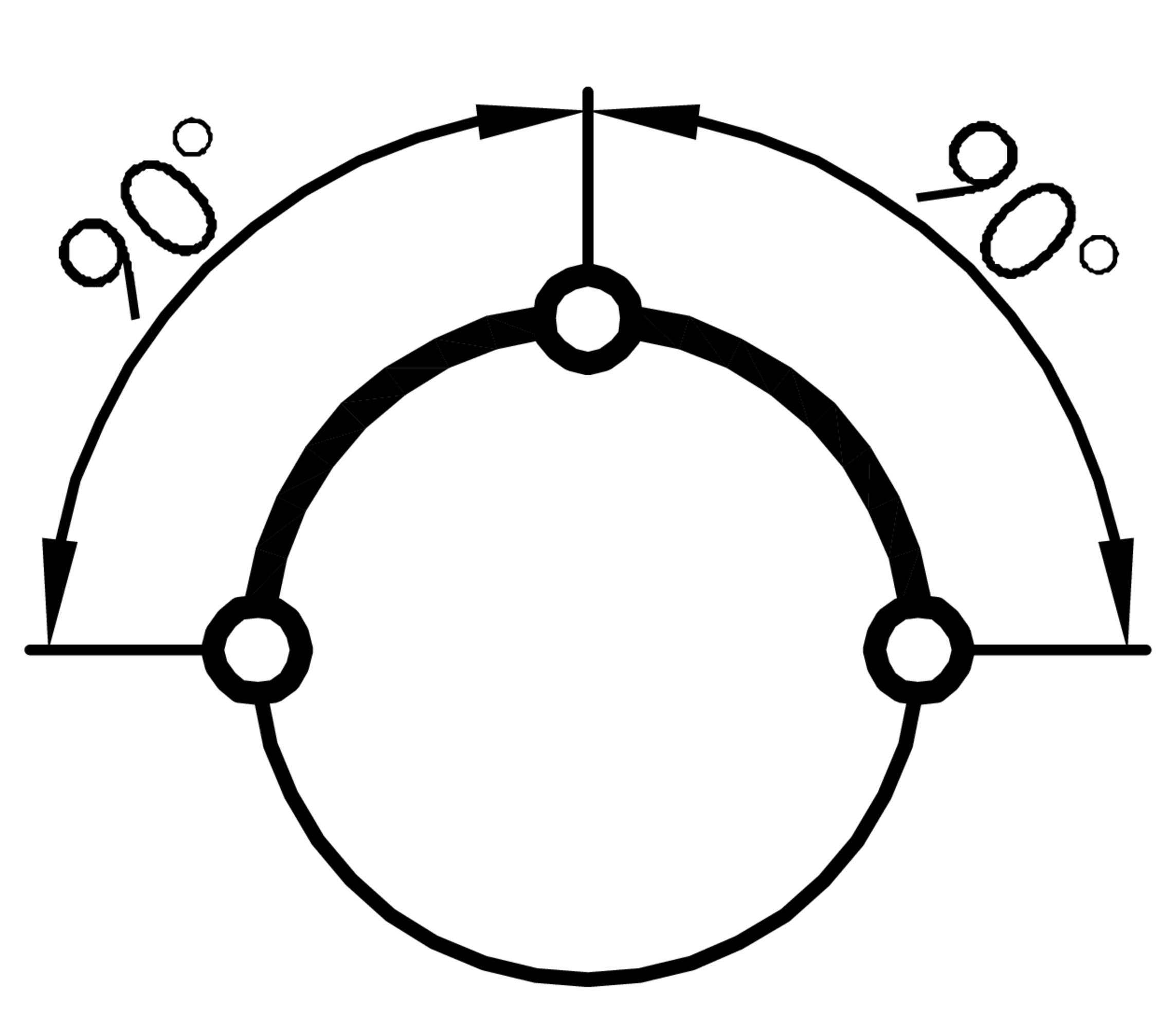

Switching position
0° key removable
-90° maintained, key removable
90° maintained, key removable
-90° maintained, key removable
90° maintained, key removable
Front bezel colour
Stainless steel
Colour actuator
Stainless steel
Shape
round
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Approvals
CE, UKCA

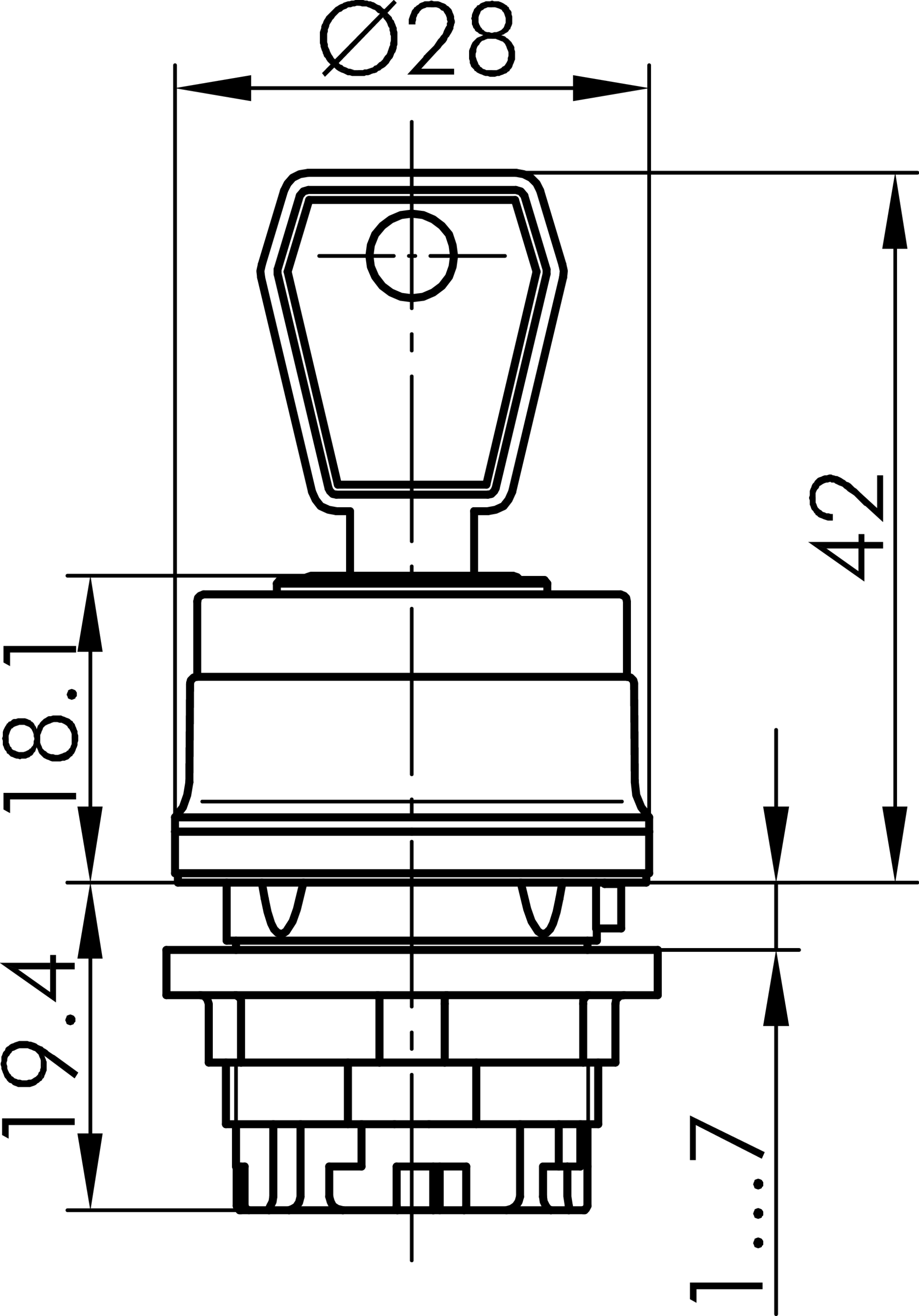

Technical sketches
