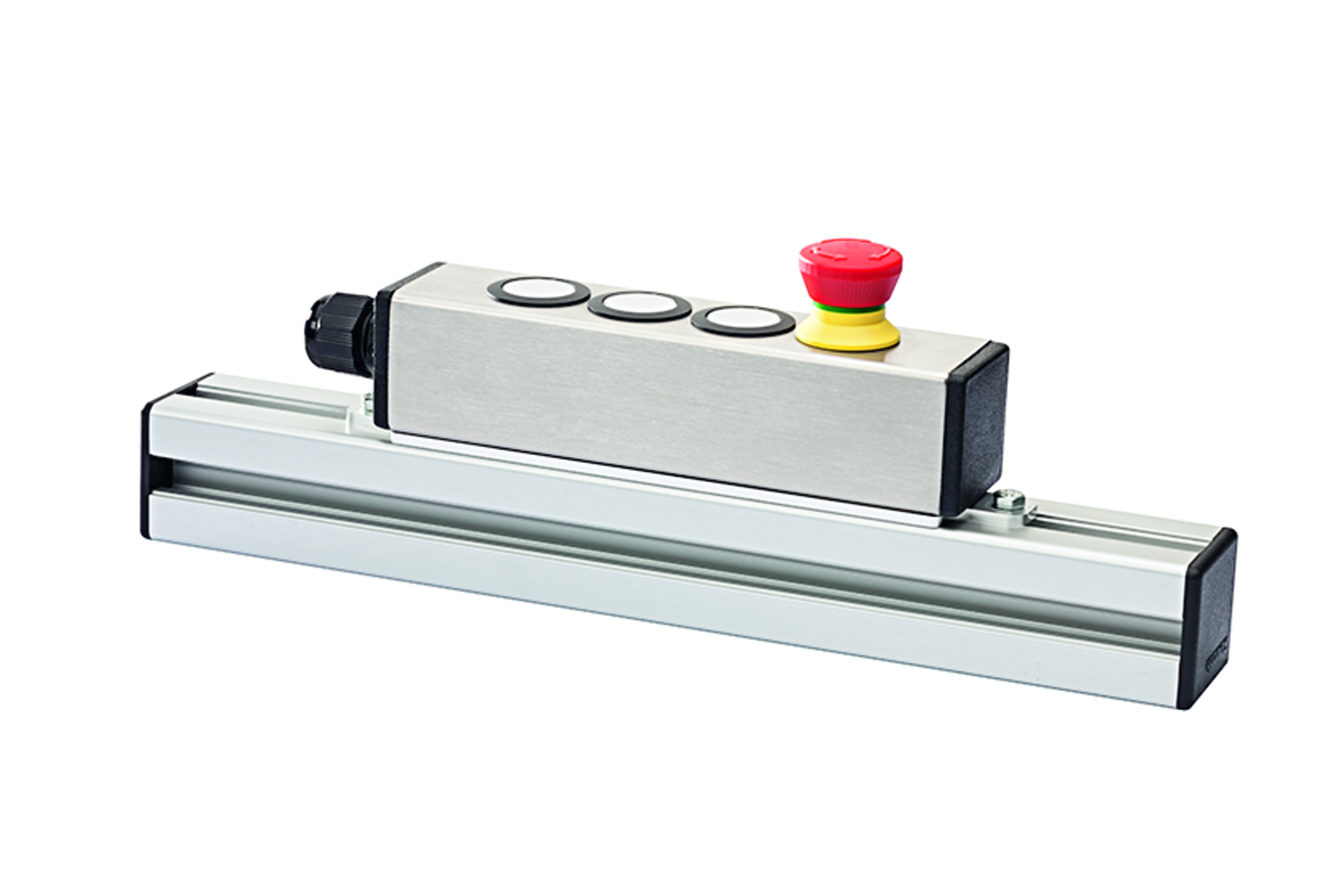

S44_04 - Equipped stainless steel enclosure with cable gland for profile rail mounting - 4 mounting holes

Stainless steel housing with 4 control points. Equipped with 3 illuminated pushbuttons with 1 NO and an emergency stop with 2 NC. The cable is fed in via the M16 x 1.5 cable gland. The contact elements in the housing are connected via 2.8 mm x 0.8 mm spade connectors.

Series

Illumination

Degree of protection front

IP54

Operating temperature

-25°C ... 70°C

Mechanical life

50,000 switching cycles emergency-stop
1,000,000 switching cycles pushbuttons

Approvals

TÜV_Süd , CE, UKCA

Material

Stainless steel enclosures
