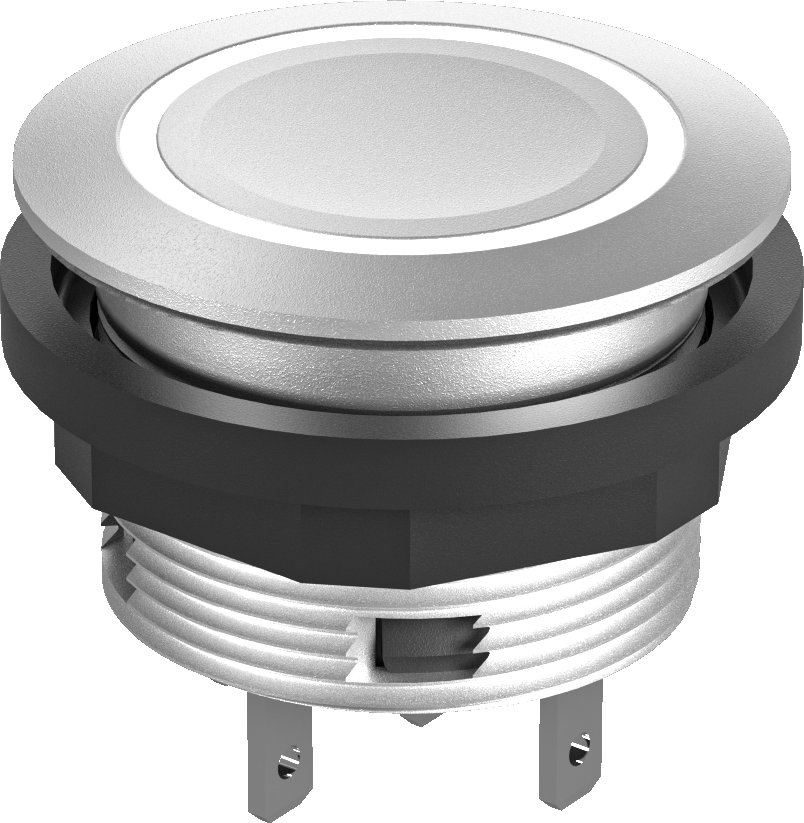

SCTLRWF1109 - Tactile push-button with white ring illumination and symbol 1109
Elegant push-button with ring lighting and tactile feedback as well as flat plug connections. The push-button has a changeover contact. White actuating element
Series
SHORTRON®
Mounting aperture
Ø 22.3 mm
Contact type
1CO
Switching function
Momentary function
Connection
Faston terminals
Illumination
Yes
Illuminant
LED integrated
Front bezel colour
Silver-coloured
Colour actuator
white
Shape
round
Degree of protection front
IP67
IP65
IP65
Operating temperature
-25°C ... 70°C
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles at rated voltage
Approvals
VDE , CCC, cURus , ENEC10 , CE, UKCA
Downloads

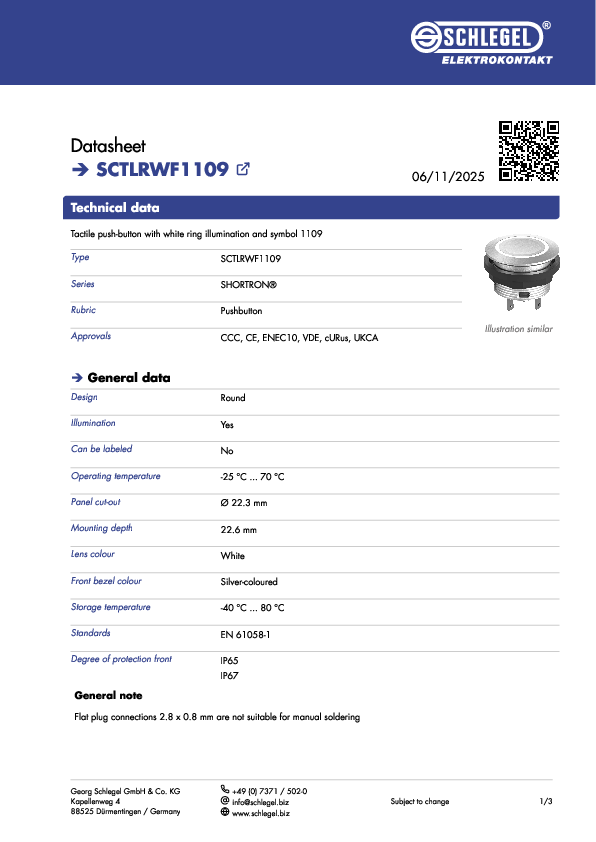

Datasheet_SCTLRWF1109
