SIL_QRSKUVOOIM12 - Emergency-stop control station with M12 connector - 2NC+1NO
Series
SIL
Contact type
2NC + 1NO
Connection
M12
Illumination
No
Colour housing/enclosure
Bottom part dark grey/cover yellow
Degree of protection front
IP65 with connected M12
Operating temperature
-25°C ... 55°C
Rated operating voltage
24 V AC
24 V DC
24 V DC
Rated operating current
2 A AC
2 A DC
2 A DC
Mechanical life
50,000 switching cycles
Electrical life
50,000 switching cycles at rated voltage
Approvals
CE, UKCA

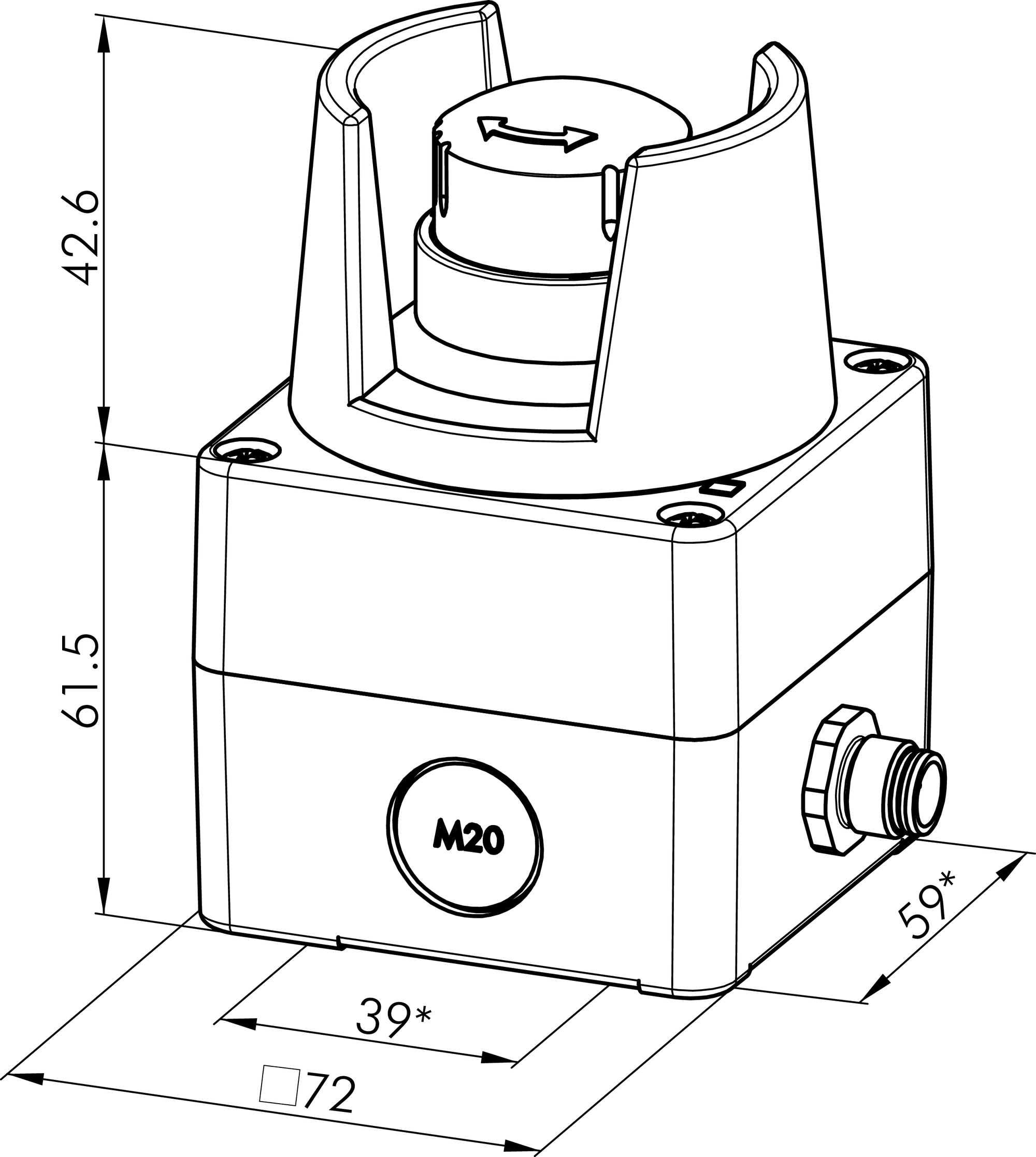

Technical sketches
