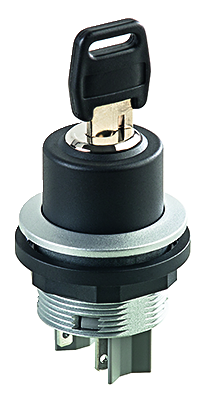

SSSA14II
Key-operated switch, maintained
Operating temperature
-25 ... 70°C
Approvals
DNV, VDE , CCC , cURus , ENEC10 , CE , UKCA

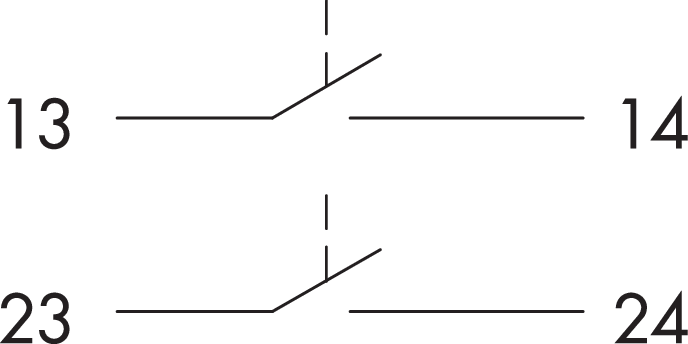

Contact type
2NO
Rated insulation voltage IEC/EN 60947-5-1
250 V DC
250 V AC
250 V AC
Storage temperature
-40 ... 80°C
Switching function
Maintained function
Degree of protection front
IP65
Electrical life
30,000 switching cycles
Operating travel
2.3 mm
Series
SHORTRON®

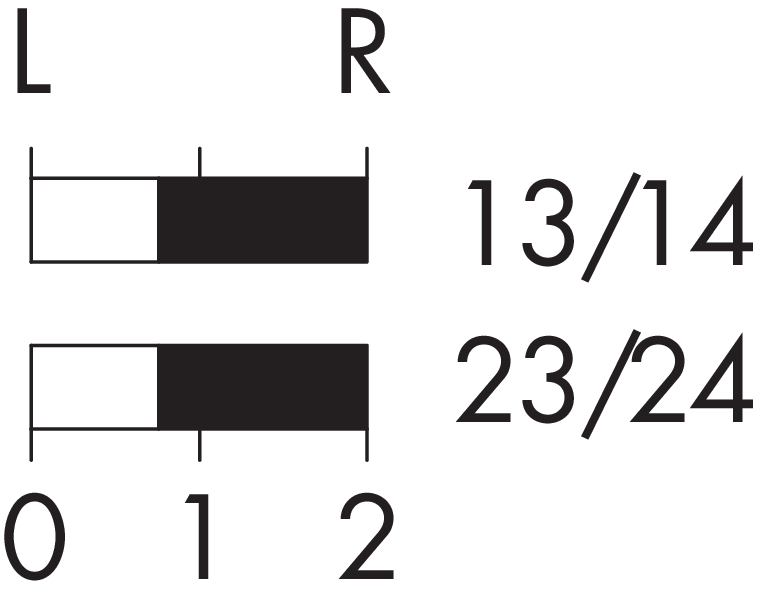

Switching position
0° key removal
90° maintained
90° maintained
Shape
round

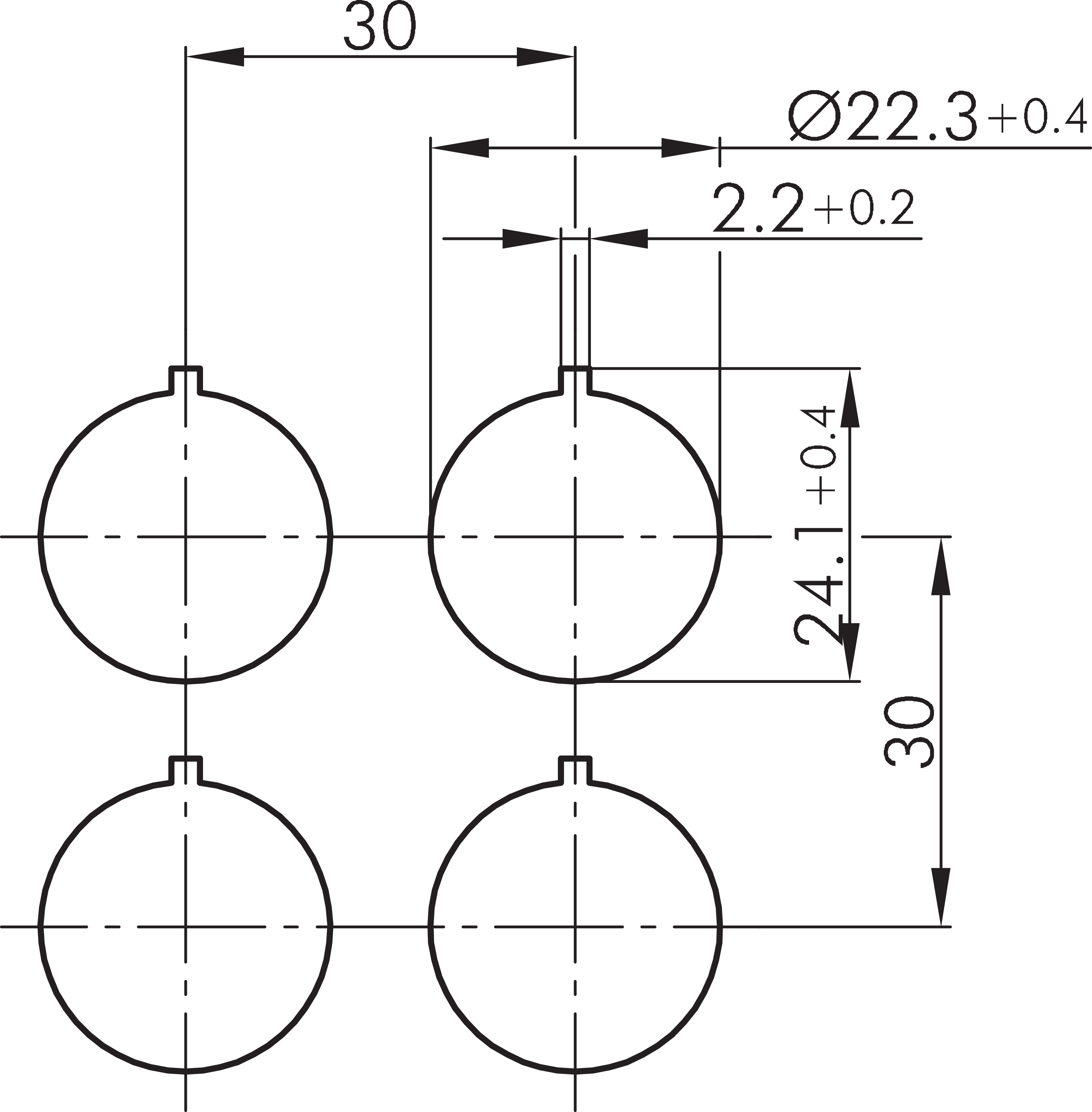

Mounting aperture
Ø 22.3 mm
Mechanical life
30,000 switching cycles
Illumination
no
Front bezel colour
silver
Rated operating voltage
250 V DC
24 V DC
125 V DC
240 V AC
60 V DC
120 V AC
24 V DC
125 V DC
240 V AC
60 V DC
120 V AC
Rated operating current
0.55 A DC
0.27 A DC
1.5 A AC
3 A AC
2 A DC
1 A DC
0.27 A DC
1.5 A AC
3 A AC
2 A DC
1 A DC

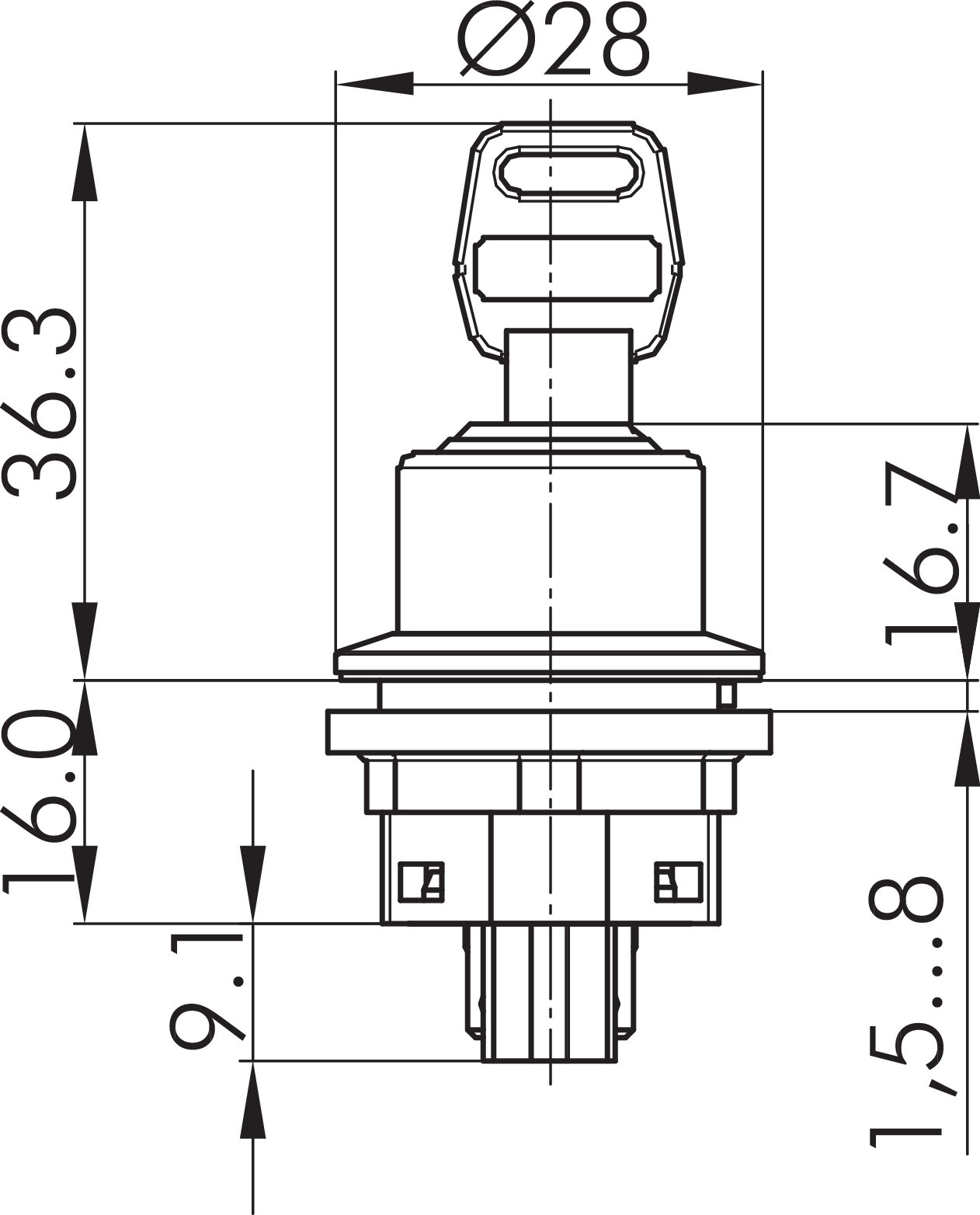

Technical sketches
Downloads

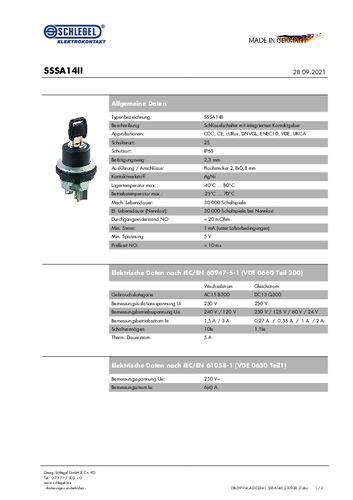

Datasheet_SSSA14II
