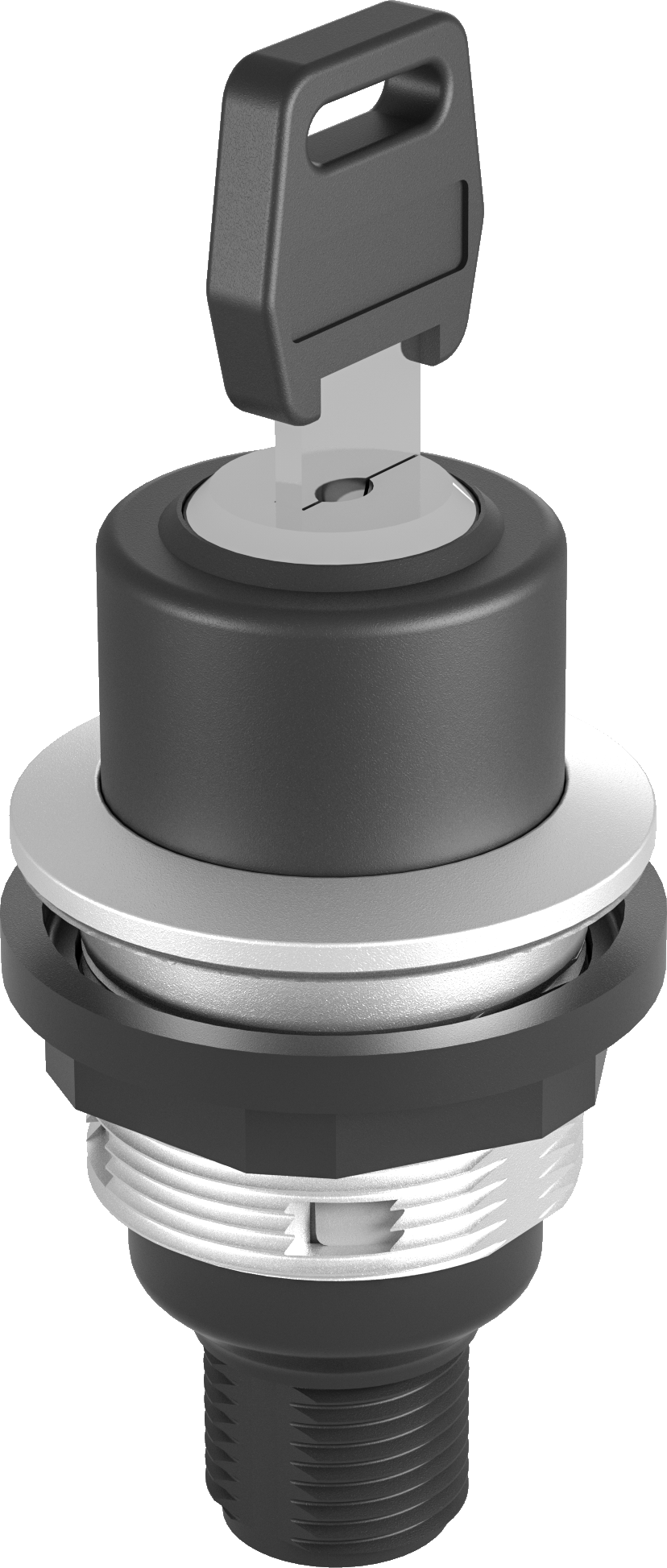

SSSA15II_C009 - Key-operated switch, maintained, with 4-pole M12 connector
Series
SHORTRON® connect
Electrical life
30,000 switching cycles at rated load
Approvals
VDE , cURus , ENEC10 , CE , UKCA

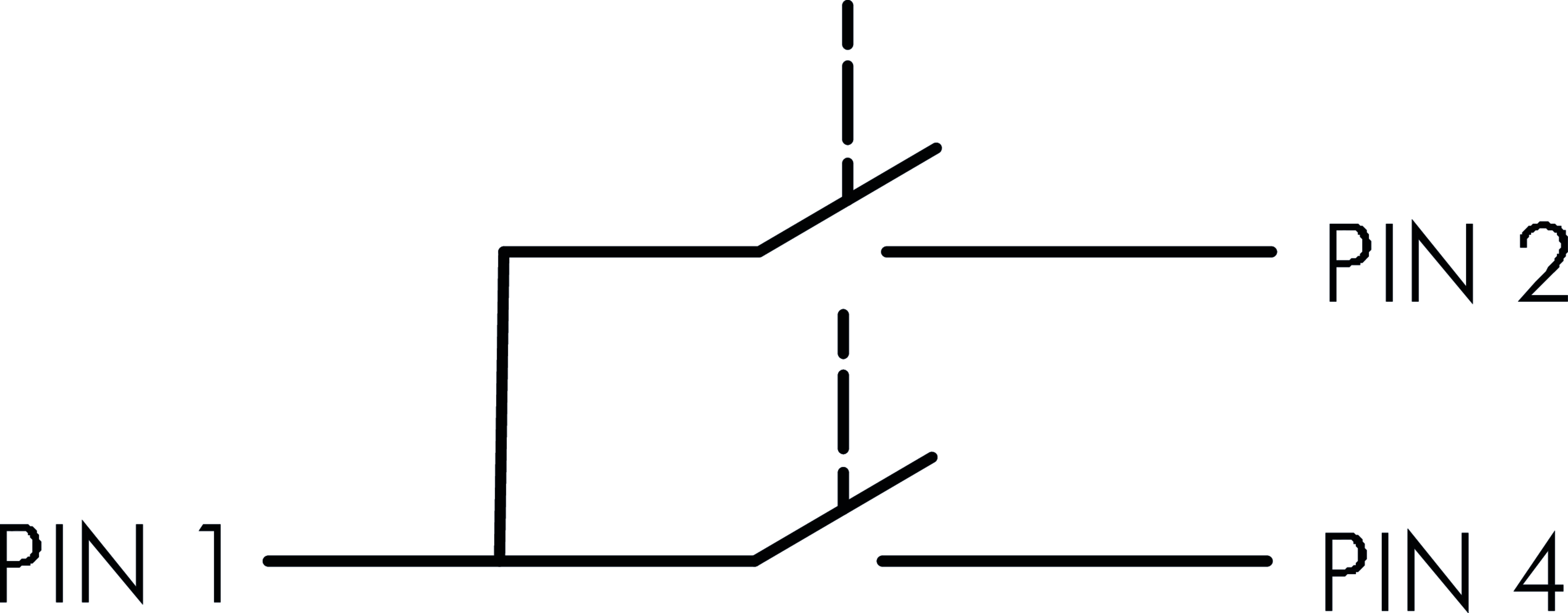

Contact type
2NO
Protection class
II (protective insulation)
Operating temperature
-25°C ... 70°C
Switching function
Maintained function
Degree of protection front
IP65

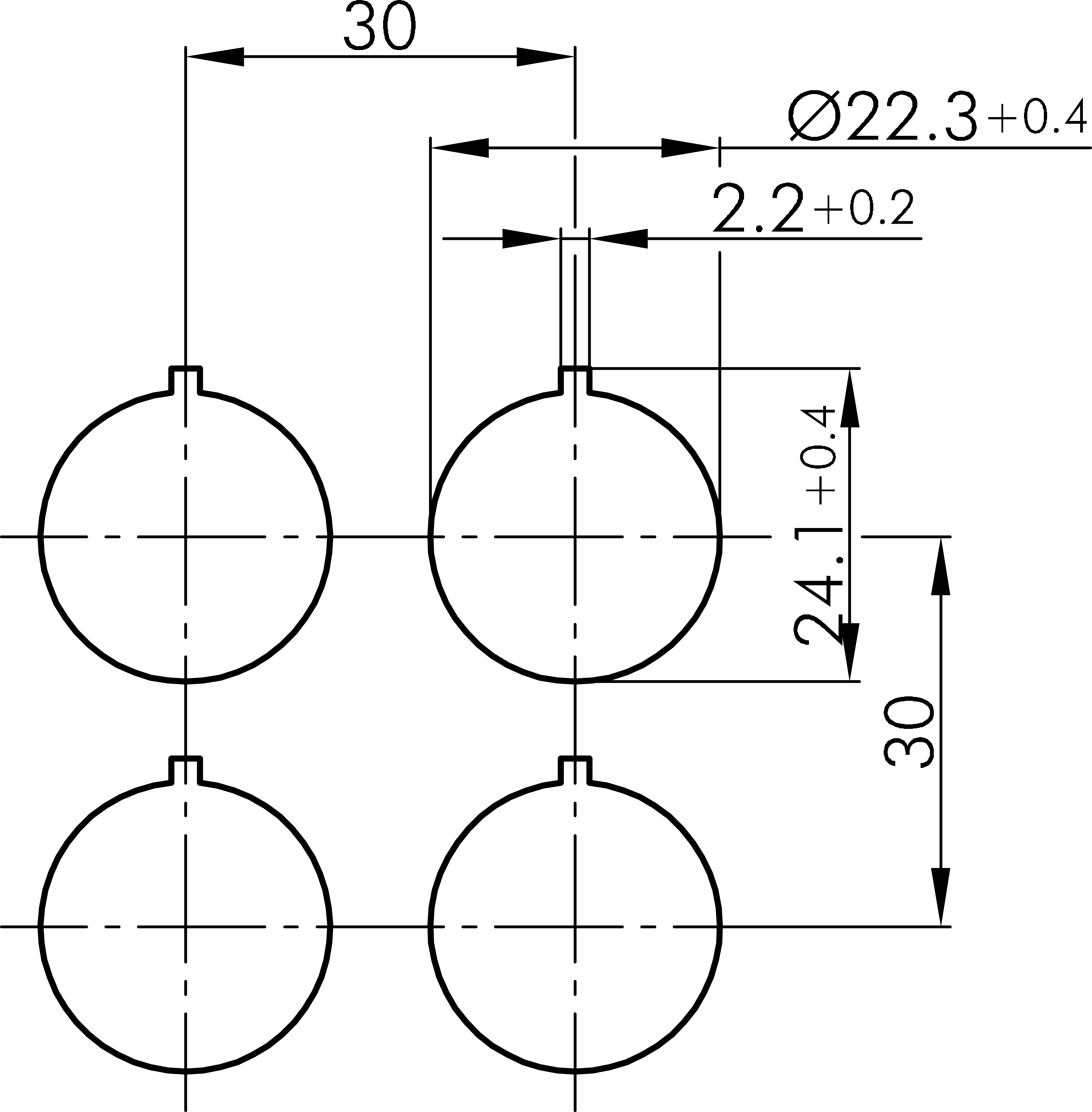

Mounting aperture
Ø 22.3 mm
Storage temperature
-40°C ... 80°C
Shape
round
Rated insulation voltage IEC/EN 60947-5-1
50 V DC
50 V AC
50 V AC
Connection
M12

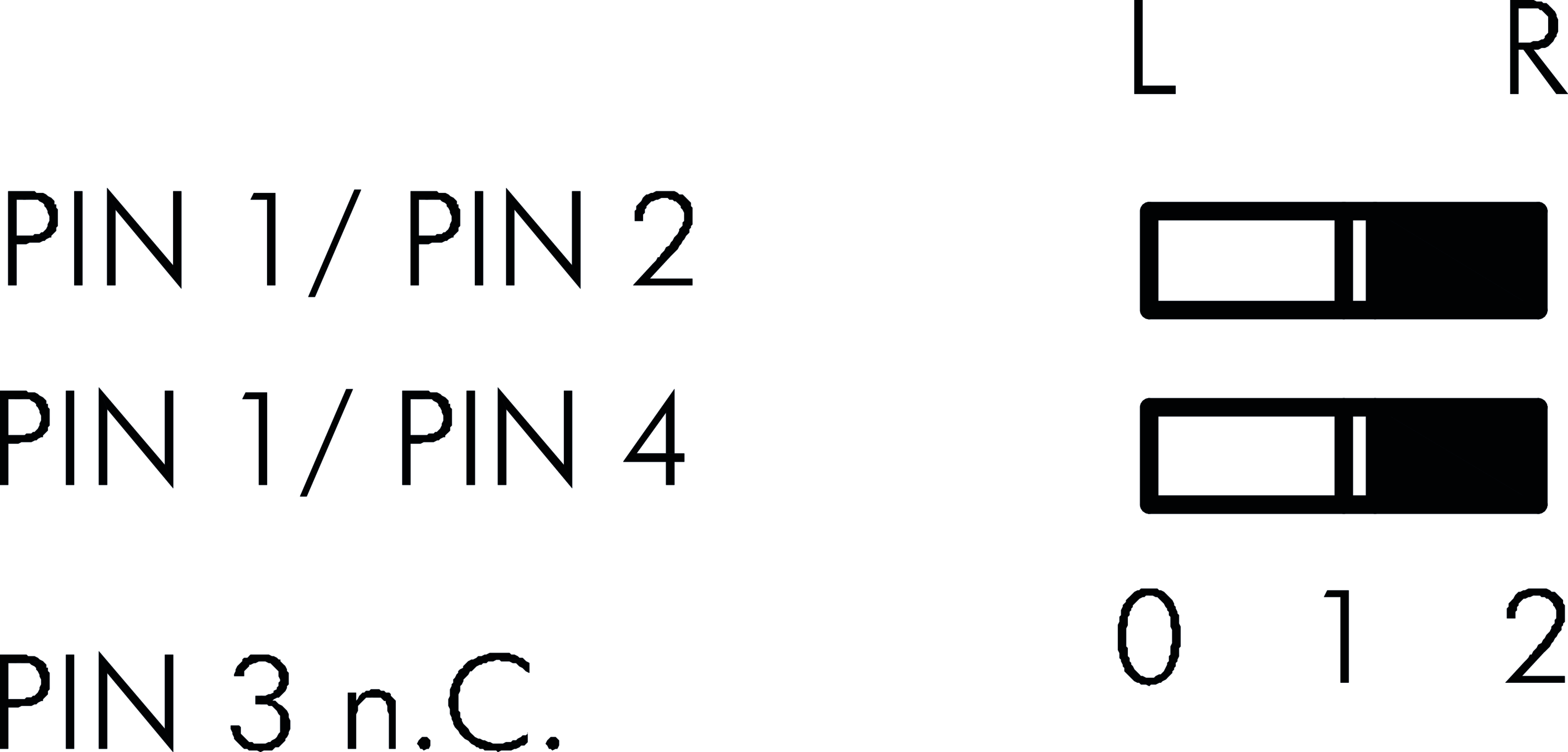

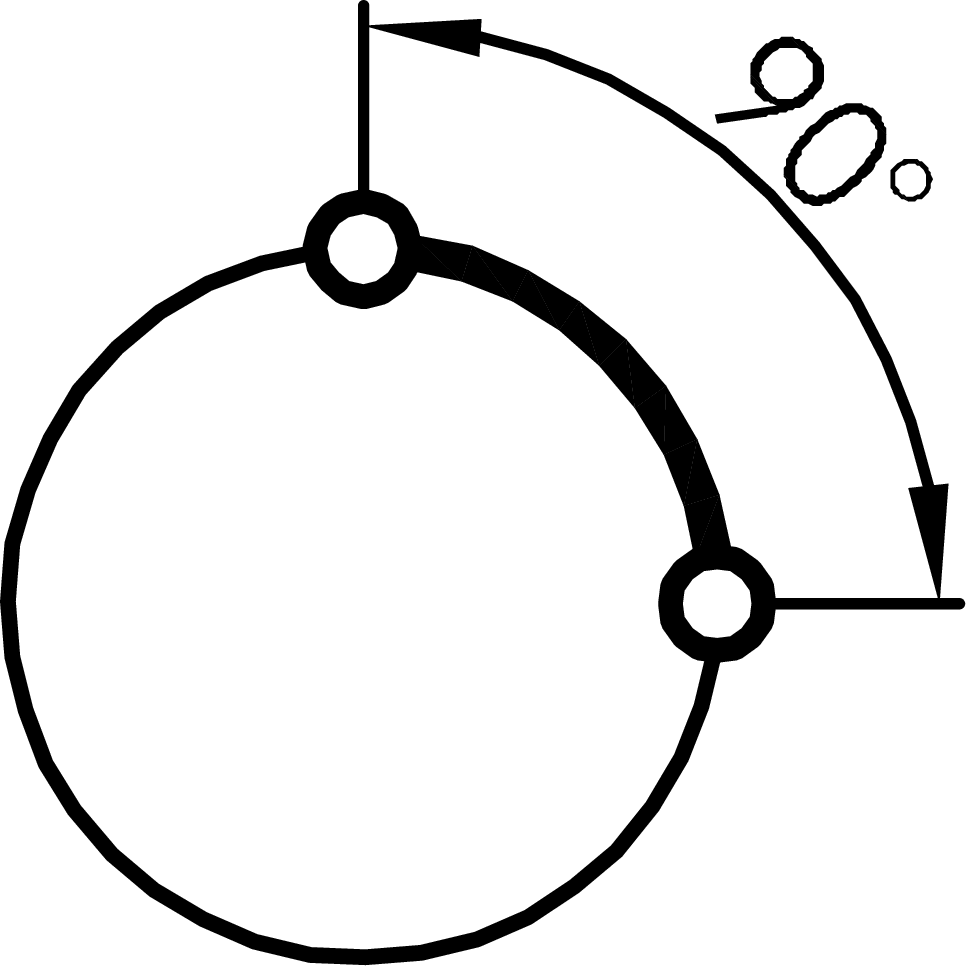

Switching position
0° key removal
90° maintained, key removal
90° maintained, key removal
Mechanical life
30,000 switching cycles
Illumination
no
Front bezel colour
silver
Rated operating voltage
35 V DC
35 V AC
35 V AC
Rated operating current
3 A DC
3 A AC
3 A AC

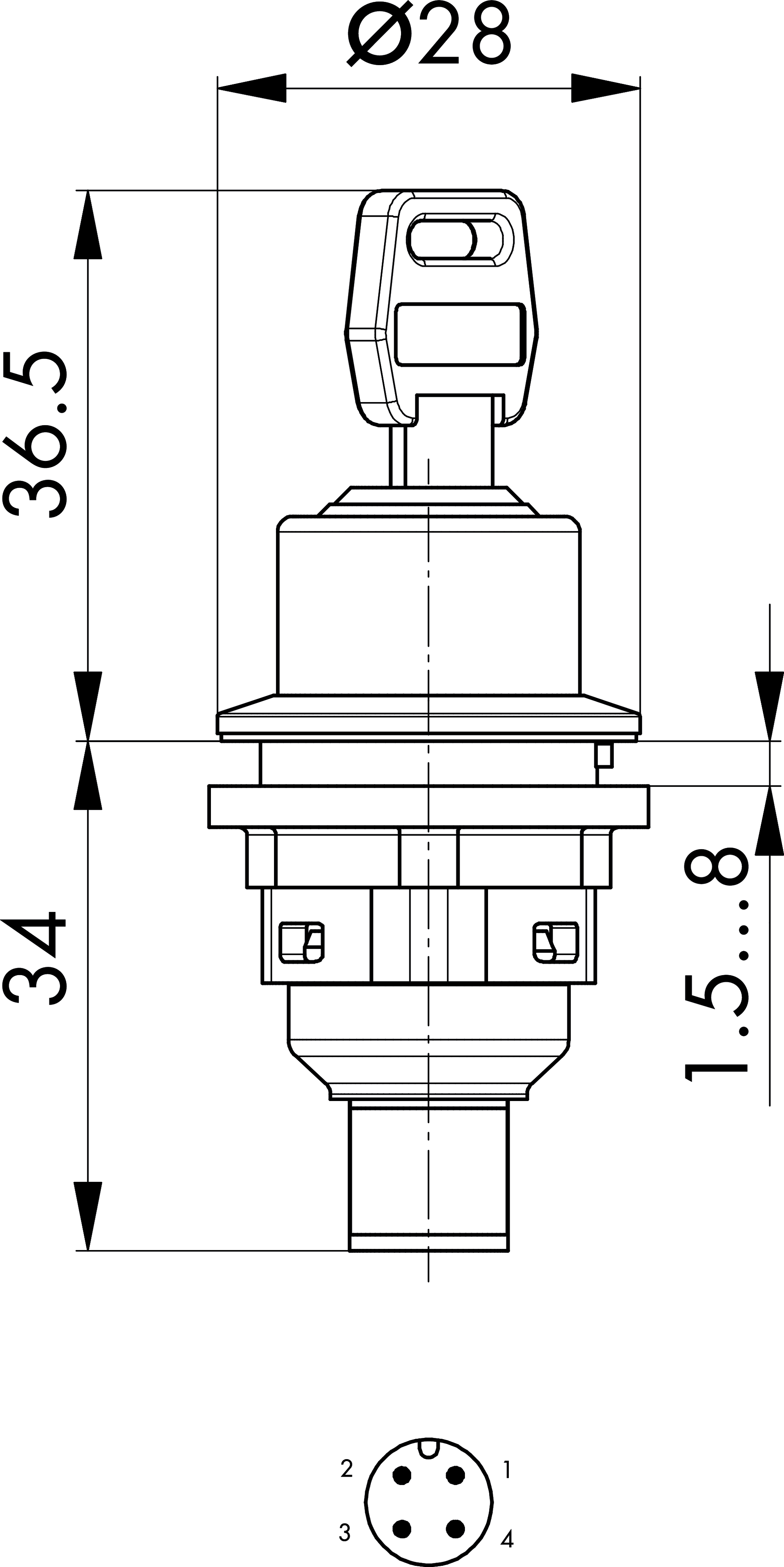

Technical sketches
Downloads

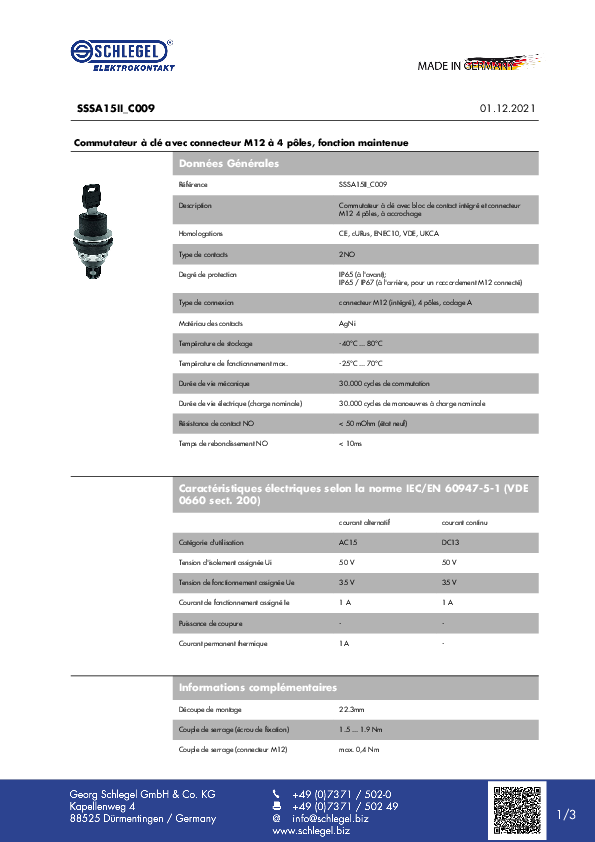

Datasheet_SSSA15II_C009
