SSWCFTF - Tactile membrane button

The tactile membrane switch from the SHORTRON series is a reliable partner for environments where high protection and cleanliness are paramount. Thanks to its robust design and high IP66 and IP69K protection ratings, the switch is suitable for use in areas with a high volume of water or demanding cleaning processes. With the option of labeling, this membrane switch is not only functional, but also offers flexibility in use. The right choice for anyone looking for a durable solution with maximum reliability and adaptability.

Series
SHORTRON®
Mounting aperture
Ø 22.3 mm
Contact type
1CO
Front bezel colour
black
Shape
round
Degree of protection front
IP69K
IP67
IP66
Operating temperature
-25°C ... 70°C
Mechanical life
1,000,000 switching cycles 20°C
Electrical life
1,000,000 switching cycles at rated voltage
Approvals
VDE , cURus , ENEC10 , CE, UKCA
Technical sketches

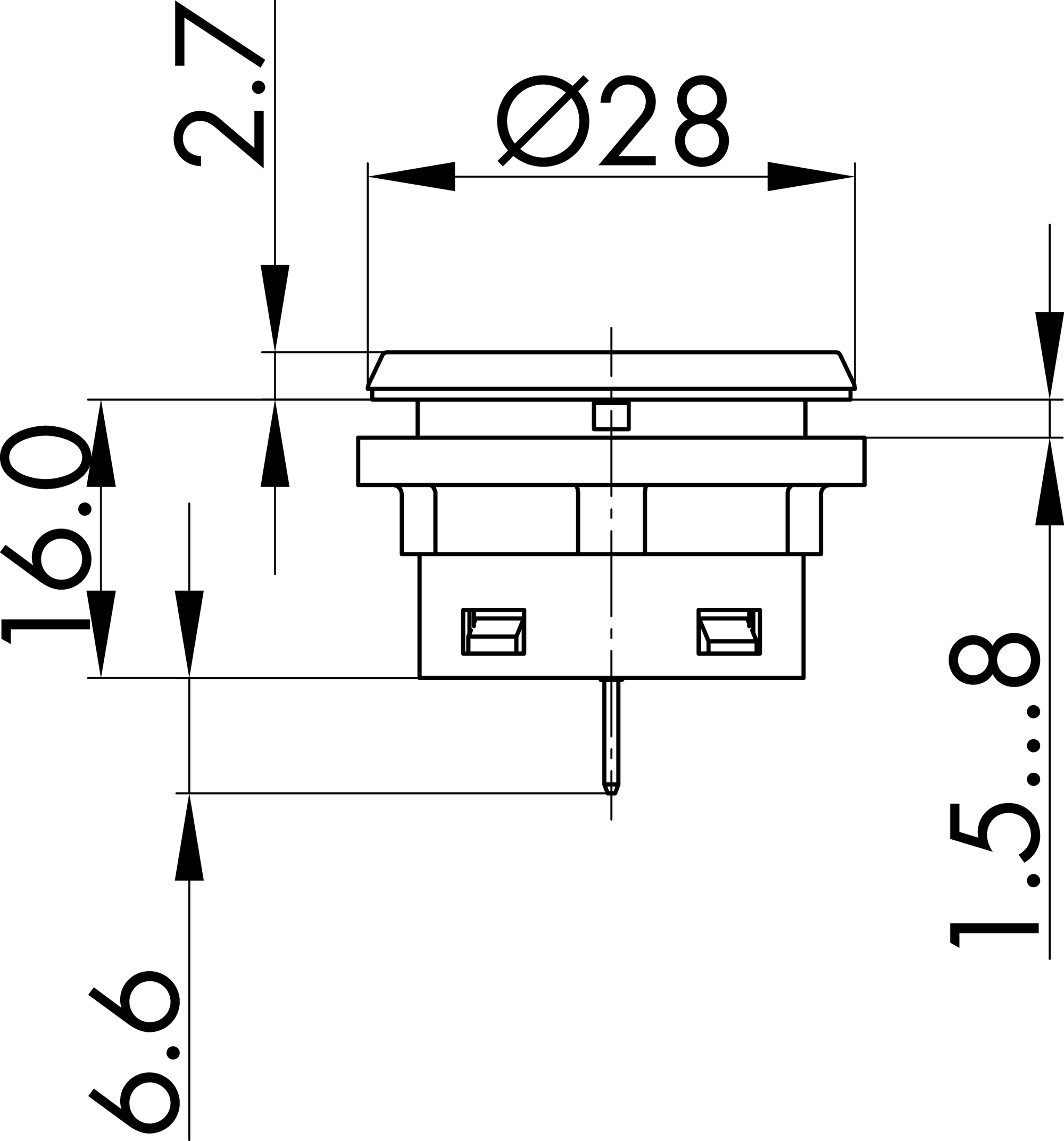

Maßskizze SSWCFTF
Bohrbild SSWCFTF
Schaltbild SSWCFTF
Produktbild SSWCFTF
