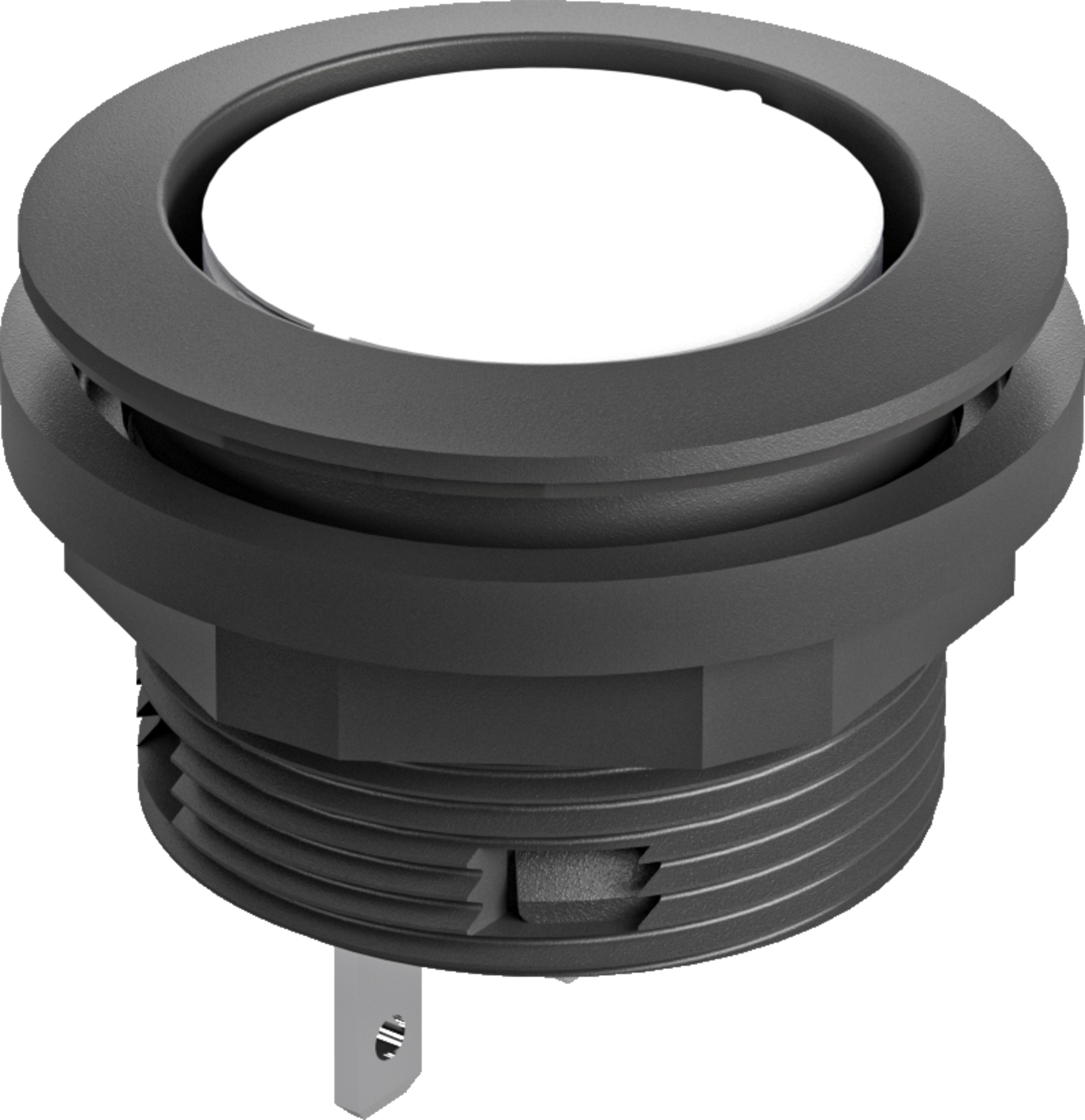

SSWCTF - Tactile pushbutton

Elegant push-button with tactile feedback and blade terminals. The push-button has a changeover contact.

Series

SHORTRON®

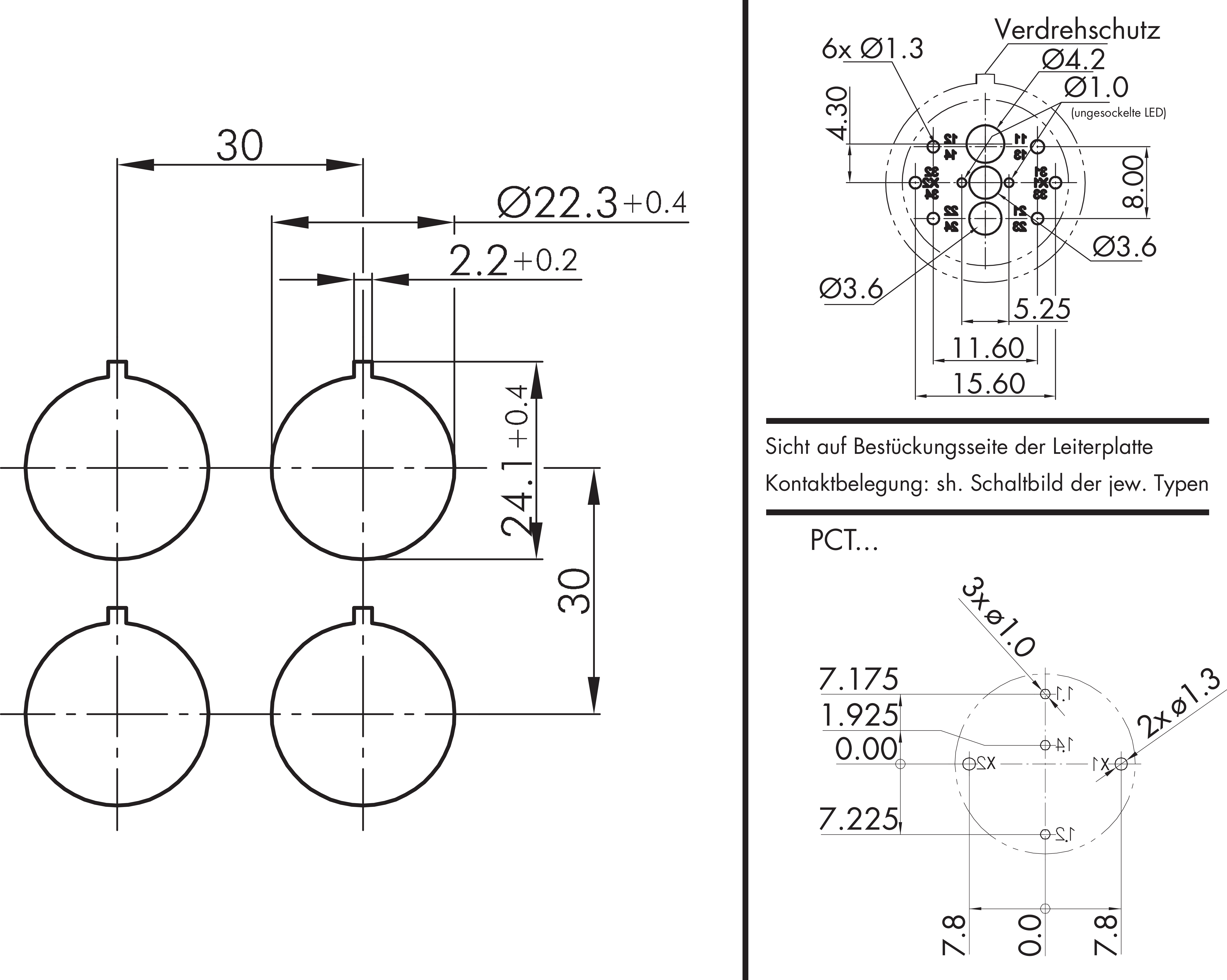

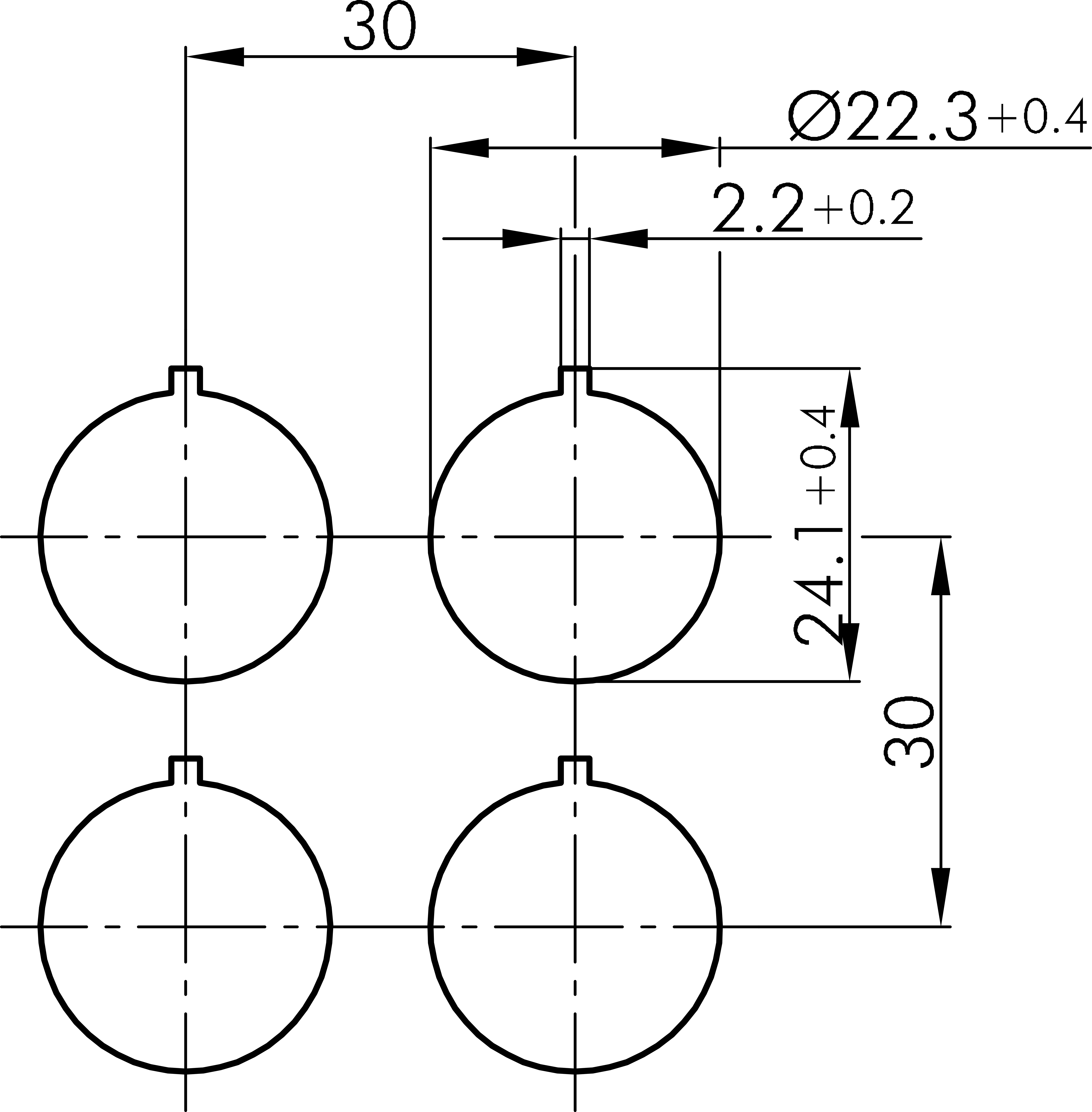

Mounting aperture

Ø 22.3 mm

Contact type

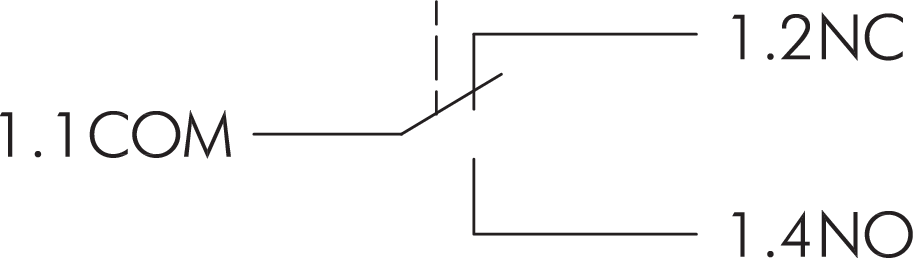

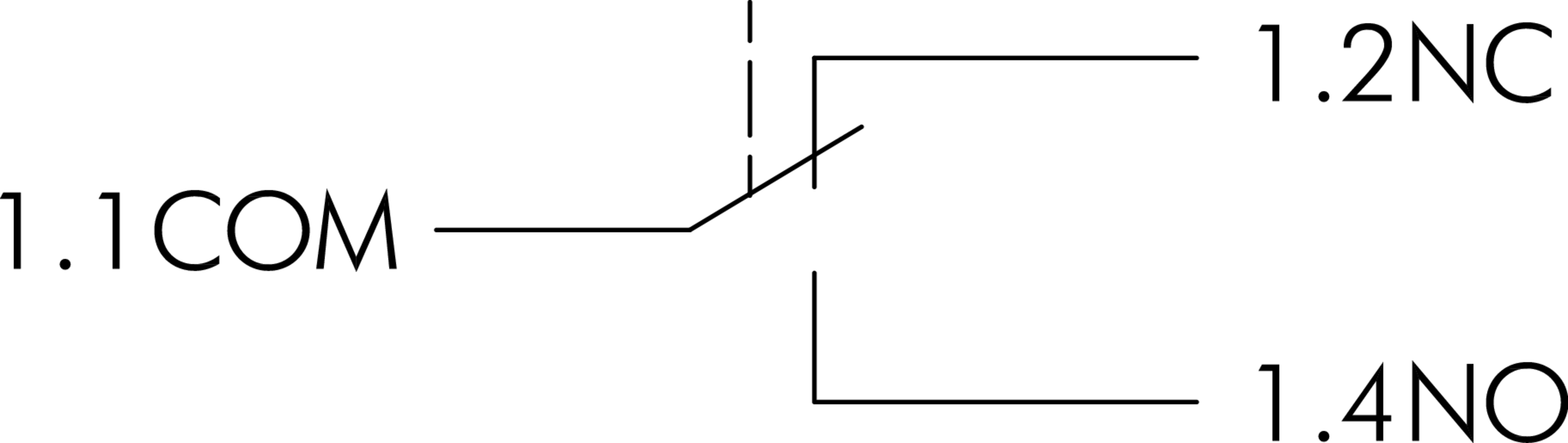

1CO

Switching function

Momentary function

Connection

Faston terminals

Illumination

Front bezel colour

black

Colour actuator

Clear

Shape

round

Degree of protection front

IP67, IP65

Operating temperature

-25°C ... 70°C

Mechanical life

1,000,000 switching cycles

Electrical life

1,000,000 switching cycles at rated voltage

Approvals

VDE , CCC, cURus , ENEC10 , CE, UKCA

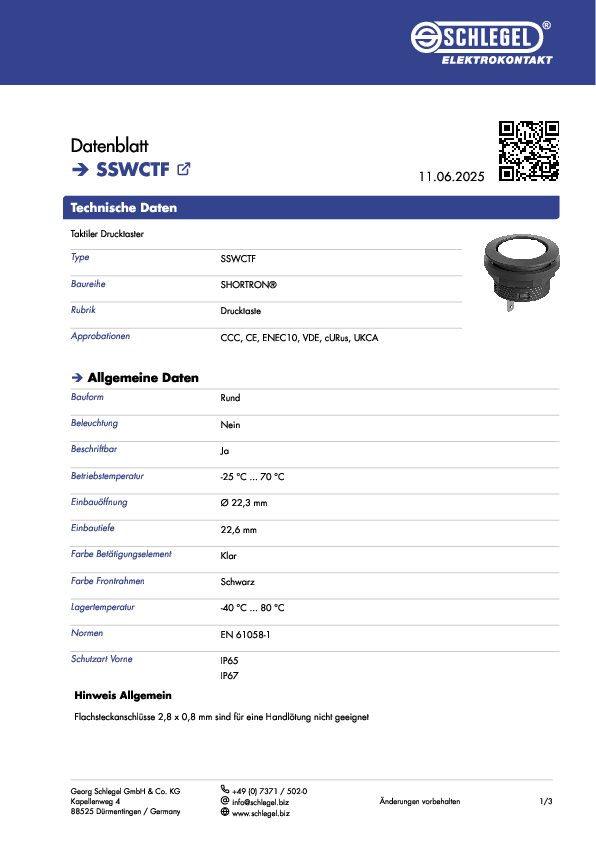

Downloads
