SSWSSA14I_C007 - Latching key switch with M12 connection, 4-pin
Key switch with two switching positions and latching switching function. Switch position 1 is at 0° and switch position 2 at 90°. The key can only be removed to switch position 1.
Includes 2 keys. Different keying possible on request.
Degree of protection back
IP65 bei angeschlossenem M12-Anschluss
IP67 bei angeschlossenem M12-Anschluss
IP67 bei angeschlossenem M12-Anschluss
Series
SHORTRON® connect
Mounting aperture
Ø 22.3 mm
Contact type
1NO
Switching function
Latching function
Switching position
0° key removable
90° maintained
90° maintained
Front bezel colour
black
Shape
round
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Rated operating voltage
35 V AC
35 V DC
35 V DC
Rated operating current
4 A AC
2 A DC
2 A DC
Mechanical life
30,000 switching cycles
Electrical life
30,000 switching cycles at rated voltage
Approvals
VDE , cURus , ENEC10 , CE, UKCA

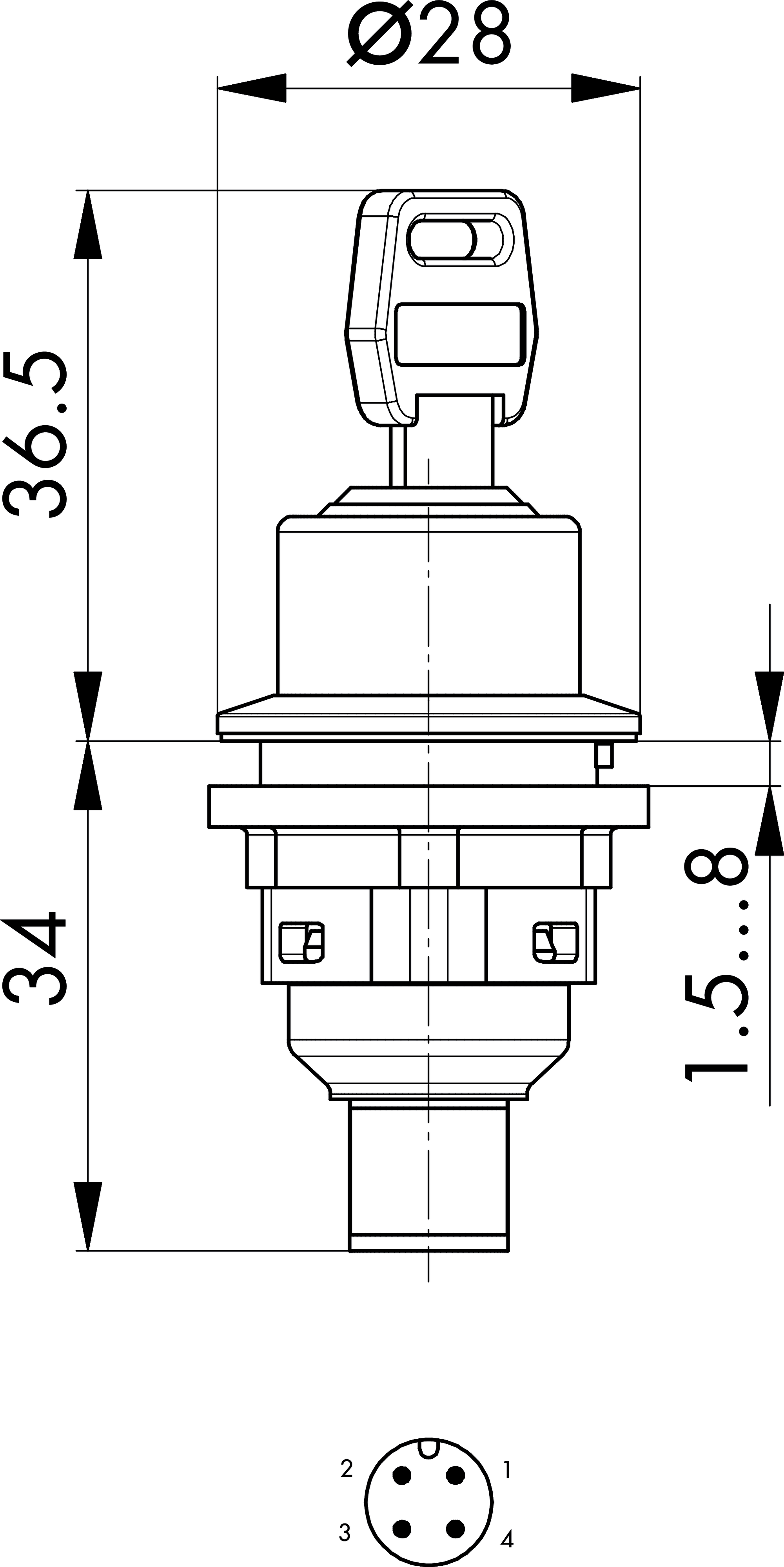

Technical sketches
