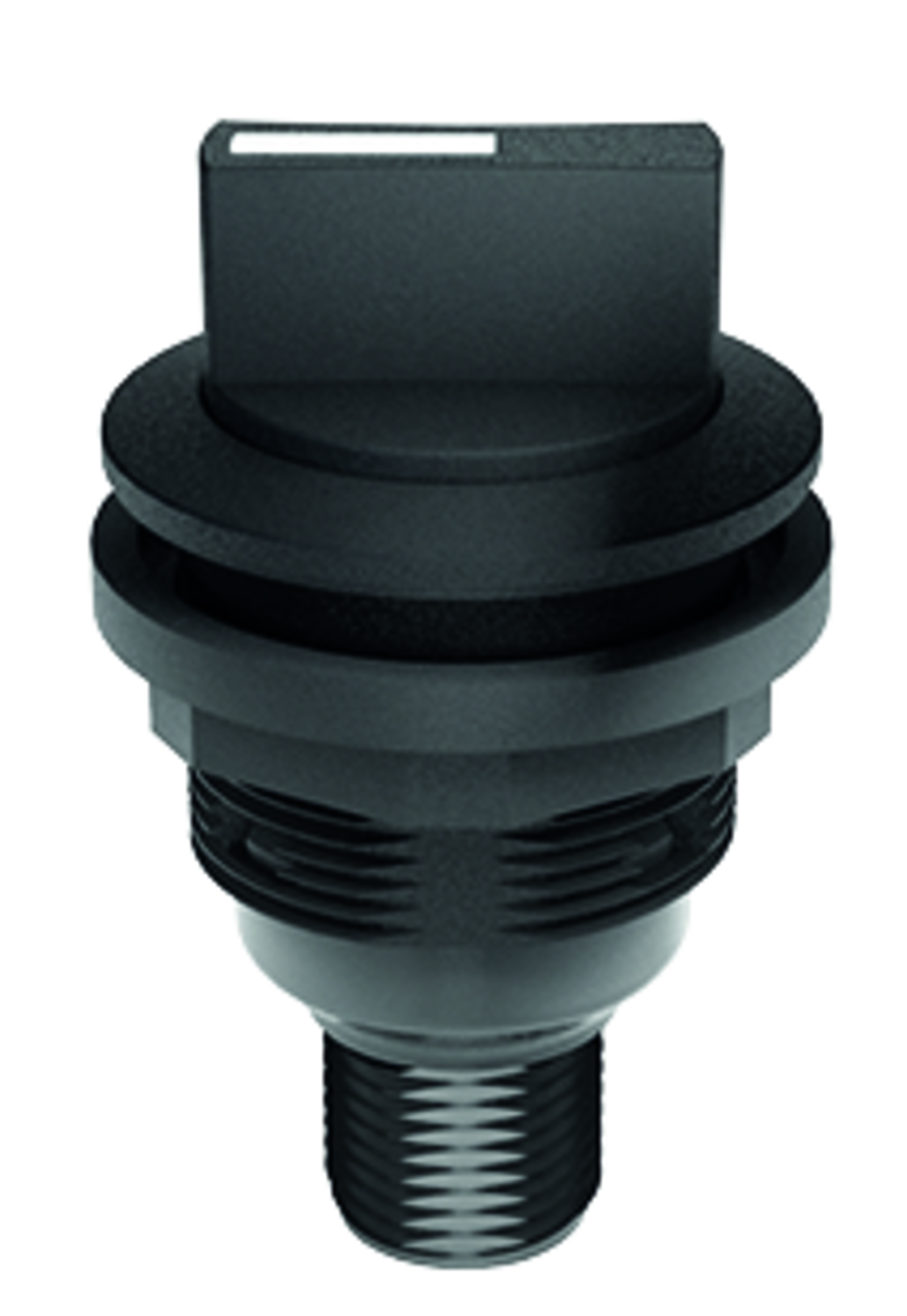

SSWSTAI_C007 - Selector switch, momentary, with 4-pole M12 connector
Degree of protection back
IP65 with connected M12
IP67 with connected M12
IP67 with connected M12
Series
SHORTRON® connect

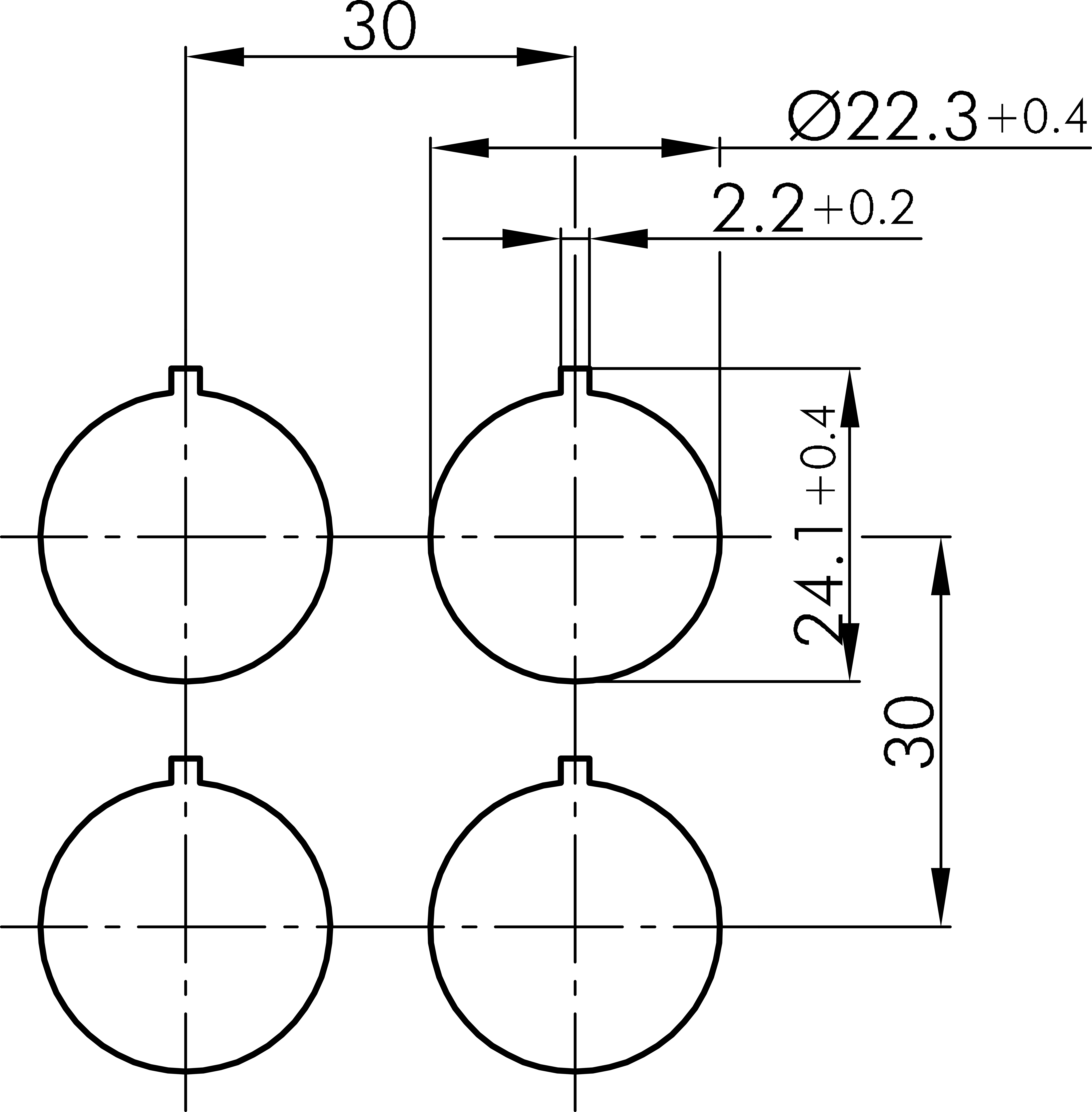

Mounting aperture
Ø 22.3 mm
Contact type
1NO
Switching function
momentary function

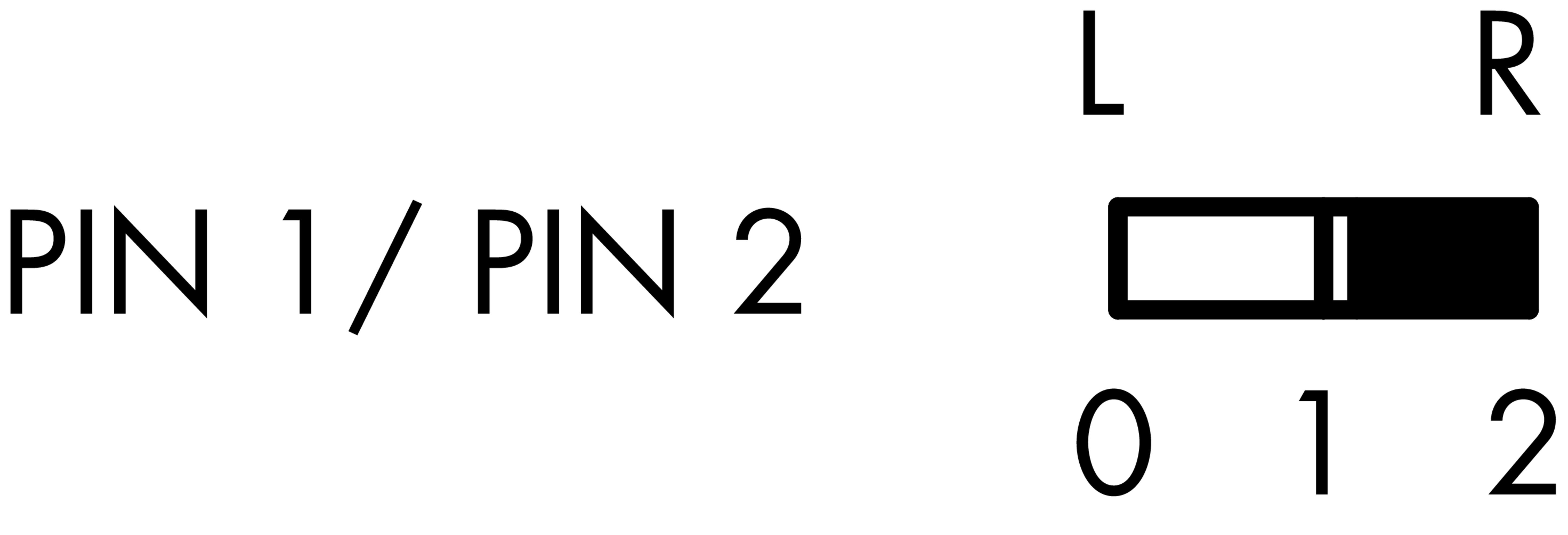

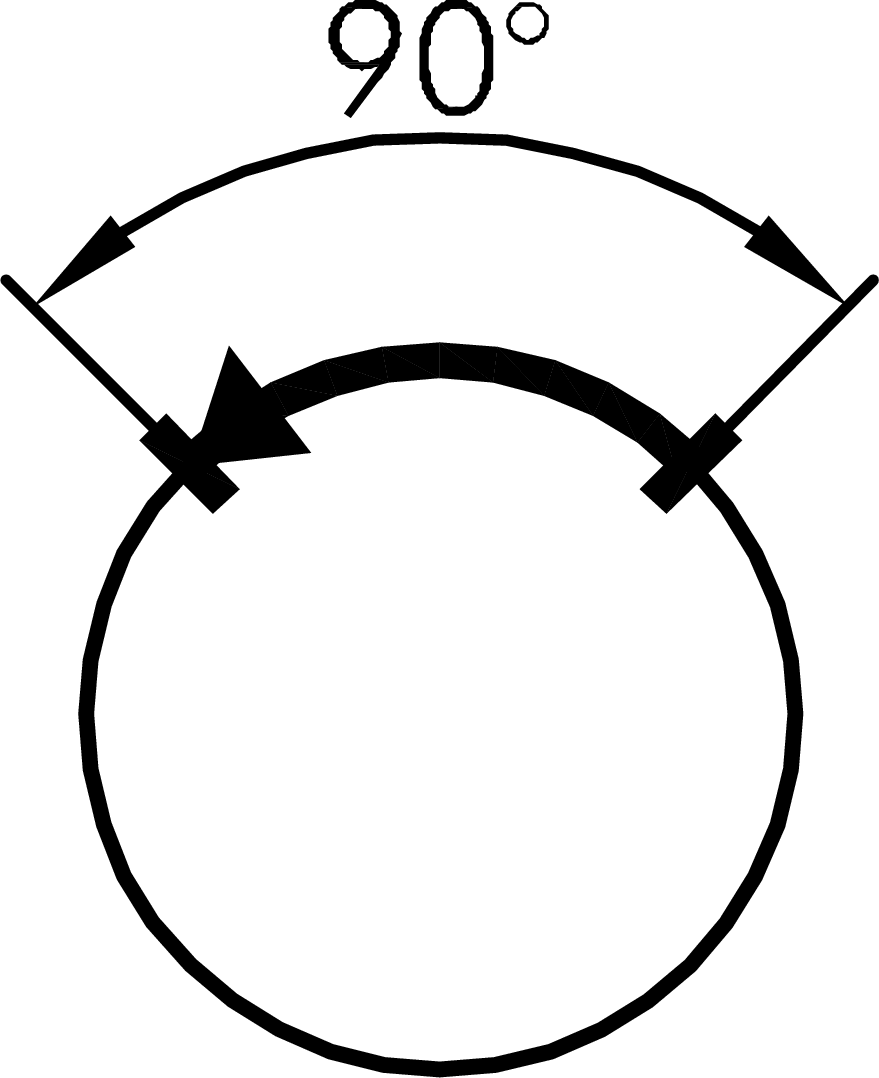

Switching position
-45° zero position
45° momentary
45° momentary
Illumination
No
Front bezel colour
black
Shape
round
Degree of protection front
IP65
Rated operating voltage
35 V AC
35 V DC
35 V DC
Rated operating current
4 A AC
2 A DC
2 A DC
Mechanical life
30,000 switching cycles
Electrical life
30,000 switching cycles at rated voltage
Protection class
II (protective insulation)

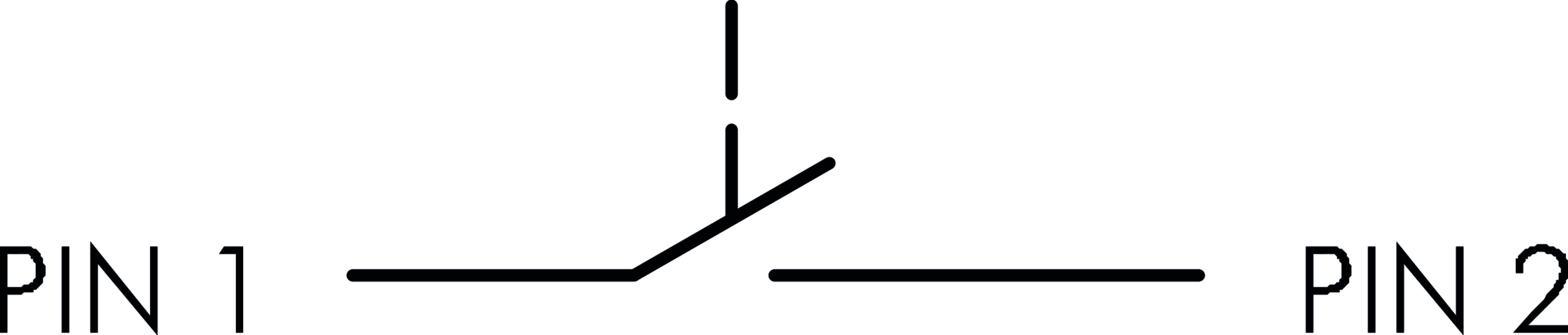

Technical sketches
