SSWTLI_C005 - Illuminated pushbutton with 4-pole M12 connector
Illuminated push-button with integrated contact transmitter and 4-pin M12 connection, short actuation travel 2.3 mm. Perfect for reliable control.
Degree of protection back
IP65 with connected M12
IP67 with connected M12
IP67 with connected M12
Series
SHORTRON® connect
Mounting aperture
Ø 22.3 mm
Contact type
1NO
Switching function
momentary function
Illumination
Yes
Illuminant
LED integrated
Front bezel colour
black
Shape
round
Degree of protection front
IP67
IP65
IP65
Operating temperature
-25°C ... 70°C
Rated operating voltage
35 V AC
35 V DC
35 V DC
Rated operating current
4 A AC
2 A DC
2 A DC
Mechanical life
1,000,000 switching cycles
Electrical life
max. 100,000 switching cycles DC13
1,000,000 switching cycles at rated voltage
1,000,000 switching cycles at rated voltage
Approvals
VDE , cURus , ENEC10 , CE, UKCA

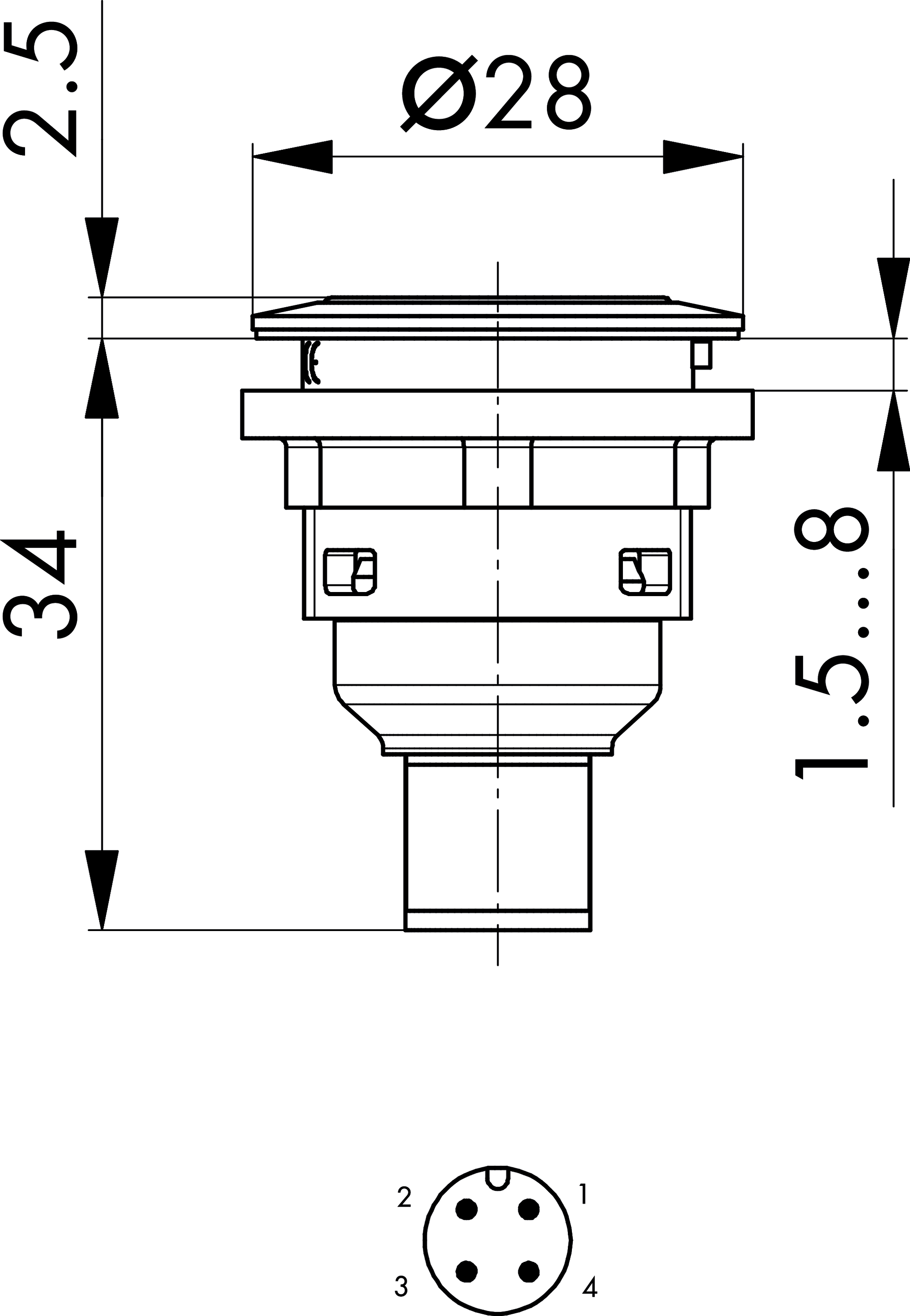

Technical sketches
