SSWTLRRI - Pushbutton with ring illumination
Colour actuator
red
Operating temperature
-25 ... 70°C
Mechanical life
1,000,000 switching cycles
Contact type
1NO
Approvals
DNV, VDE , CCC , cURus , ENEC10 , CE , UKCA
Switching function
Momentary function
Rated insulation voltage IEC/EN 60947-5-1
250 V DC
250 V AC
250 V AC
Degree of protection front
IP67 , IP65
Storage temperature
-40 ... 80°C
Illumination
yes
Operating travel
2.3 mm
Series
SHORTRON®
Shape
round
Mounting aperture
Ø 22.3 mm
Front bezel colour
black
Electrical life
1,000,000 switching cycles
Rated operating voltage
250 V DC
24 V DC
125 V DC
240 V AC
60 V DC
120 V AC
24 V DC
125 V DC
240 V AC
60 V DC
120 V AC
Rated operating current
0.55 A DC
0.27 A DC
1.5 A AC
3 A AC
2 A DC
1 A DC
0.27 A DC
1.5 A AC
3 A AC
2 A DC
1 A DC

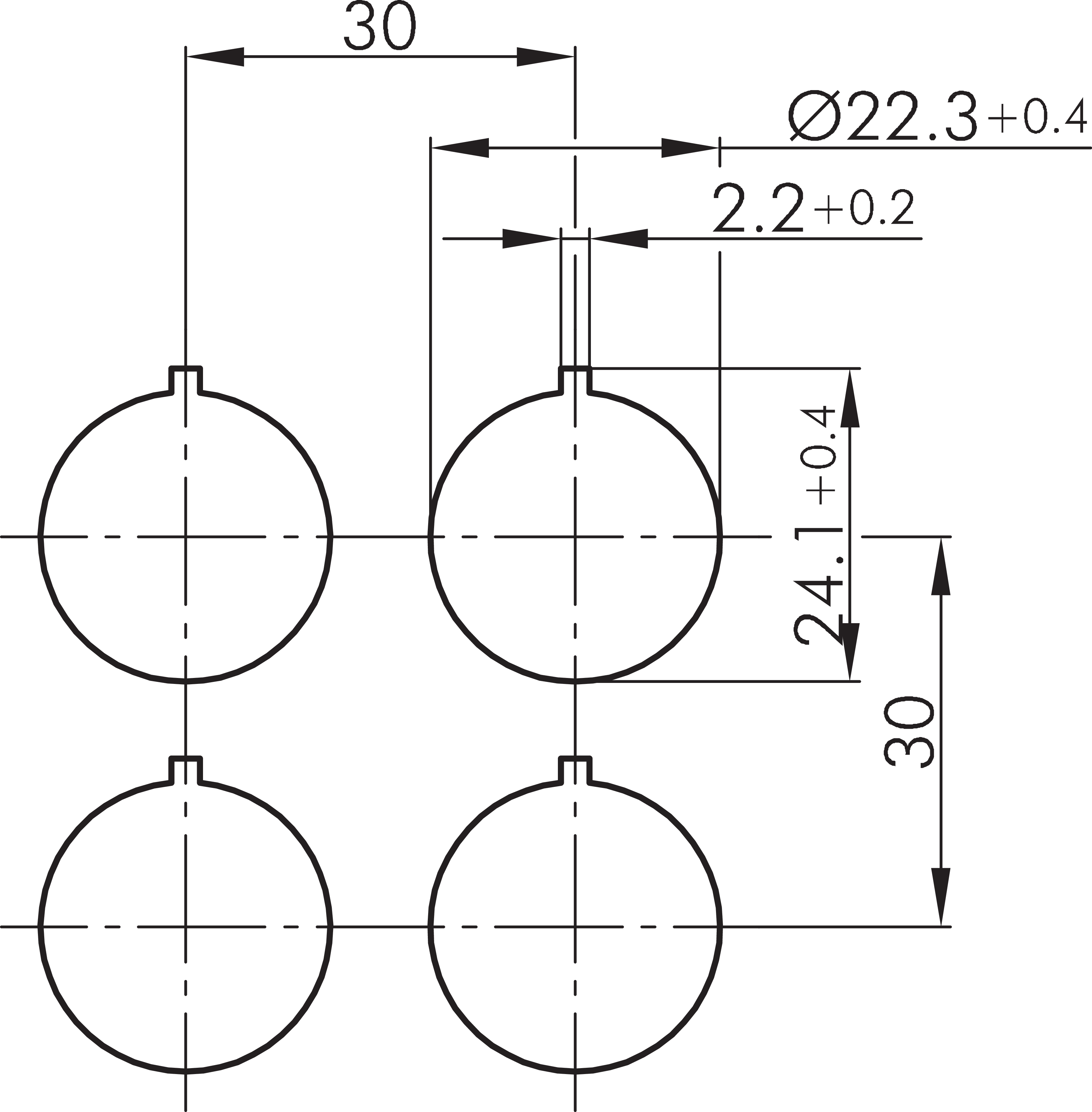

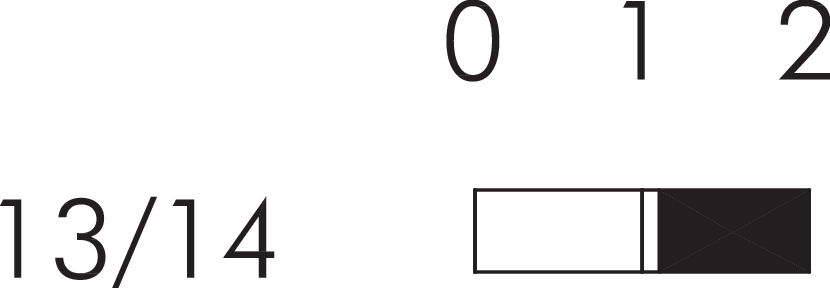

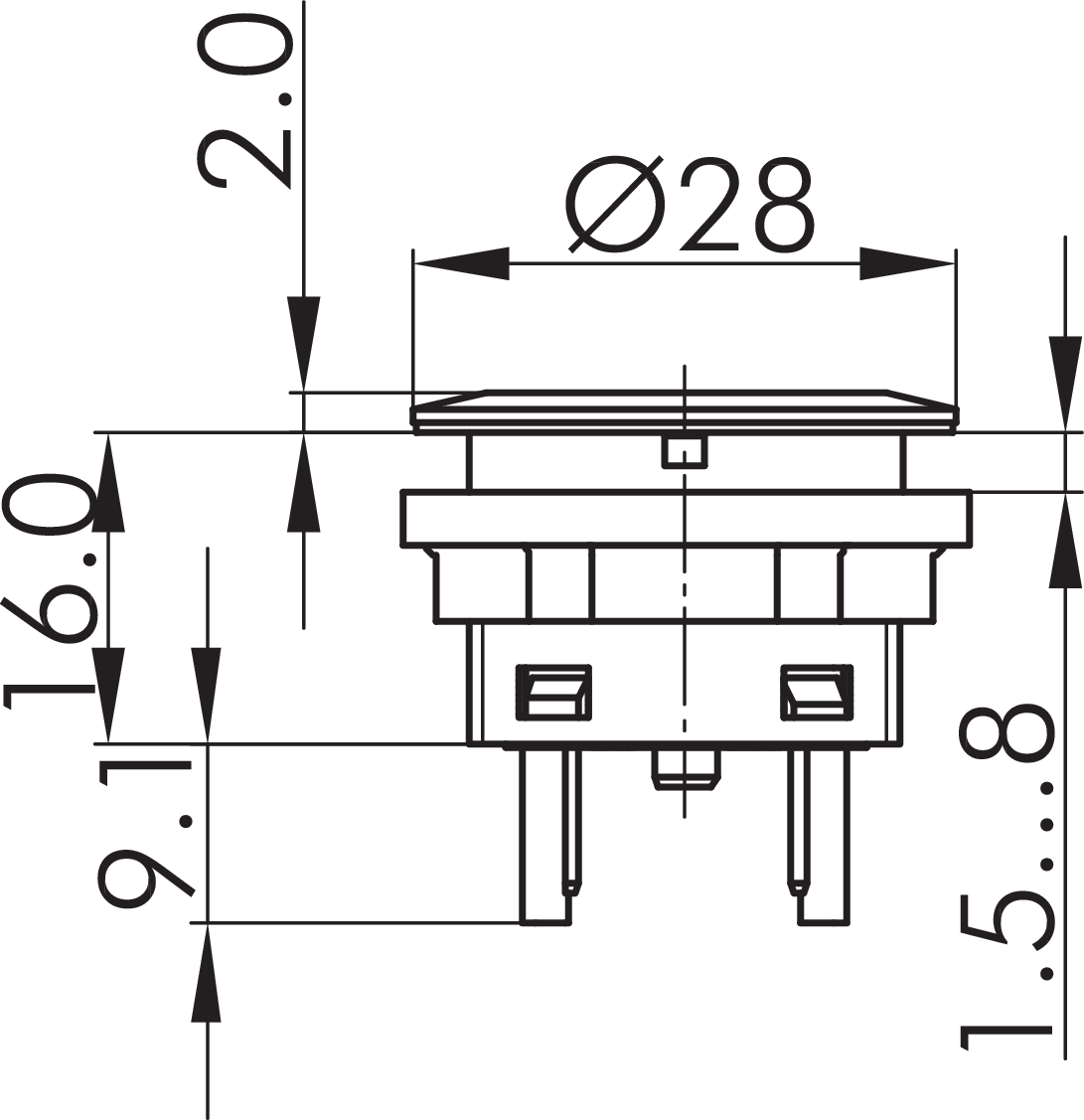

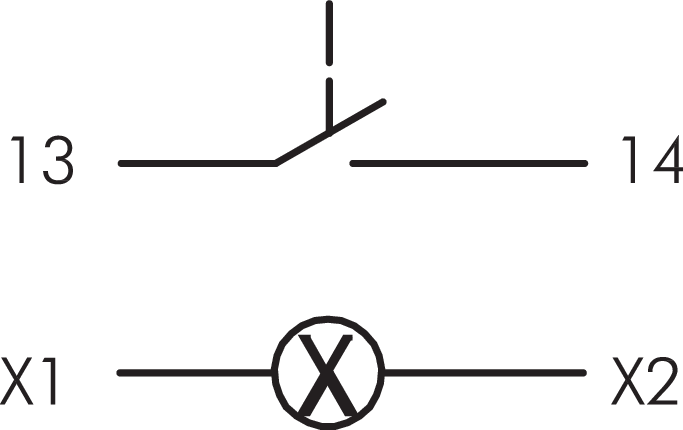

Technical sketches
Downloads

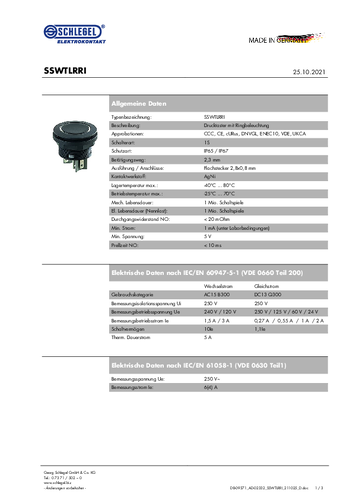

Datasheet_SSWTLRRI
