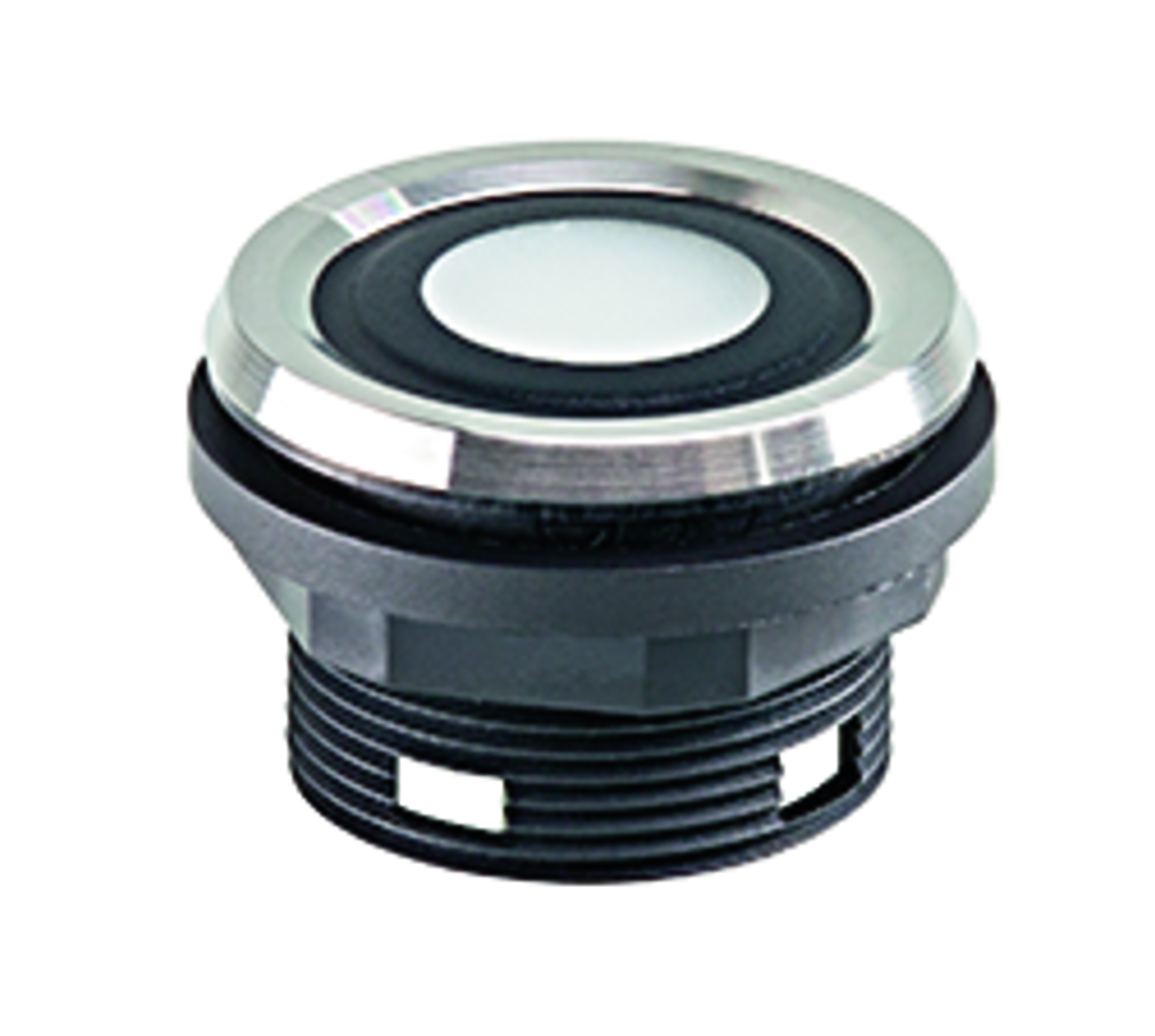

SVACFT - Membrane pushbutton head
The SVACFT membrane switch impresses with its hygienic design and is ideal for applications where cleanliness and easy cleaning are crucial. With its closed, robust surface, the scanner offers optimum protection against dirt, dust and moisture. This makes it particularly suitable for use in sensitive areas such as medical and laboratory technology, the food industry and in hygiene-relevant environments. Thanks to the smooth surface, the push-button can be disinfected easily, making it a safe choice for hygienic requirements.
Series
SHORTRON® base-plate mounting
Mounting aperture
Ø 22.3 mm
Switching function
Momentary function
Illumination
Yes
Front bezel colour
stainless steel, polished
Shape
round
Degree of protection front
IP69K, IP67, IP66
Operating temperature
-25°C ... 70°C
Storage temperature
-40°C ... 80°C
Mechanical life
1,000,000 switching cycles 20°C
Approvals
DNV, VDE , cURus , ENEC10 , CE, DGUV_Test , UKCA

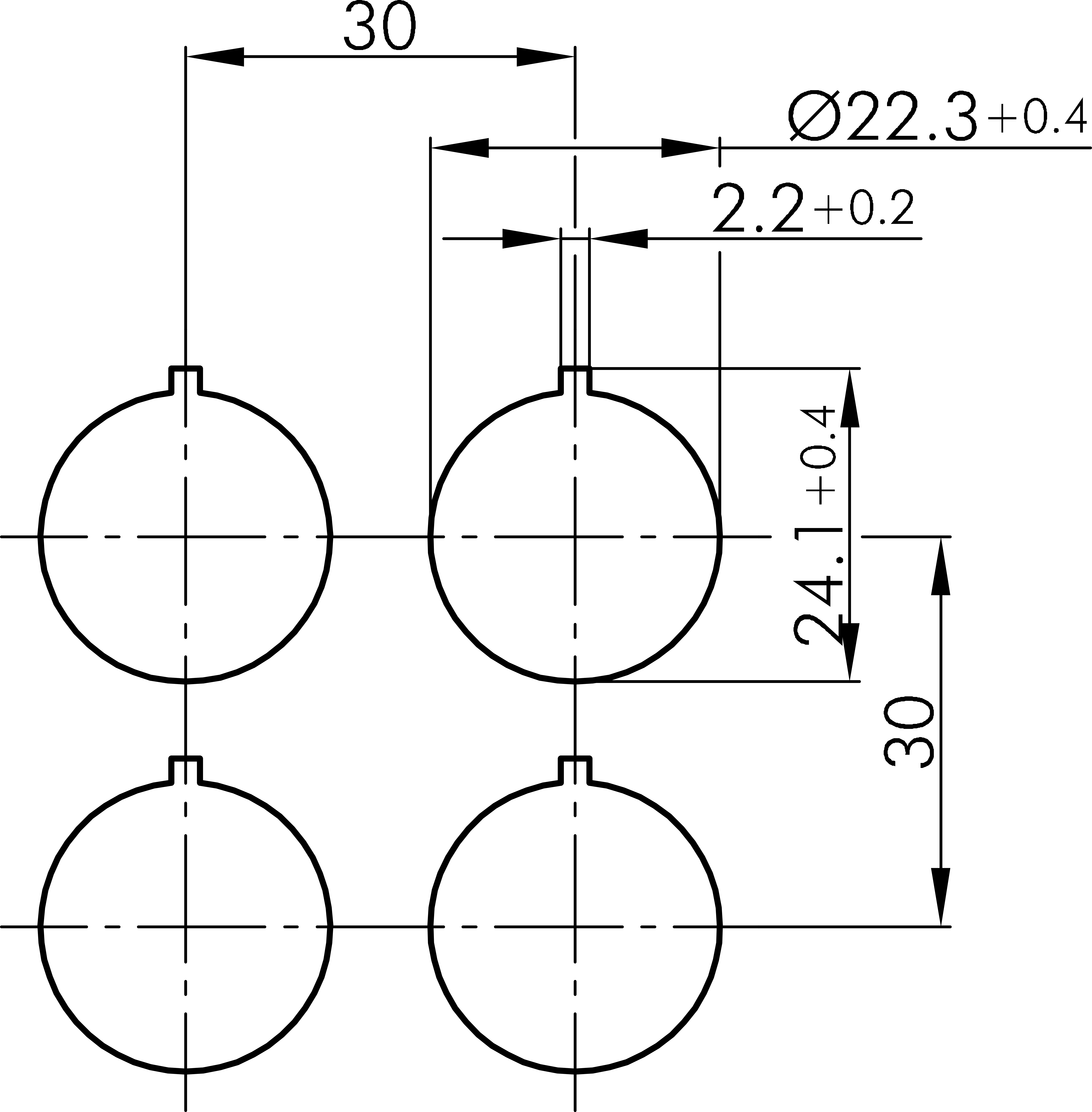

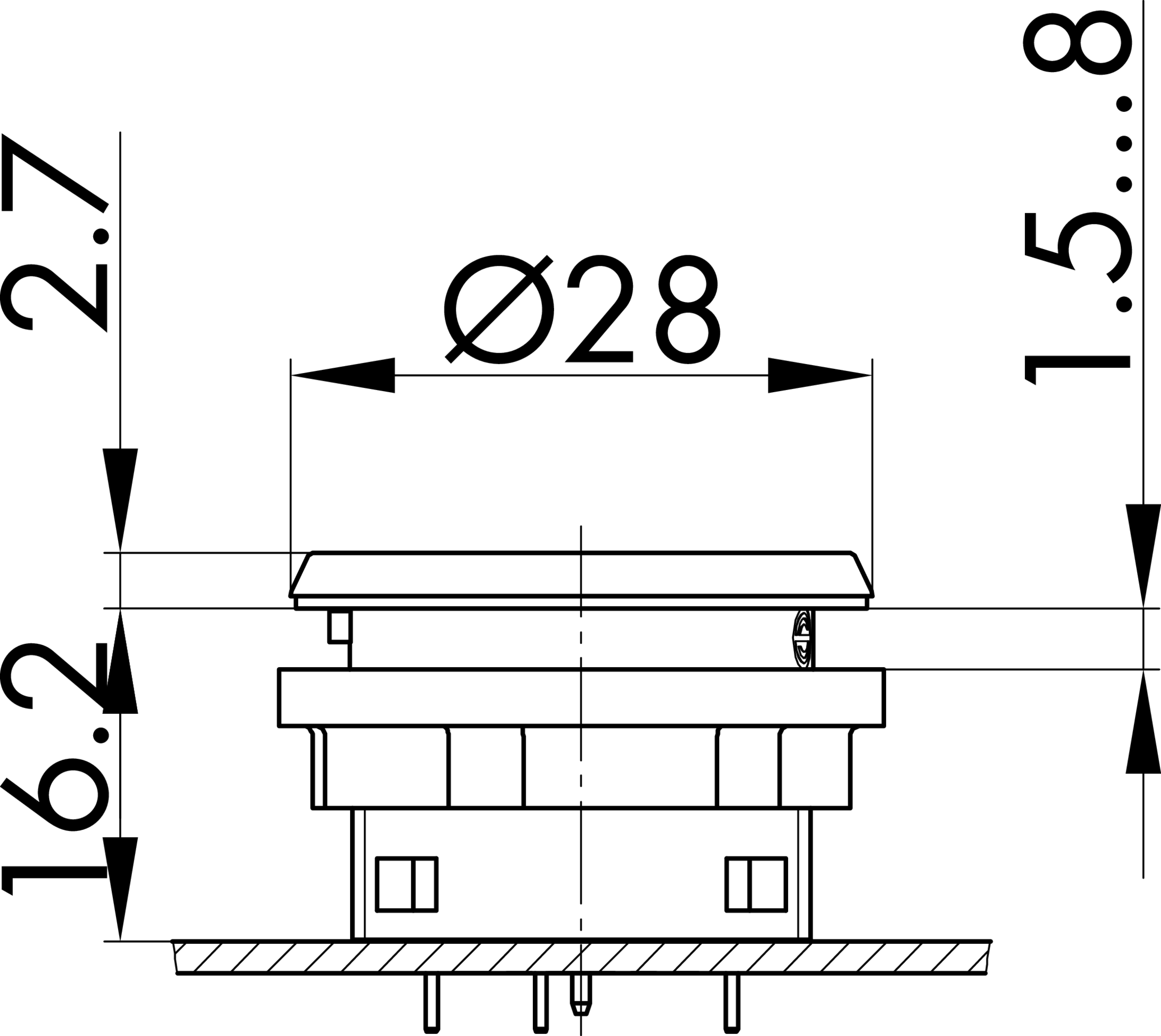

Technical sketches
