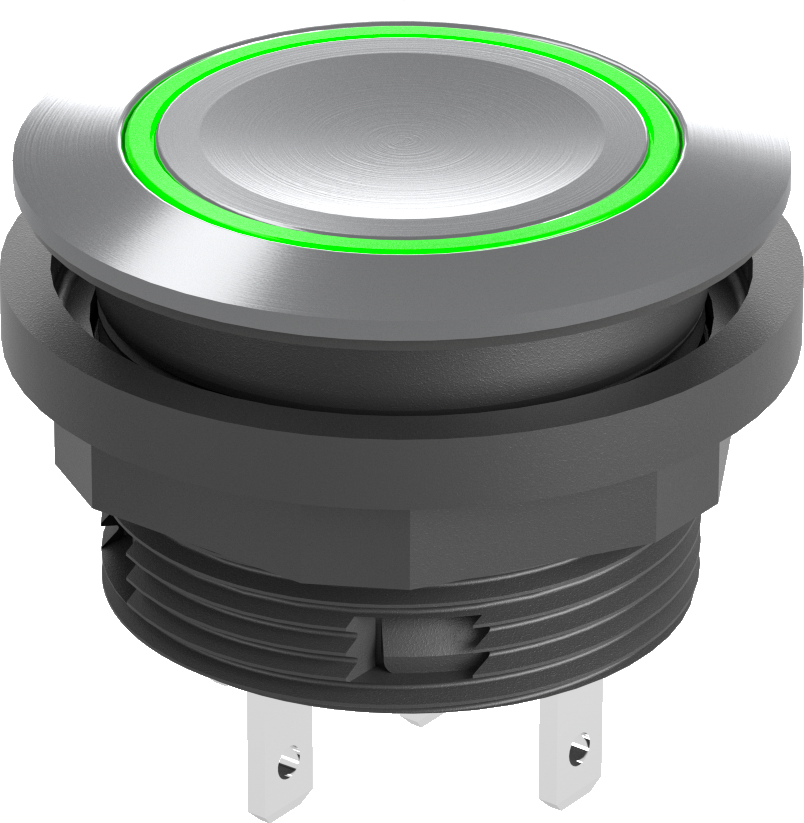

SVACTLRGF - Tactile pushbutton with green ring illumination
Elegant stainless steel pushbutton with ring illumination and tactile feedback as well as flat plug connections. The push-button has a changeover contact. Green actuating element
Series
SHORTRON®

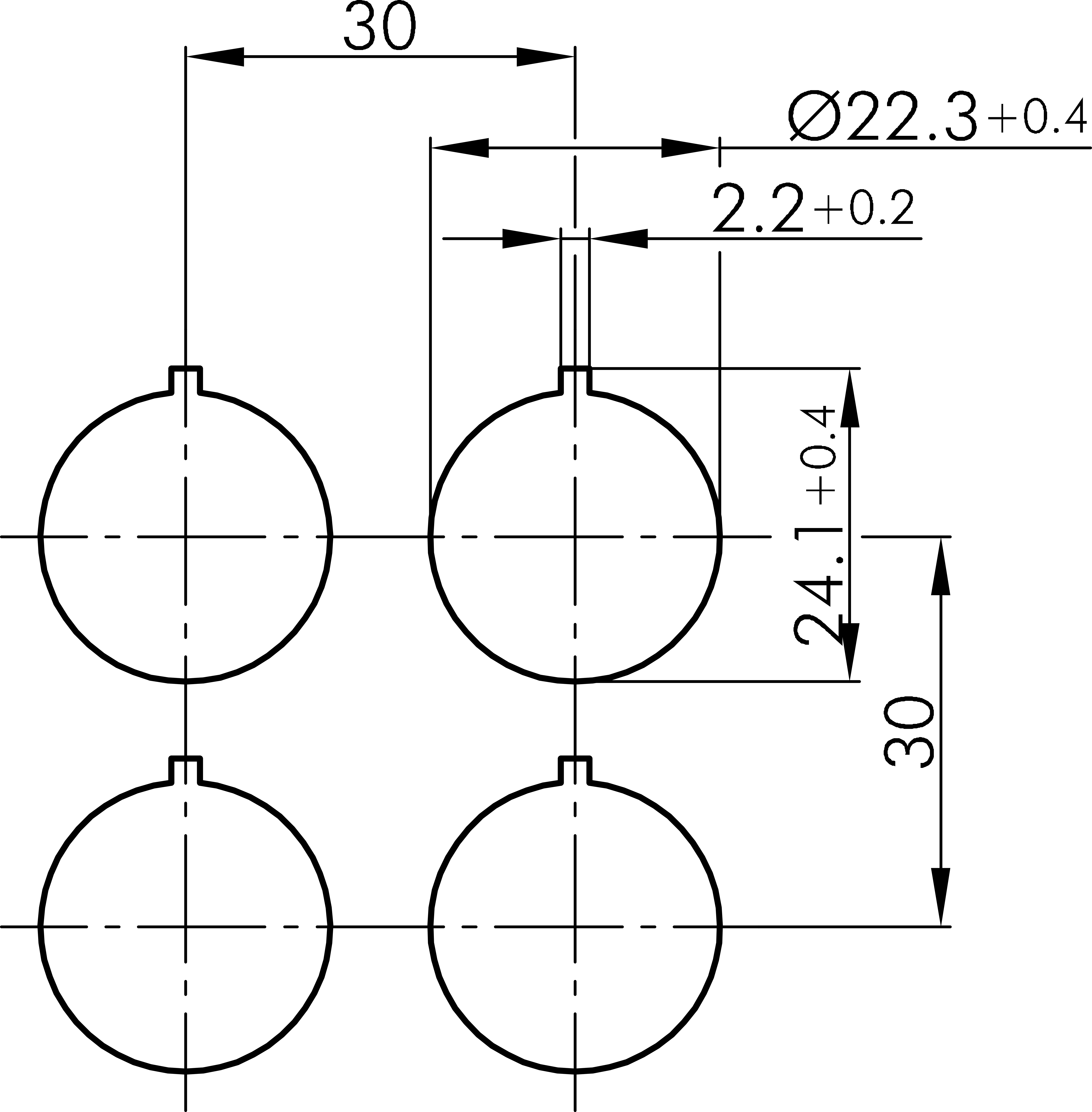

Mounting aperture
Ø 22.3 mm

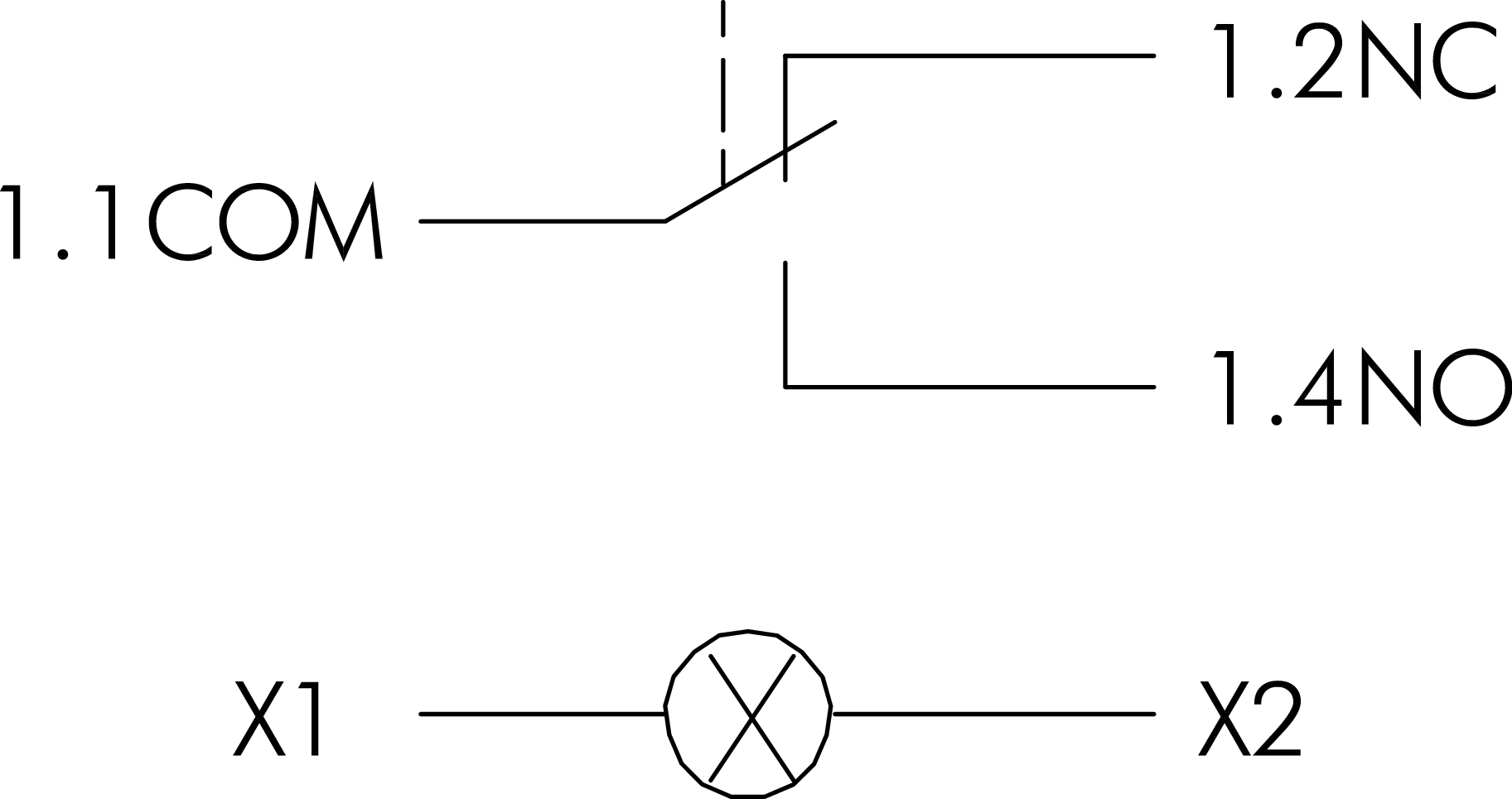

Contact type
1CO
Switching function
Momentary function
Connection
Faston terminals
Illumination
Yes
Illuminant
LED integrated
Front bezel colour
stainless steel, polished
Colour actuator
green
Shape
round
Degree of protection front
IP67
IP65
IP65
Operating temperature
-25°C ... 70°C
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles at rated voltage
Approvals
VDE , CCC, cURus , ENEC10 , CE, UKCA

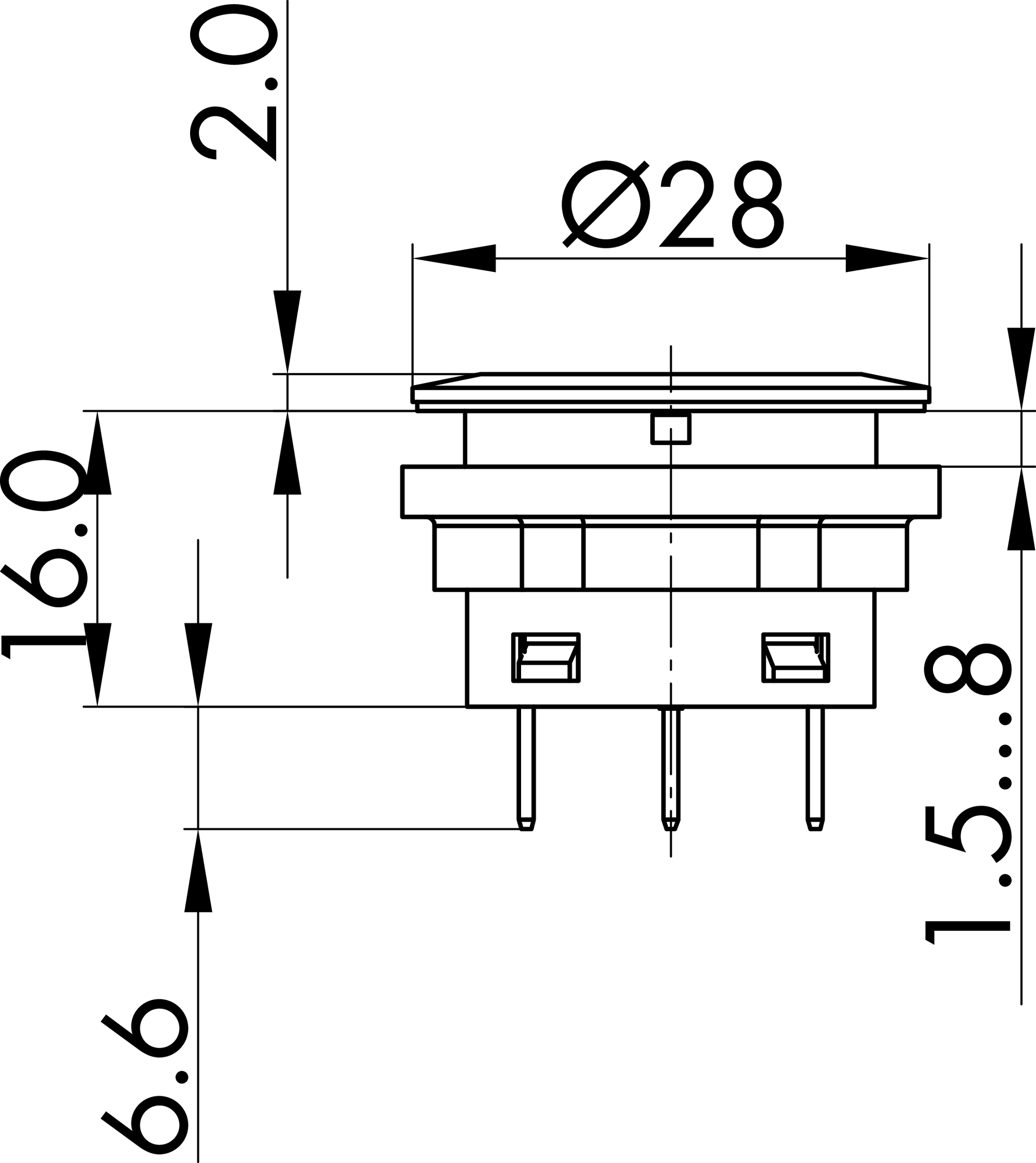

Technical sketches
Downloads

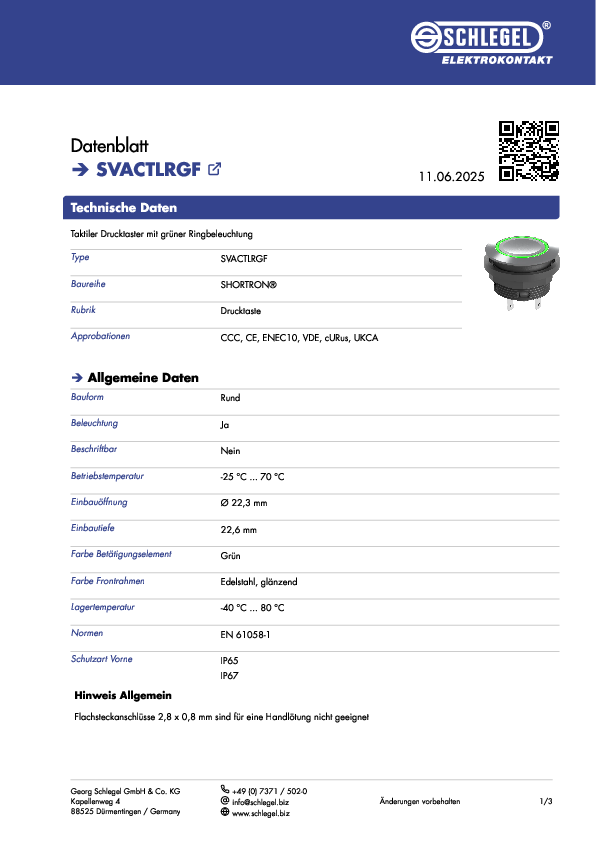

Datasheet_SVACTLRGF
