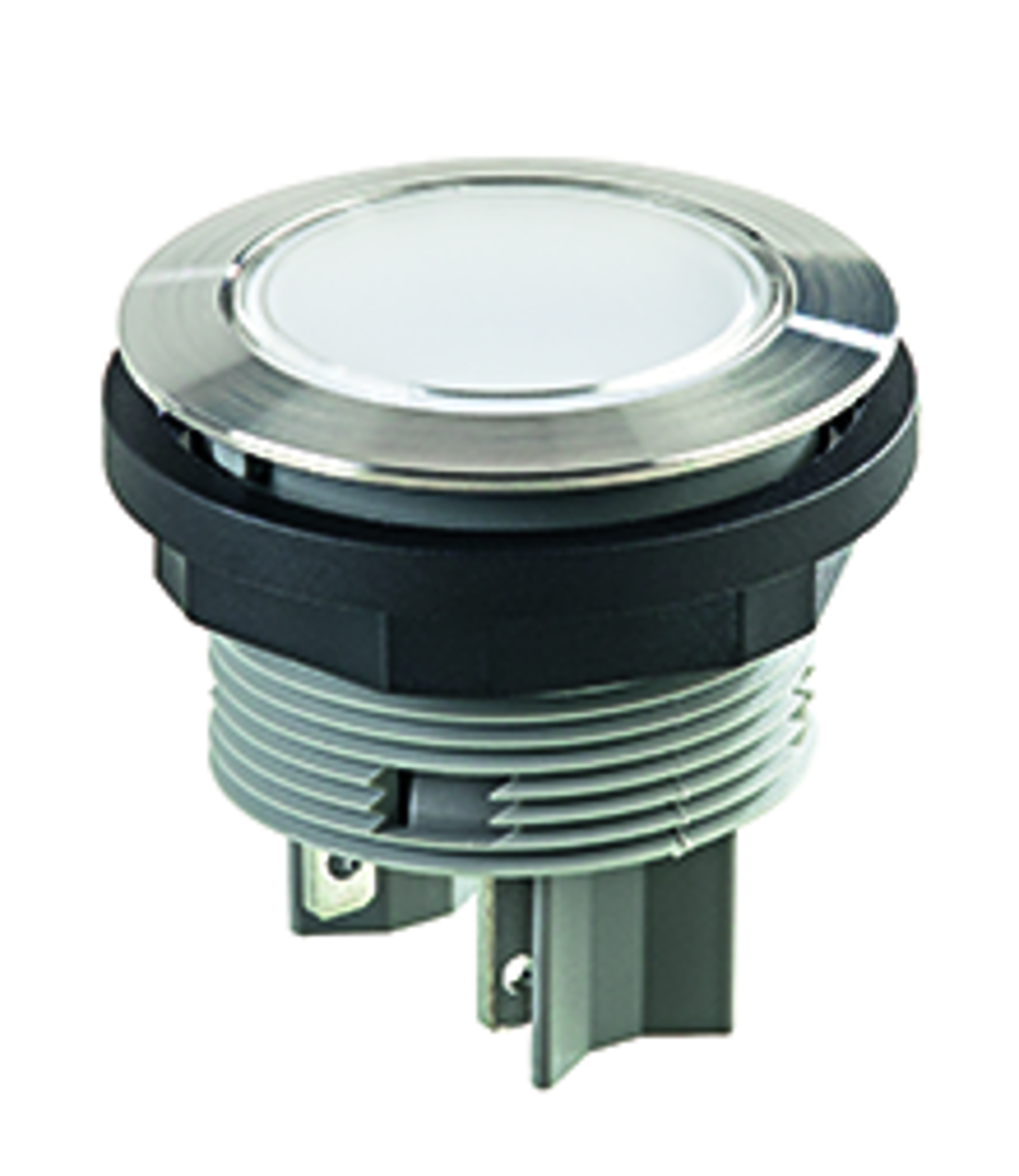

SVATI - Pushbutton
Series
SHORTRON®
Operating temperature
-25 ... 70°C
Mechanical life
1,000,000 switching cycles

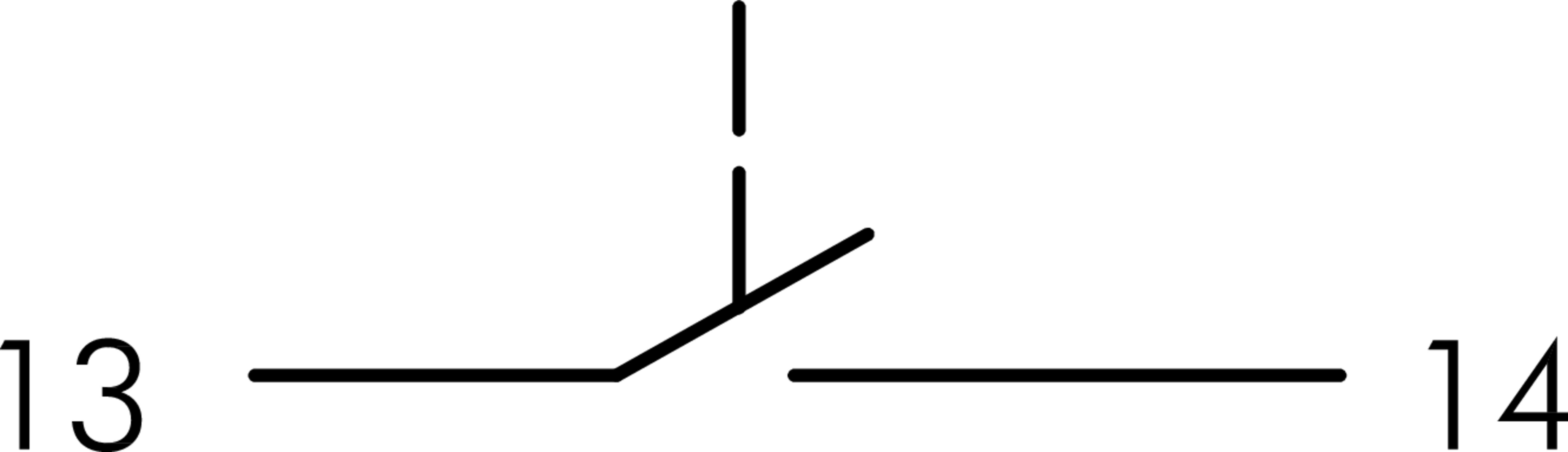

Contact type
1NO
Approvals
DNV, VDE , CCC , cURus , ENEC10 , CE , UKCA
Rated insulation voltage IEC/EN 60947-5-1
250 V DC
250 V AC
250 V AC
Degree of protection front
IP67 , IP65
Storage temperature
-40 ... 80°C
Protection class
II (protective insulation)
Front bezel colour
stainless steel, polished

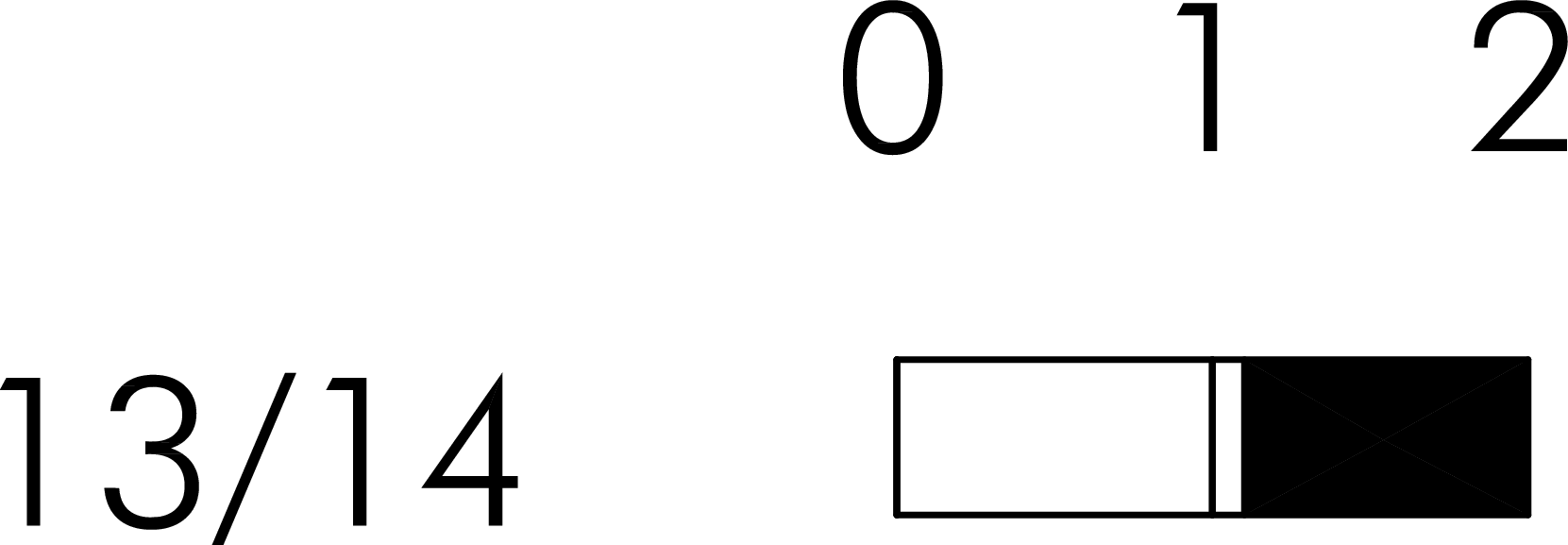

Operating travel
2.3 mm
Shape
round

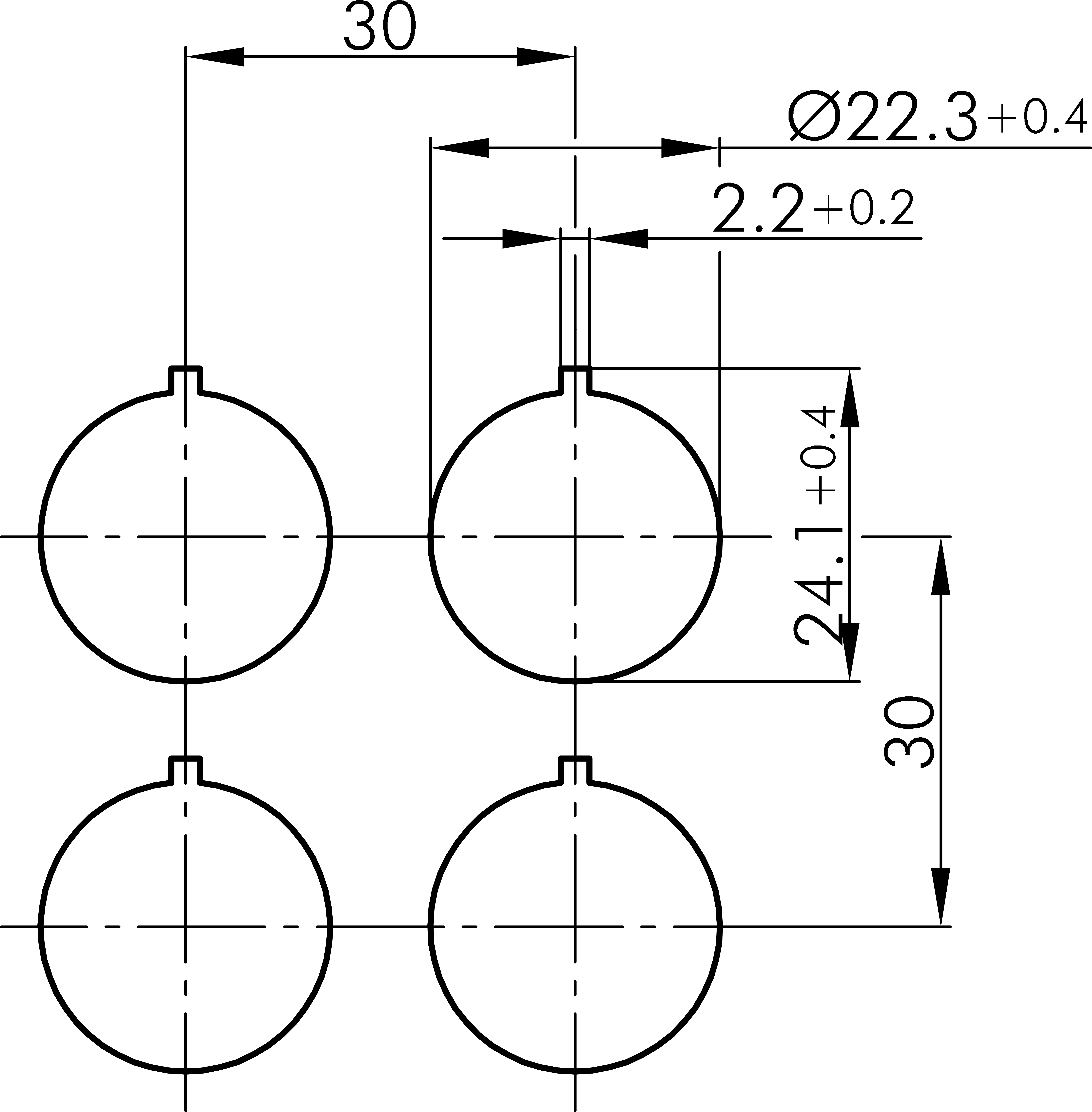

Mounting aperture
Ø 22.3 mm
Electrical life
1,000,000 switching cycles
Illumination
no
Rated operating voltage
250 V DC
24 V DC
125 V DC
240 V AC
60 V DC
120 V AC
24 V DC
125 V DC
240 V AC
60 V DC
120 V AC
Rated operating current
0.55 A DC
0.27 A DC
1.5 A AC
3 A AC
2 A DC
1 A DC
0.27 A DC
1.5 A AC
3 A AC
2 A DC
1 A DC

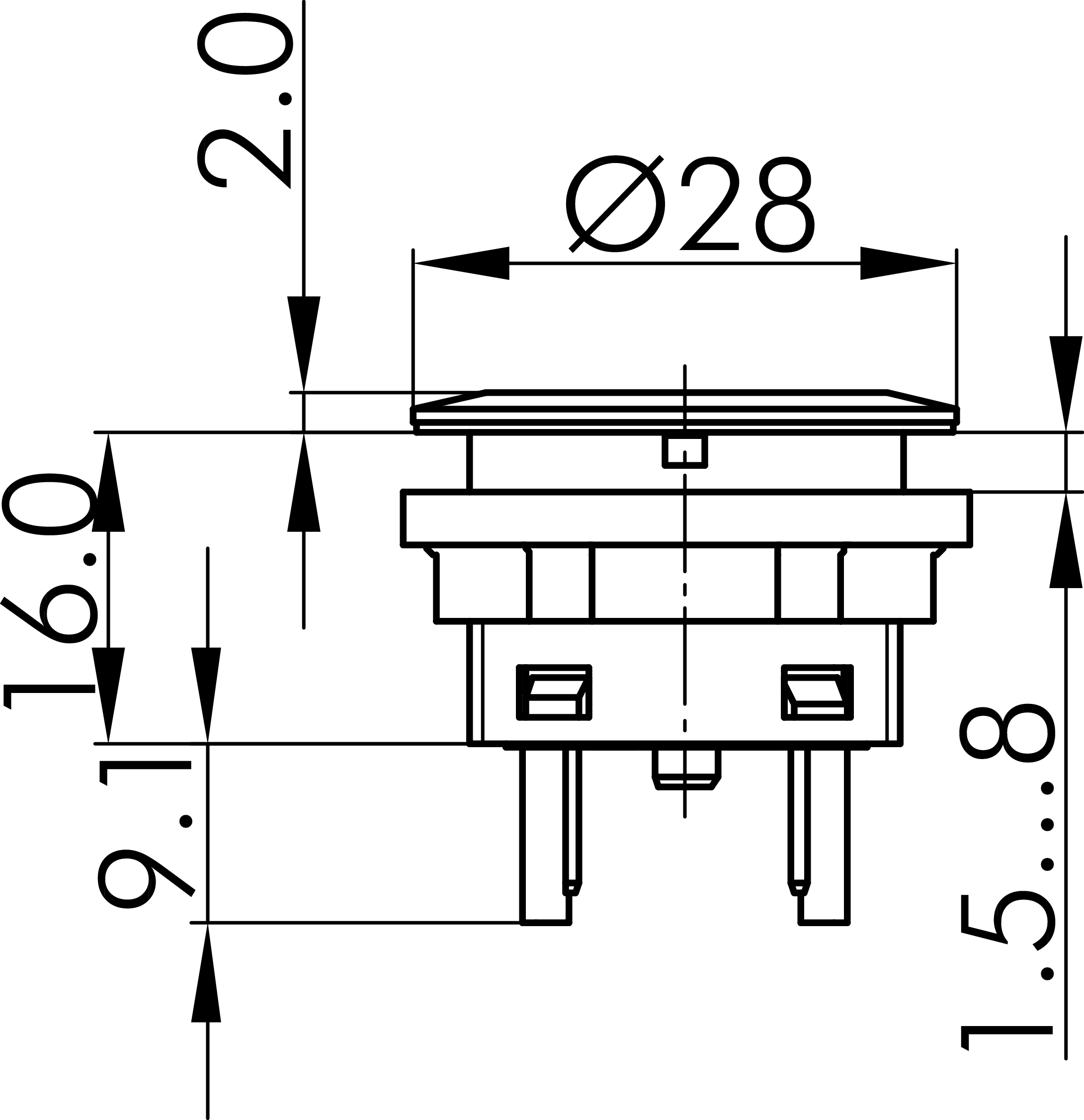

Technical sketches
Downloads

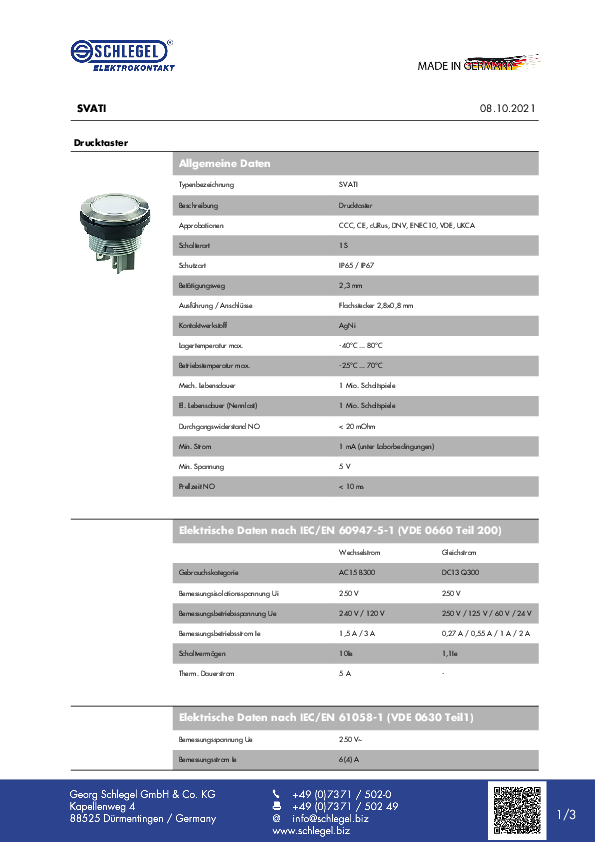

Datasheet_SVATI
