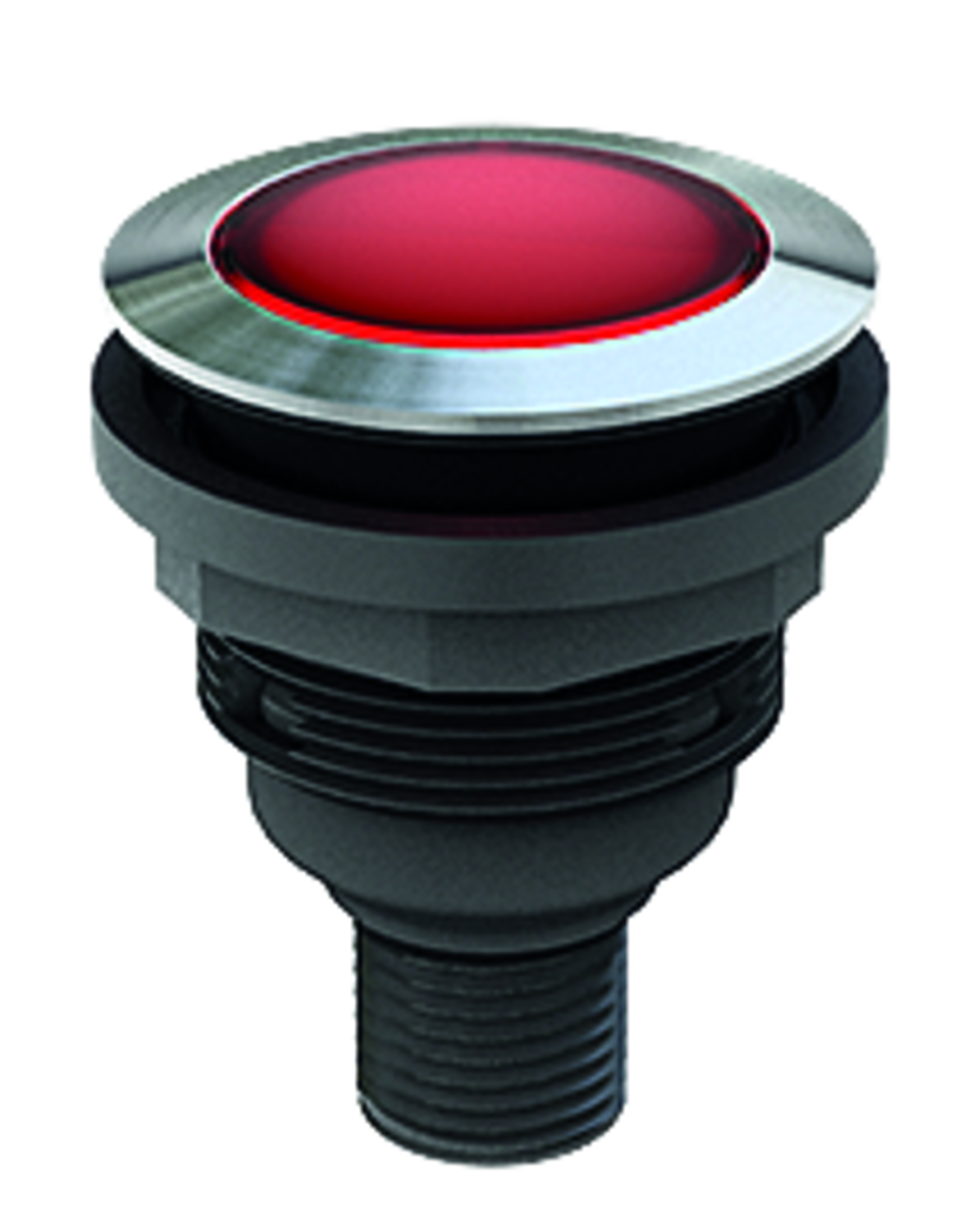

SVATII_C009 - Pushbutton with 4-pole M12 connector
Series
SHORTRON® connect
Operating temperature
-25 ... 70°C
Mechanical life
1,000,000 switching cycles
Approvals
VDE , cURus , ENEC10 , CE , UKCA
Contact type
2NO
Degree of protection front
IP67 , IP65
Storage temperature
-40 ... 80°C
Protection class
II (protective insulation)
Front bezel colour
stainless steel, polished
Operating travel
2.3 mm
Shape
round
Rated insulation voltage IEC/EN 60947-5-1
50 V DC
50 V AC
50 V AC

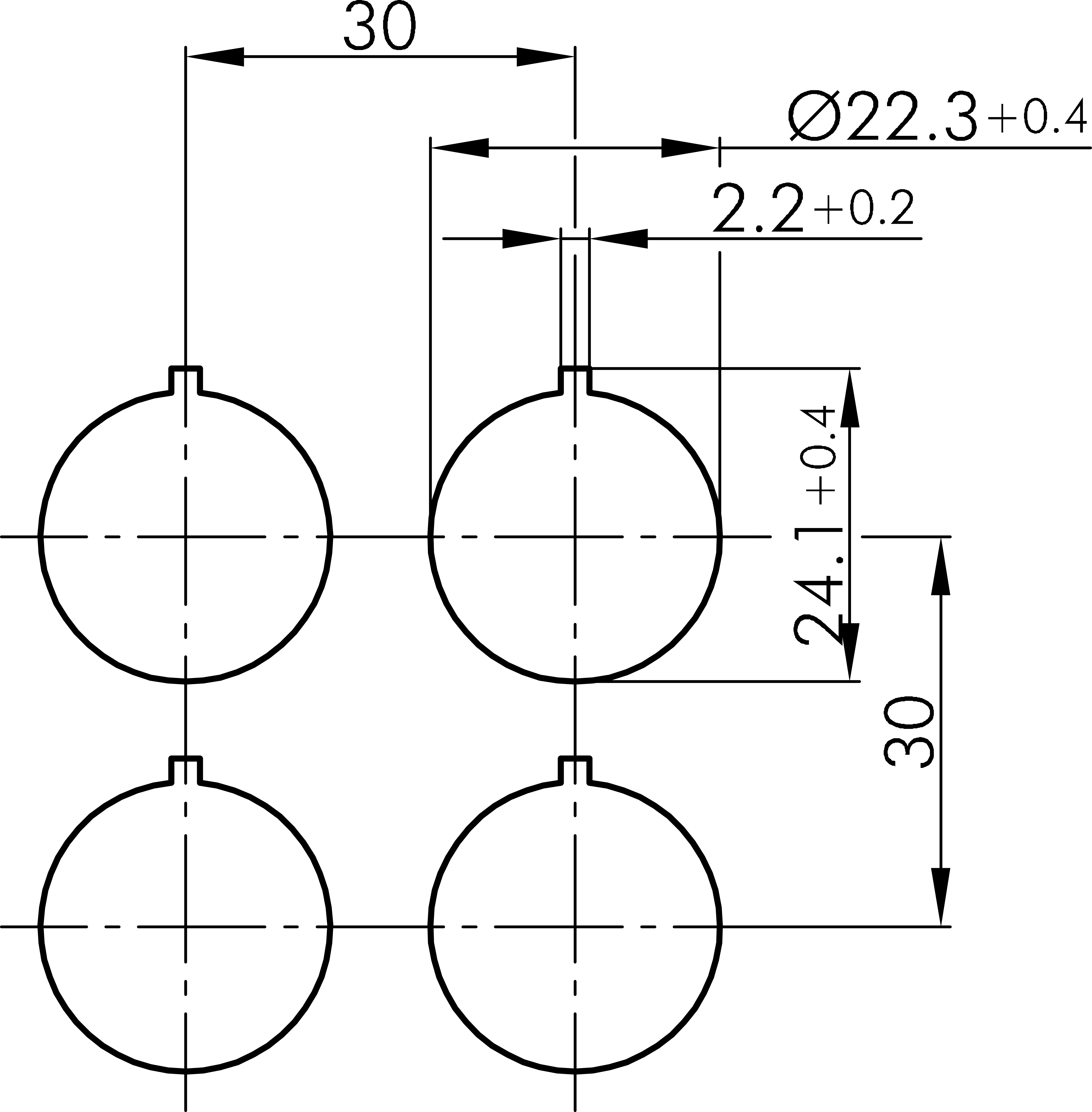

Mounting aperture
Ø 22.3 mm
Electrical life
1,000,000 switching cycles
Illumination
no
Rated operating voltage
35 V DC
35 V AC
35 V AC
Rated operating current
3 A DC
3 A AC
3 A AC

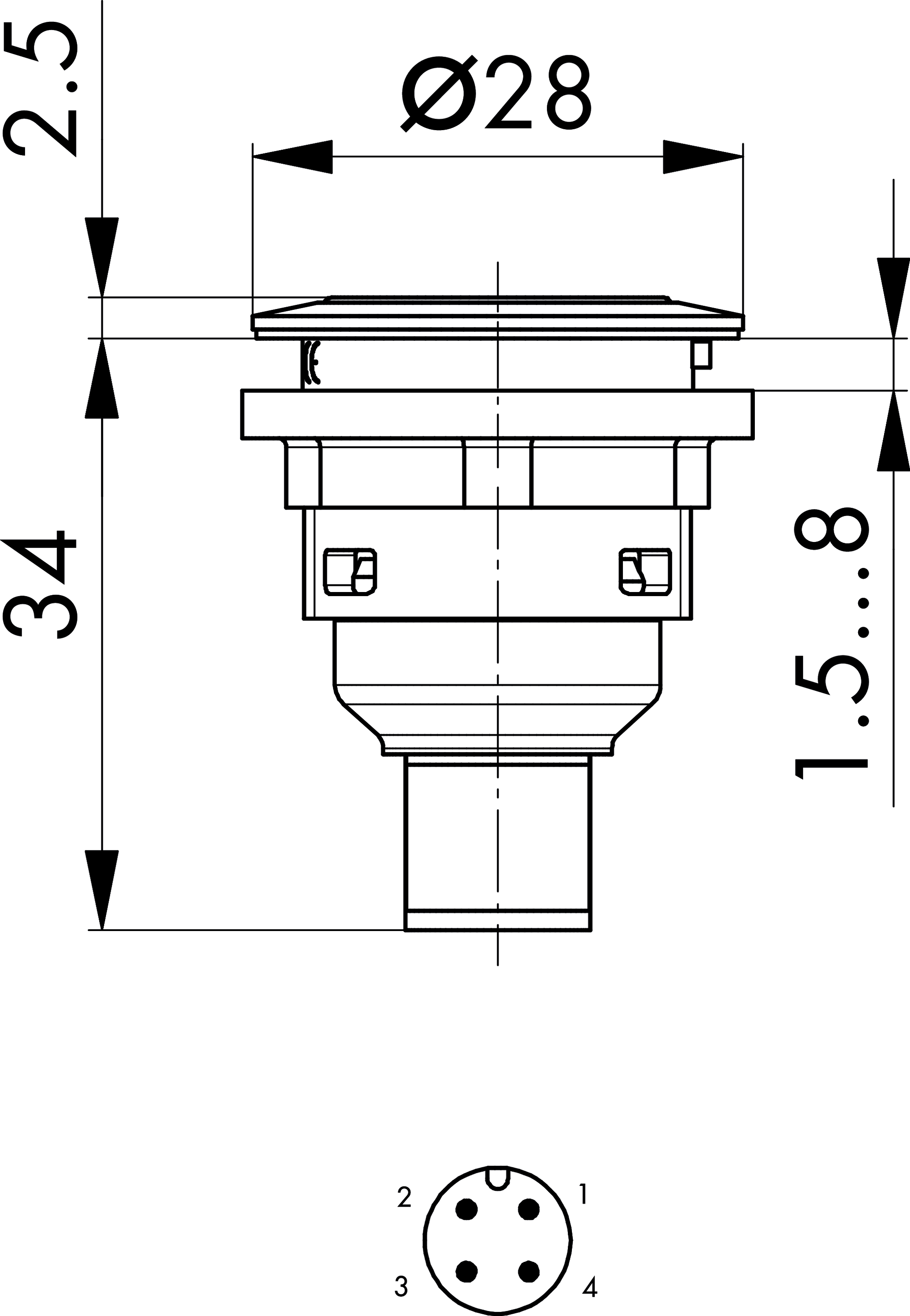

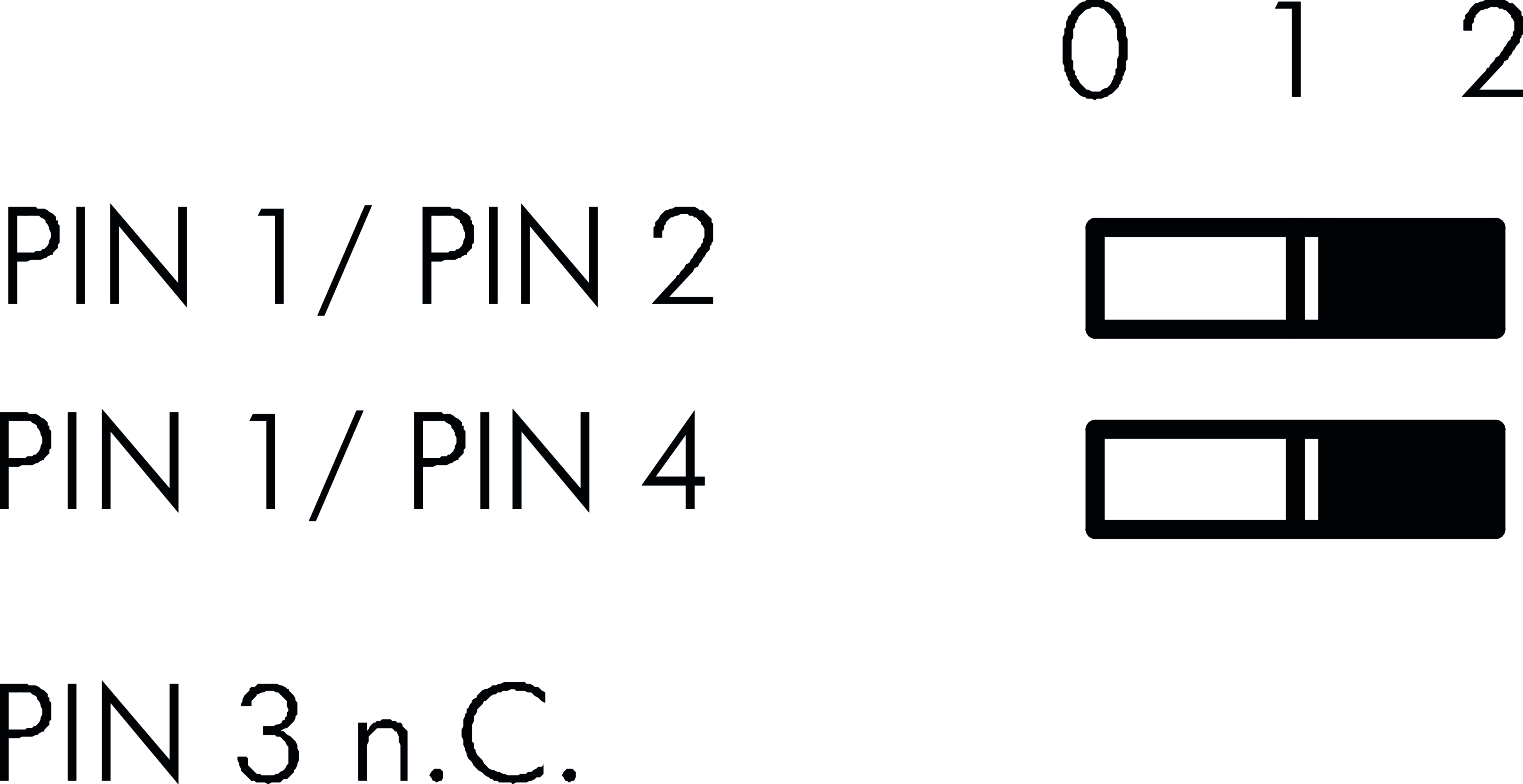

Technical sketches
Downloads

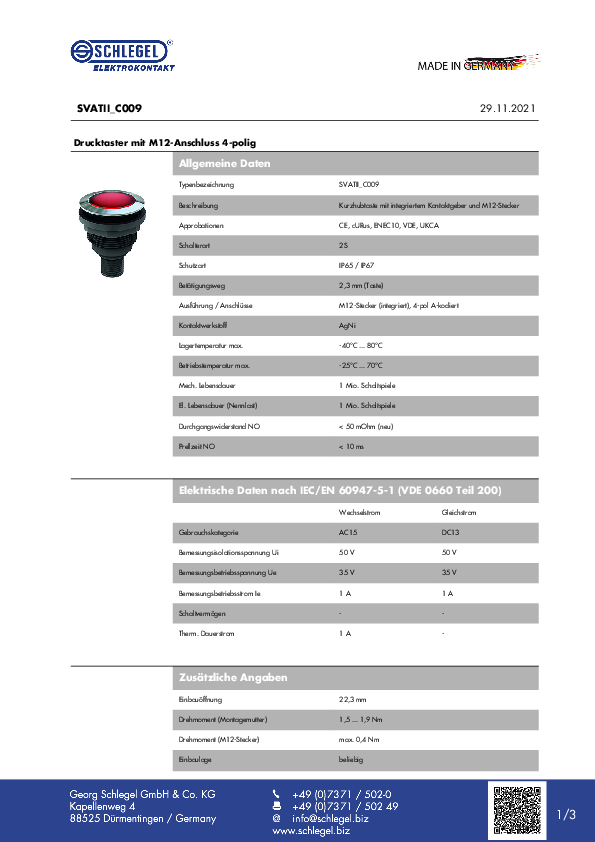

Datasheet_SVATII_C009
