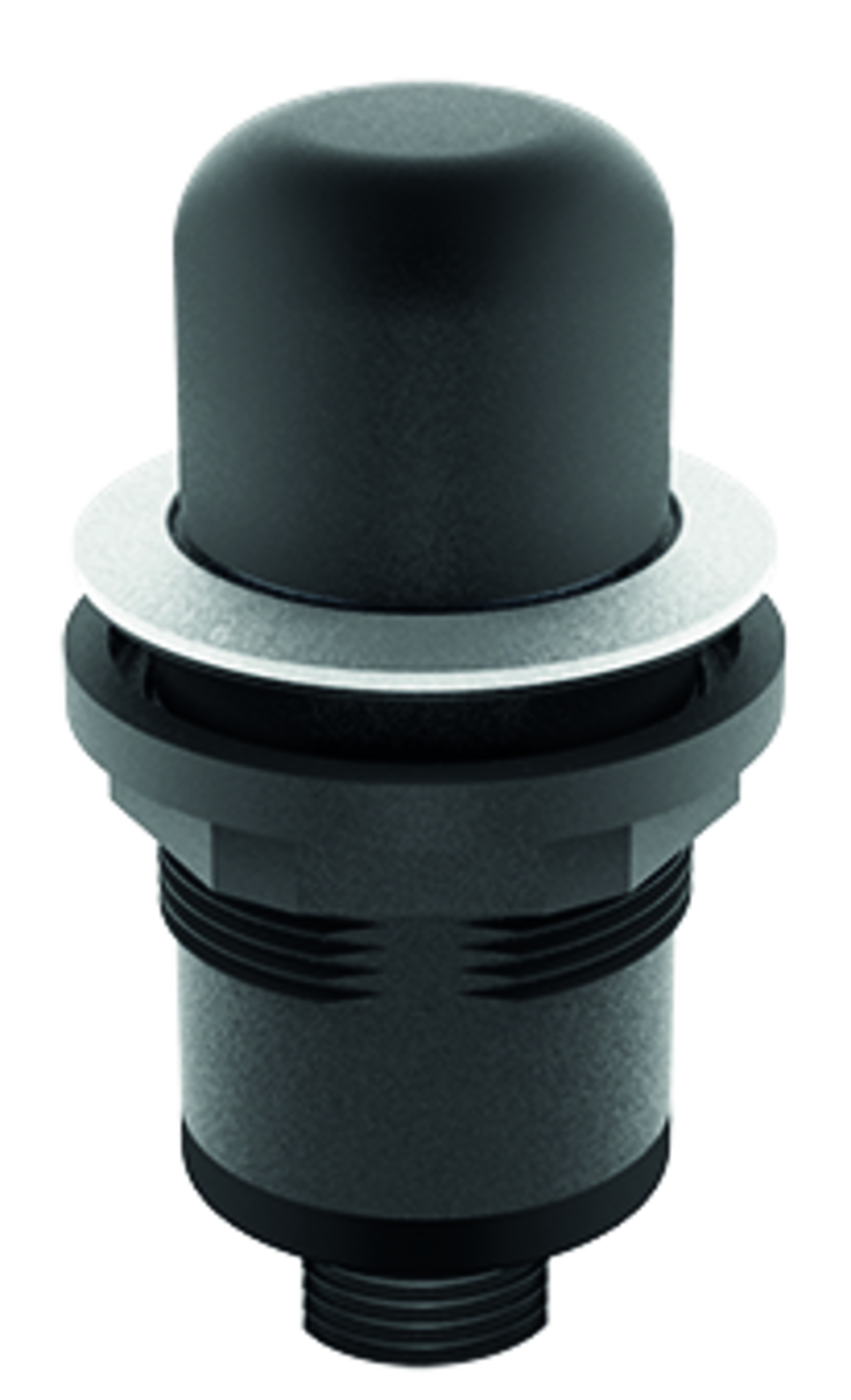

SZU_C002 - Enabling switch

Series

SHORTRON® connect

Mechanical life

> 1.000.000 Schaltspiele 1-2-1
> 100.000 Schaltspiele 1-2-3-1

Electrical life

> 100,000 switching cycles

Switching function

Enabling function

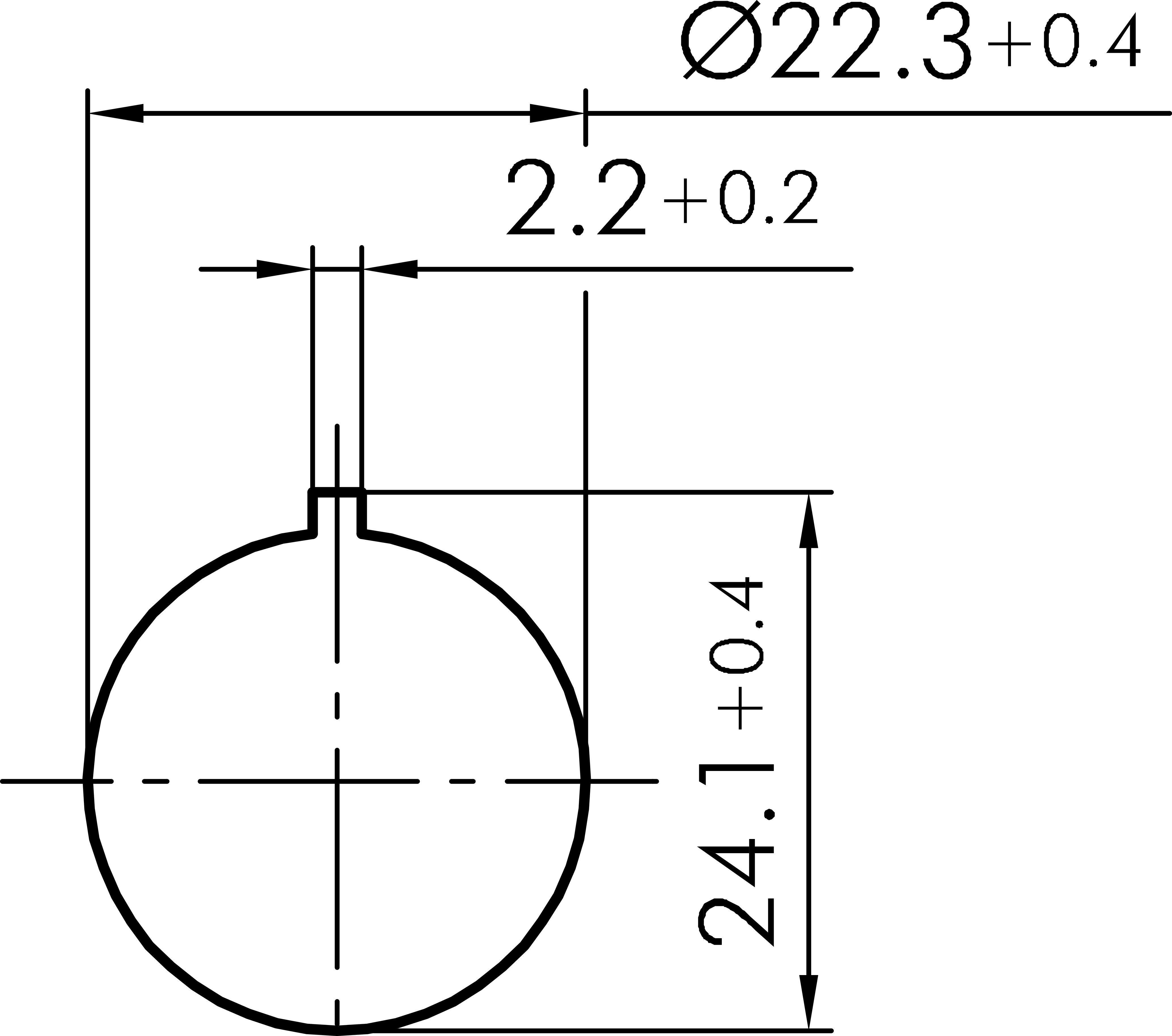

Mounting aperture

Ø 22.3 mm

Storage temperature

-40°C ... 80°C

Shape

round

Rated insulation voltage IEC/EN 60947-5-1

50 V DC
50 V AC

Contact type

2 enabling function

Degree of protection front

IP65 mit Gummikappe

Connection

M12

Approvals

CE , UKCA

Front bezel colour

silver

Rated operating voltage

35 V DC
35 V AC
30 V DC

Rated operating current

0.3 A DC
0.3 A AC
0.7 A DC

Technical sketches
