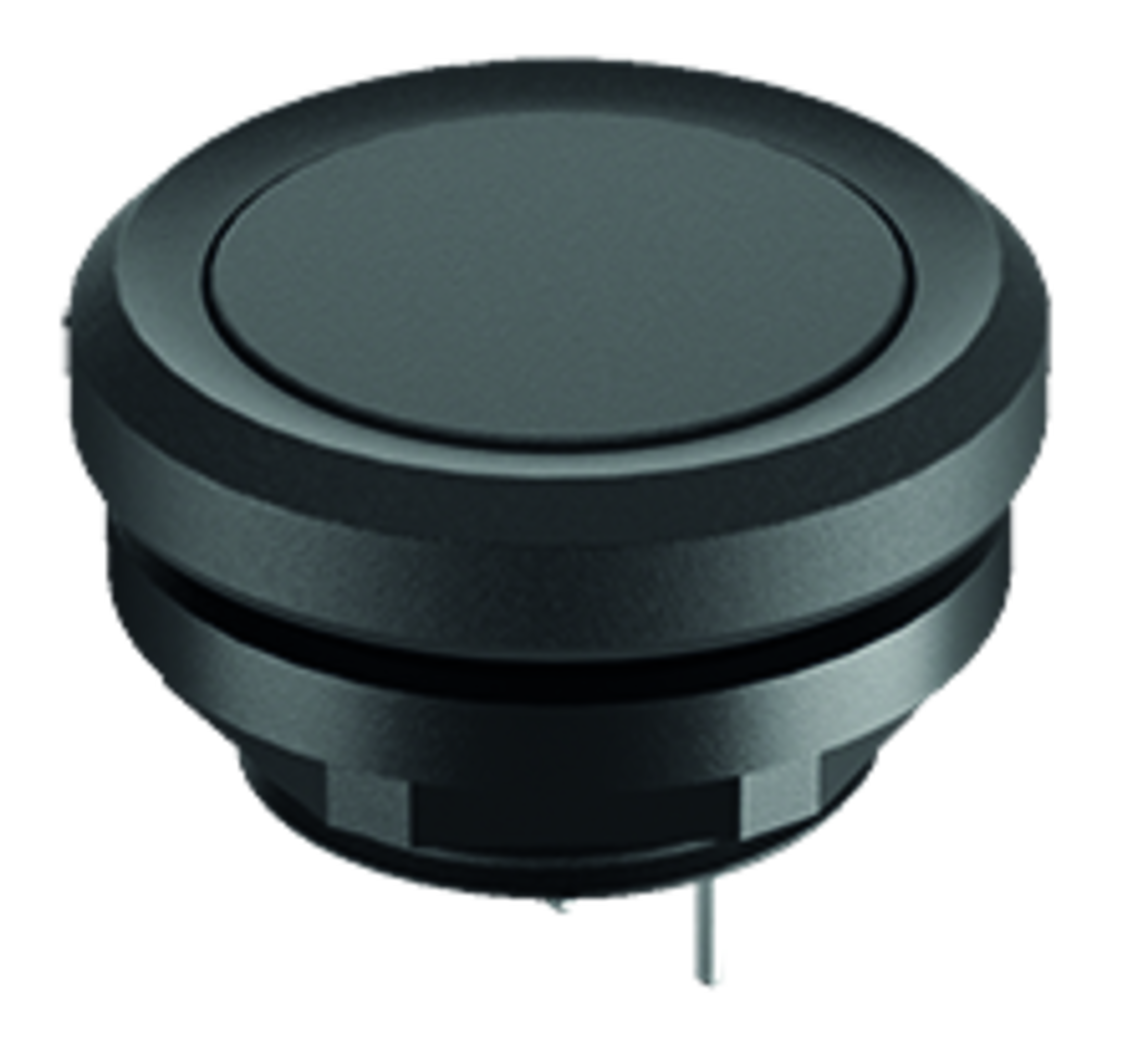

YKTSP - Pushbutton, non-transparent lens
Small, tactile push-button with colored touch surface and print connection. Pleasant feel thanks to a short actuation path and a rich, crisp switching point.
Series
MYnitron®
Mounting aperture
Ø 16.2 mm

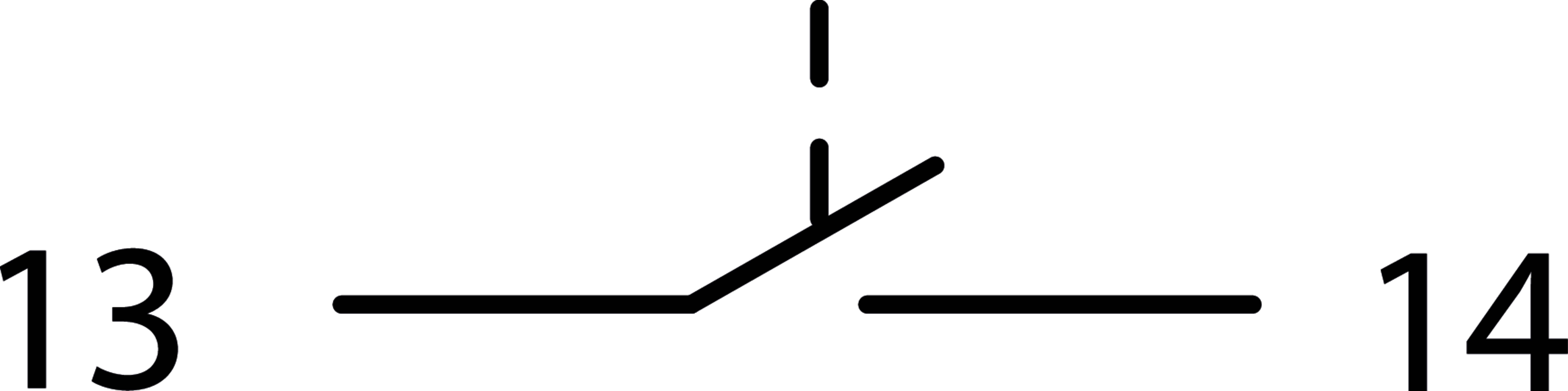

Contact type
1NO
Front bezel colour
black
Colour actuator
black
Shape
round
Degree of protection front
IP69K
IP67
IP65
IP67
IP65
Operating temperature
-25°C ... 70°C
Rated operating voltage
35 V AC
35 V DC
35 V DC
Rated operating current
0.1 A AC
0.1 A DC
0.1 A DC
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles at rated voltage
Approvals
cURus , CE, UKCA

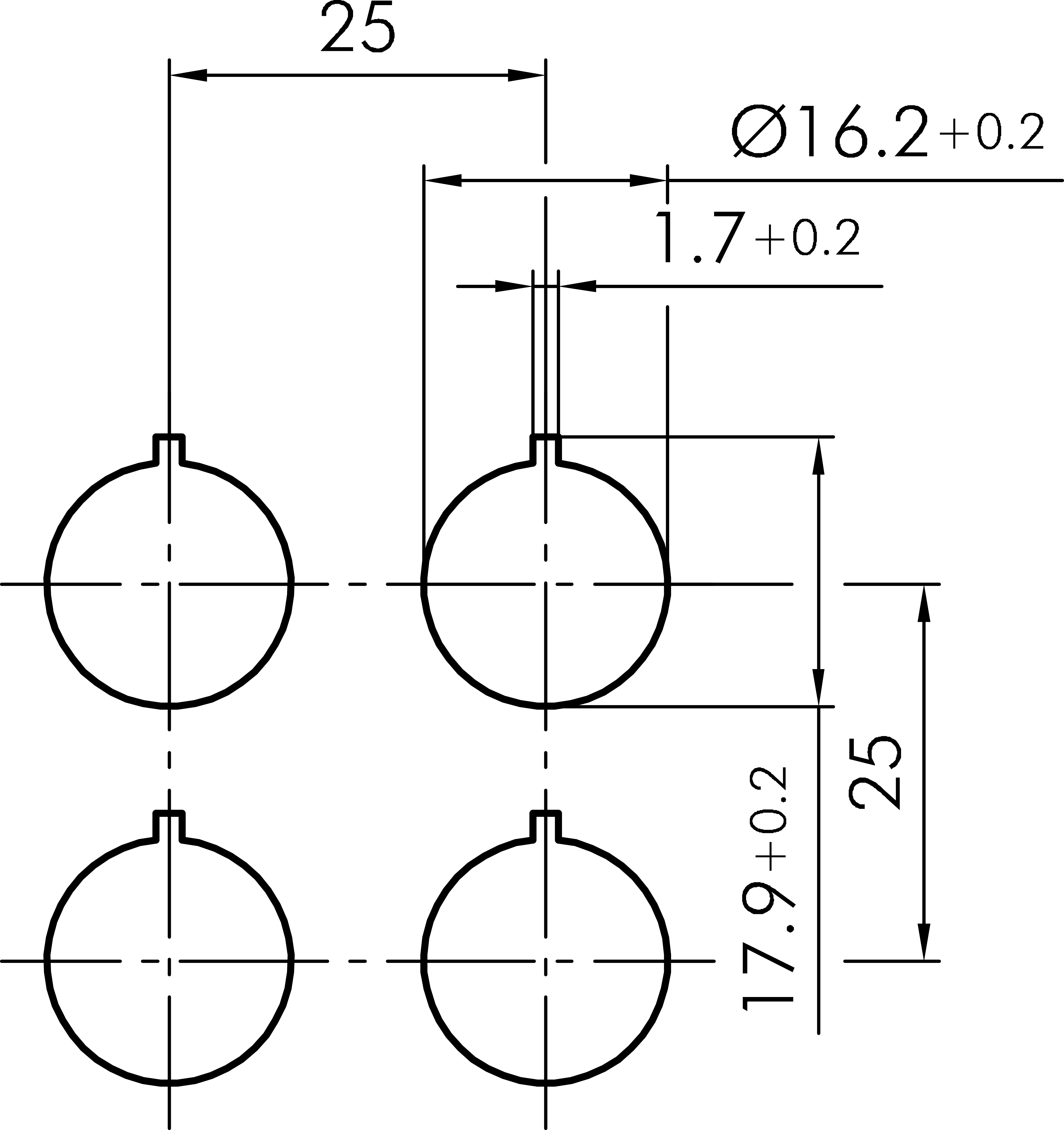

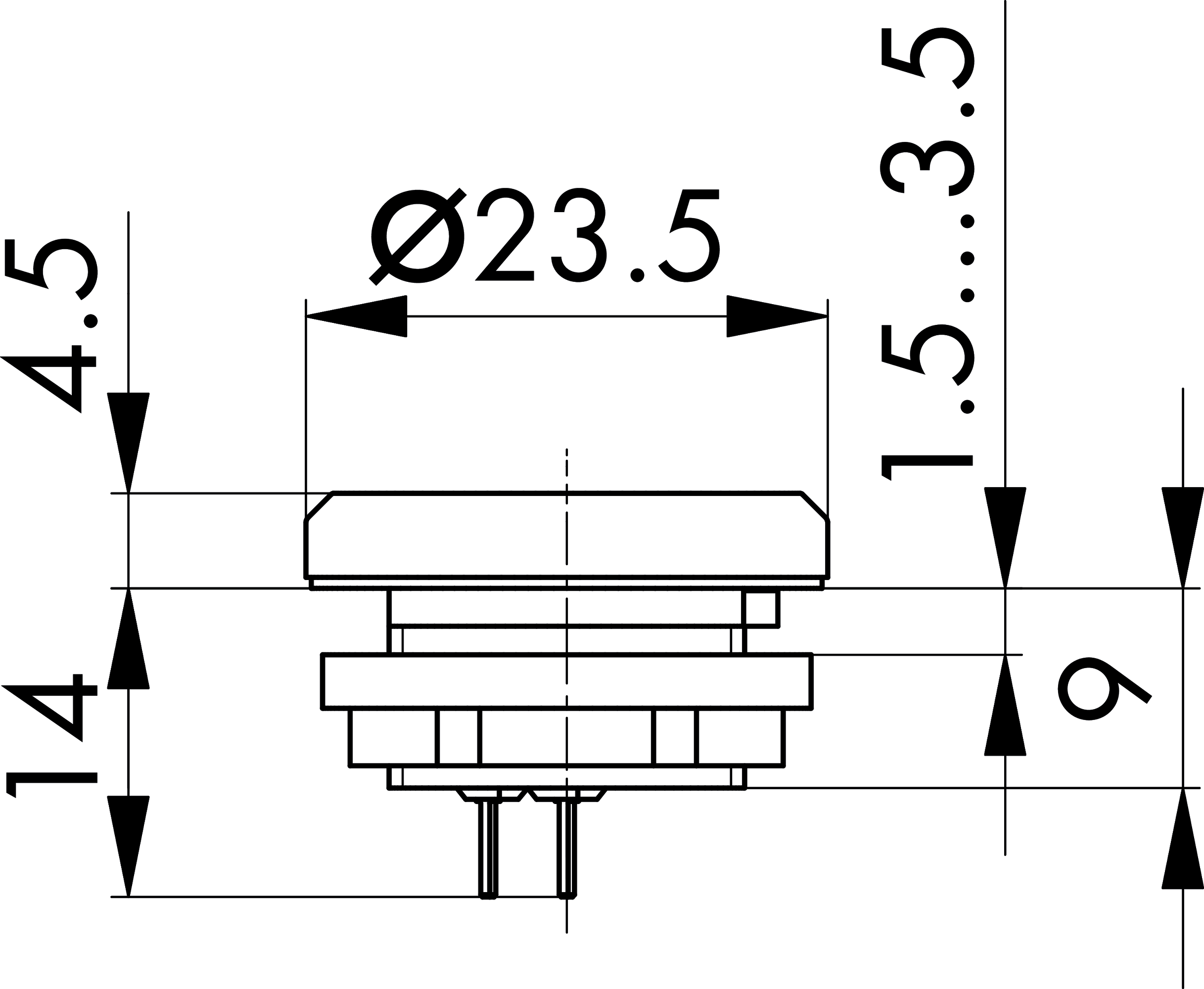

Technical sketches
