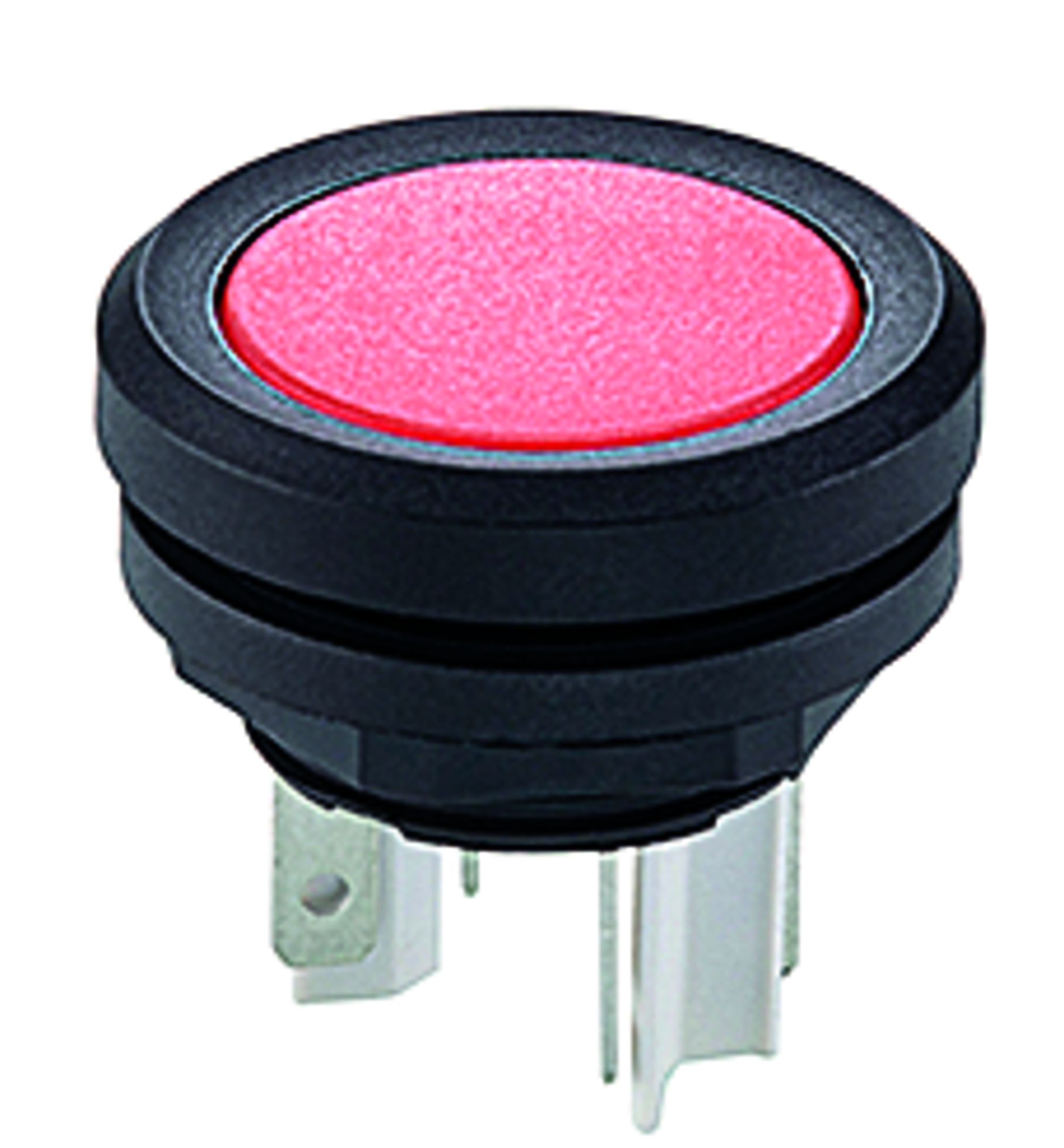

YTGR - Pushbutton, non-transparent lens
Series
MYnitron®
Contact type
1NO
Front bezel colour
black
Colour actuator
red
Shape
round
Degree of protection front
IP67, IP65
Mounting aperture
Ø 16.2 mm
Approvals
cURus , CE, UKCA
Connection
Faston terminals
Illumination
No
Mechanical life
500,000 switching cycles
Electrical life
500,000 switching cycles at rated voltage
Operating temperature
-25°C ... 70°C
Storage temperature
-40°C ... 80°C
Rated operating voltage
35 V DC
35 V AC
35 V AC
Rated insulation voltage IEC/EN 60947-5-1
42 V DC
42 V AC
42 V AC
Rated operating current
0.1 A DC
0.1 A AC
0.1 A AC

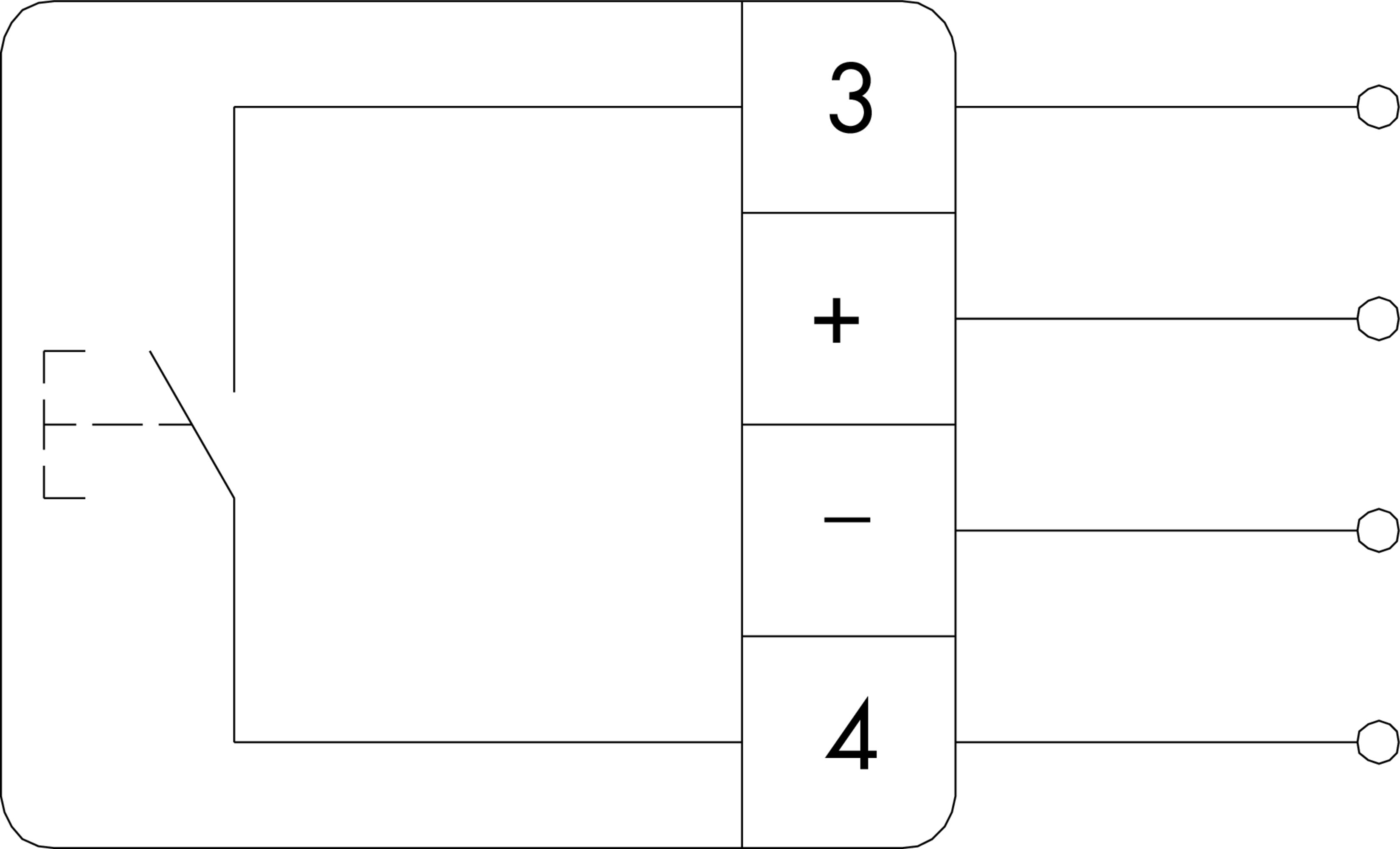

Technical sketches
Downloads

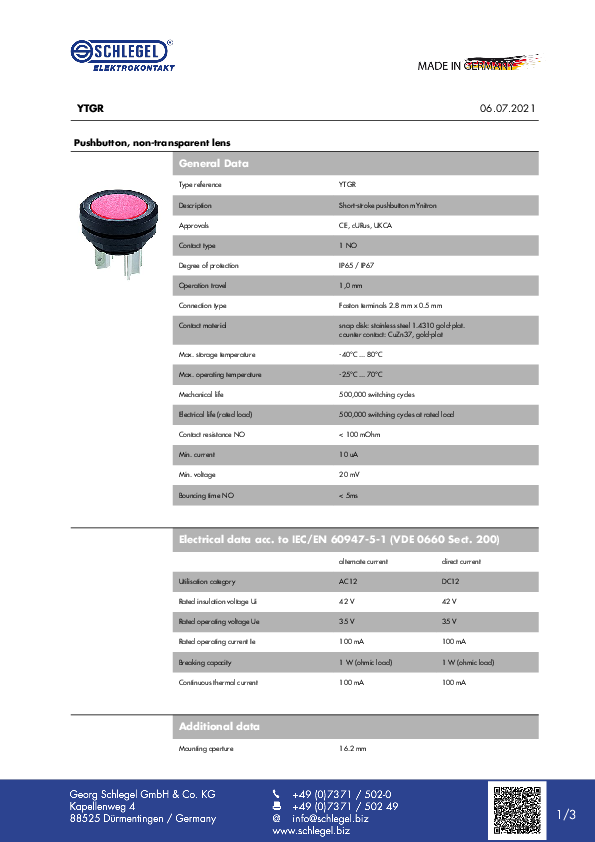

Datasheet_YTGR
