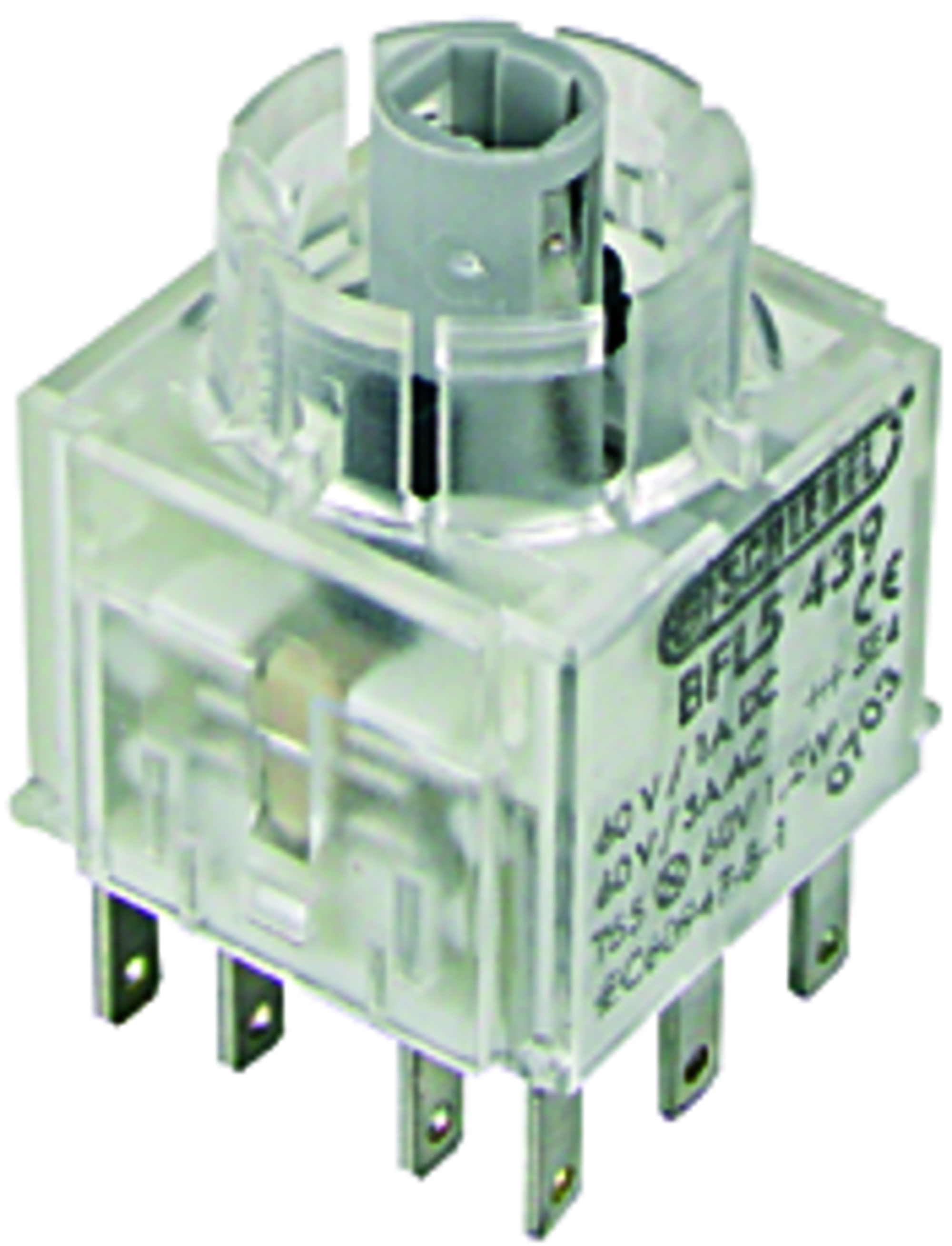

BFL5_439 - Illuminated contact block, maintained, T5,5K

Series

Contact blocks B..._439

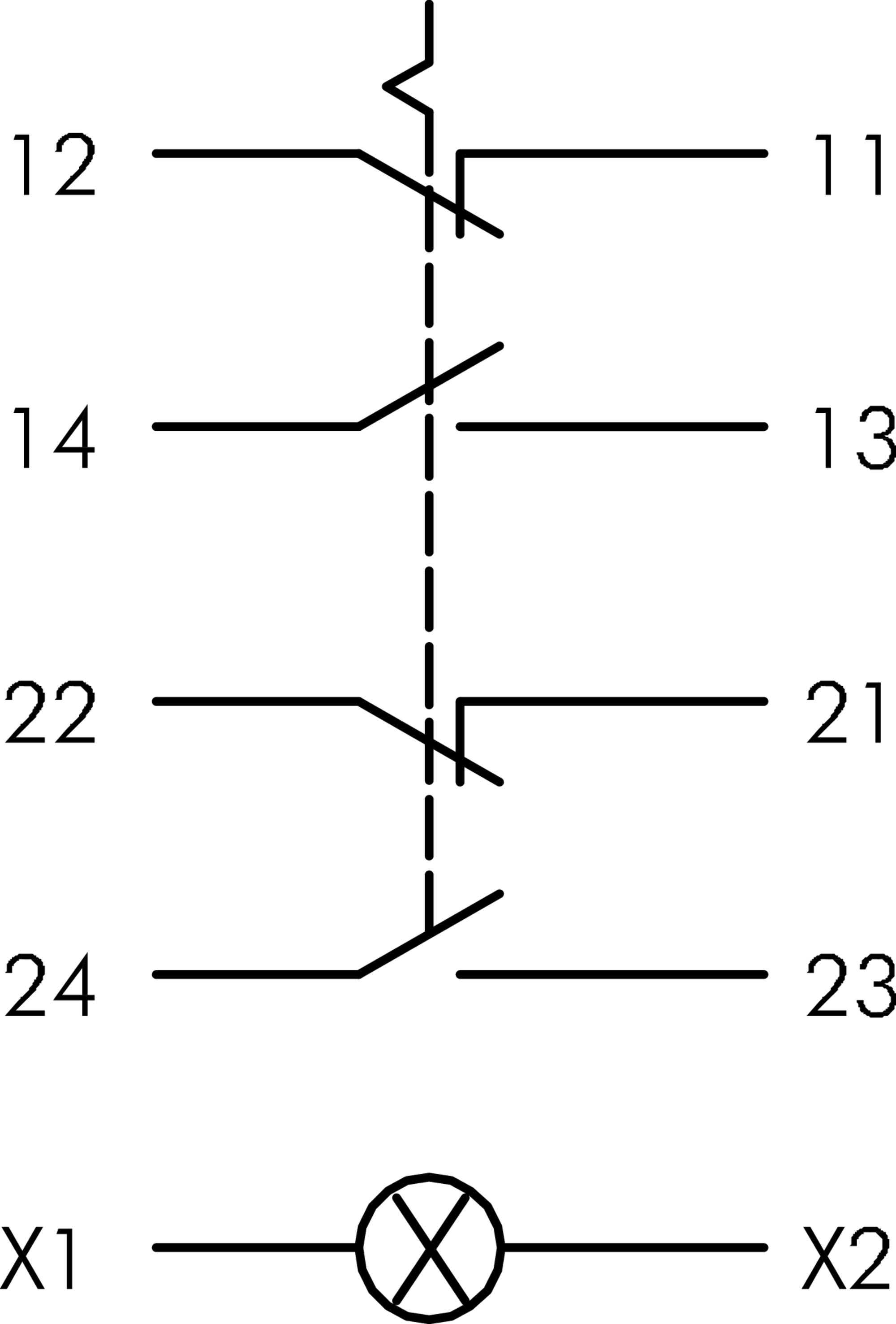

Contact type

2NC + 2NO

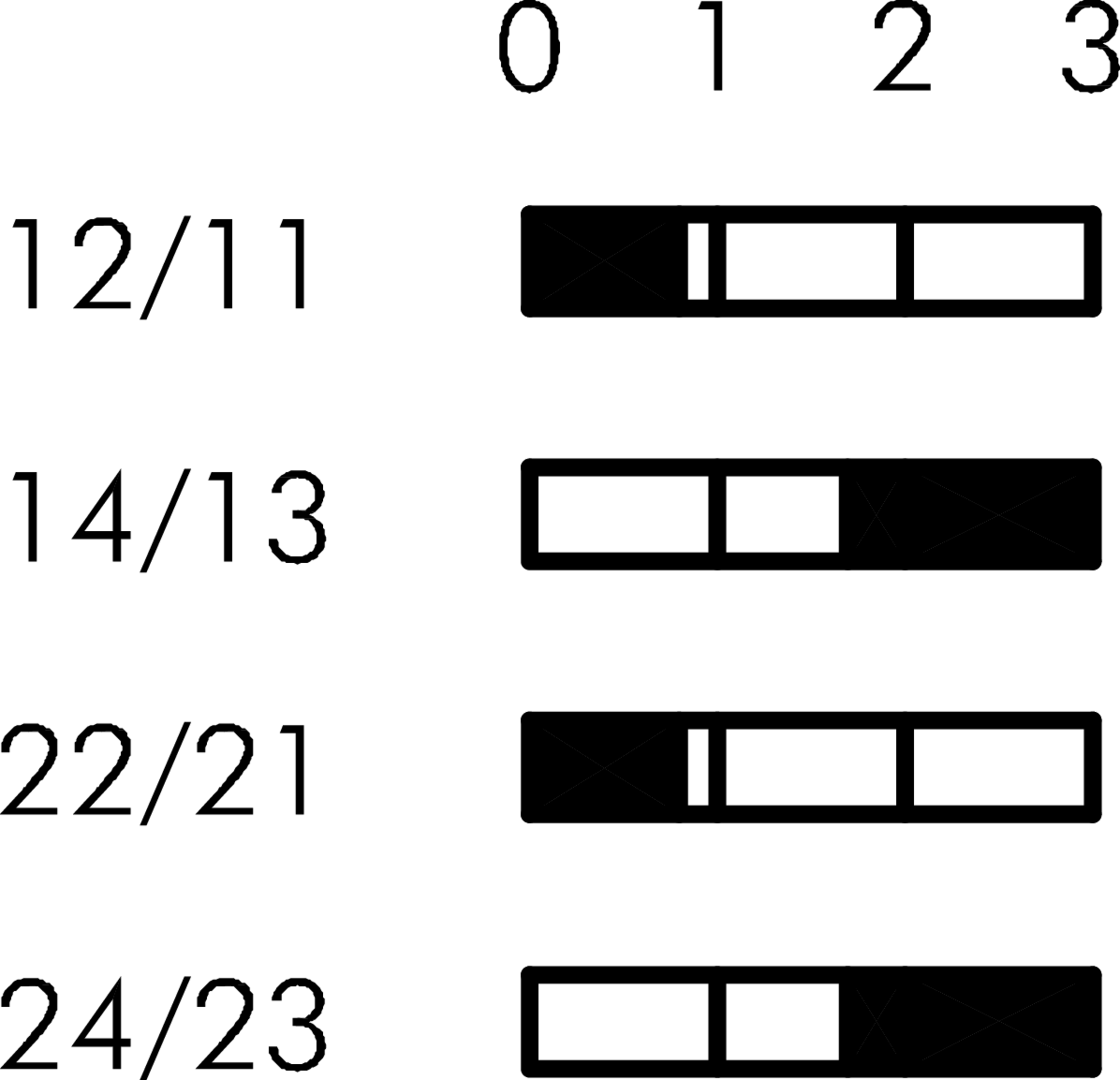

Switching function

Latching function

Connection

Faston terminals

Illumination

Yes

Illuminant

T5,5K Lamp socket

Degree of protection front

IP00

Operating temperature

-30°C ... 70°C ohne Beleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung

Rated operating voltage

60 V AC

Rated operating current

3 A AC inductive
5 A DC
4 A DC
3 A DC
1 A DC

Mechanical life

1,000,000 switching cycles

Approvals

CCC, CE, UKCA

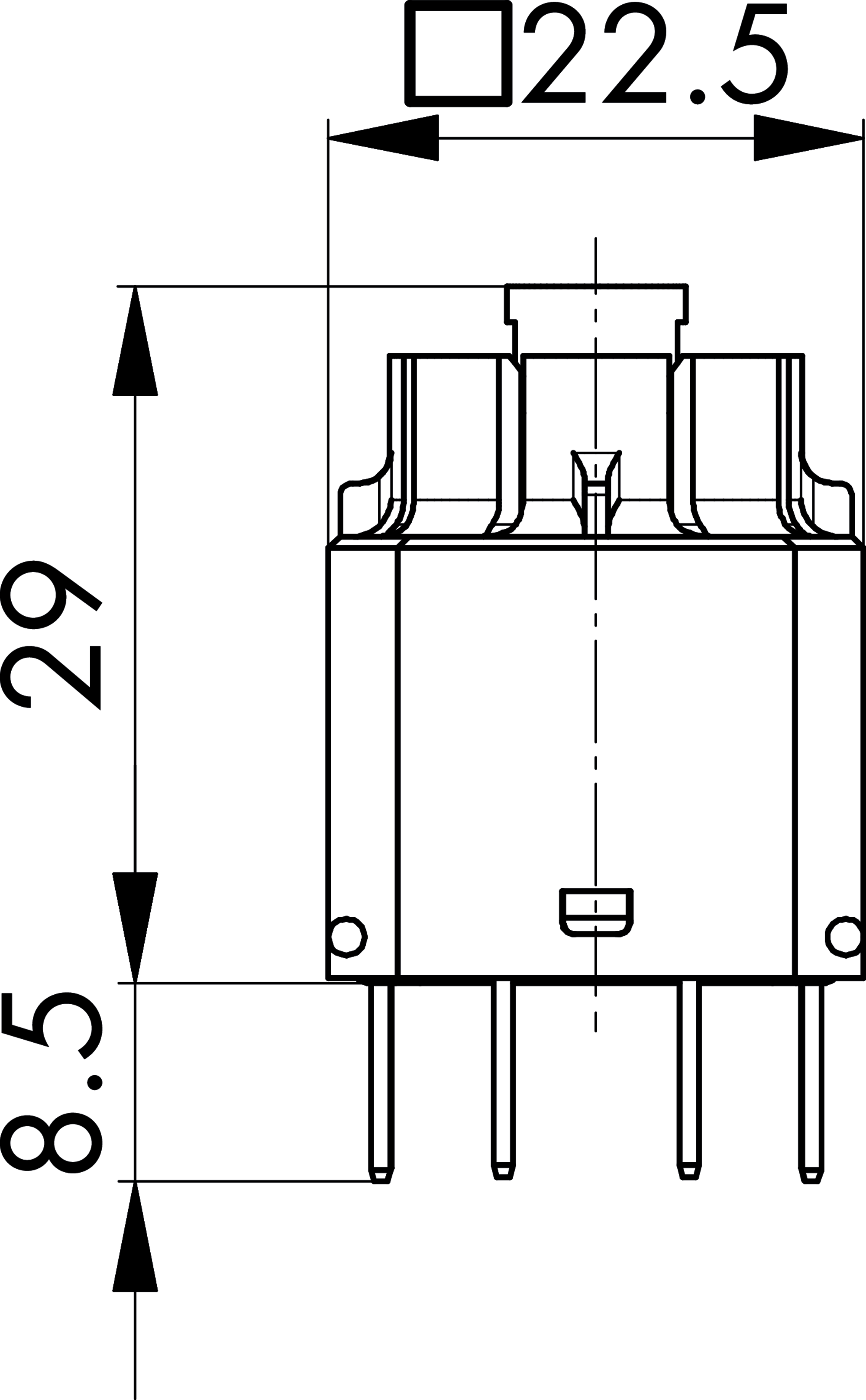

Technical sketches

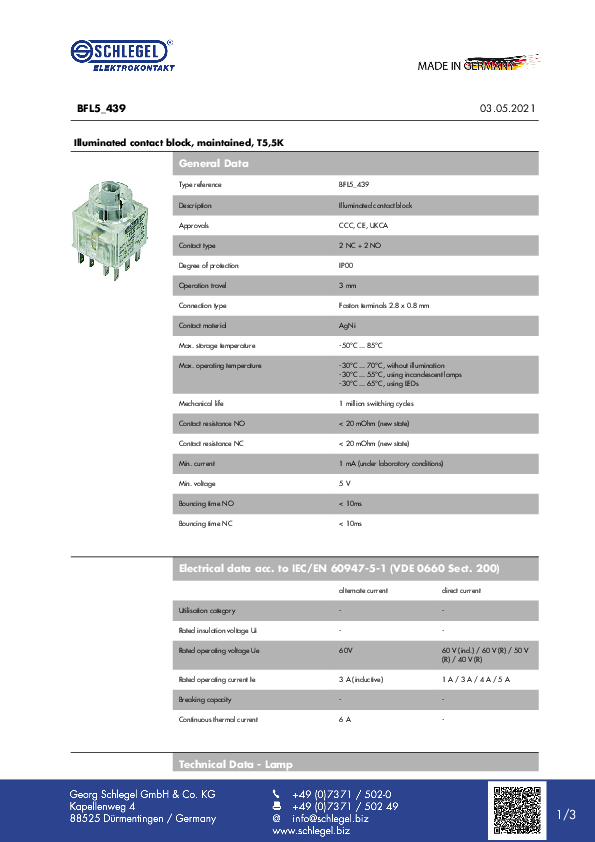

Downloads
