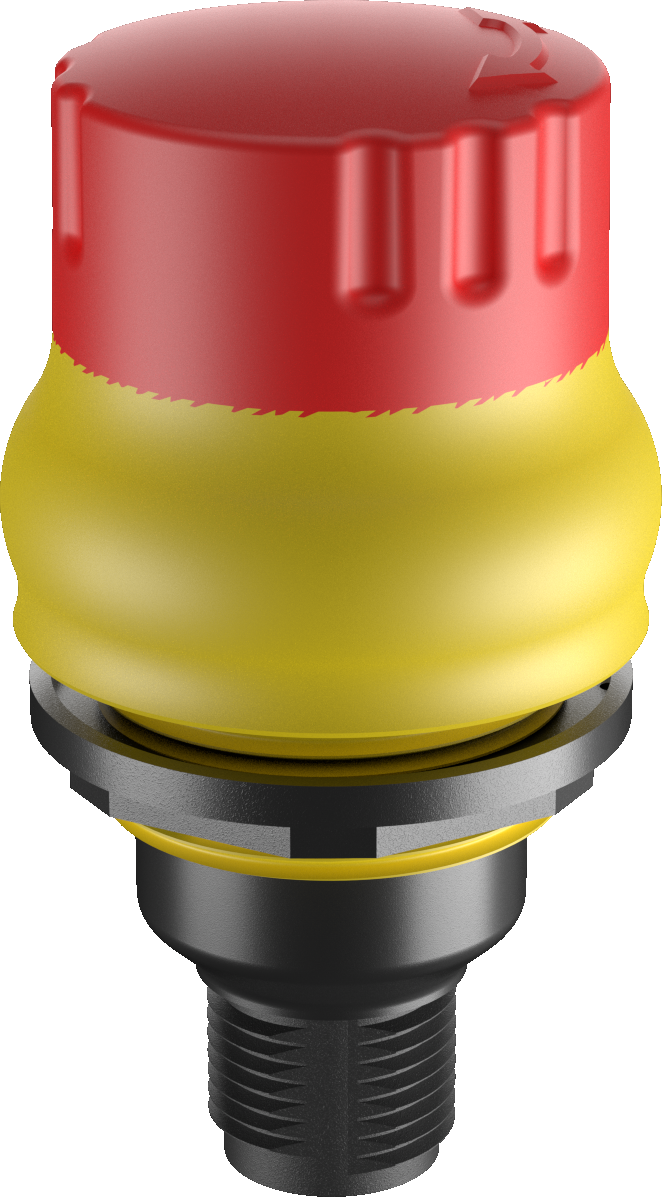

FRVKPOOI_C112 - Emergency stop for hygienic areas with integrated 5-pin M12 connection
Small, compact emergency stop with two NC contacts and one NO contact. Suitable for hygienic areas. The integrated 5-pin M12 connection enables fast and error-free commissioning. The high degree of protection on the rear means there is no need for a protective housing.
Degree of protection back
IP65 with connected M12
IP67 with connected M12
IP67 with connected M12
Series
SHORTRON® connect

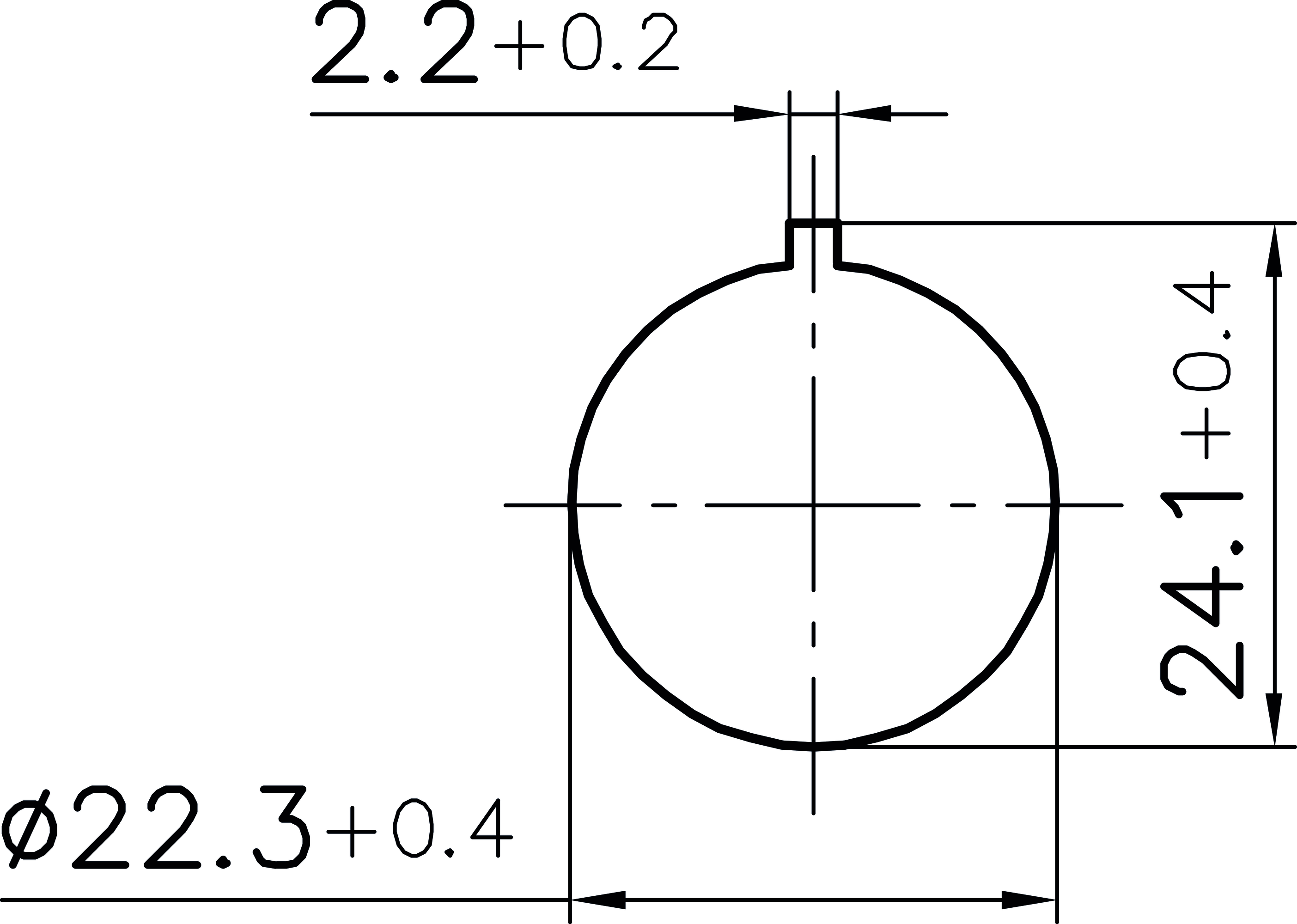

Mounting aperture
Ø 22.3 mm

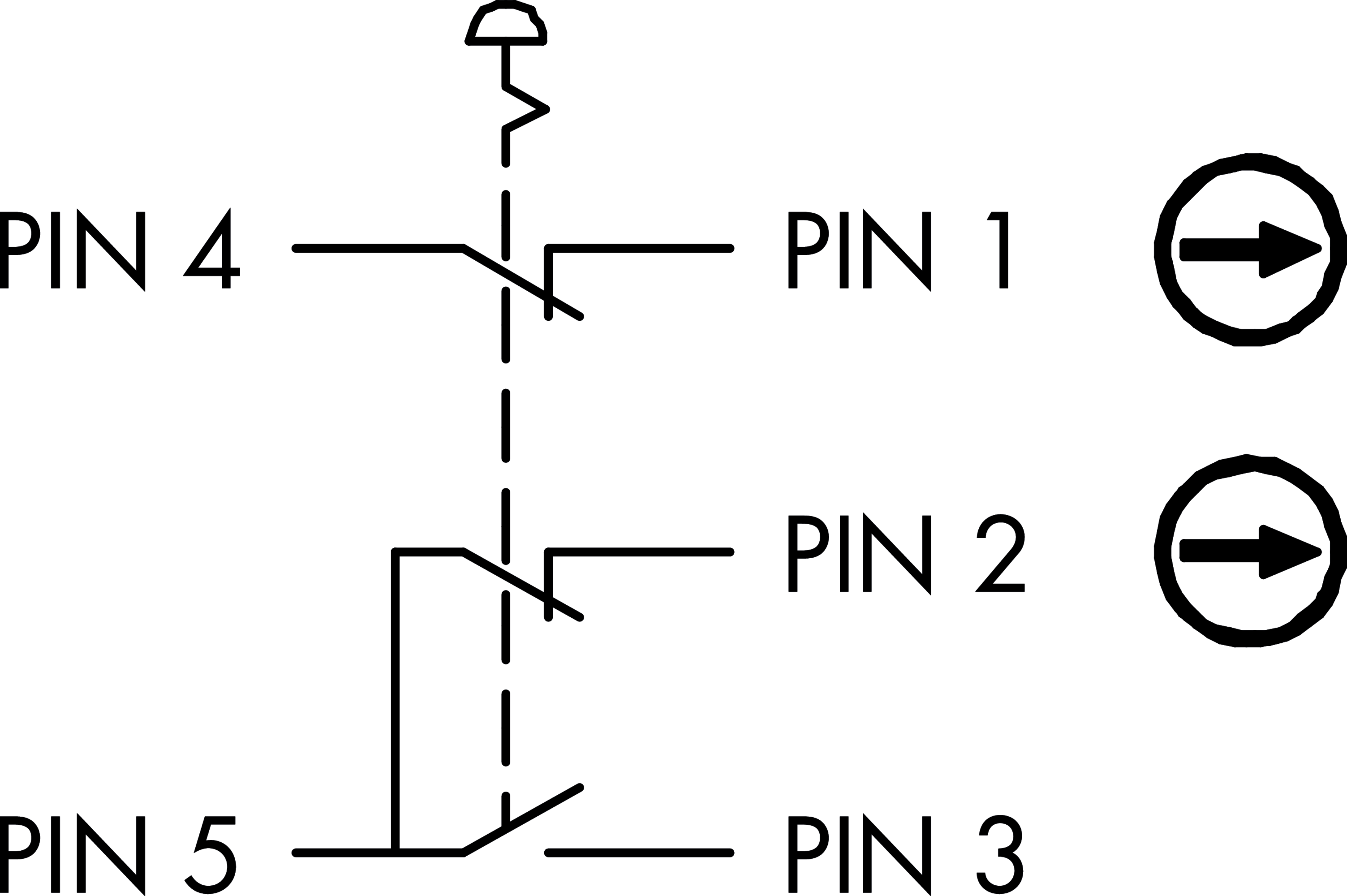

Contact type
2NC + 1NO
Colour actuator
red
Colour housing/enclosure
Yellow
Shape
round
Degree of protection front
IP69K
IP67
IP66
IP67
IP66
Operating temperature
-25°C ... 70°C
Rated operating voltage
35 V AC
35 V DC
35 V DC
Rated operating current
2 A AC
2 A DC
2 A DC
Mechanical life
20,000 switching cycles 20°C
> 6,050 switching cycles 70°C
> 6,050 switching cycles -25°C
> 6,050 switching cycles 70°C
> 6,050 switching cycles -25°C
Electrical life
50,000 switching cycles at rated voltage
Approvals
TÜV_Süd , cURus , CE, UKCA

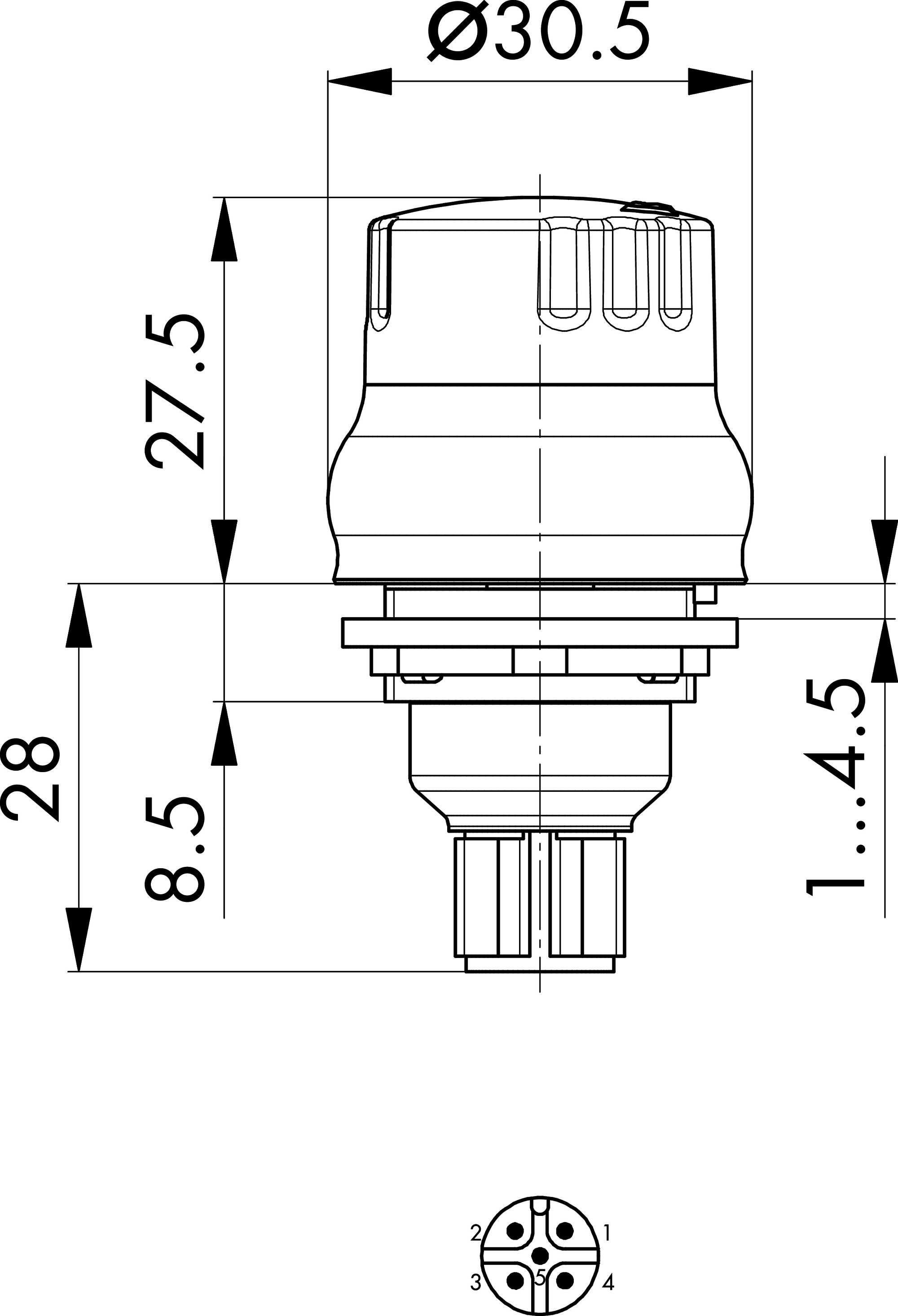

Technical sketches
