QXSSKA14E - Key switch with protective cover, maintained
Key switch with two switching positions and latching switching function. Switch position 1 is at 0° and switch position 2 at 90°. The key can only be removed to switch position 1.
Includes 2 keys. Different keying possible on request.
Series
QUARTRON®
Mounting aperture
Ø 16.2 mm
Switching function
Latching function
Switching position
0° key removable
90° maintained
90° maintained
Illumination
No
Front bezel colour
black
Shape
Square
Degree of protection front
IP65
Protection class
II (protective insulation)

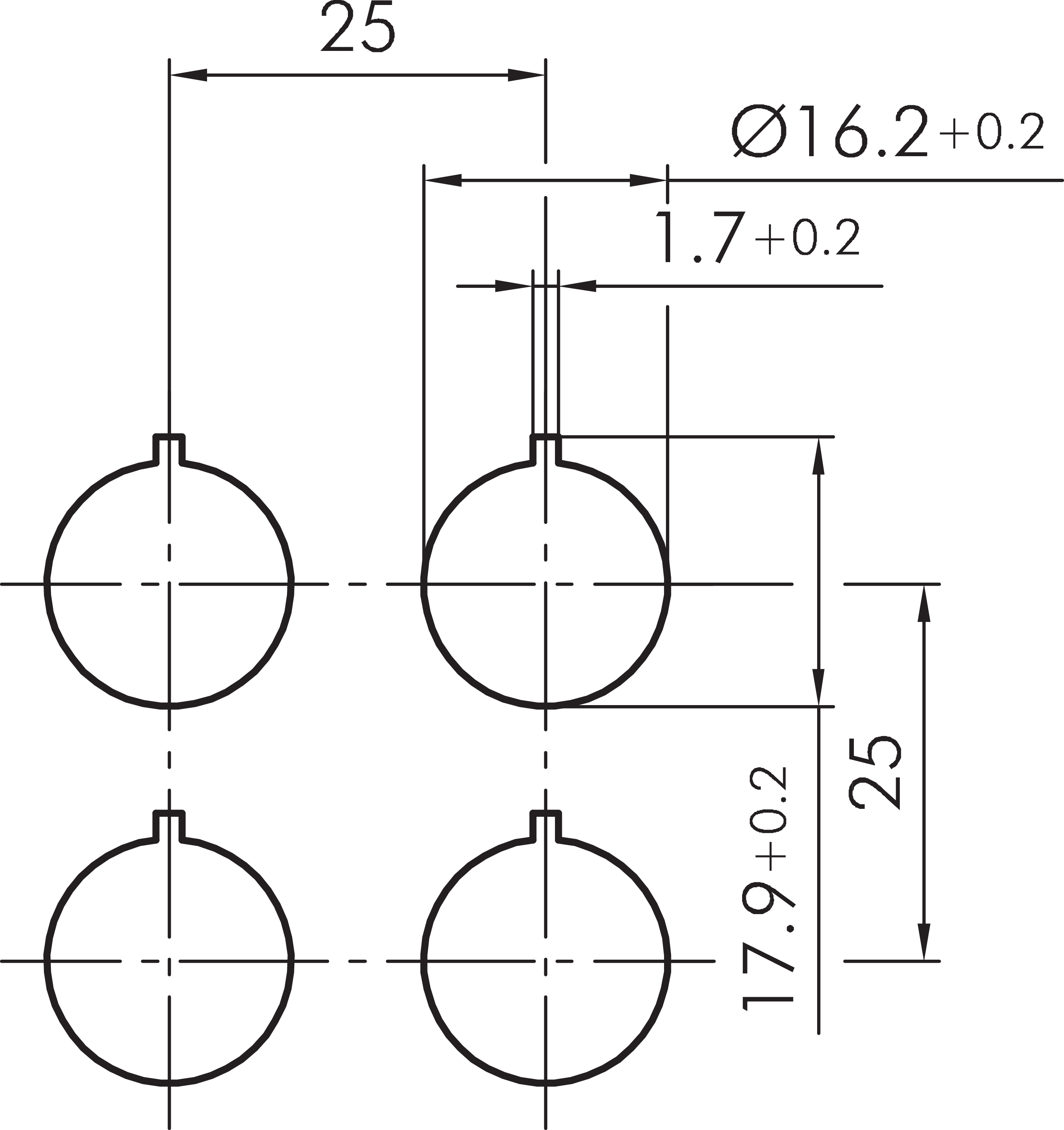

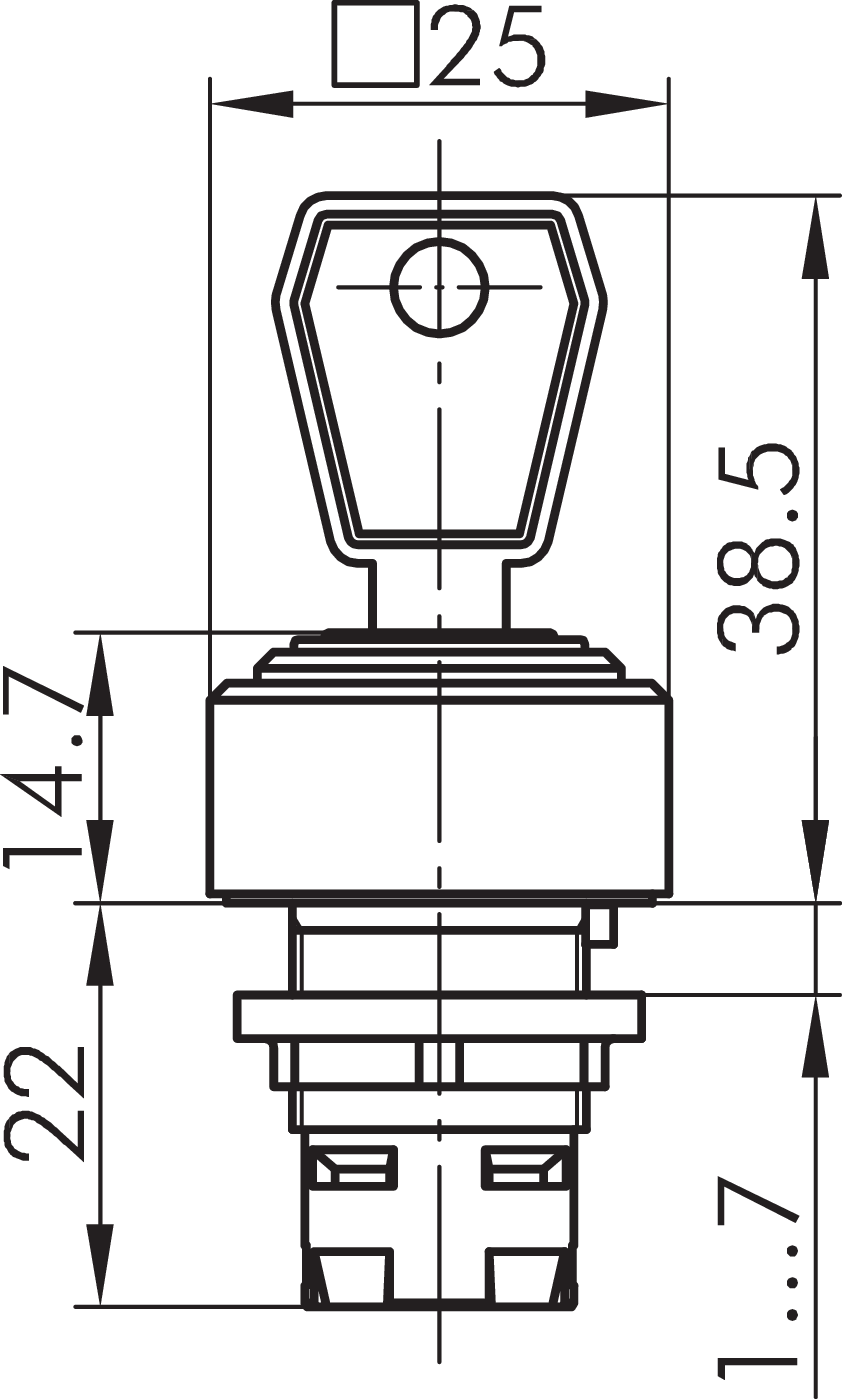

Technical sketches
