One button. Endless possibilities.

Flexitast displays exactly what is needed at any given moment – icon, colour, text. Dynamic, robust, IP65-rated.

Flexitast, the revolutionary pushbutton with integrated display is offering versatile and dynamic display options. Being equipped with a 72 x 72 pixel ZBD display, specially developed for SCHLEGEL, and an RGBW backlight, Flexitast enables the flexible display of texts and symbols. Thanks to the special display technology, the screen content stays visible even without power connection. The elegant design and the fact that the display is protected by break resistant glass make the Flexitast an efficient and robust solution for a wide range of applications.

PDF

All in one button

No labelling, no need to stock different variants. A single Flexitast replaces dozens of items – saving both time and money on procurement and maintenance.

Built for industrial use, right down to the last detail

IP65, shatterproof glass, tactile feedback even when wearing gloves, over 1 million operating cycles – designed for the rigours of everyday production use.

Dynamic & context-sensitive

Icons, colours and text change depending on the machine’s status – active error messages are indicated by a red flashing light, and tasks can be switched at the touch of a button.

Ready to go straight away

Configuration via browser using USB – no software installation, no special tools required. Ready to use straight out of the box.

simple, intuitive configuration

All types of Flexitast buttons can be configured via web browser. To do this, the individual button or the gateway of the Flexitast system is connected to a web-enabled device via USB cable and uploaded into the frontend. Once the connection to the Flexitast or gateway is established, the individual button or the system can be configured.

The following options are available:

Assigning a symbol for the state activated/deactivated

Assigning the background colour pressed/not pressed

Assigning blinking yes/no for pressed/not pressed

All Schlegel standard symbols are available

You can also upload and activate your own symbols

You can test the configuration here

Flexitast Konfigurator

See Flexitast in action – right at your premises.

Our sales representative will visit you, demonstrate the features of the actual device and answer any technical questions on the spot.

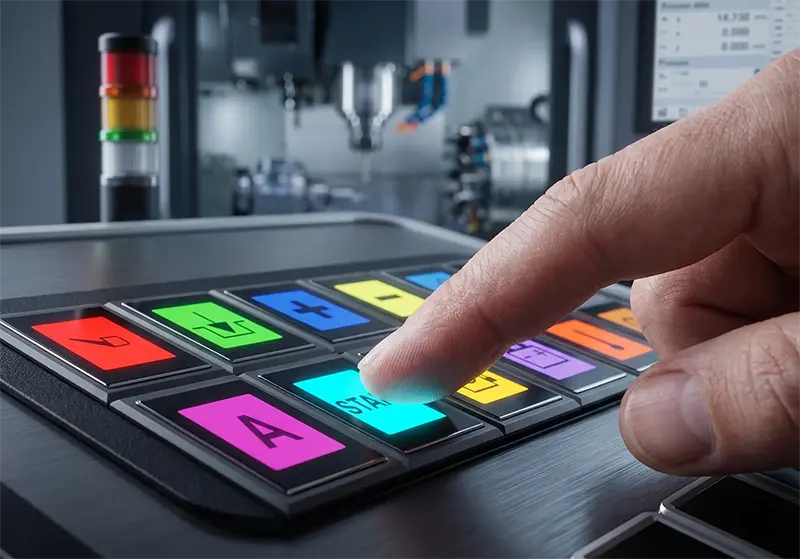

CNC & Manufacturing Equipment

Multiple functions assigned to a single key per processing step. Flexible production lines with no changeover required. Multilingual panels via configuration.

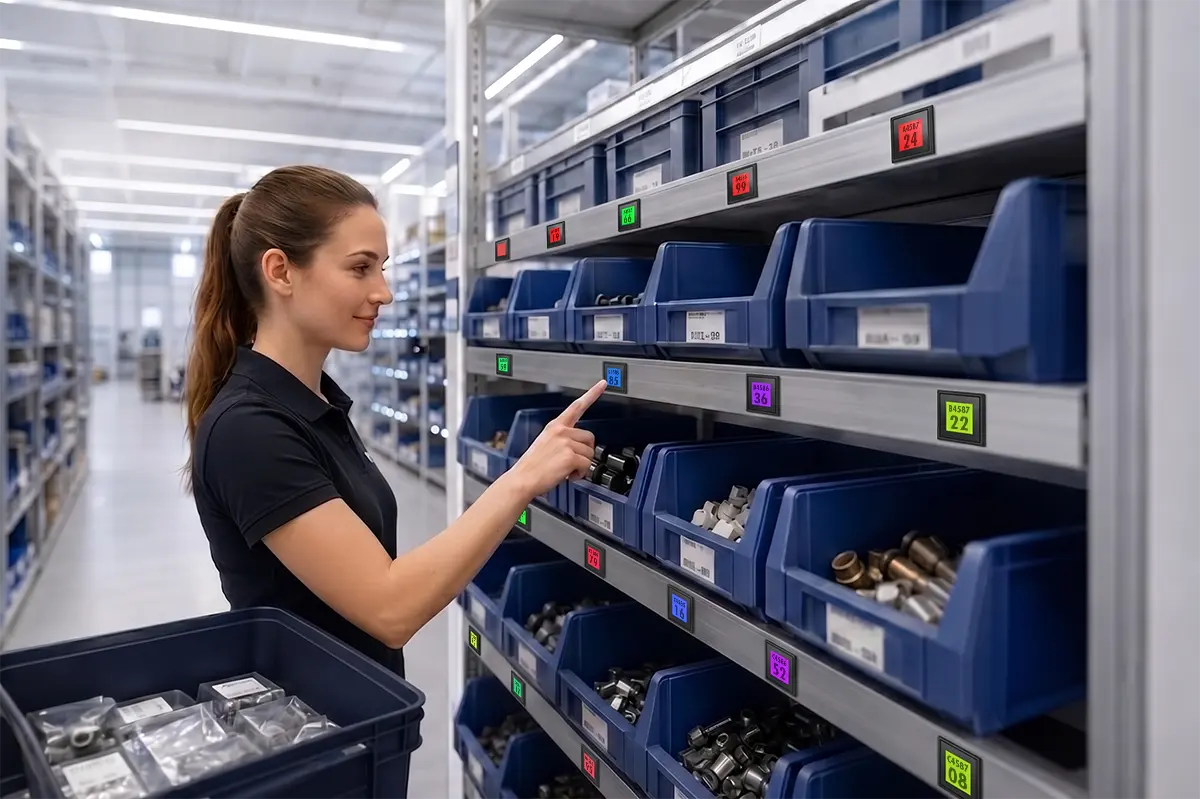

Logistics & Warehousing

Pick-by-light with quantity display; colour changes when stock falls below the minimum level; red when the bin is empty. Confirmation and replenishment initiation directly via the button.

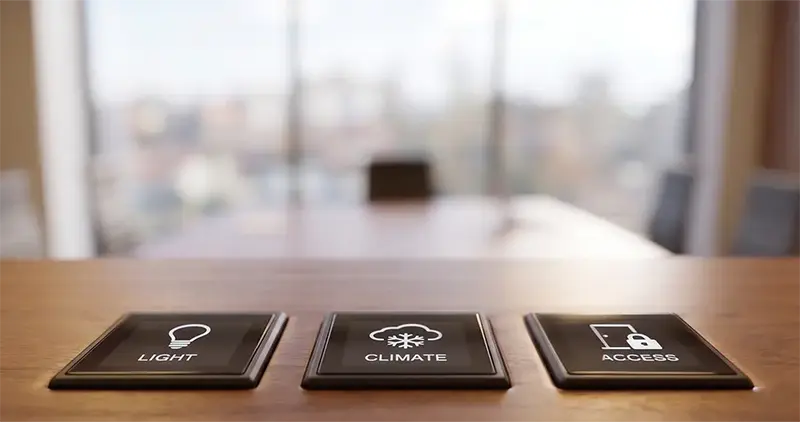

Building automation & control rooms

Visualise room functions, system statuses and alarms. A single button for lighting, climate control and access – with different functions depending on the context.

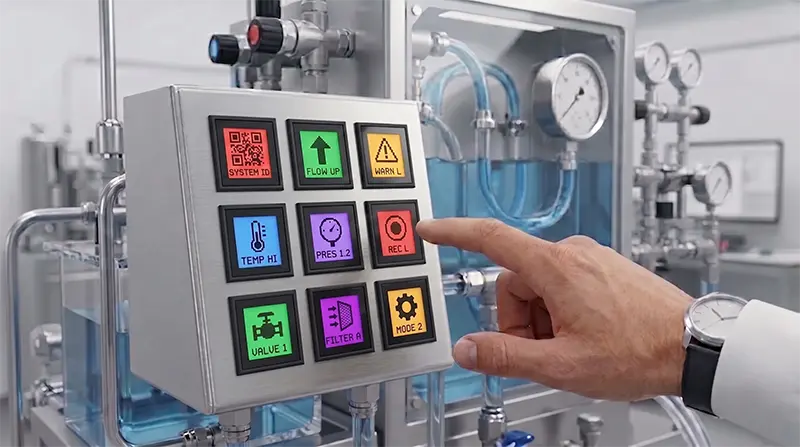

Processing industry

Display liquid levels and valve positions directly on the button. Error detection using symbols and colours. Optional: QR code with a link to help.

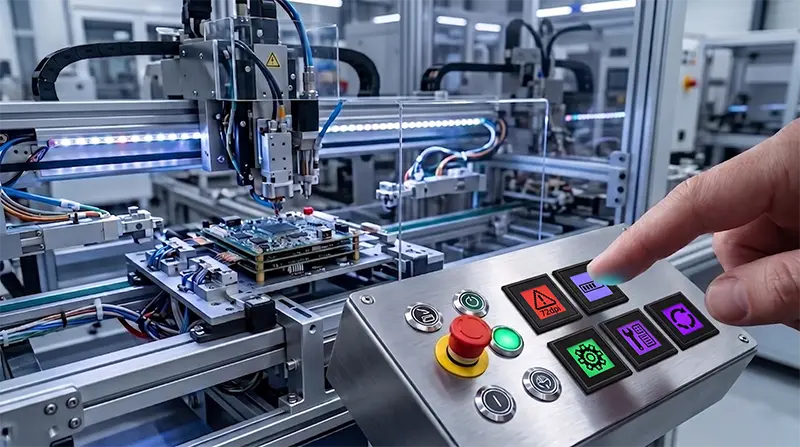

Retrofitting & Modernisation

Display sensor warnings directly on existing control panels – without the need for a complete reinstallation. Ideal for plant modernisation.

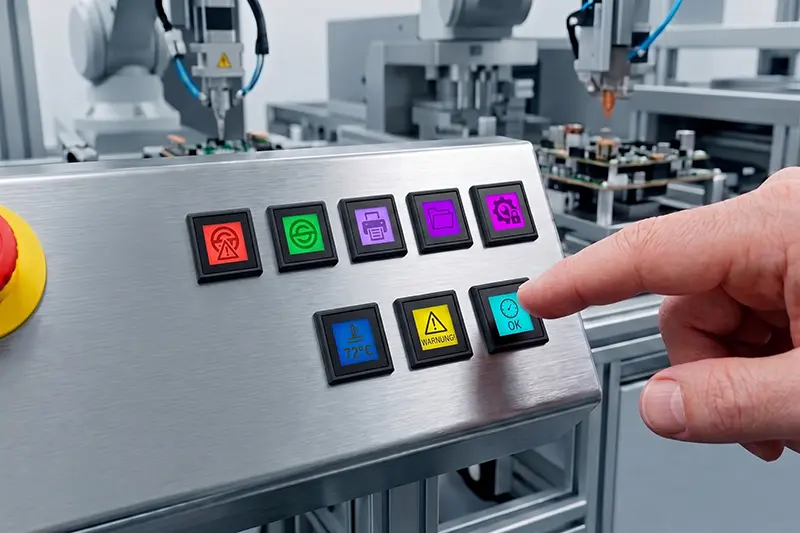

Mechanical engineering

The choice of functions significantly reduces the number of buttons: a main flexi-button selects the mode, whilst the remaining buttons automatically adapt to the available functions.

IP65

Protection rating

1 million

switch cycles

32

Keys in combination

Made in Germany

Quality

The advantages of Flexitast at a glance:

Special 72 x 72 pixel ZBD display

Display size 26.5 x 26.5 mm

Robust construction, display protected by break resistant glass

Flexible display of texts/symbols

RGBW backlight

Display content stays visible even without power connection

Excellent illumination and display of texts and symbols

No burn-in of display content

Integrated temperature sensor (display protection)

Comfortable haptic and tactile response

Elegant design

Sustainable and environmentally friendly (no plastic nameplates necessary)

Saves time and costs in procurement and storage (only 1 product necessary)

More than 1 million switching cycles, degree of protection IP65, operating temperature -10 °C to 50 °C

Get started straight away – everything is ready to use straight out of the box

Flexitast as single button

Flexitast as a system

Flexitast customised

Flexitast as a single button

The Flexitast as single button is controlled by an external system, for example by PLC or IPC. The controller can also record events such as pressing the Flexitast button or exceeding a critical value of a level indicator and adjust the Flexitast button accordingly. The symbol on the button can, for example, be changed or a flashing red background can be displayed as a warning. The configuration is carried out conveniently via the browser on a PC, which is connected to the Flexitast button via USB cable.

Possibilities of configuration (also during operation)

Customising of symbols (up to 7 symbols per button)
Adjusting of illumination (dimming)
Changing of colour (7 colours)
Setting dynamic image changes

Flexitast as a system

In a system, the control is done via a bus system in which up to 32 Flexitast buttons can be connected. The Flexitast gateway controls the communication and parameterisation of the individual Flexitast buttons and also acts as an interface to the external system. Events can be recorded via the external system and are transferred to the gateway, for example to change the symbol for a specific Flexitast button or to change the background colour of all connected buttons. The specific applications can be very diverse: be it changing the texts in different languages before delivery to the customer or an active warning in critical situations using red flashing warning symbols. Each Flexitast button is connected to the next via a cable, whereby the maximum distance between two buttons is 5 meters and the total length of the connection can be up to 30 meters.
The configuration is done via the browser on a PC that is connected to the gateway via USB cable.

Possibilities of configuration (also during operation)

Customising of symbols (up to 254 symbols per button)
Adjusting of illumination (dimming)
Changing of colour (full spectrum)
Setting dynamic image changes

Flexitast customised

The customised version of Flexitast offers maximum flexibility in adapting to individual requirement. The configuration and control of the buttons is carried out according to the customer's wishes, whereby additional functions and interfaces can be easily implemented. This allows to optimally integrate the Flexitast buttons into existing systems and processe to display both, texts and symbols. This tailor-made solution enables perfect adaptation to specific applications and requirements.

Would you like to find out more about the Flexitast?

Technical specifications

Features	Value	Note
Display technology	72×72 Pixel ZBD	No burn-in; retains its settings even when the power is off
Screen size	26.5×26.5 mm	Field of view 17×17 mm
backlight	RGBW	Full colour spectrum in the panel, 7 colours per button
Degree of protection	IP65	Dust- and splash-proof
Number of operations	> 1 million	Designed for continuous industrial use
Operating temperature	−5 °C to +50 °C	Built-in temperature sensor (screen protector)
Grid capacity	up to 32 keys	Max. 5 m spacing, 30 m total length
Symbols (group)	up to 255 per button (group), 7 individual buttons	You can upload your own symbols

Frequently Asked Questions

What is the difference between the Flexitast single-button and multi-button versions?

The individual button is controlled directly via the PLC/IPC. Up to 32 buttons can be controlled and configured together via a gateway.

Will the display remain on during a power cut?

Yes – thanks to ZBD (Zero Bistable Display) technology, the display content is retained in full even without a power supply.

Can I use my own icons and logos?

Yes, you can upload and activate your own icons and graphics via the browser-based configurator.

Is Flexitast also suitable for use whilst wearing gloves?

Yes – the large key surface and the distinct tactile feedback are specifically designed for use with gloves.

How do you configure Flexitast?

Via a web browser using a USB cable – no software installation required.

Which sectors is Flexitast suitable for?

CNC manufacturing, logistics/pick-by-light, process industry, building automation, control rooms, mechanical engineering and plant modernisation (retrofit), and many more.
