STII - Pushbutton
Pushbutton with blade terminal connection
Series
SHORTRON®
Mounting aperture
Ø 22.3 mm
Contact type
2NO
Switching function
Momentary function
Front bezel colour
Silver-coloured
Colour actuator
Clear
Shape
round
Degree of protection front
IP67
IP65
IP65
Operating temperature
-25°C ... 70°C
Rated operating voltage
120 V AC
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
Rated operating current
3 A AC
1.5 A AC
2 A DC
1 A DC
0.55 A DC
0.27 A DC
1.5 A AC
2 A DC
1 A DC
0.55 A DC
0.27 A DC
Mechanical life
1,000,000 switching cycles
Electrical life
> 100.000 Schaltspiele DC13
1,000,000 switching cycles at rated voltage
1,000,000 switching cycles at rated voltage
Approvals
DNV, VDE , CCC, cURus , ENEC10 , CE, UKCA

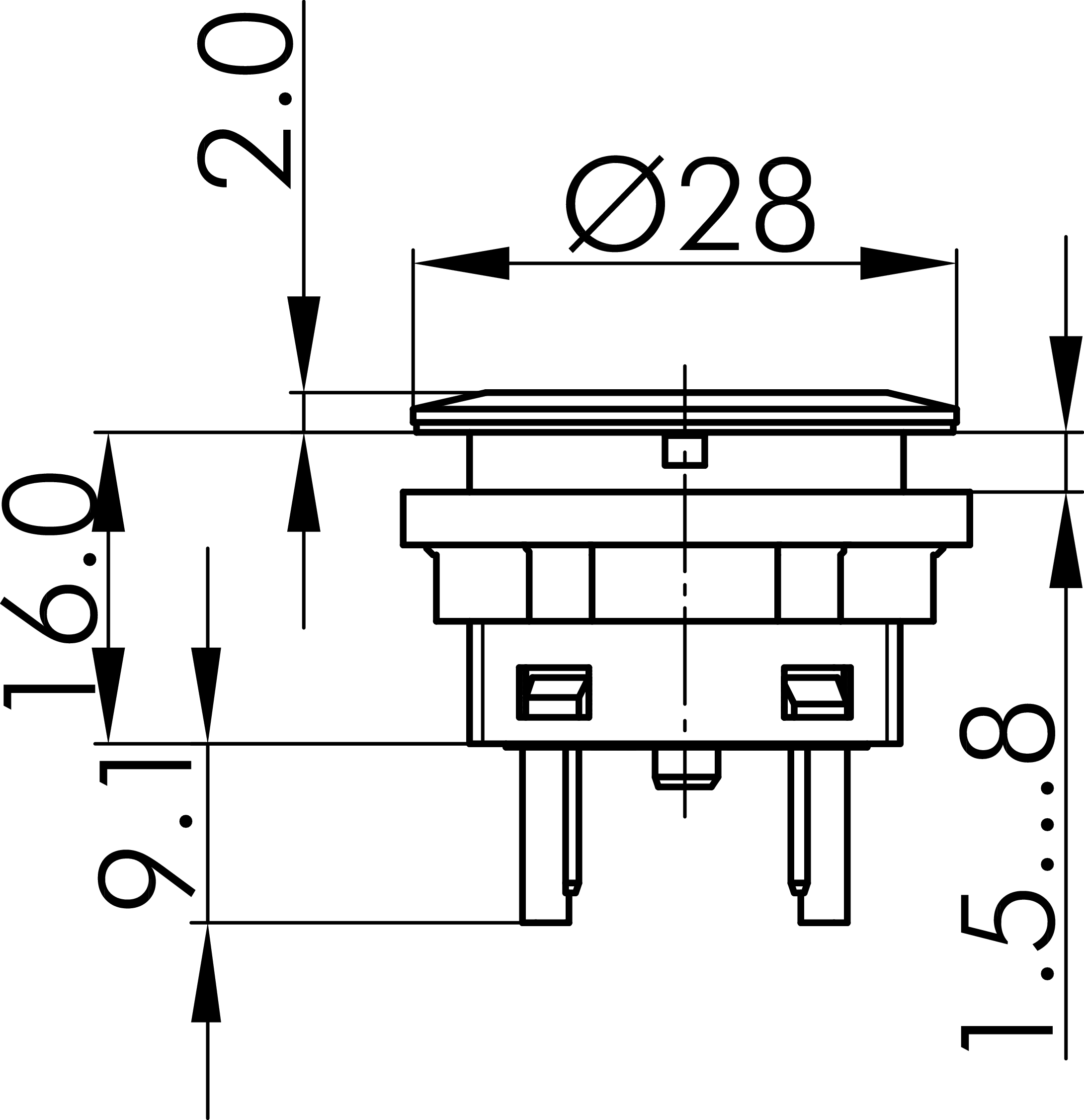

Technical sketches
