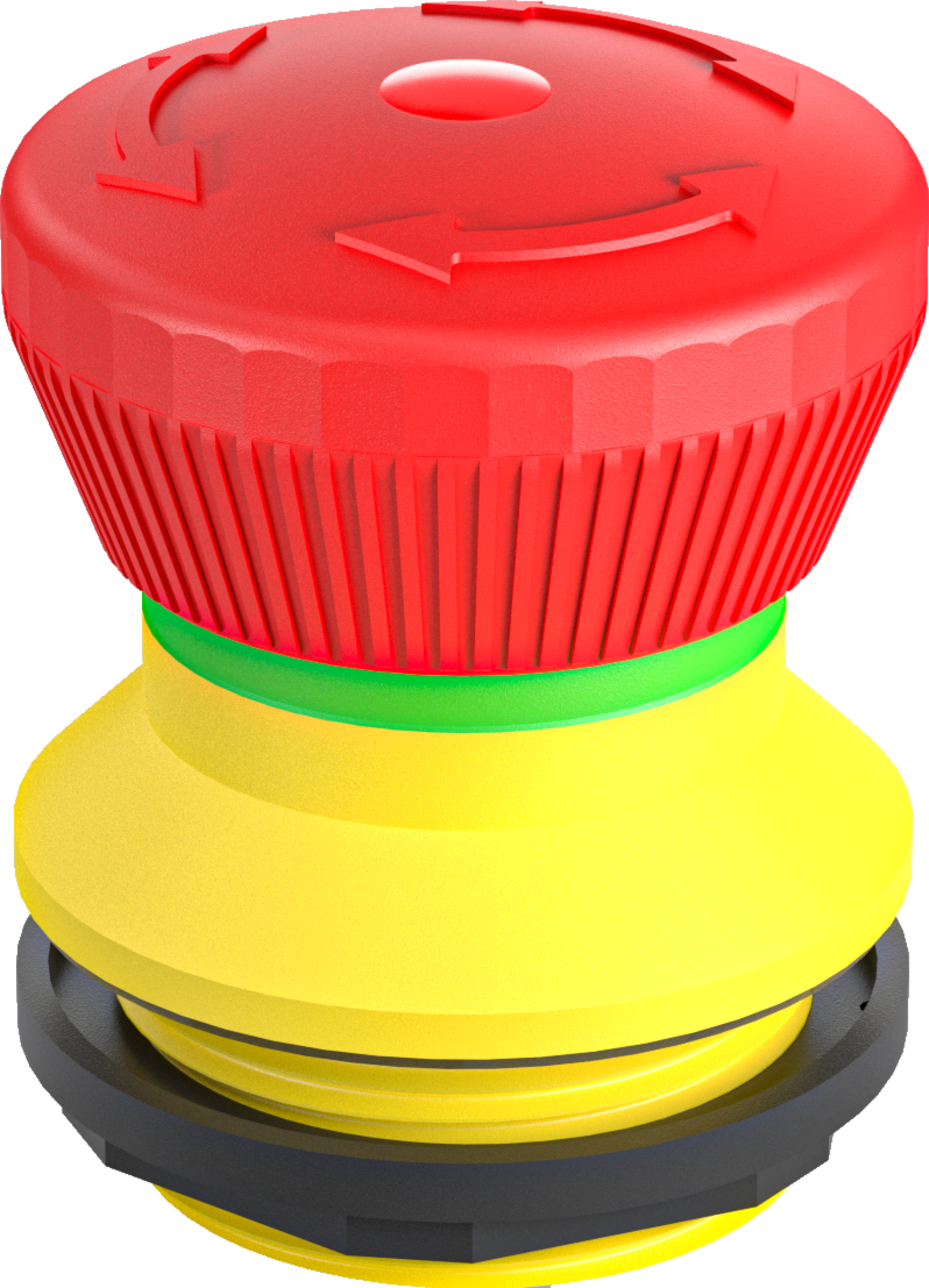

FRVKLOOP - Illuminated emergency-stop
Colour actuator
red
Operating temperature
-25 ... 70°C
Approvals
TÜV_Süd , CCC , cURus , CE , UKCA
Rated insulation voltage IEC/EN 60947-5-1
250 V DC
250 V AC
250 V AC
Degree of protection front
IP67 , IP65
Storage temperature
-40 ... 80°C
Release
Twist to release left/right

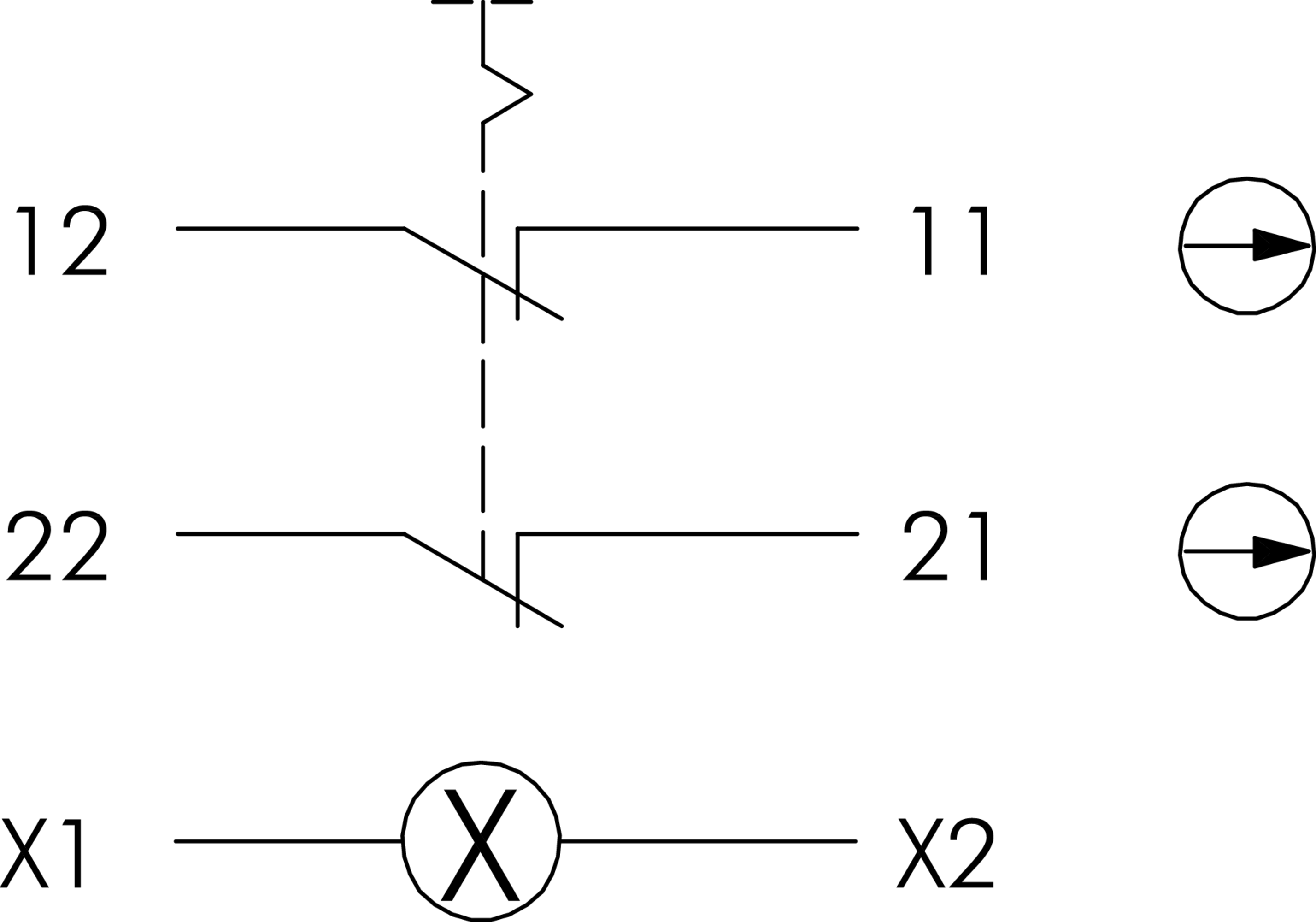

Contact type
2NC
Illumination
yes
Anti-lock collar
no
Series
SHORTRON®
Shape
round
Electrical life
50,000 switching cycles
Mechanical life
50,000 switching cycles

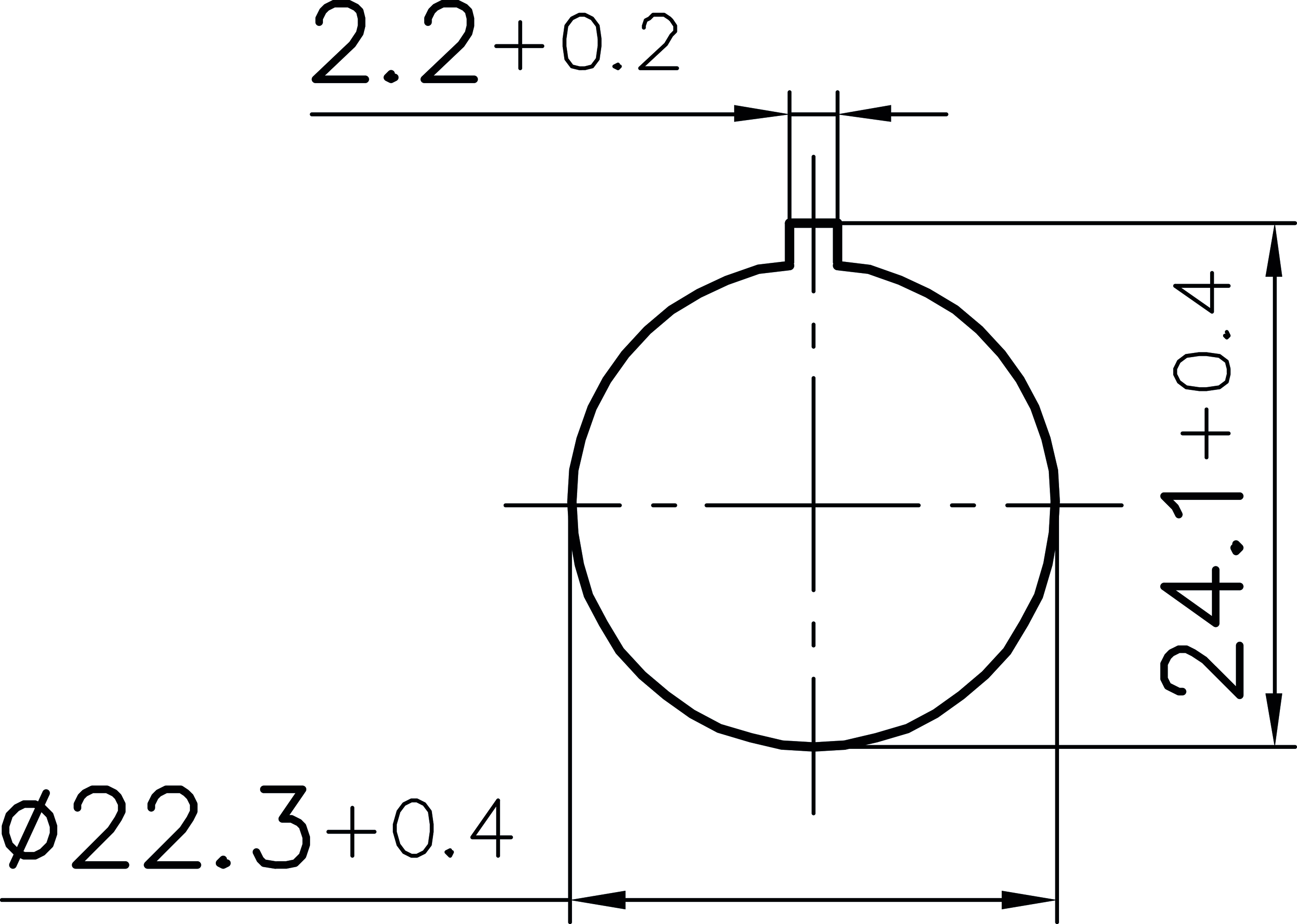

Mounting aperture
Ø 22.3 mm
Front bezel colour
yellow
Rated operating voltage
250 V DC
24 V DC
125 V DC
240 V AC
60 V DC
120 V AC
24 V DC
125 V DC
240 V AC
60 V DC
120 V AC
Rated operating current
0.55 A DC
0.27 A DC
1.5 A AC
3 A AC
2 A DC
1 A DC
0.27 A DC
1.5 A AC
3 A AC
2 A DC
1 A DC

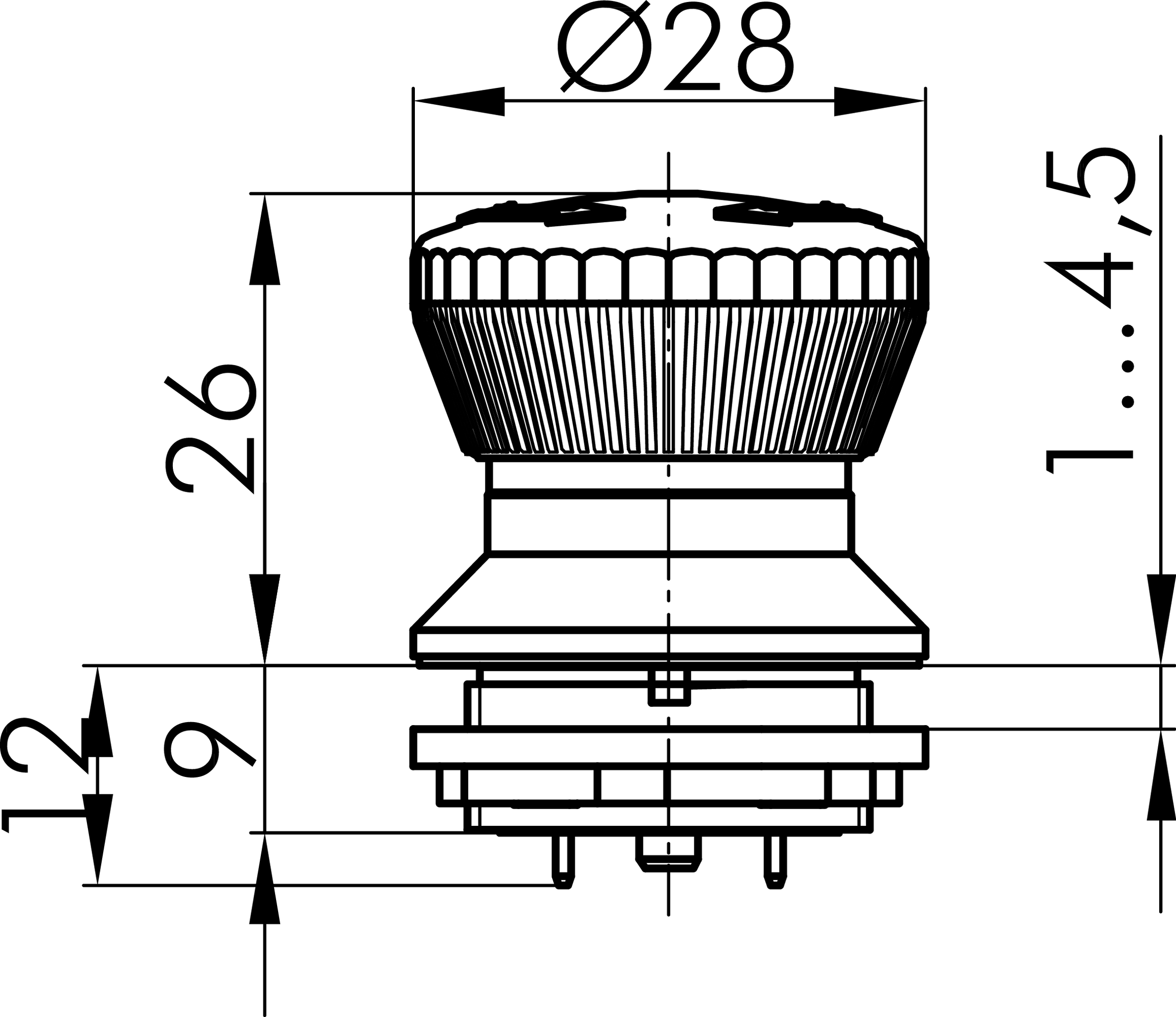

Technical sketches

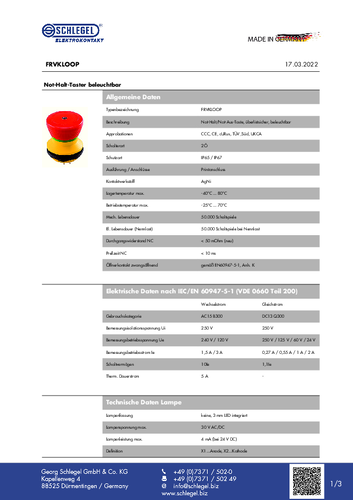

Datasheet_FRVKLOOP
