QRSKUVOO_C0111 - Emergency stop with protective collar
Robust emergency stop with protective collar, 2 NC and 5-pin M12 connection, A-coded
Degree of protection back
IP65 bei angeschlossenem M12-Anschluss
Series
QUARTEX® connect

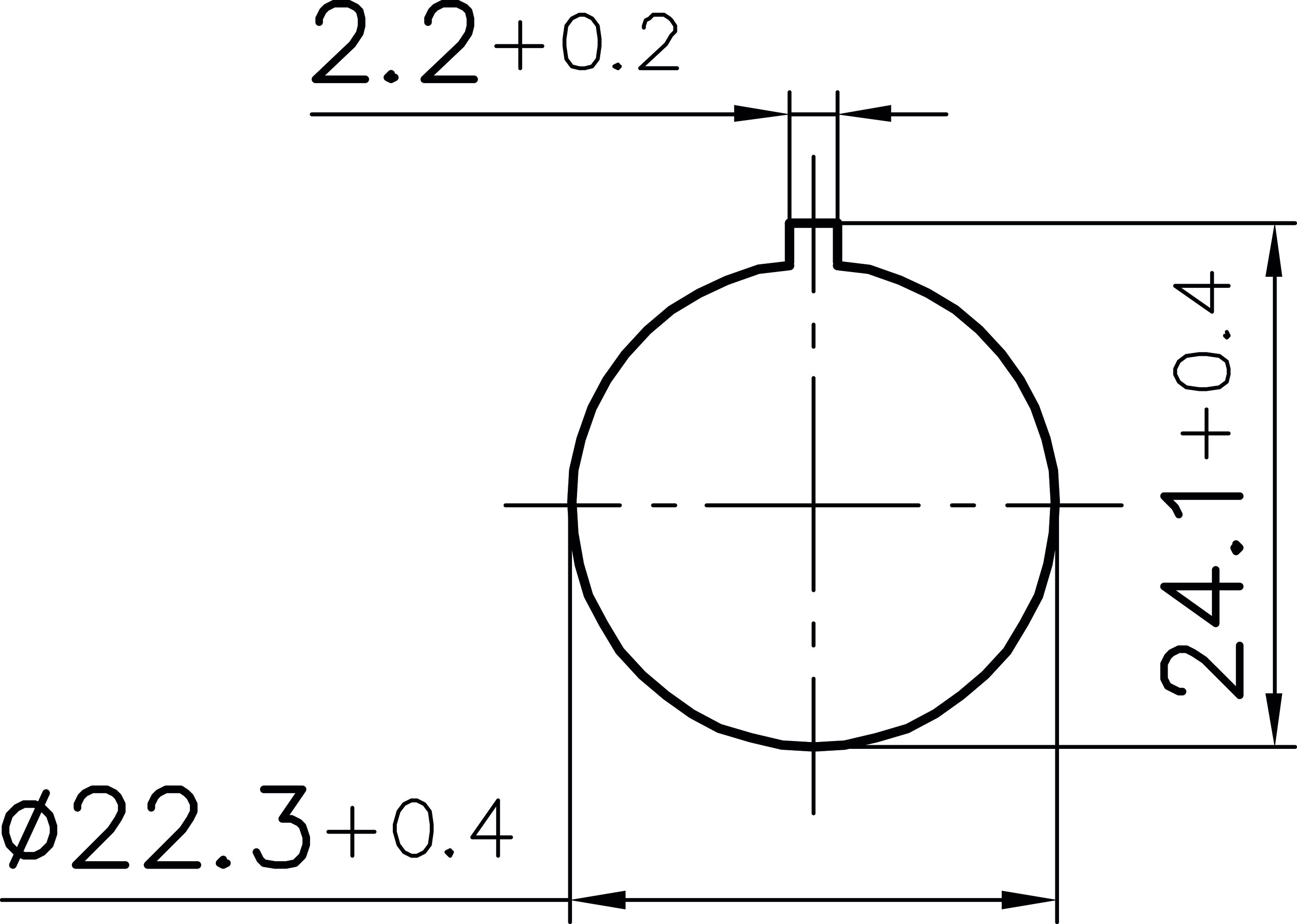

Mounting aperture
Ø 22.3 mm

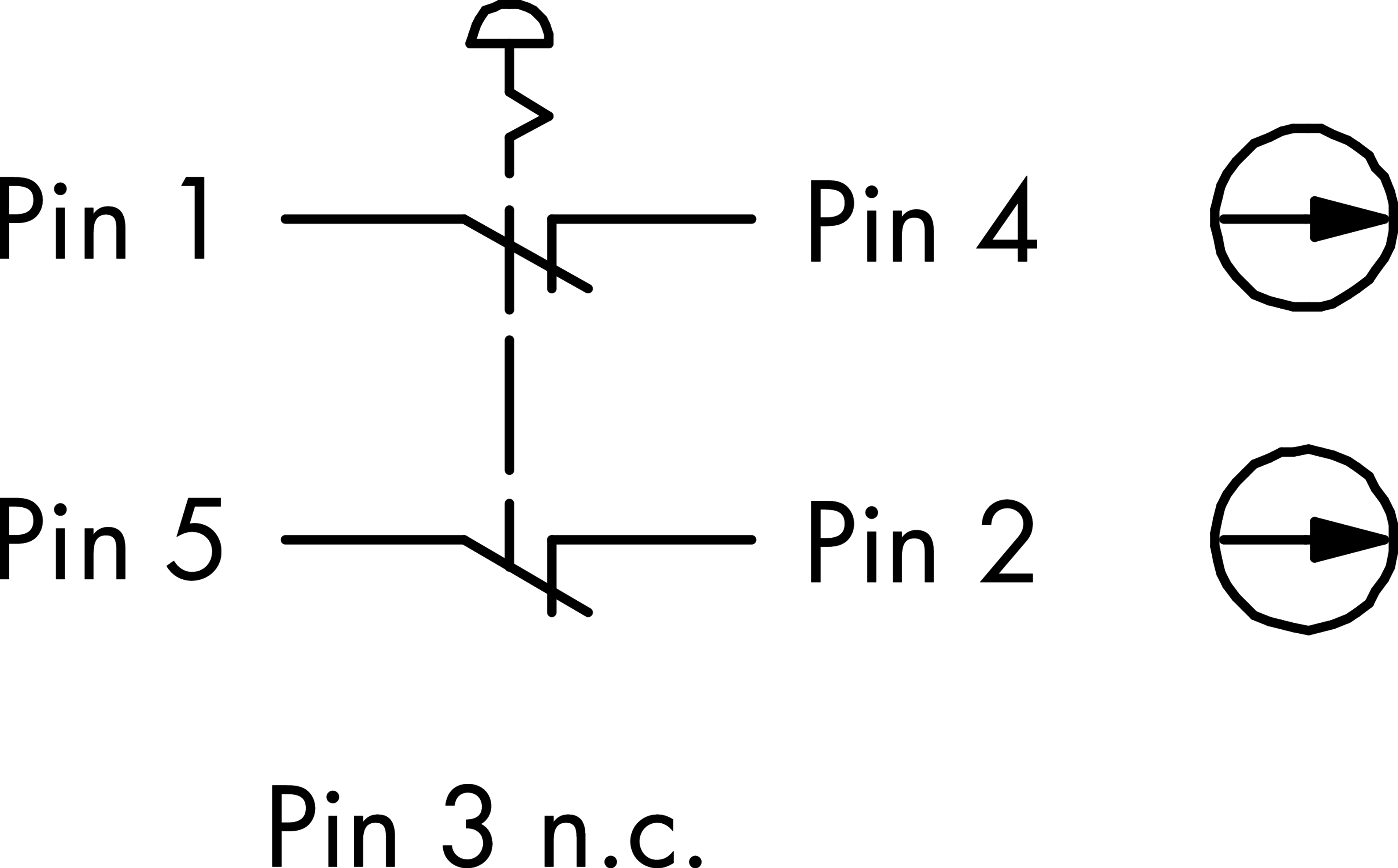

Contact type
2NC
Switching function
Latching function
Connection
M12
Colour actuator
red
Colour housing/enclosure
Yellow
Shape
round
Degree of protection front
IP65
Operating temperature
-30°C ... 70°C
Rated operating voltage
35 V AC
35 V DC
35 V DC
Rated operating current
2 A AC
2 A DC
2 A DC
Mechanical life
50,000 switching cycles
Electrical life
50,000 switching cycles
Approvals
TÜV_Süd , cURus , CE, UKCA

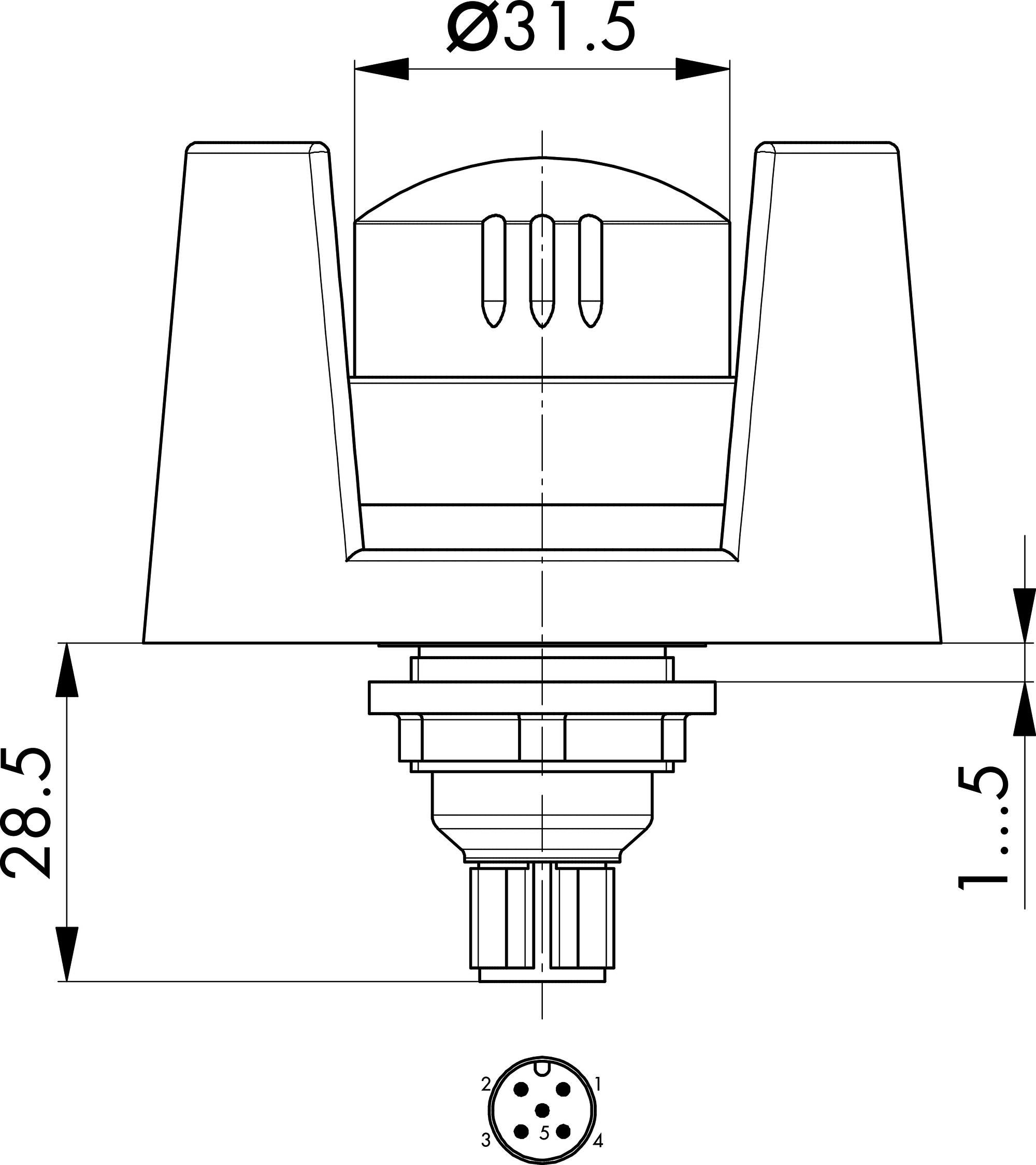

Technical sketches
