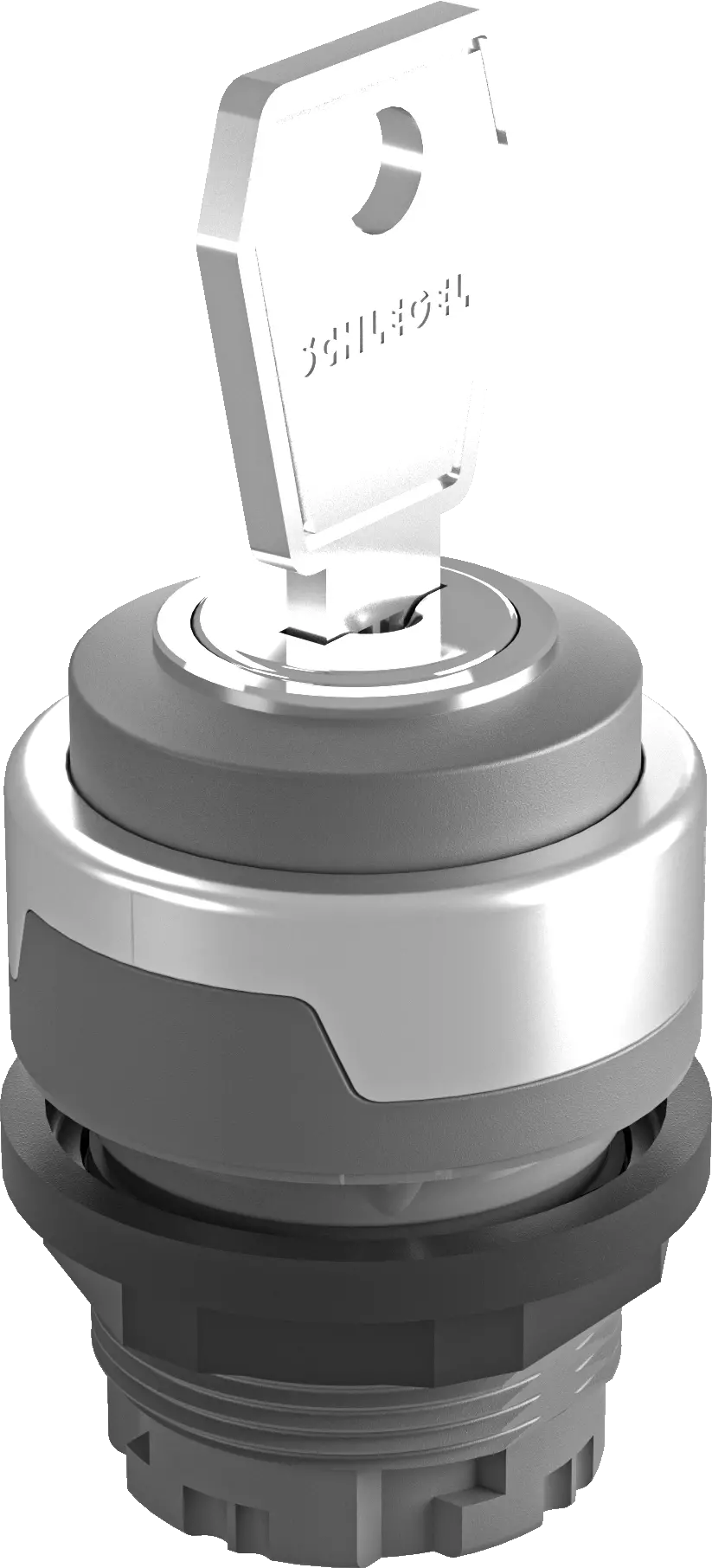

RMCSSA24E - Key actuator, left maintained, right momentary
Key switch with three switching positions. Switch position 1 is at 0°, switch position 2 at -45° latching and switch position 3 at 45° momentary with spring return. The key can be removed to switch position 1.
Includes 2 keys. Different keying possible on request.
Series
RONDEX-M
Mounting aperture
Ø 22.3 mm
Switching function
Momentary and latching function
Switching position
-45° maintained
0° key removable
45° momentary
0° key removable
45° momentary
Front bezel colour
metallic/charcoal
Shape
round
Degree of protection front
IP65
Operating temperature
-30°C ... 70°C
Approvals
CCC, CSA , CE, UKCA

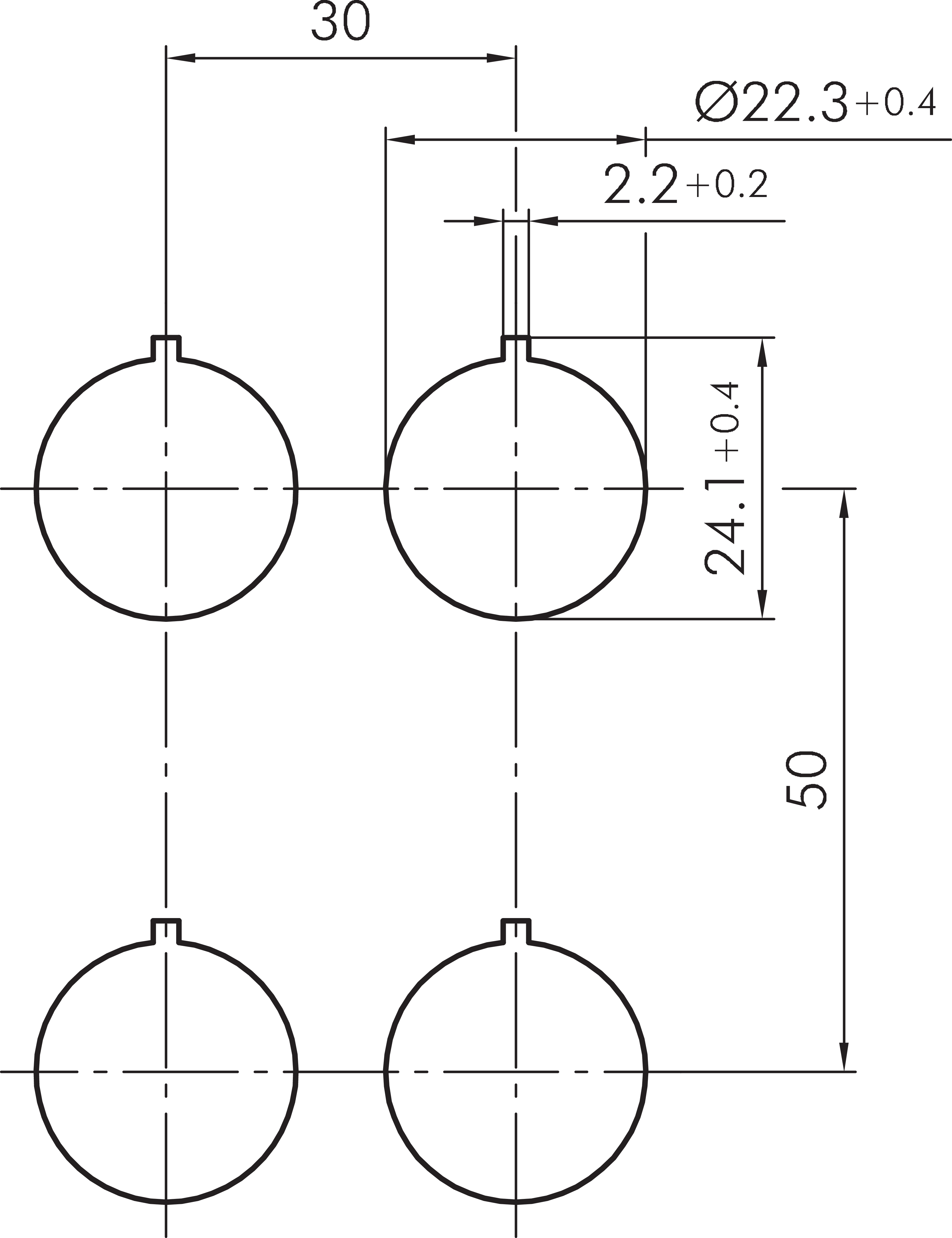

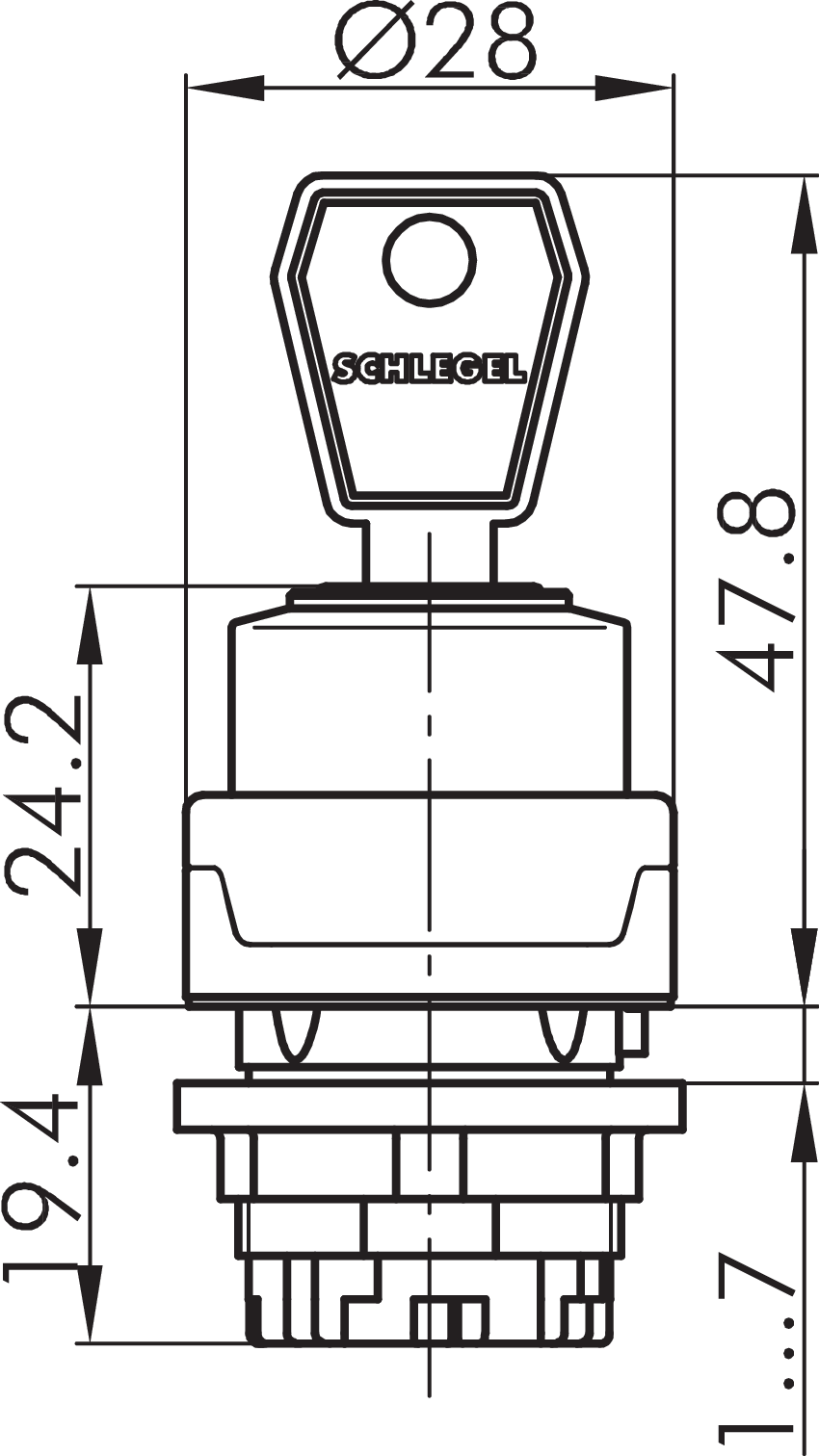

Technical sketches
