SIL_QRSKUVOO - SIL housing with emergency stop and protective collar
SIL housing with emergency stop, protective collar and M20 cable entry
Series
SIL
Contact type
2NC
Switching function
Latching function
Colour actuator
red
Colour housing/enclosure
Bottom part black/cover yellow
Degree of protection front
IP65
Operating temperature
-25°C ... 60°C
Rated operating voltage
240 V AC
440 V AC
24 V DC
60 V DC
125 V DC
250 V DC
440 V DC
440 V AC
24 V DC
60 V DC
125 V DC
250 V DC
440 V DC
Rated operating current
3 A AC
1.6 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
0.12 A DC
1.6 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
0.12 A DC
Mechanical life
50,000 switching cycles 20°C
Electrical life
50,000 switching cycles at rated voltage
Approvals
cURus , CE, UKCA

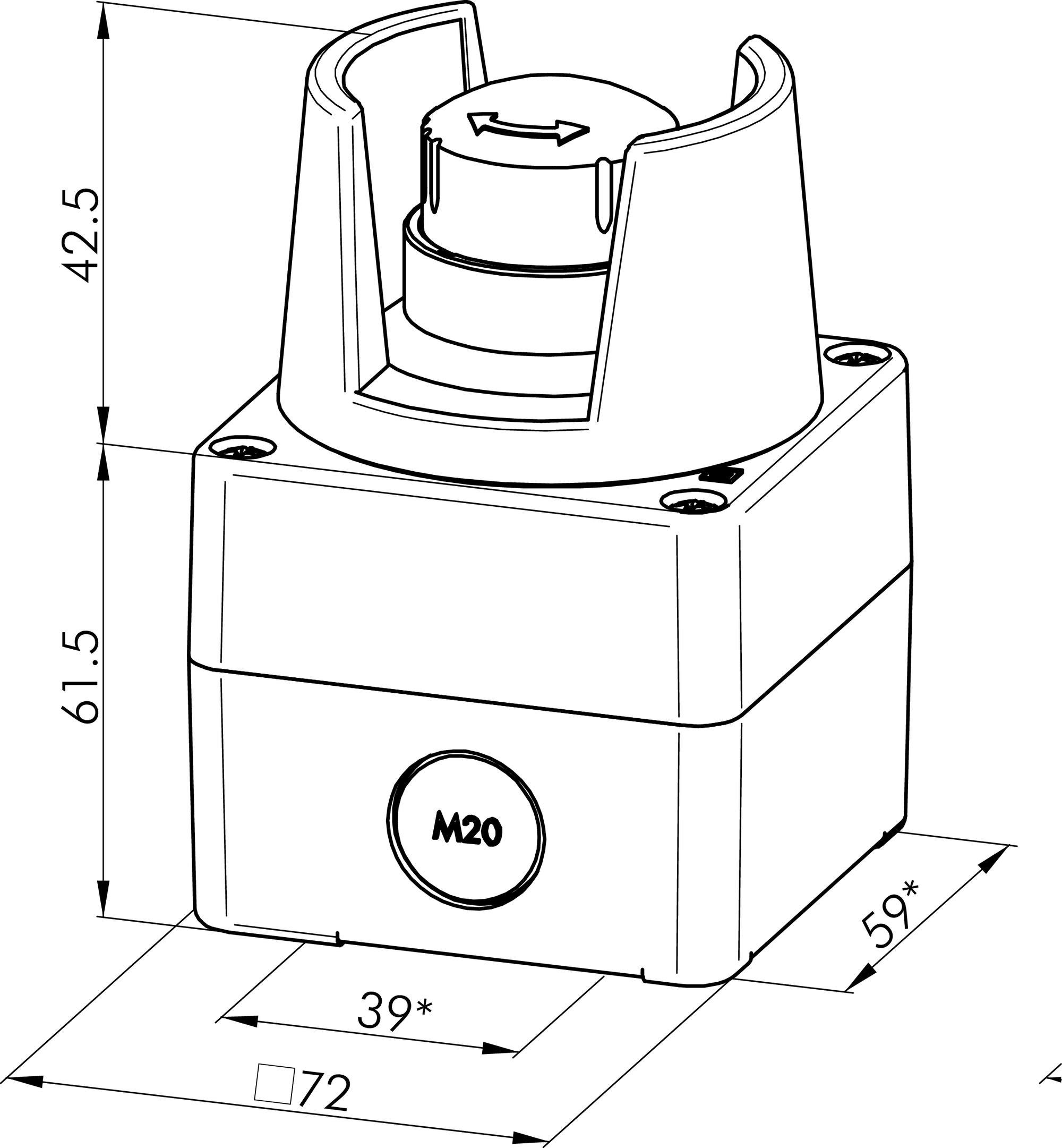

Technical sketches
