TBSUSBA - Component for protecting USB interfaces

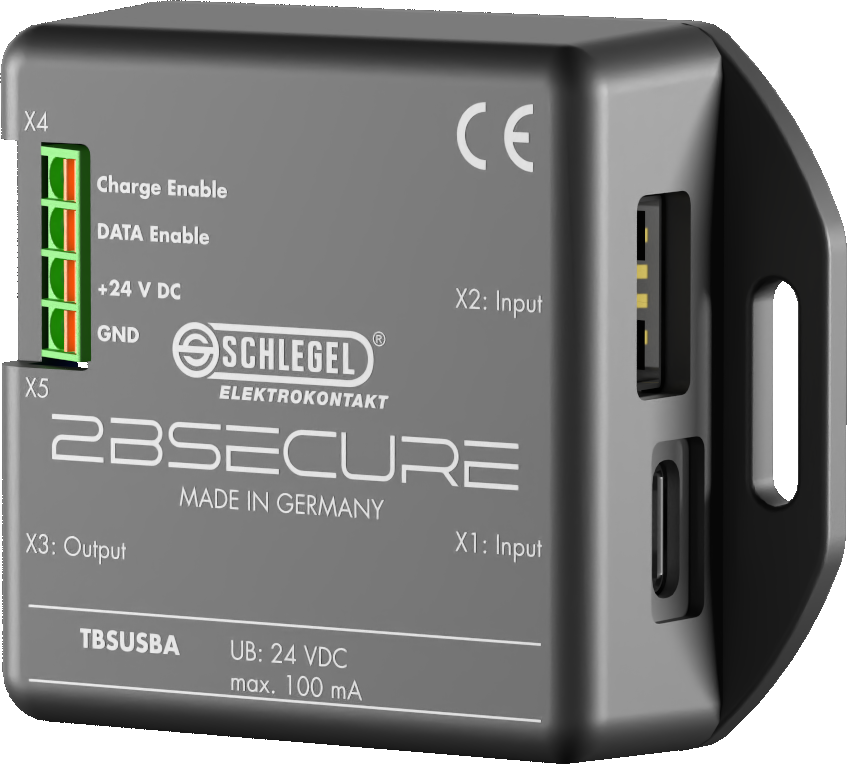

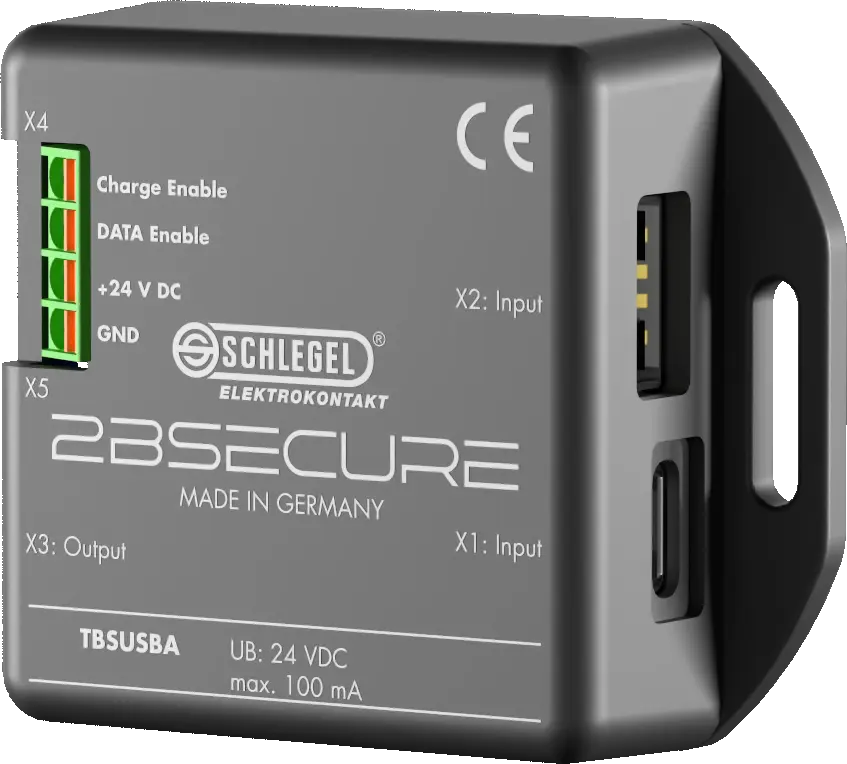

2BSecure is a compact black box that is placed between a controller (e.g. PLC or IPC) and the connected USB interfaces to prevent unauthorized access or cyberattacks. If 2BSecure is set up correctly, the USB interface is deactivated by default so that unauthorized access is not possible. Unlocking is done manually by authorized personnel, either directly via the controller (e.g. by password) or via an intermediate key switch or RFID system. 2BSecure for USB supports two services: Data transfer or charging.
Series
Accessories
Connection
16 AWG ... 24 AWG
Colour
Charcoal
Degree of protection front
IP20
Operating temperature
-25°C ... 60°C
Storage temperature
-25°C ... 80°C
Approvals
CE
Material
ABS
Protection class
III
Inputs
USB-A, USB-C
Outputs
USB-C

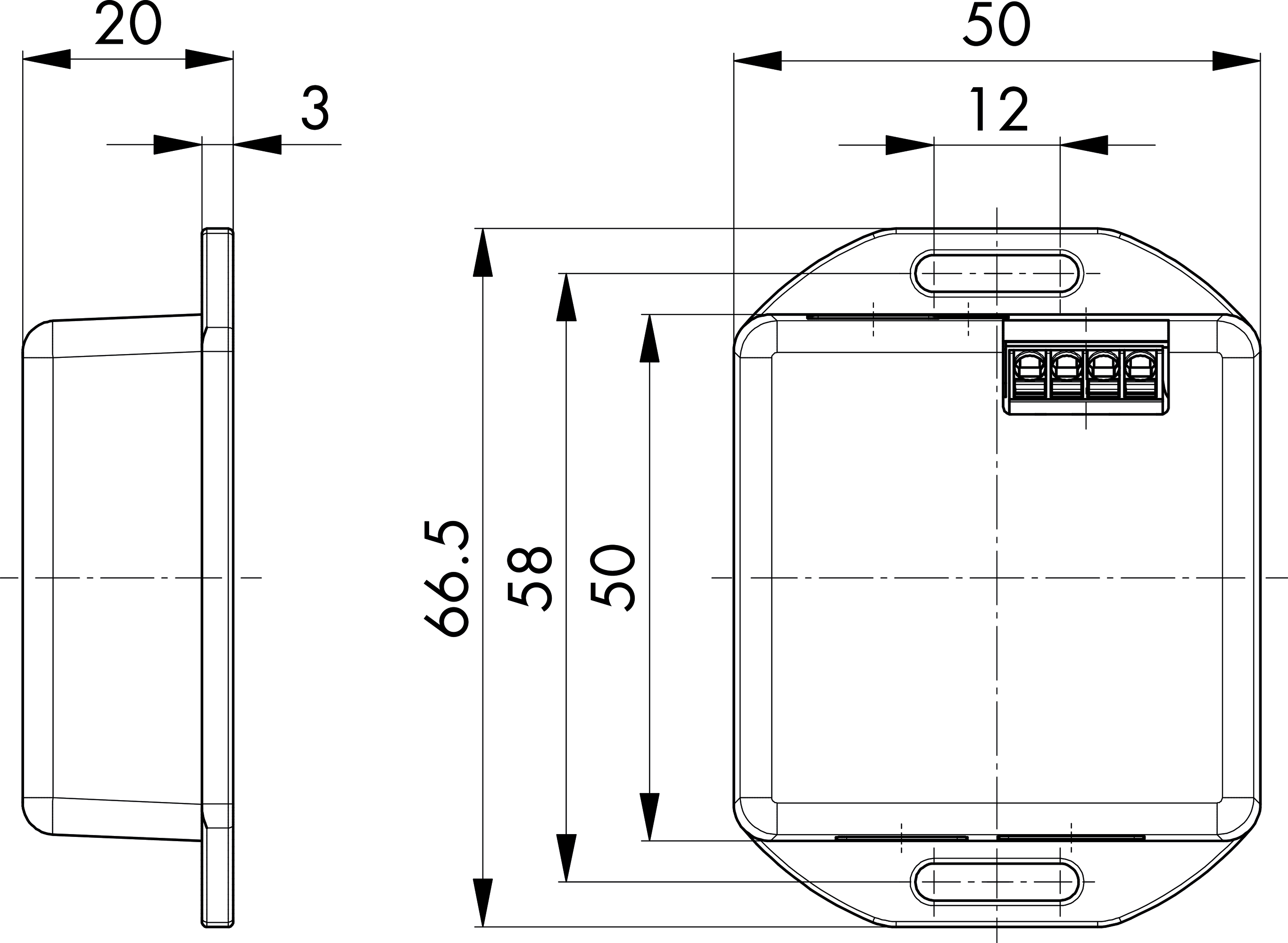

Technical sketches
Downloads

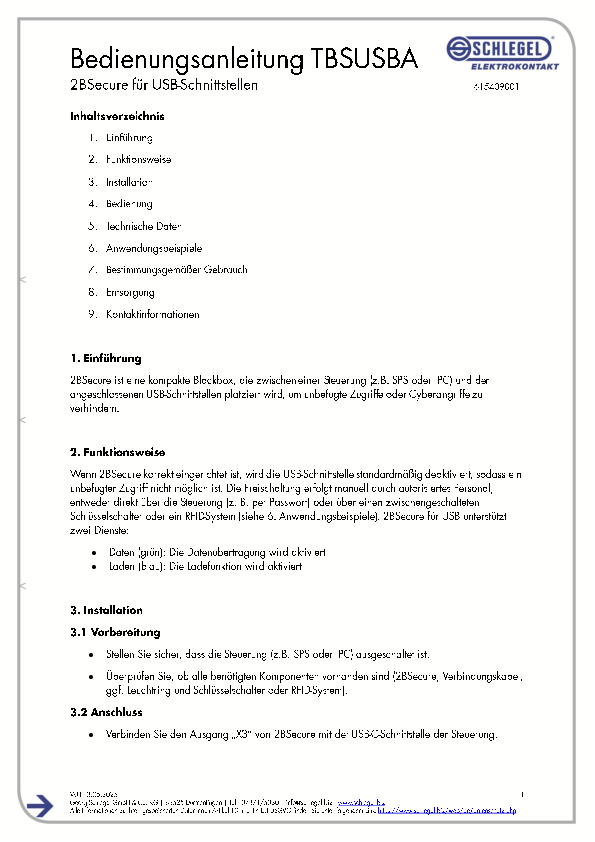

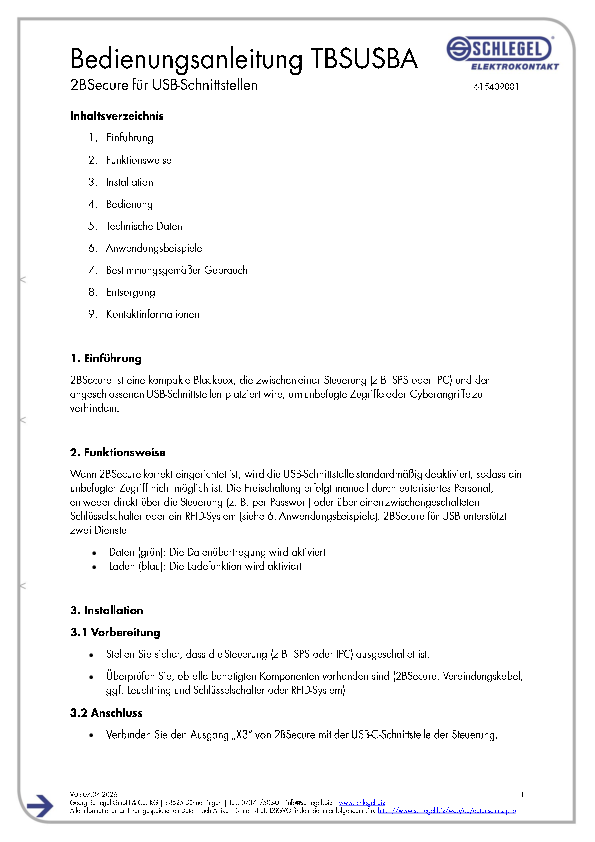

User_manual_TBSUSBA
