YMTW - Pushbutton, transparent lens

Small, tactile pushbutton with transparent actuating element, very short actuation path and clearly perceptible, defined pressure point. Labeling is also possible on request.

Series

MYnitron®

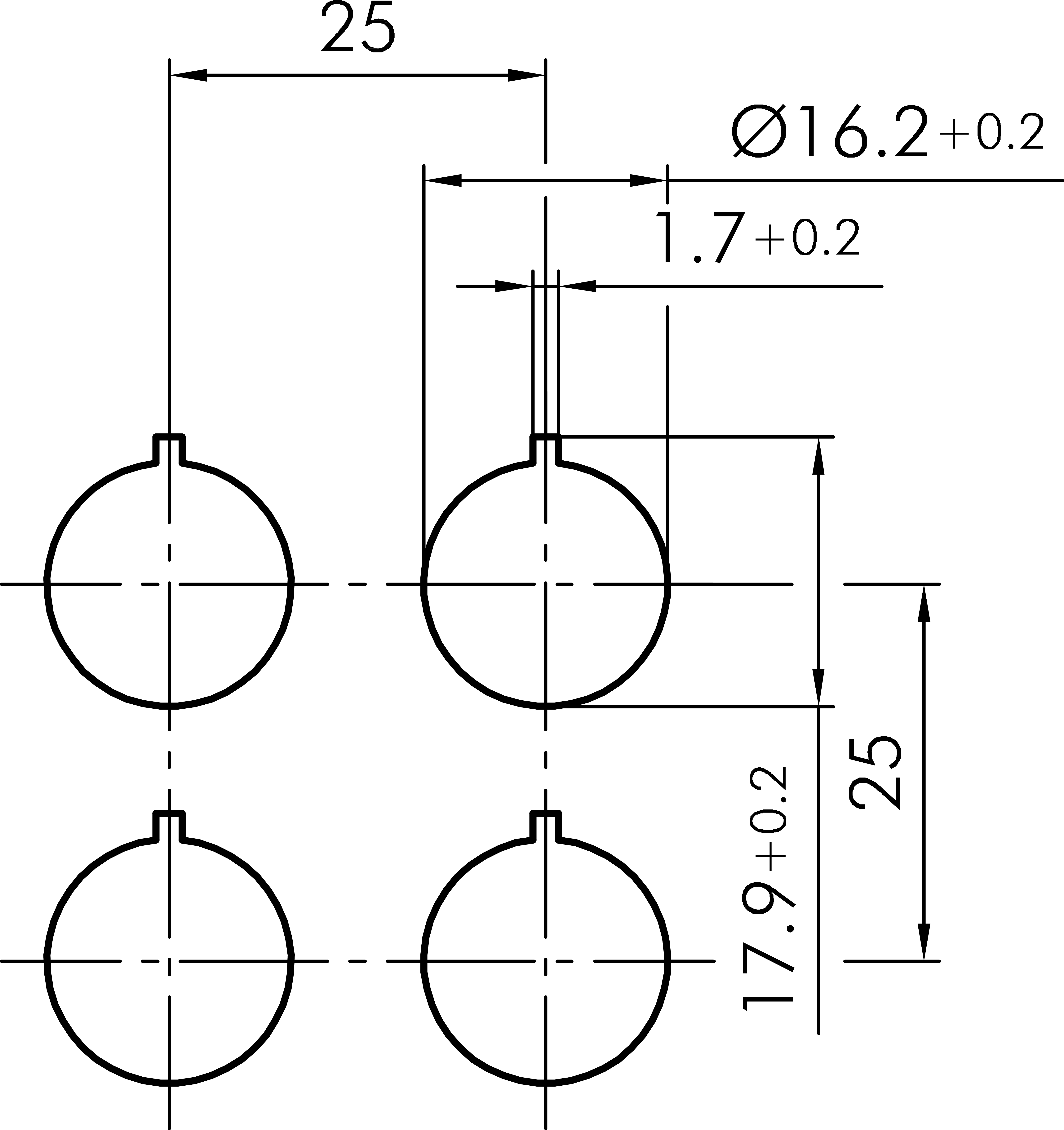

Mounting aperture

Ø 16.2 mm

Contact type

1NO

Switching function

Momentary function

Front bezel colour

Silver-coloured

Colour actuator

white

Shape

round

Degree of protection front

IP67
IP65

Operating temperature

-25°C ... 70°C

Rated operating voltage

35 V AC
35 V DC

Rated operating current

0.1 A AC
0.1 A DC

Mechanical life

500,000 switching cycles

Electrical life

500,000 switching cycles at rated voltage

Approvals

cURus , CE, UKCA

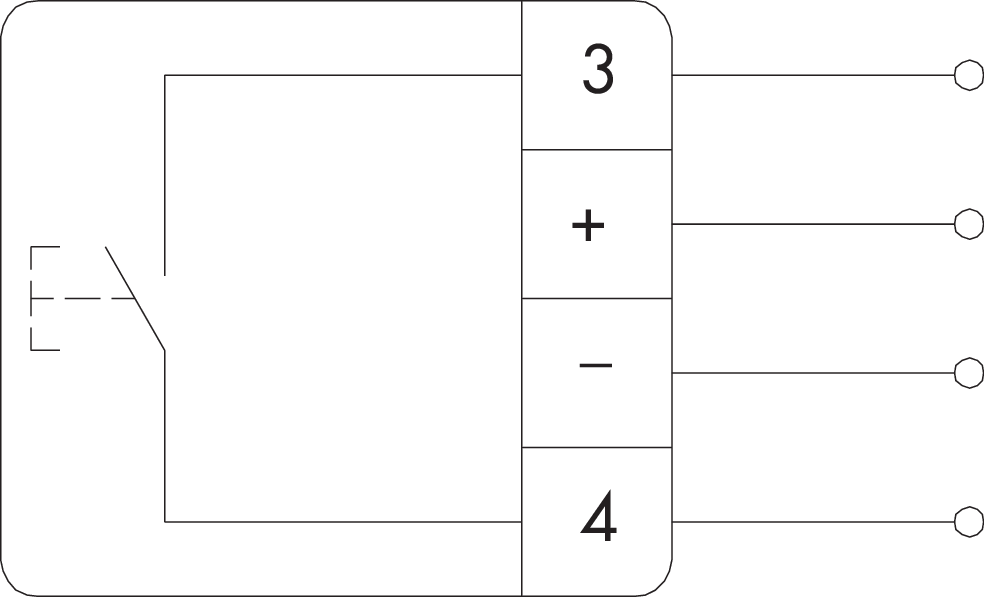

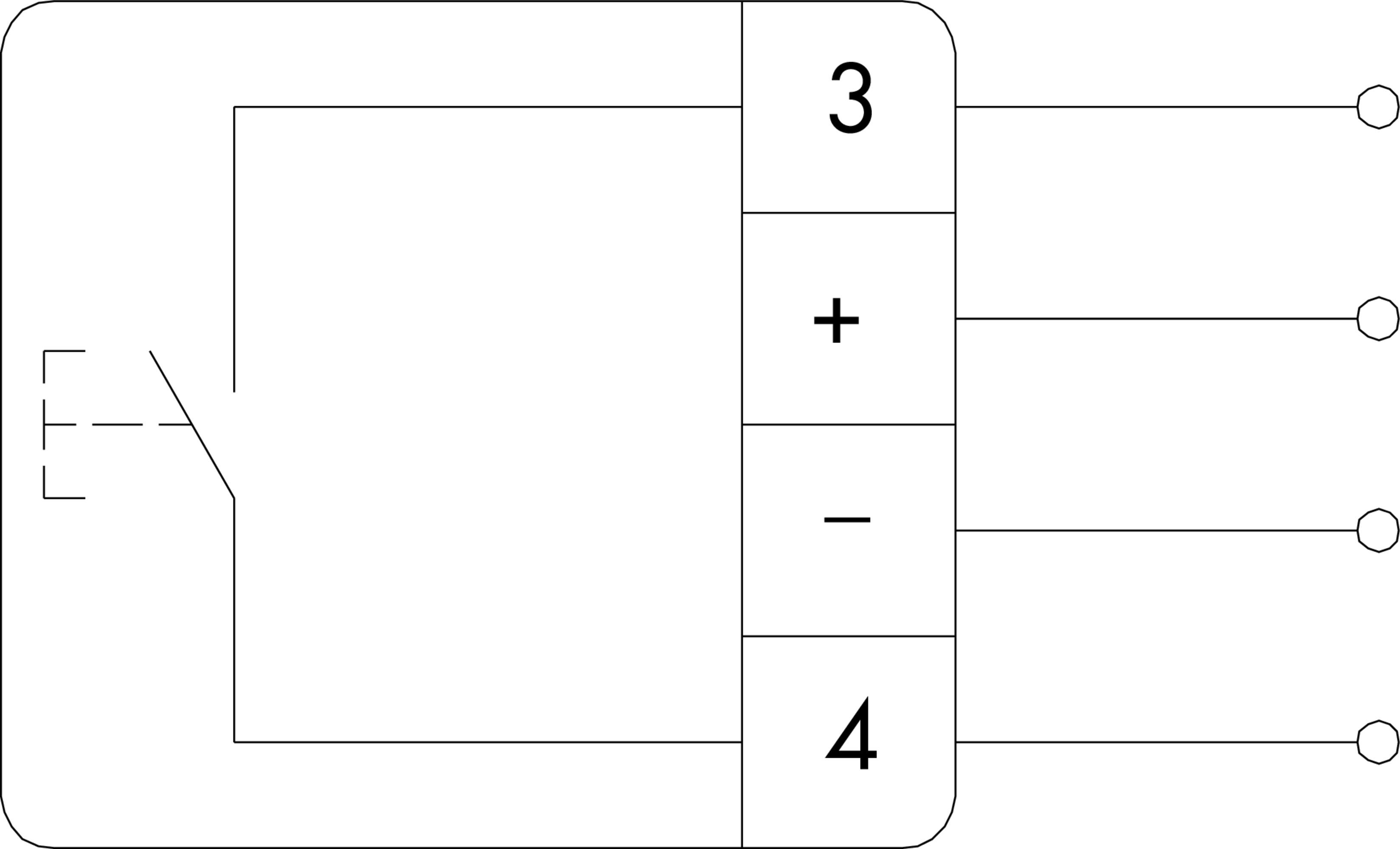

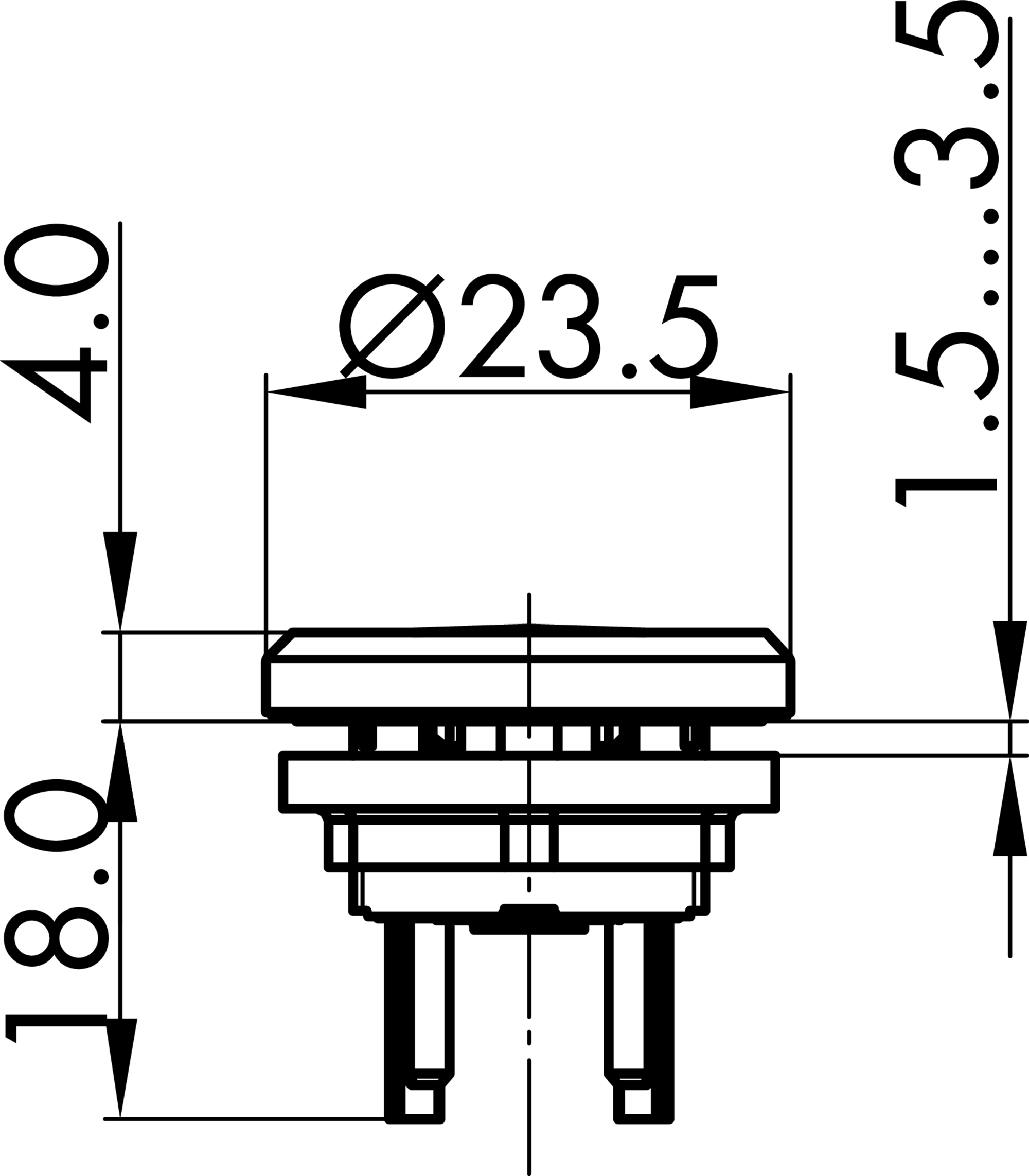

Technical sketches

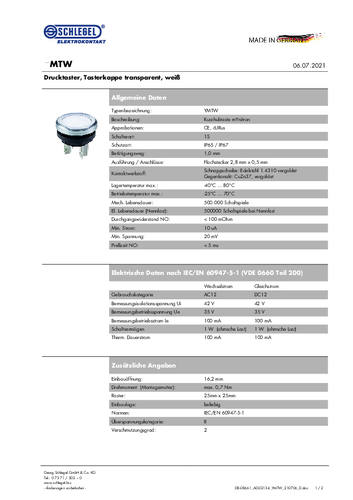

Documents
